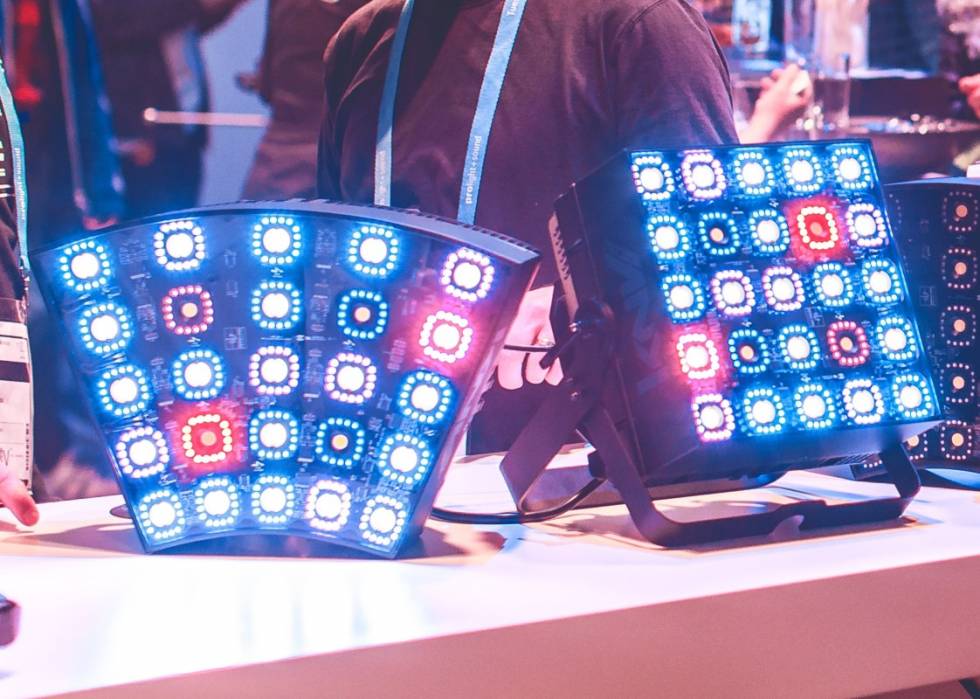

The KNV system from GLP brings a whole new dynamic to entertainment lighting, groundbreaking in both design and functionality. The two variants, the KNV Cube and the KNV Arc, work as independent units or combine seamlessly together, providing a whole new level of versatility and freedom in design, all in an outdoor rated housing.

A multi functional fixture, the KNV system is equally happy being used as a pixel mapped surface, strobe, blinder, washlight, and more.

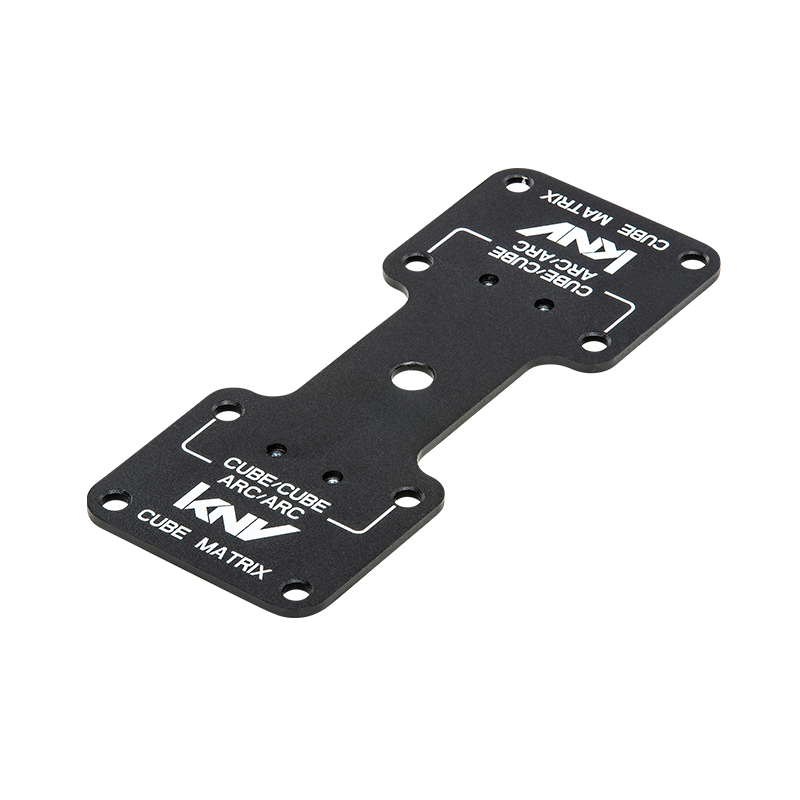

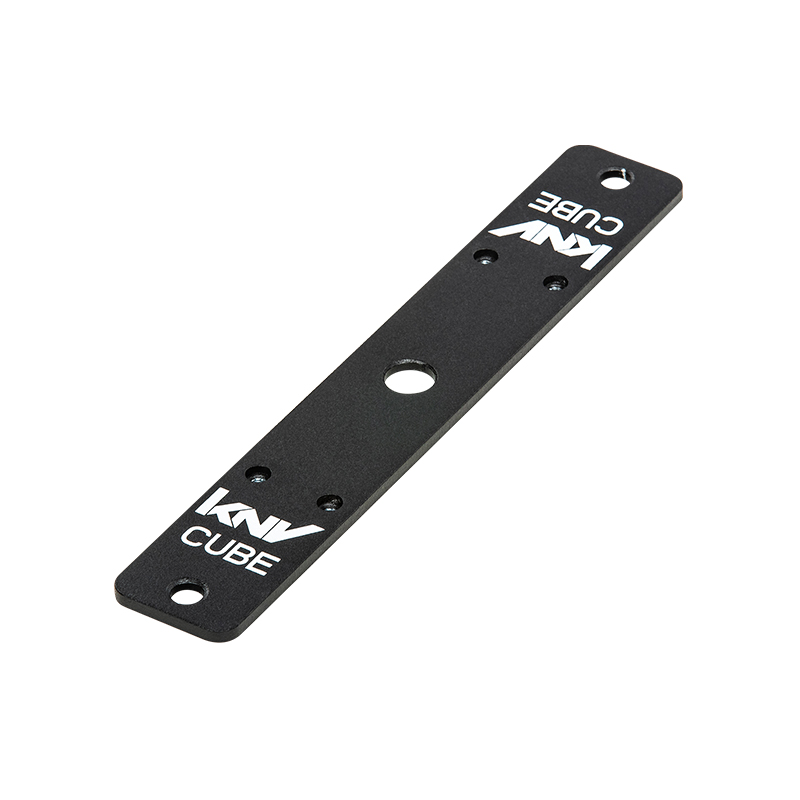

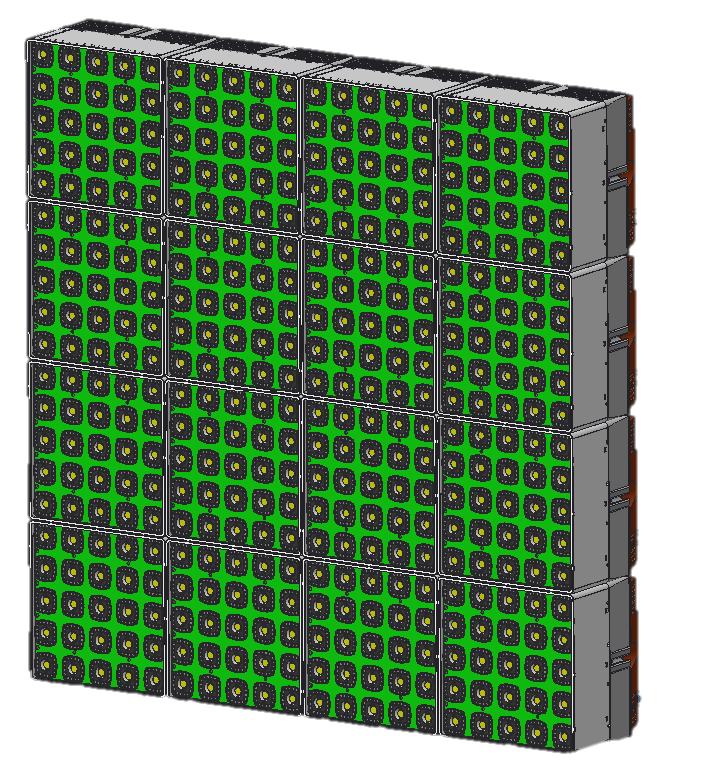

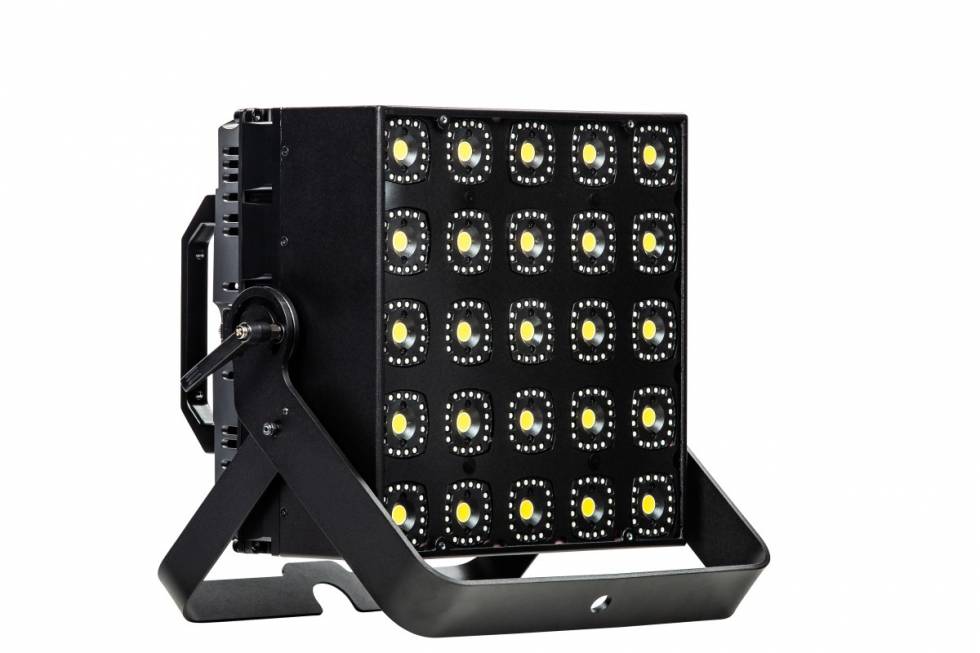

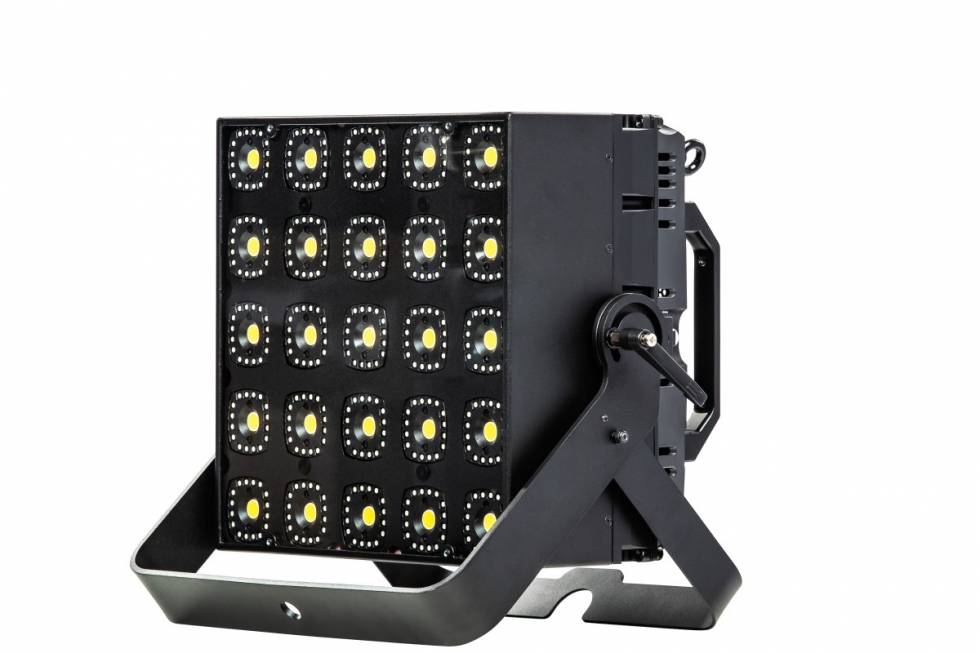

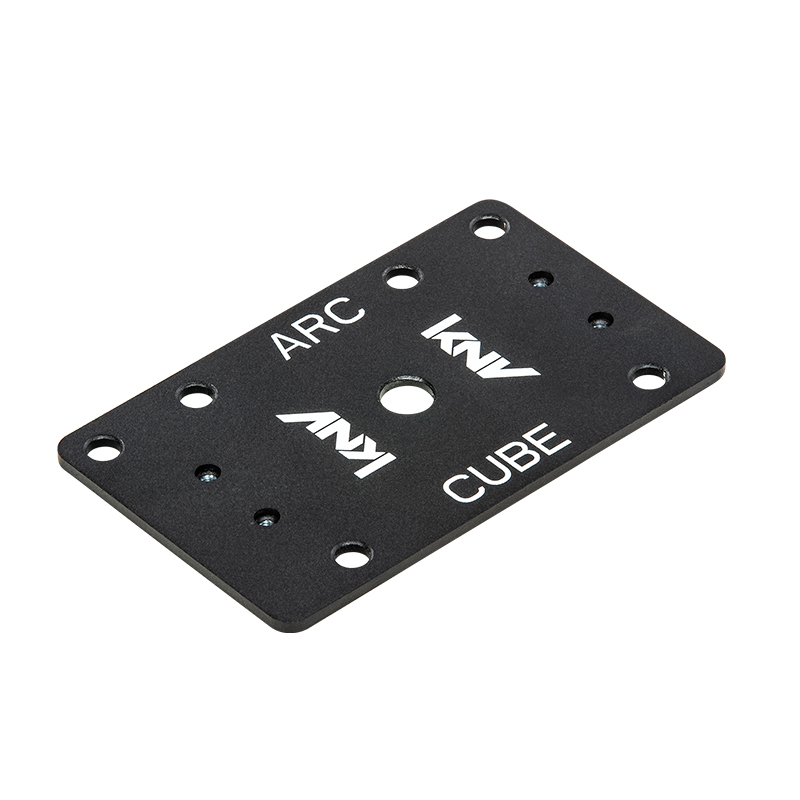

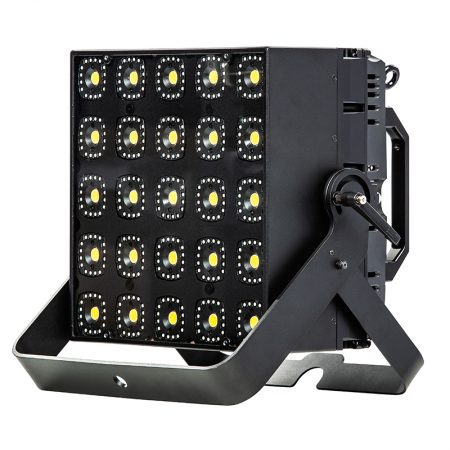

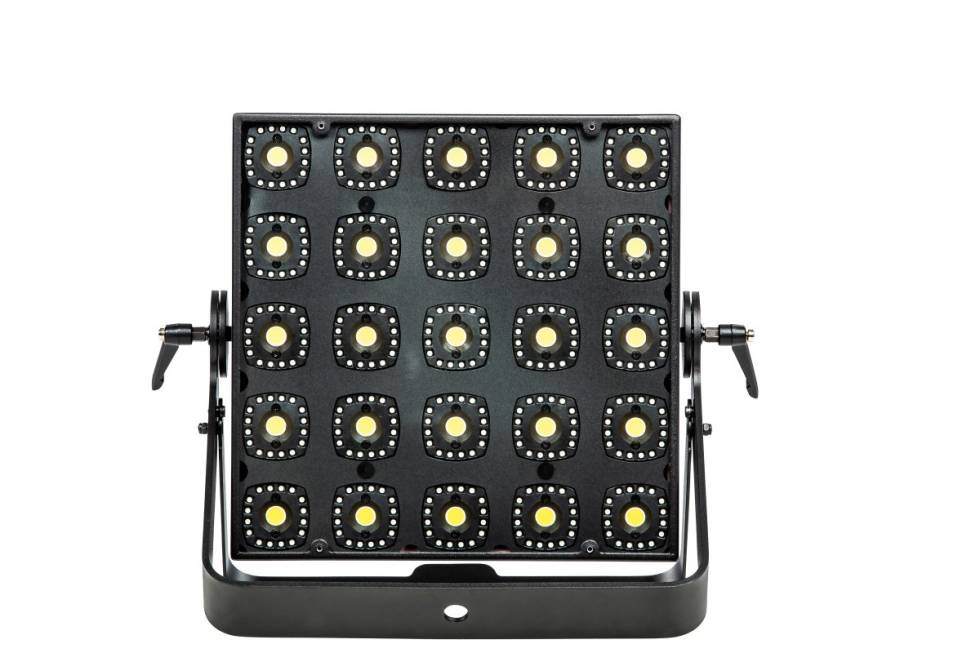

The KNV Cube features a square body with a 5 by 5 design of LED pixels. Its design allows fixtures to be hung individually or combined together through a fast quick locking system, which can create larger shapes and forms. Each of the 25 pixels contains a super bright white LED, encircled by 16 RGB LEDs. Independent control over both the white LEDs and the RGB LEDs, allows for the creation of a vast array of effects with both a full color pallet and added punch when you need it. With 25 pixels in a single unit, each fixture can also be pixel mapped for fluid integration with other visual elements.

The KNV system has an immense output when combining its elements, with each unit capable of producing more than 50,000 lumens, an incredible output for its small, physical size. Utilizing its power to the max, the fixture has been designed to output continuously at full output creating the brightest blinder and wash light effects without ever thermalling out or reducing its output level.

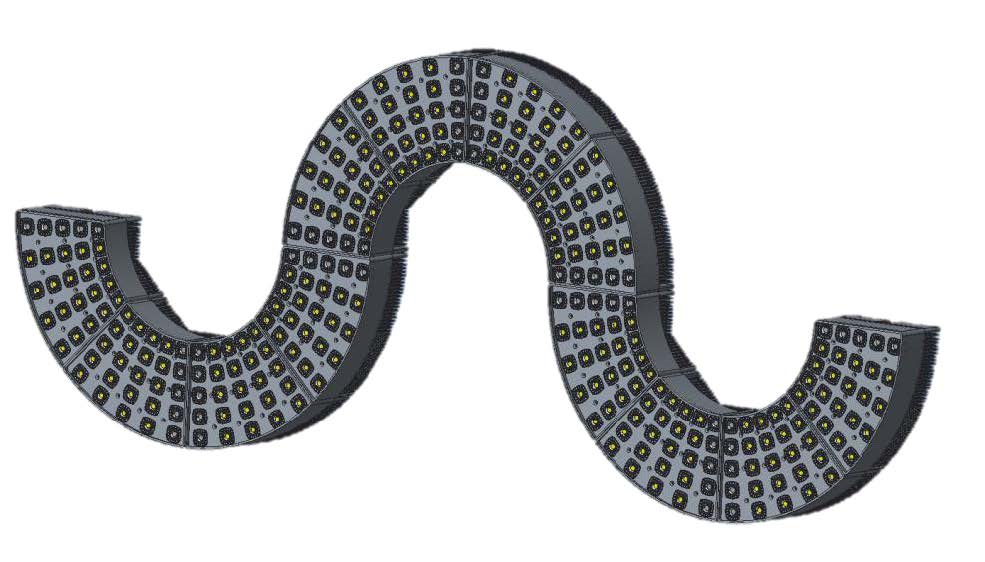

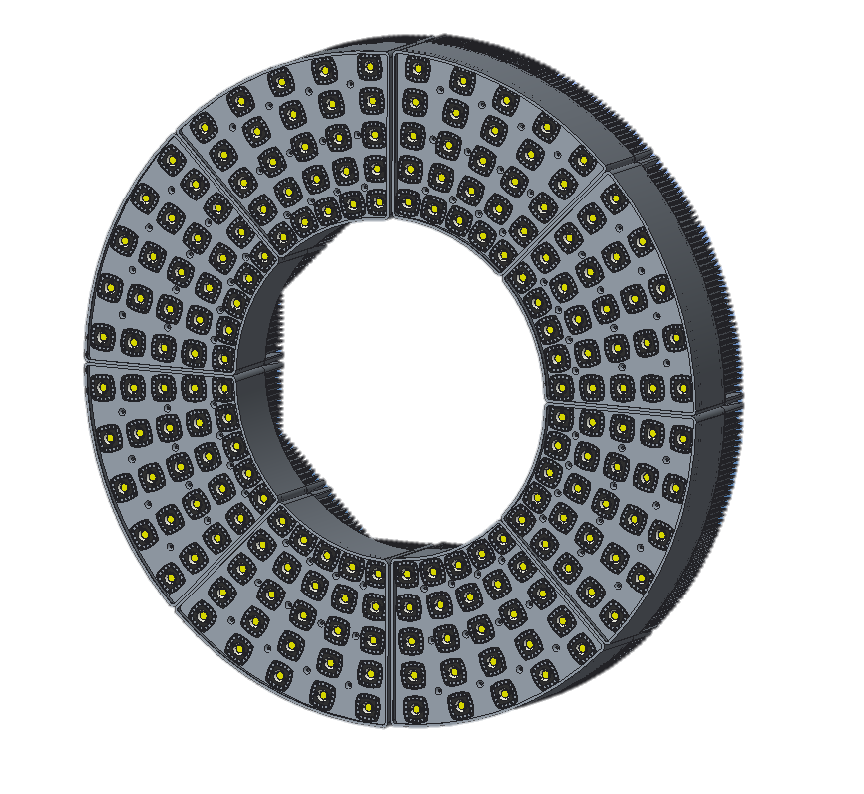

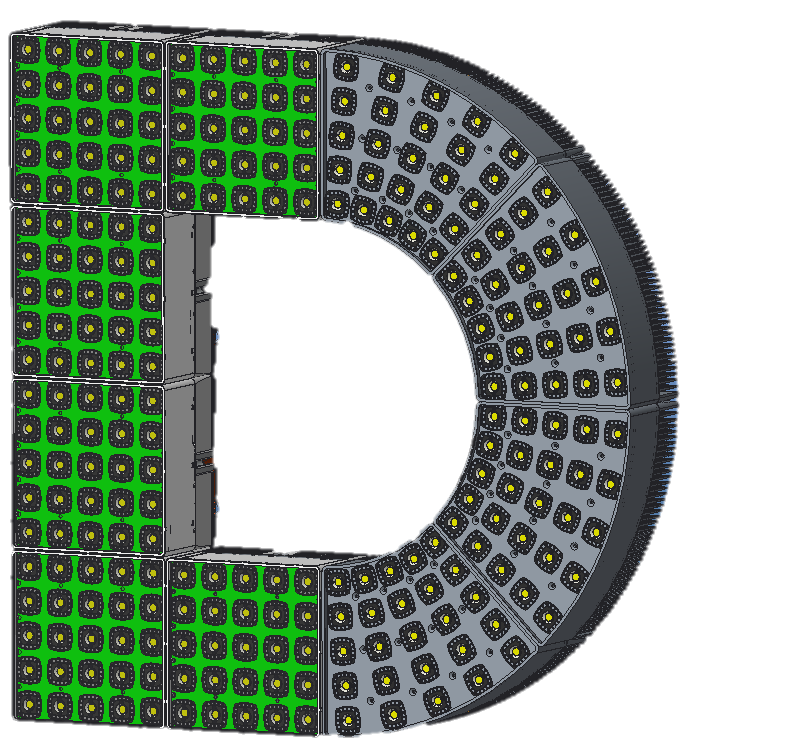

The KNV system, including the Arc, Cube, Line and Dot, can then connect together, allowing an unlimited number of design possibilities and giving options where the lighting elements become scenery and the scenery becomes lighting.

The KNV Cube is IP54 rated, ready for those outdoor summer festivals and all the rain they traditionally bring. Not only that, the IP54 rating allows the units to be used on events year round, in even the toughest of weather conditions.

To allow you to get the most out of the fixture in a fast and simple manner, it comes complete with a massive built-in effects system which has been cleverly configured to work with any format that the units are built to. Via DMX control, you have access to multiple effect layers, each with multiple control options, creating an extremely vast array of options without the need for an additional media server.

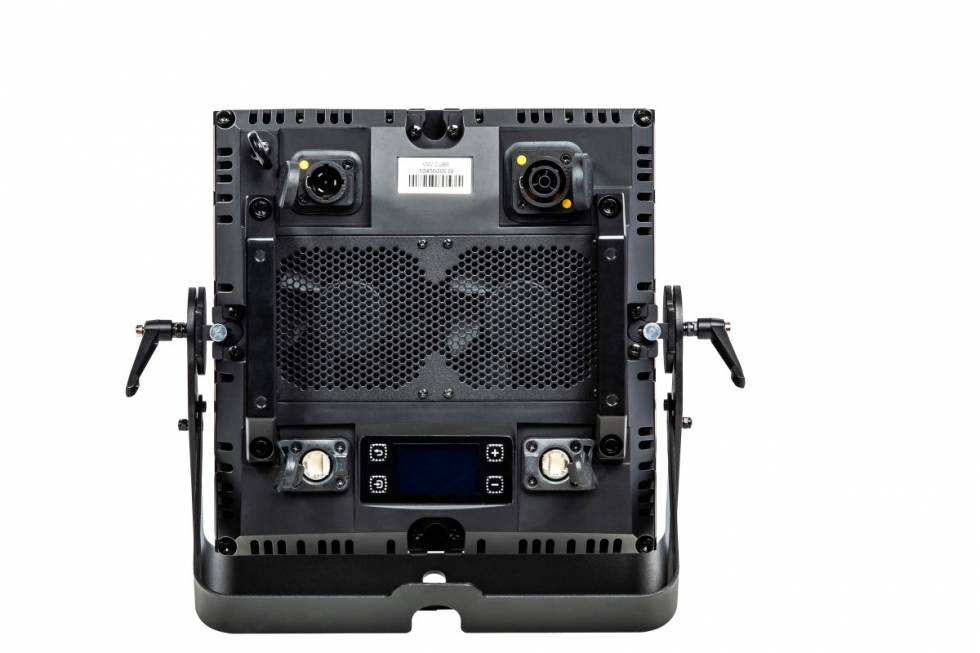

All units in the KNV system feature Neutrik True1 power in and out connectors, along with Ethernet in and out for data. A full range of PWM settings ensure flicker free operation in any setting, along with the option to operate the LEDs in either 8 or 16 bit.

The KNV system from GLP; a new mighty powerhouse.



Contact us for more on the KNV System

Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

Light Source

  • 25 hyper bright 30 W, white LED, each surrounded by 16 x 0.5 W RGB LEDs
  • 50,000 lumens



Control

  • Protocols: DMX 512, ArtNet, sACN
  • 7 Control Modes: 7 channel, 10 channel, 23 channel, 35 channel, 40 channel, 56 channel, 102 channel, 202 channel
  • Variable PWM, up to 38 kHz



Effects

  • 16 bit RGBW color mixing
  • 16 bit electronic dimming
  • Variable strobe: intensity, flash rate, flash duration



Connectors

  • Power: Neutrik True1 input and output
  • Data: Neutrik Ethercon input and output



Operating Conditions

  • Mains voltage
    • Auto sensing 100 – 240 VAC / 50 – 60 Hz
  • Power (Watt @ 230 V): 750 W
  • IP54 rated
  • Maximum ambient temperature: 104°F (40°C)



Mounting Options

  • Floor stand
  • Hanging bracket
  • Any orientation
  • Frameless design allows units to be seamlessly coupled together



Shipping

  • Cardboard box
  • 6-way flight case tour pack



Housing Colors

  • Standard color is black
  • For other colors please contact the sales department



Dimensions

  • (L x W x H)
    • KNV Cube: 7.2 in. x 9.8 in. x 9.8 in. (18.3 cm x 25 cm x 25 cm)
    • With yoke attached: 7.1 in. x 15 in. x 10.5 in. (18 cm x 38 cm x 26.6 cm)



Net Weight

  • KNV Cube: 20.5 lbs. (9.3 kg)

Manual

PDFIconKNV Cube Arc User Manual Rev.B

PDFIconKNV CA User plus Quick Start Safety Manual

DMX

PDFIconKNV CA Channel Layout

CAD

PDFIcon KNV Cube Dimensions

ZIPIcon KNV CAD

ZIPIcon KNV Cube/ Arc vectorworks symbol

Fixture Libraries

ZIPIconKNV Cube/ Arc MA2

Specifications

PDFIcon KNV Arc & Cube Product Card
