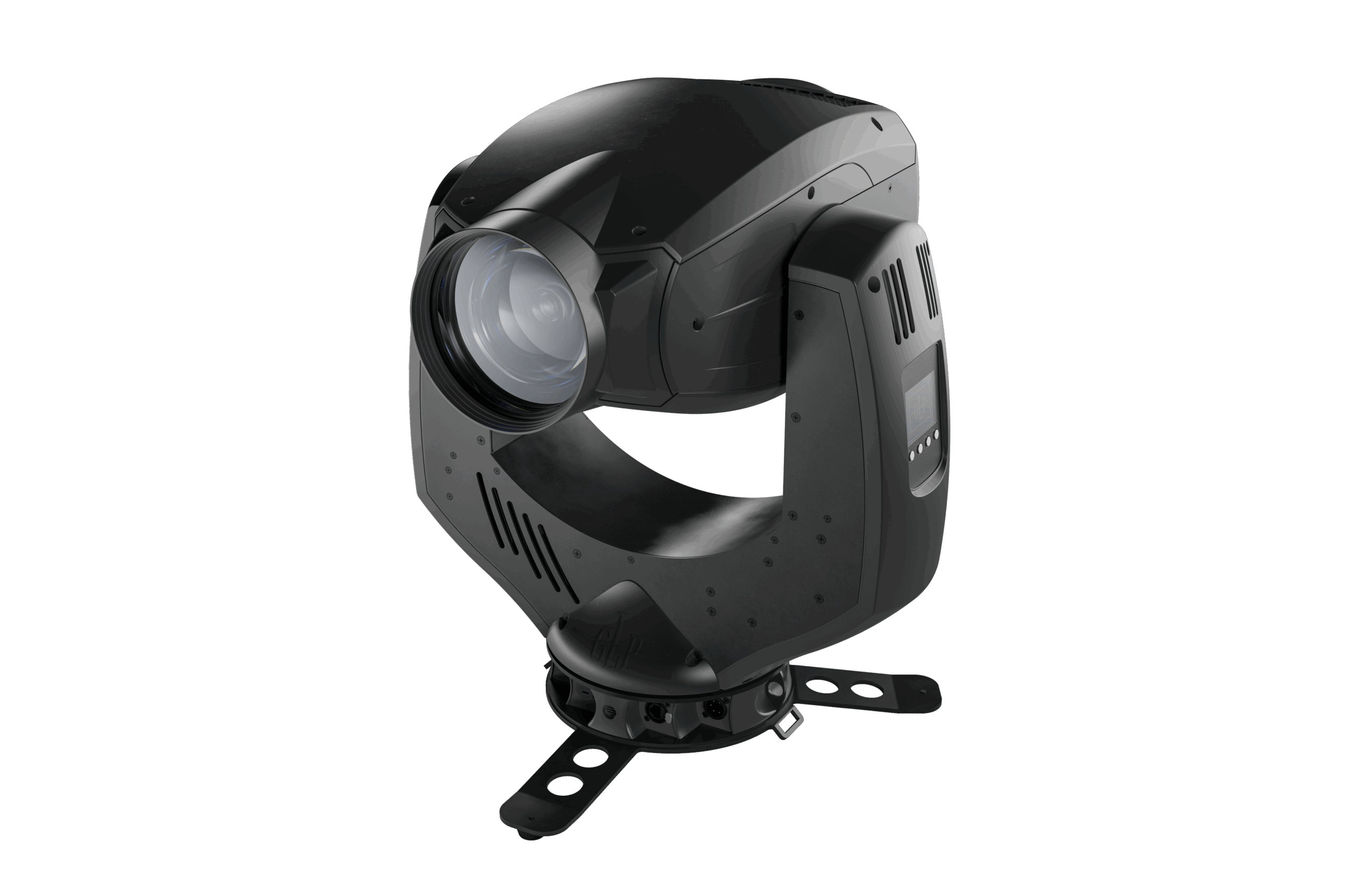

The impression S500 Profile series is available in the following versions:
The Profile HC version features a white LED engine delivering 26,000 lumens at a native 6,000 K. It produces a highly balanced light spectrum for outstanding color rendering (CRI and TLCI above 90). This high light quality ensures natural and realistic skin tones and provides a total luminous flux of 10,700 lumens.
In contrast, the Profile HO version includes a white LED engine delivering 40,000 lumens at a native 7,000 K. The highly efficient light source of the impression S500 Profile HO generates more power for dynamic projections and mid-air effects, with a total luminous flux of 14,800 lumens.
The motorized zoom on both profile versions provides exceptionally homogeneous illumination across a range of 7.5° to 40°.
The motorized zoom on both profile versions provides exceptionally homogeneous illumination across a range of 7.5° to 40°. Additionally, the extensive feature set includes a CMY color mixing system, an innovative CTC color control system, a color wheel with 10 color filters plus open, a rotating gobo wheel with 7 gobos plus open, and a static gobo wheel with 10 gobos plus open. It also features a 90° adjustable animation wheel, a blendable frost system ranging from soft to medium, a precise framing system with four shutter blades, including tilt and framing rotation, a rotating 8-facet prism, and motorized 540°/565° pan and 256° tilt movement.
The compact IP20 housing weighs just 26.9 kg (57.4 lbs.) and supports quiet operation, making the fixtures perfect for demanding professional applications in TV studios, theaters, or musical shows.
| Part. No. |
Name |
|
7950
|
GLP impression S500 Profile HC
|
|
7955
|
GLP impression S500 Profile HO
|
Light Source
- Type: White LED (HC Version: High Color Rendering Spectrum | HO Version: High Output Spectrum)
- Lifetime: 20,000 h
- Color Temperature Light Source: HC Version: 6,000 K | HO Version: 7,000 K
- CRI (Ra): HC Version: 95+ | HO Version: 70, with CRI filter: 90
- TLCI: HC Version: 90+ | HO Version with CRI filter: 80+
Optical System
- Output: HC Version: 10,700 lm | HO Version: 14,800 lm
- min. Zoom: 7.5°
- max. Zoom: 40°
- Zoom Ratio: 1:6
- Focus: 16 bit
- Focustracking: optional
- Front Lens Diameter: 140 mm / 5.5 in
Dynamic Effects
- Color Mixing: CMY, 8 bit, variable 0 – 100 %
- CTC: variable 2,500 – 8,000 K, using CMY System
- Color Wheel: 10 static + open | 7 fix | 4 spectral filter
- Zoom: 8 bit
- Dimmer / Shutter: 0 – 100%, electronical, 16 bit
- Framing: 4 separately movable shutters | +/-30° positionable | 100% positionable into the beam | +/- 45° rotatable module
- Frost: 2-way, fadeable | soft to medium
- Prism: 8-way, rotatable
- Animation Wheel: rotating with wave pattern
- Gobo-Wheel: 7 rotating + open
Control and Programming
- DMX Channels: 35
- Control Modes: 1
- High-Res Channels: Dimmer | Pan | Tilt | Focus
- Dimming Curves: linear | soft | S-Curve
- Performance Modes: Fast | Normal (Balanced) | Smooth
- Fan Modes: regulated | high | medium | low
- PWM: Optimal | High 1 | High 2 | Max
- Setting & Addressing: backlit graphic LCD | 4 Button Menu Navigation | DMX | RDM
- No Signal: Blackout | Hold | Stand Alone Scene
Connections
- Power Input: Neutrik powerCON TRUE1 In/Out
- Signal Connection: Neutrik XLR 5-Pin In/Out | Neutrik etherCON port A & B (failsafe)
Construction
- Housing Material: high-impact flame-retardant thermoplastic | aluminum | steel metal plates
- Protection Rating: IP20
- Construction Features: Tilt-Lock-System | Multicolor Display | Baseless Design
Electrical Specifications
- Power Input: 100 – 240 VAC / 50 – 60 Hz
- Power Supply Unit: auto-ranging electronic switch-mode
- max. Power (@ 230 V): 750 W
Installation
- Orientation: any
- Min. distance to combustible materials: 0.1 m
- Min. distance to illuminated surfaces: 1.0 m
Movement
- Pan: 540°, 16 bit | extended: 565°
- Tilt: 256°, 16 bit
Shipping
- Single Fixture: carton
- Tourpack: 2-way | Flightcase | Omega Brackets
Thermal Specifications
- Overheating Protection: automatic
- Min. Ambient Temperature: 5 °C / 41 °F
- Max. Ambient Temperature: 45 °C / 115 °F
- Total Heat Dissipation: 2,600 BTU/hr
Dimensions & Weight
- Height: 651 mm / 25.63 in
- Width: 472 mm / 18.58 in
- Depth: 230 mm / 9.06 in
- Weight (net): 26.9 kg / 59.3 lbs.
