The Cosmic Truss U-Torm is a flexible solution to hanging drop positions for lighting fixtures. As well as projection or other equipment in a completely modular design. The U-Torm is available in two standard sizes. But can be built upon and customized using the standard Cosmic Truss F31.

SKU: U-TORM 50 & U-TORM 100 Categories: , Tags: , , , , ,

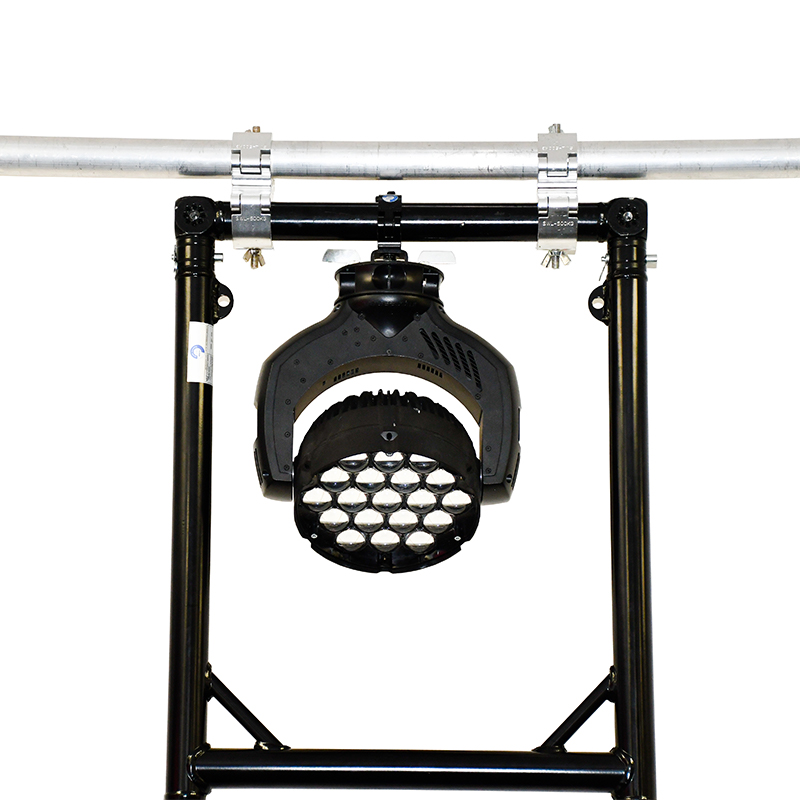

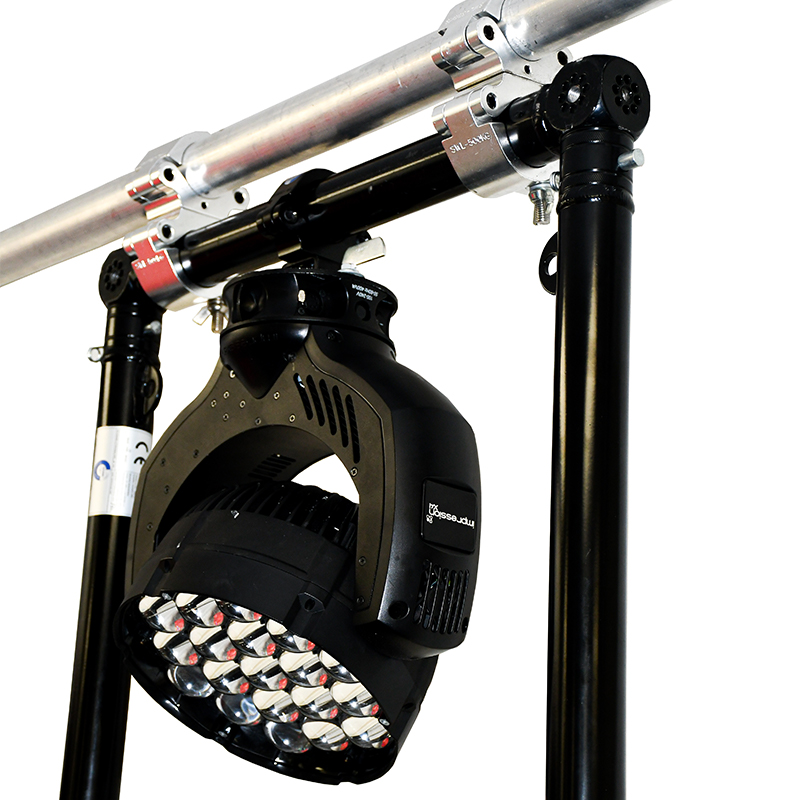

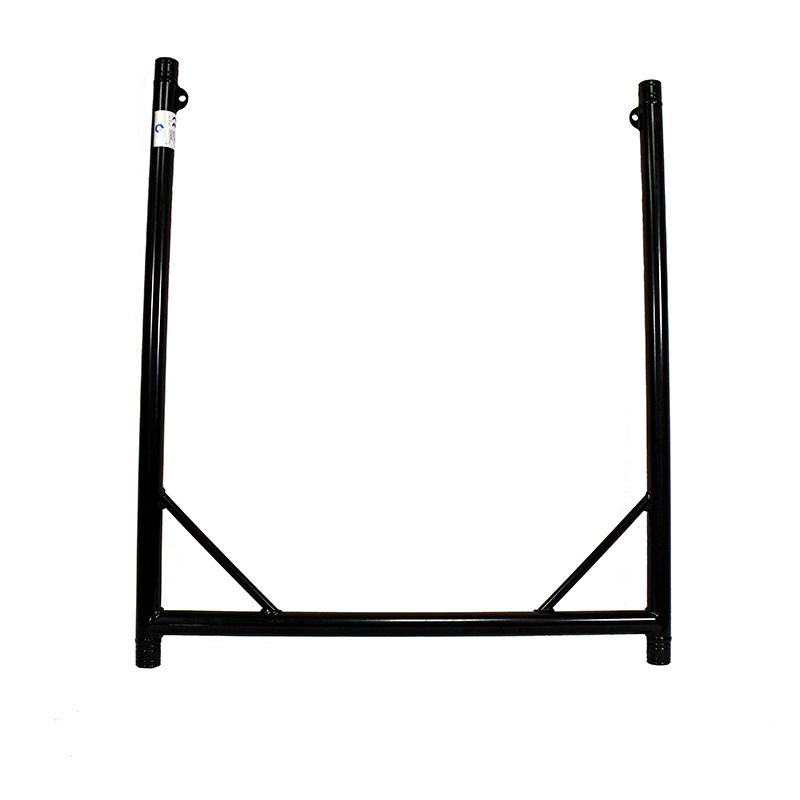

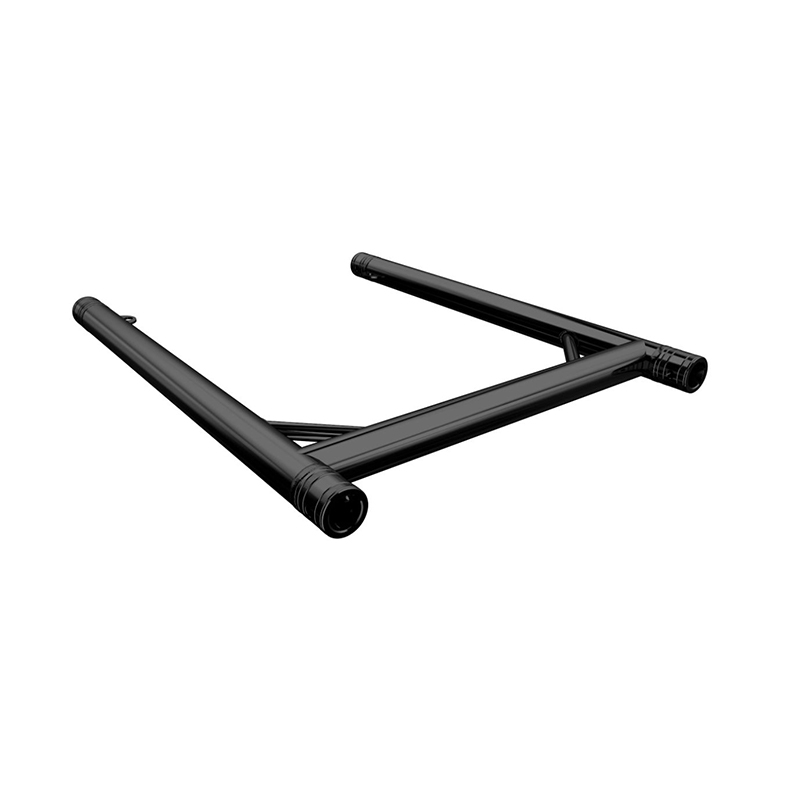

The U-Torm from Cosmic Truss, is a flexible and lightweight solution for hanging drop positions for lighting, projection and other equipment in a modular format.

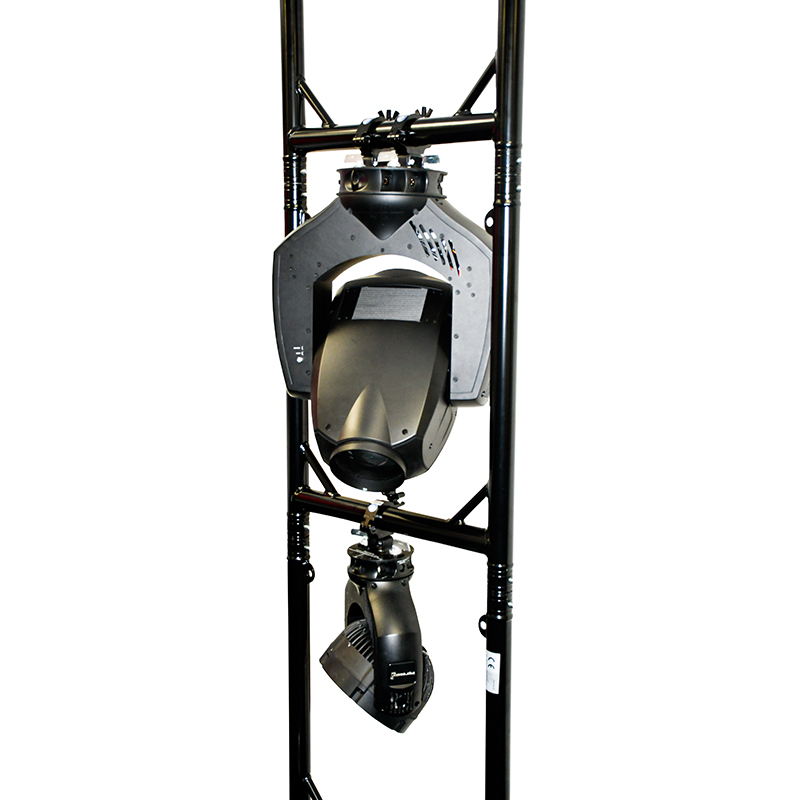

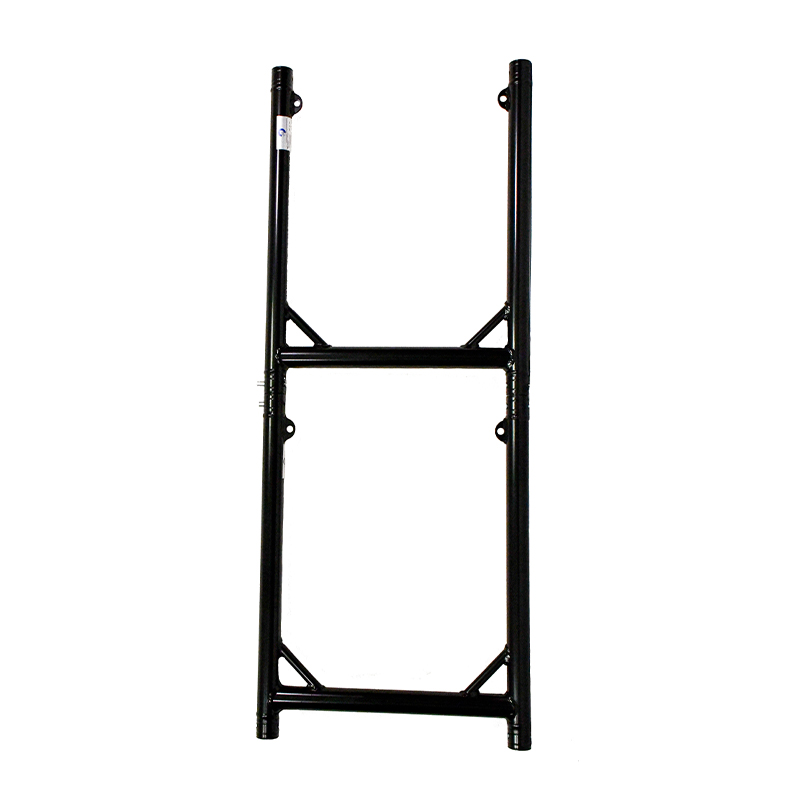

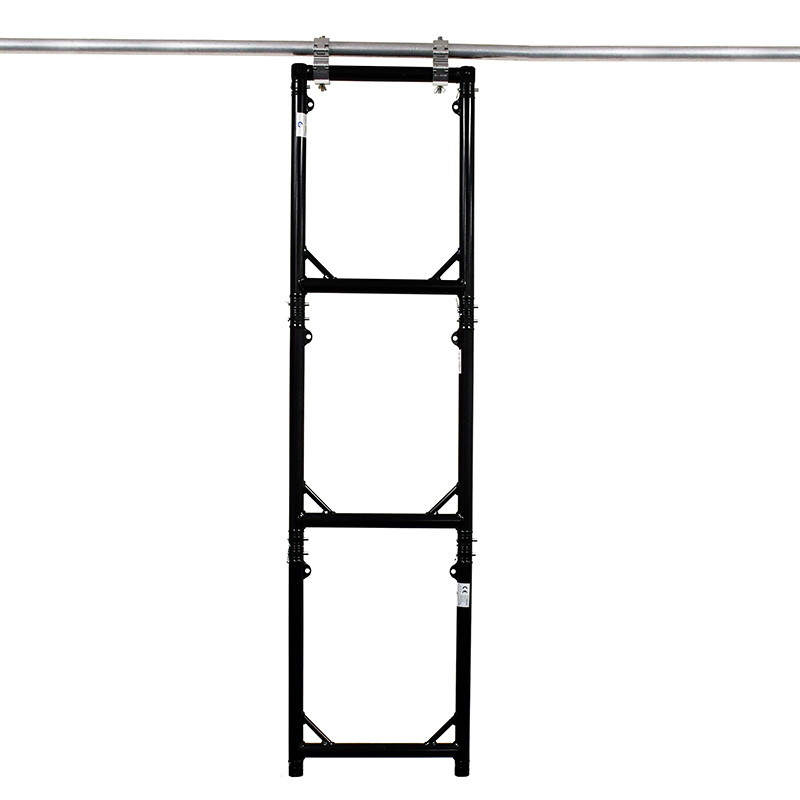

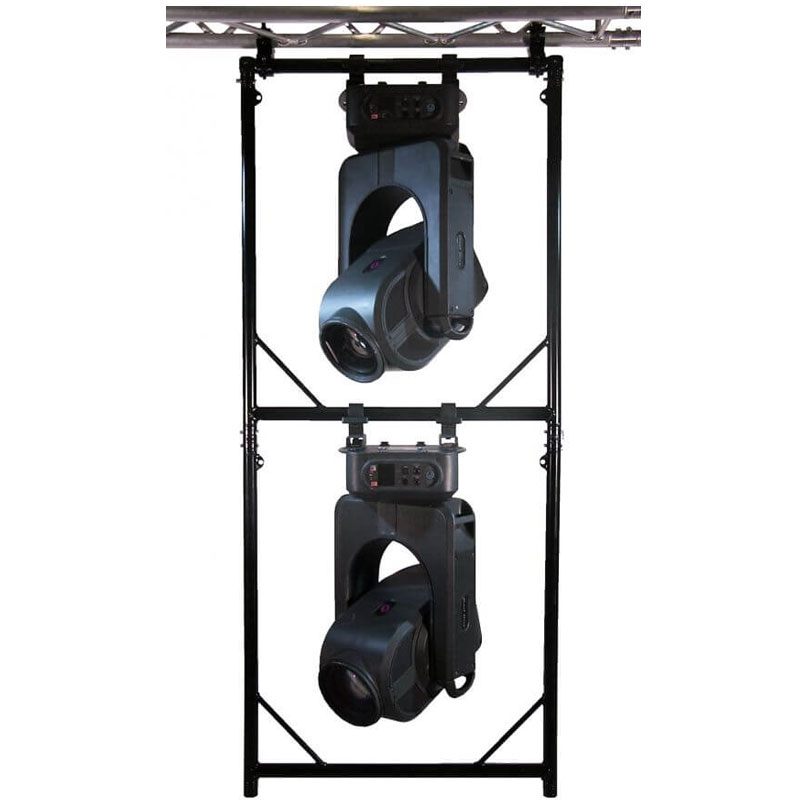

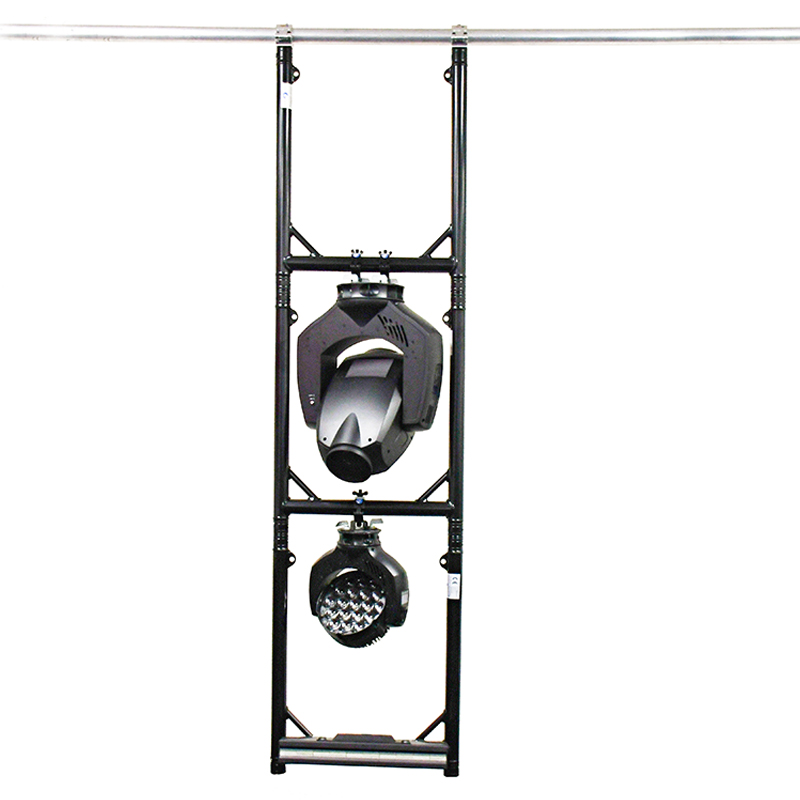

Comprised of lightweight modules and sections, the unique truss design allows endless configurations for single fixtures, double hangs or ladders of multiple fixtures, which can also be expanded to create a wall of hanging positions.

The U-Torm is available in two standard sizes. But can be built upon and customized using the standard Cosmic Truss F31 range of 2″ pipes, T sections, spigots, and corner adapters. These all fit seamlessly into the U-Torm allowing you to create hanging positions or structures in an unlimited variety of combinations.

The U-Torm system has been designed for quick deployment and take down in any environment. For both sizes, the lightweight aluminum construction design is reinforced to provide added durability and stability.

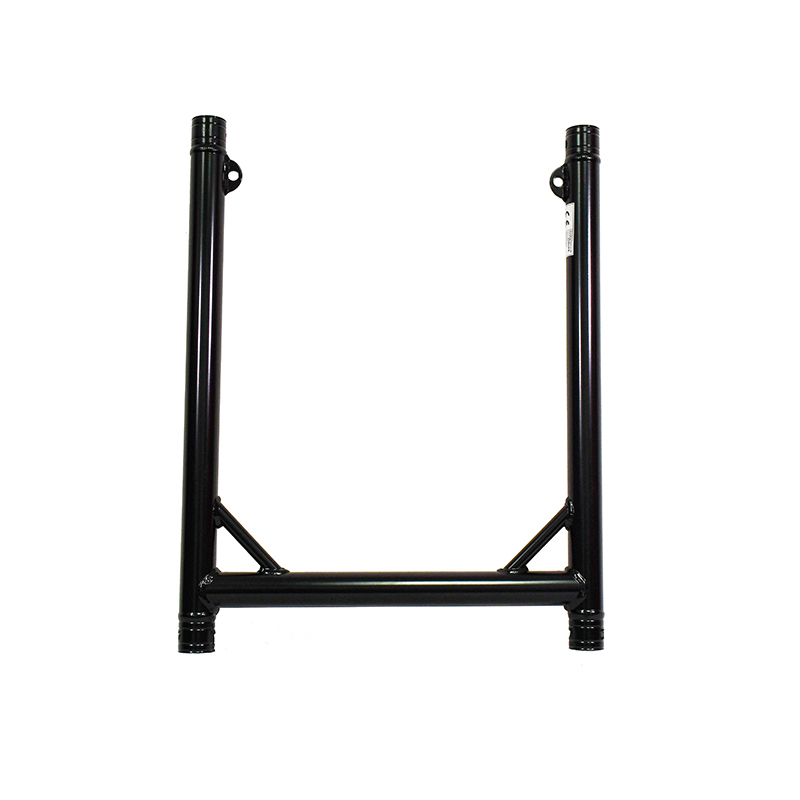

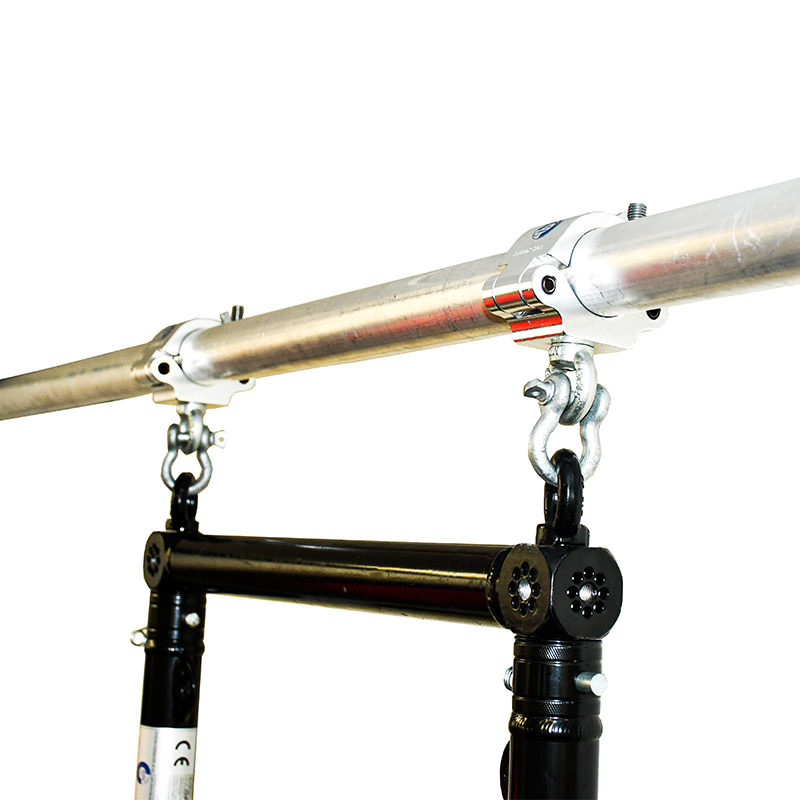

Handy safety point attachments are fitted on each side of the U-shaped construction to cater for multiple fixture types.

The U-Torm 50 is capable of taking center points load of 110 lbs (50 kg). Additionally if hung in a ladder configuration it is possible to mount up to ten fixtures.

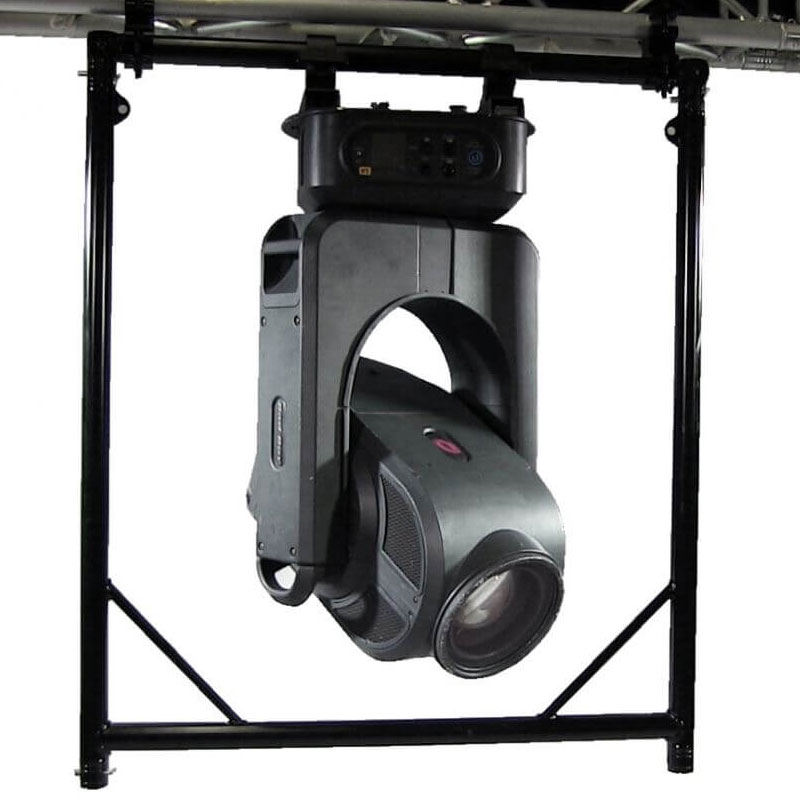

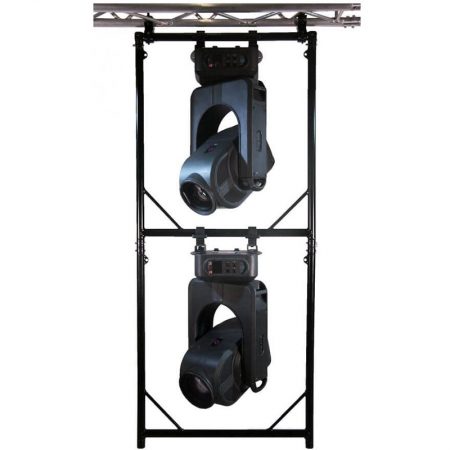

The larger U-Torm 100 is able to take a center load of up to 220 lbs (100 kg). And up to five units can be mounted in a ladder formation.

U-Torm brackets are available in a natural aluminum or black finish as standard. As well as  other colors can be provided on request.

Contact us for more on U-Torm by Cosmic Truss

Want to stay up to date with the latest from Cosmic Truss?
Click the link here to sign up for the Cosmic Truss mailing lists

U-Torm 50:

  • Dimensions (W x D x H)
  • Outer Dimension
    • 23.6″ x 2″ x 29.9″   (60 cm x 5 cm x 76 cm)
  • Inner Dimension
    • 19.7″ x 2″ x 25.6″   (50 cm x 5 cm x 65 cm)
  • Weight: 8.1 lbs.  (3.7 kg)
  • Center point loading: 110 lbs.  (50 kg)
  • Maximum hung U-Torm units: 10
  • EN AW 6082-T6 aluminum alloy
  • Conical connecting element with pin and safety clip (2 included)

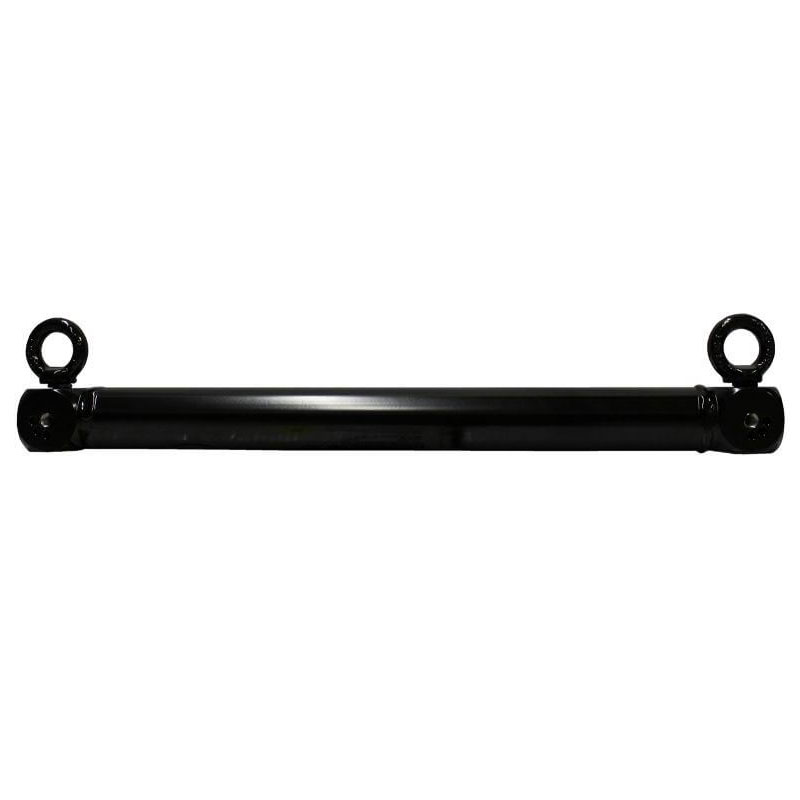

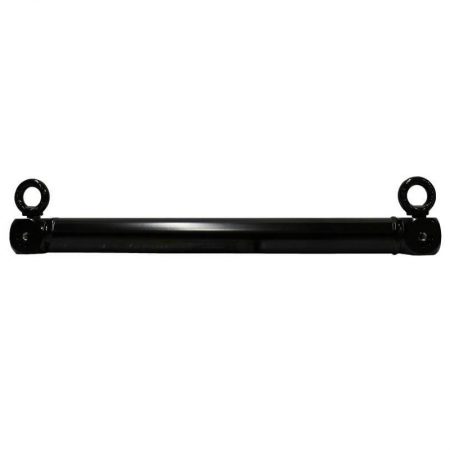

U-Top 50:

  • Dimensions with eyebolt (W x D x H):
    • 23.6″ x 2″ x 4.3″  (60 cm x 5 cm x 11 cm)
  • Weight: 4 lbs.  (2 kg)
  • Center point loading: 110 lbs.  (50 kg)
  • EN AW 6082-T6 aluminum alloy
  • Conical connecting element with pin and safety clip (2 half conicals included)


U-Torm 100:

  • Dimensions (W x D x H)
  • Outer Dimension
    • 43.3″ x 2″ x 49.2″   (110 cm x 5 cm x 125 cm)
  • Inner Dimension
    • 39.4″ x 2″ x 44.9″  (100 cm x 5 cm x 114 cm)
  • Weight: 12.6 lbs.  (5.7 kg)
  • Center point loading: 220 lbs.  (100 kg)
  • Maximum hung U-Torm units: 5
  • EN AW 6082-T6 aluminum alloy
  • Conical connecting element with pin and safety clip (2 included)


U-Top 100:

  • Dimensions with eyebolt (W x D x H):
    • 43.3″ x 2″ x 4.3″  (110 cm x 5  cm x 11 cm)
  • Weight: 5 lbs.  (2.3 kg)
  • Center point loading: 220 lbs.  (100 kg)
  • EN AW 6082-T6 aluminum alloy
  • Conical connecting element with pin and safety clip (2 half conicals included)
