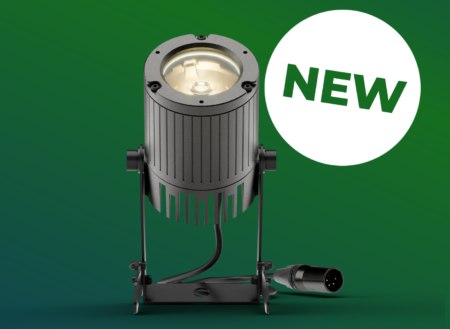

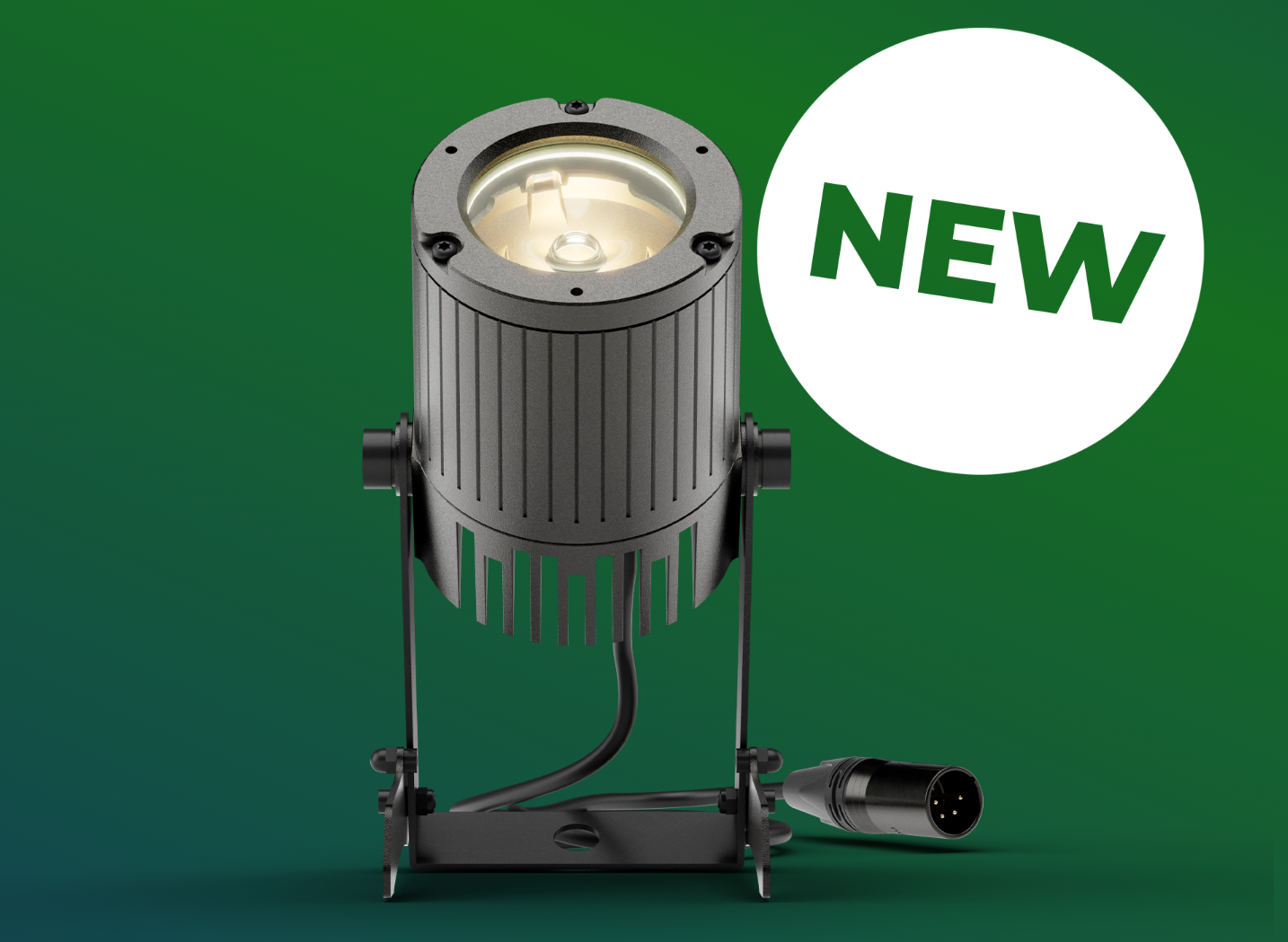

The TW Dot Pinspot brings precise, high-quality white light to the compact GLP Dot platform.
Using the same tunable-white technology as the TW Dot Wash, it delivers a flexible range of warm and cool white tones with excellent color rendering. Its narrow, fixed beam is designed for applications where accuracy and control are essential, allowing individual objects, tables, products, architectural details or scenic elements to be highlighted without illuminating the surrounding area.
Built into the familiar Dot housing, the TW Dot Pinspot can be easily combined with the X5 Dot Wash and TW Dot Wash within the same system. Shared power, data and control options make it simple to select the right fixture for every position while maintaining one consistent platform.
Where the TW Dot Wash provides flexible coverage, the TW Dot Pinspot delivers precise isolation.
Compact design. Tunable white. Pinpoint control.
Light Source
- Type: Main: wW/cW LED
- Count: Main: 1
- Power: Main: 10 – 20 W
- LED Refresh Rate: 3 kHz
- CT Range: 2,800 – 5,800 K
- CRI (Ra): 4,300 K: 94 | 2,800 K: 97
- TLCI: 96
- TM-30-15: 90 / 100
Optical System
- Total Output: up to 700 lm
- Beam Angle: 7°
- Front Lens Diameter: 50 mm / 1.96 in
- CT: wW: 2,800 K | cW: 5,800 K | combined: 4,250 K
Dynamic Effects
- Dimmer / Shutter: 0 – 100%, 16 bit
- Shutter Frequency: 0.085 – 25 Hz
Control and Programming
- DMX Channels: 4 | 7
- Control Modes: 2
- Protocols: DMX (USITT DMX512-A) | RDM (ANSI/ESTA E1.20) | GLP iQ.Mesh
- High-Res Channels: Dimmer
- Dimming Curves: square
- Setting and Addressing: DMX | RDM | GLP iQ.Mesh
- Software Update: DMX Link via Dprog | GLP iQ.Mesh | GLP iQ.Tool
Connections
- Power Connection: Combined Power/Date Cable Tail, 750 mm; with XLR 4-Pin connector mail
Construction
- Housing Color: Black
- Housing Material: high-impact flame-retardant thermoplastic | aluminum
- Protection Rating: IP65
Electrical Specifications
- Power Input: 24 – 48 V DC
- Power Supply Unit: external, not included
- max. Power (@ 230 V): 20 W
Installation
- Mounting: combined hanging / floorstand yoke | 2x 3/8″ and 1/4″ 20 UNC thread
- Orientation: any | vertical hanging | horizontal sideway
- Location: Indoor | Outdoor
Thermal Specifications
- Cooling: convection
- Overheating Protection: automatic
- min. Ambient Temperature: -10 °C / 14 °F
- max. Ambient Temperature: 45 °C / 113 °F
- Total Heat Dissipation: 70 BTU/h
Dimensions & Weight
- Diameter without yoke: 67.4 mm / 2.65 in
- Diameter with yoke: 95.4 mm / 3.75 in
- Length without yoke: 95 mm / 3.75 in
- Length with yoke: 150 mm / 5.9 in
