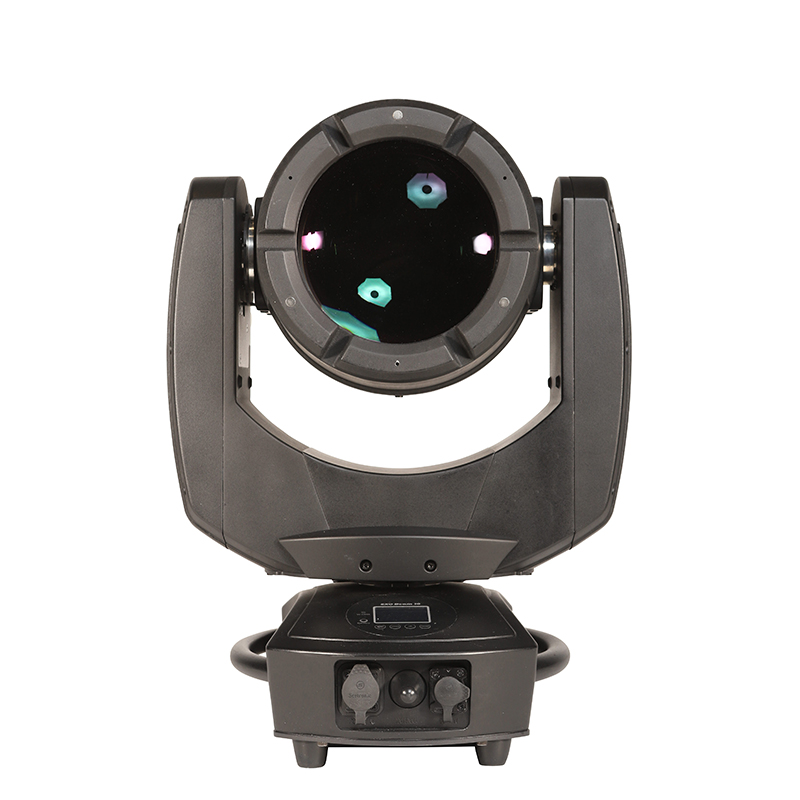

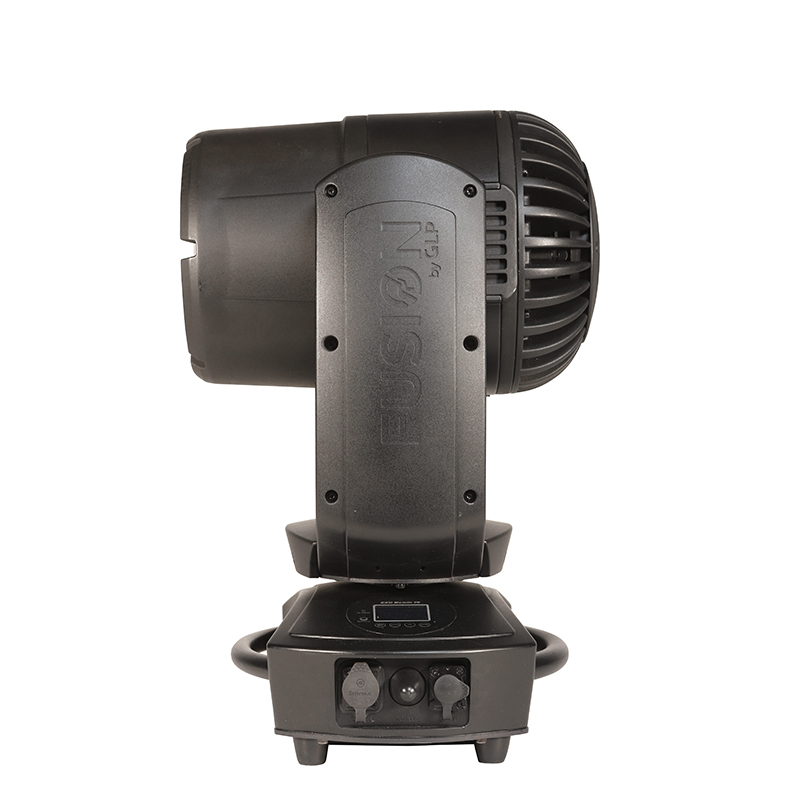

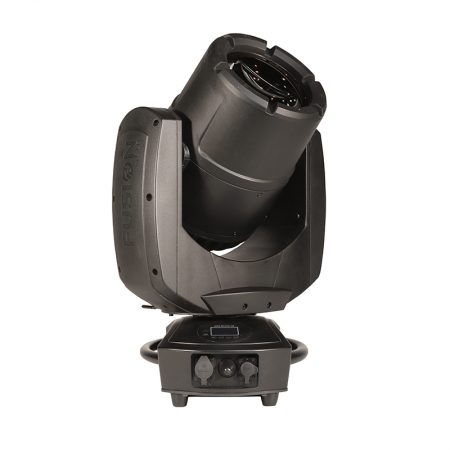

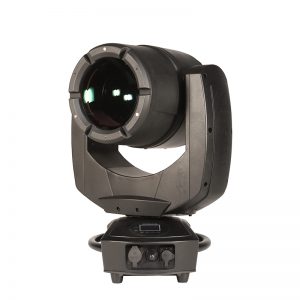

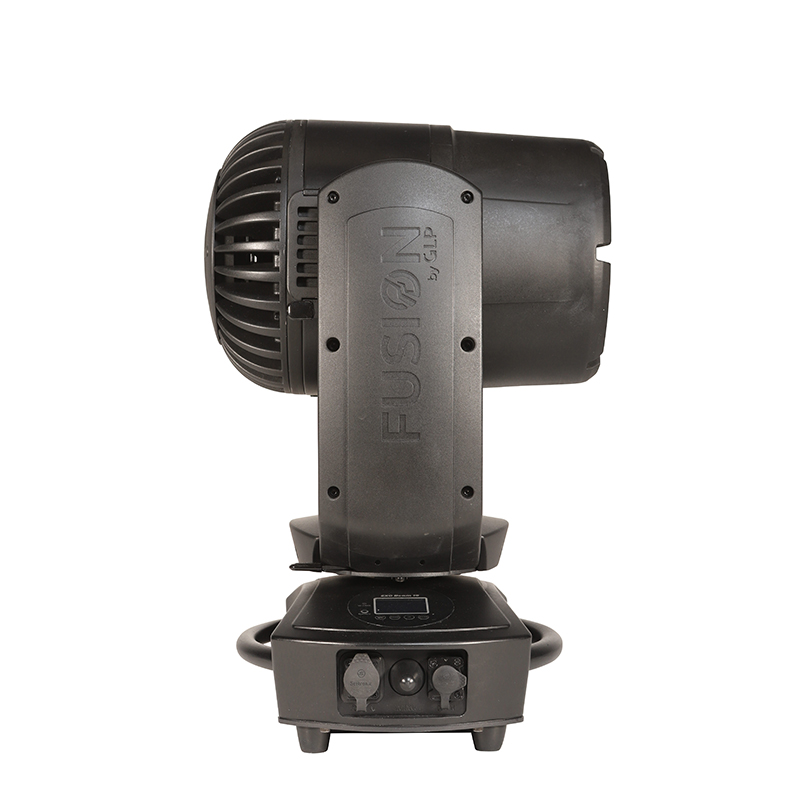

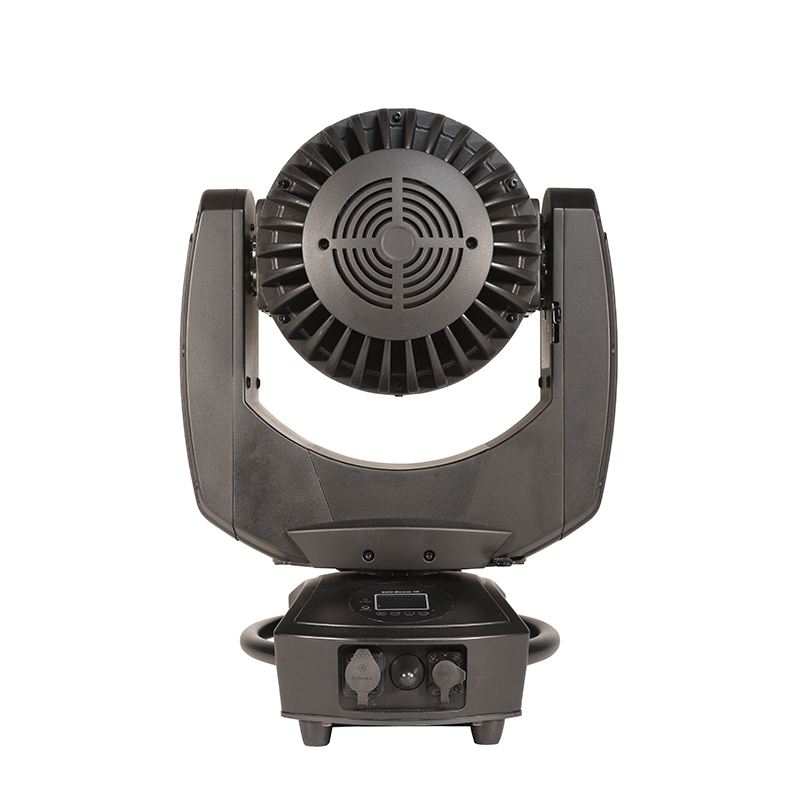

FUSION by GLP’s Exo Beam is a powerful IP65 rated moving head with a beam angle of just 0.1°, generating a sharp beam that can be seen for long distances, using its highly efficient 90 W, 7500 Kelvin white light LED engine.

FUSION by GLP’s Exo Beam is a powerful IP65 rated moving head with a beam angle of just 0.1°, generating a sharp beam that can be seen for long distances.

The Exo Beam features a single, powerful, and highly efficient 90 W, 7500 Kelvin white light LED engine.

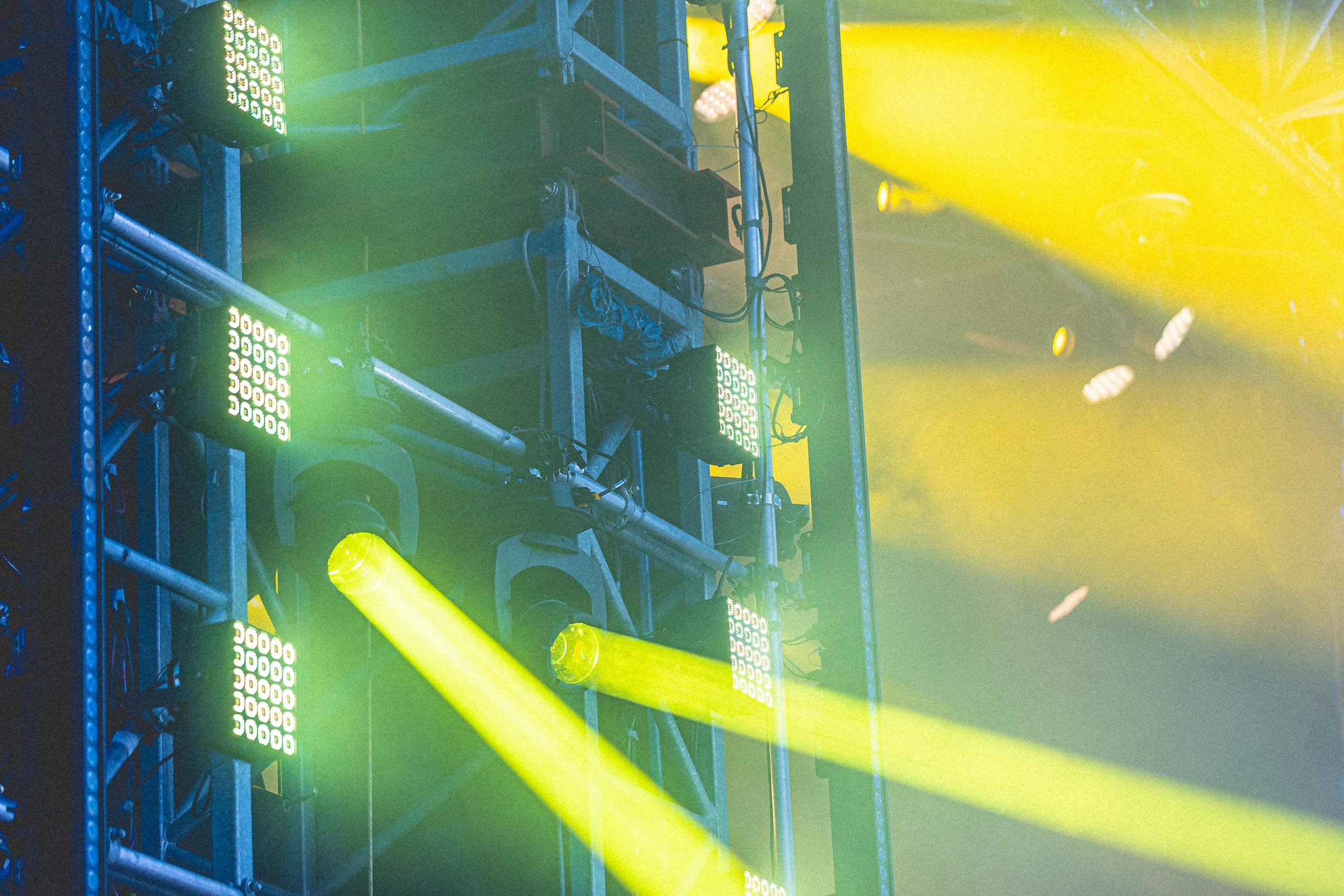

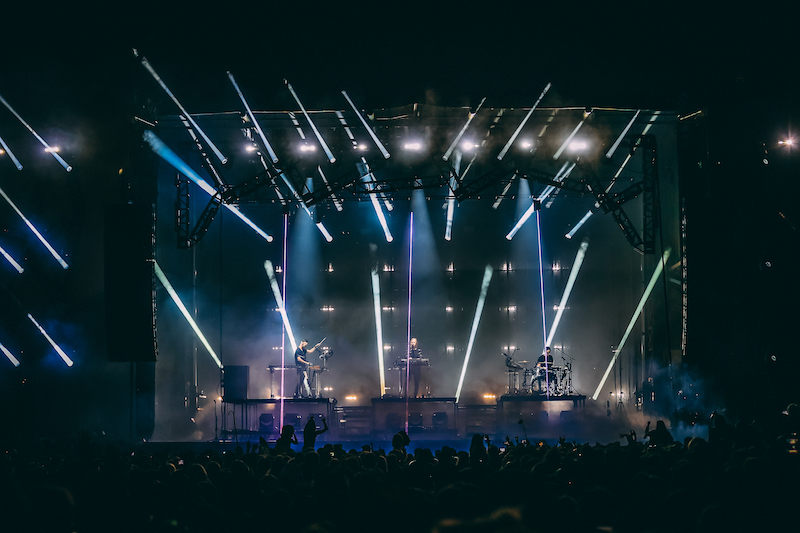

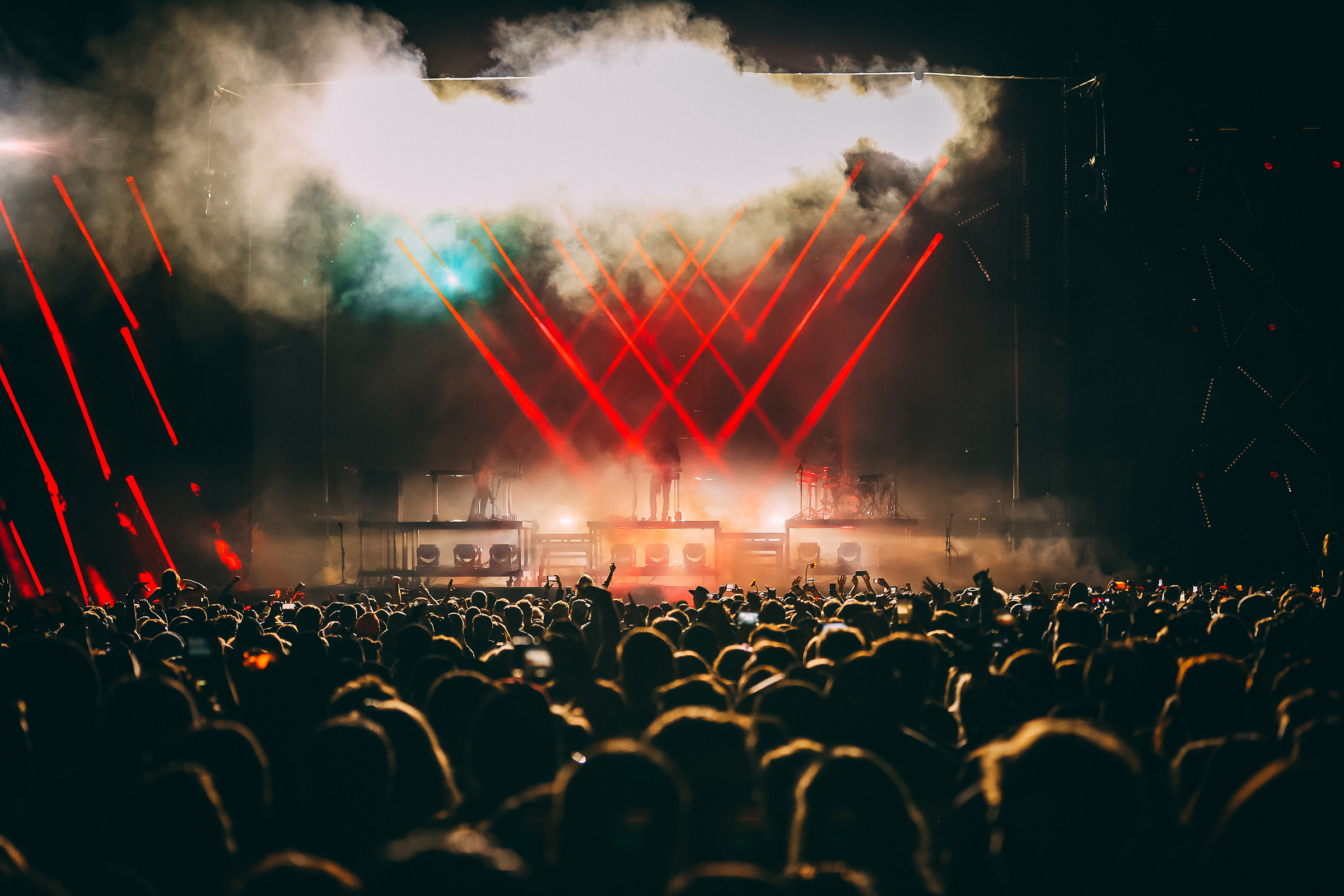

With its 160mm front lens, the fixture features an incredible 0.1° beam angle and a field angle of just 1° along with incredibly fast pan and tilt movements, combining to give incredible mid air effects – either indoor, or out.

The powerful beam fixture comes equipped with a range of additional effects, including two independent rotating prisms that can be used individually, or combined together for stunning aerial effects; a hybrid gobo wheel with both static and rotating gobos; a color wheel with 14 colors; as well as motorized focus, variable speed shutter, and 16 bit pan and tilt movement.

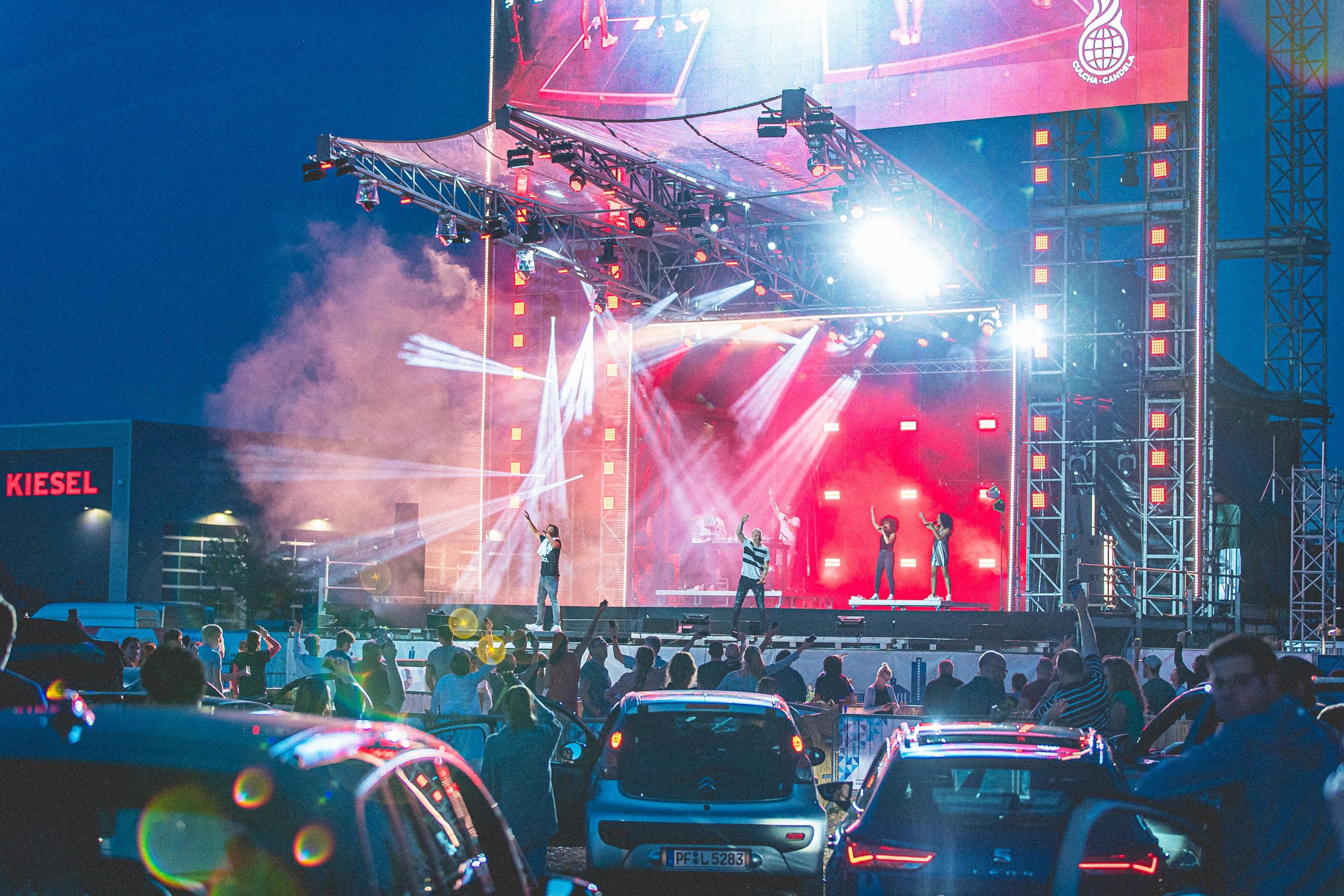

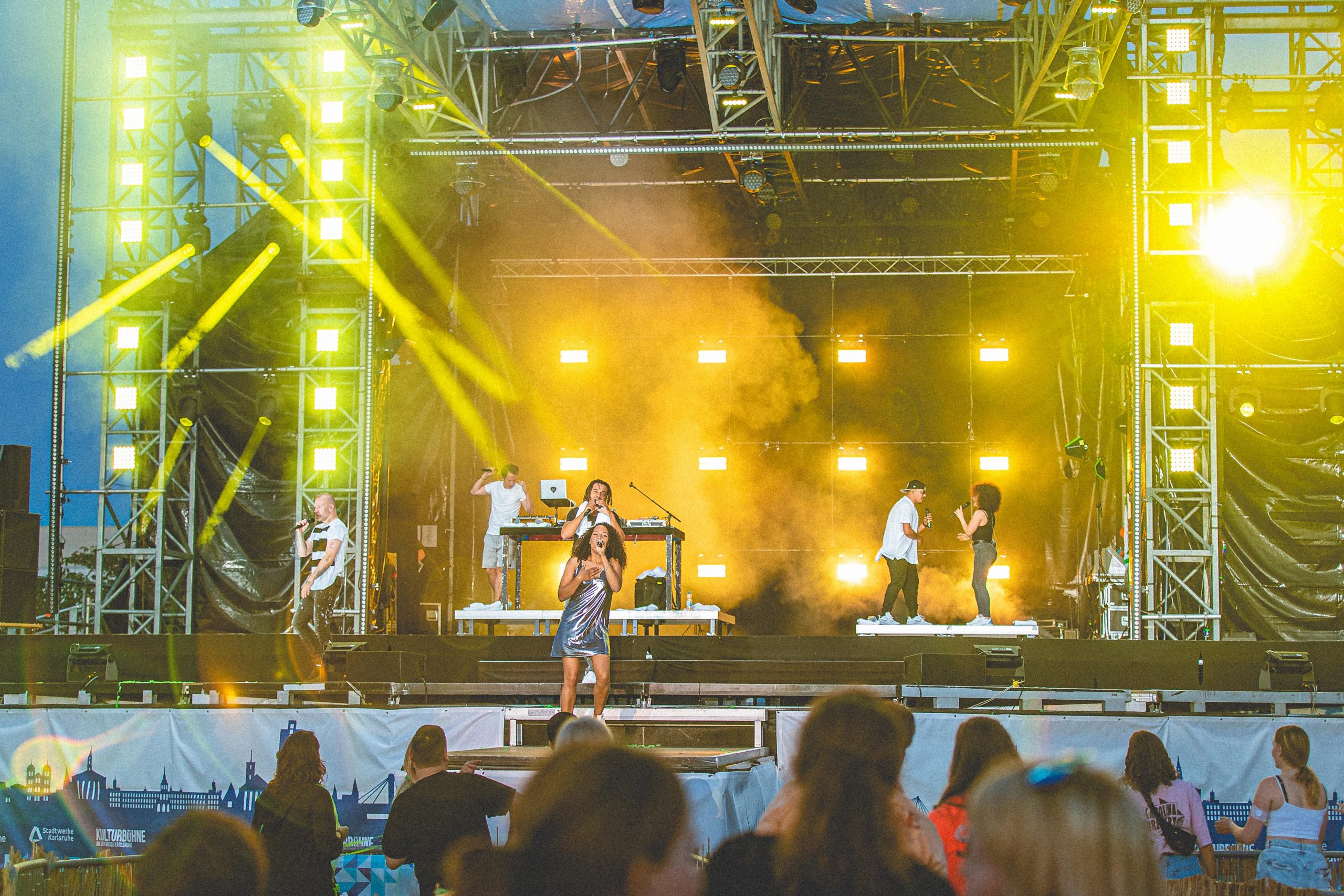

This versatile fixture can operate anywhere in the world and in any orientation with wireless DMX control available as an optional extra. It features a robust die cast housing, which combined with the IP65 rating make the Exo Beam ready for even the worst of outdoor conditions.





Contact us for more information on the Exo Beam
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

Light Source

  • 1x 90 W White LED, rated at 7500 Kelvin
  • 50,000 lifetime hours



Control

  • DMX 512 protocol
  • RDM
  • 4 button OLED display



Effects

  • Magnetic head mounts
  • Anti-fog system
  • Single color wheel with 14 fixed colors, plus open
  • Single ‘Hybrid’ gobo wheel with 7 rotating and 7 fixed gobos
  • 2 Prisms – 6 way linear and 8 way radial. Prisms can be added individually, or combined together for greater effects
  • Continuous, variable dimming
  • Motorized focus
  • Variable speed shutter
  • 16 bit pan (540°) / tilt (239°) movement, with position feedback



Power

  • Auto sensing 100-240 VAC / 50-60 Hz
  • Neutrik TRUE1 in and out
  • 185 W (max.)



Connectors

  • XLR 5-pin signal connection
  • Neutrik TRUE1 power input/ output



Mounting Options

  • 2 pairs of 1/4 turn locks
  • Safety wire attachment point
  • Built in rubber feet
  • Operates in any orientation



Optical System

  • beam angle – 0.1°
  • field angle – 1°
  • Multiple dimmer curves



Thermal Specifications

  • Max. ambient temperature – 113°F (45°C)
  • Min. ambient temperature – -4°F (-20°C)



Dimensions

  • L x W x H
    • 13.9 in. x 14.9 in. x 20.6 in.
    • 35.4 cm x 37.9 cm x 52.4 cm



Net Weight

  • 56.2 lbs. / 25.5 kg

Manuals

PDFIcon EXO Beam User Manual EN Rev A

DMX

PDFIcon EXO Beam Channel Index

CAD

ZIPIcon FUSION EXO Beam 10 CAD Rev 20230310-1

ZIPIcon Exo Beam STP & VWX

Fixture Libraries

ZIPIcon Exo Beam – MA2

Specifications

PDFIcon Exo Beam Cut Sheet

Firmware

ZIPIcon EXO BEAM 10-V1.0.11
