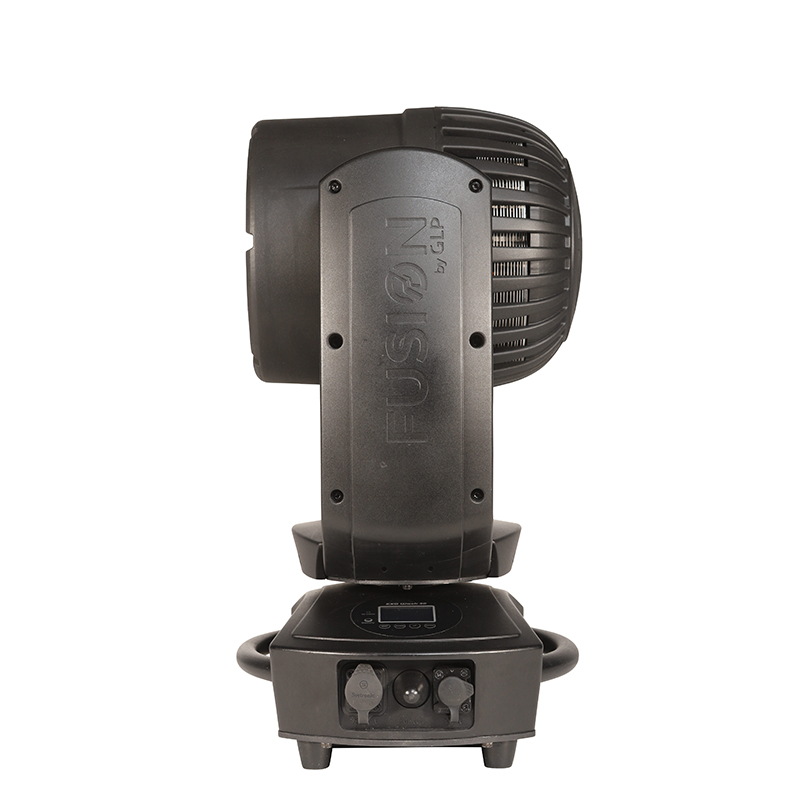

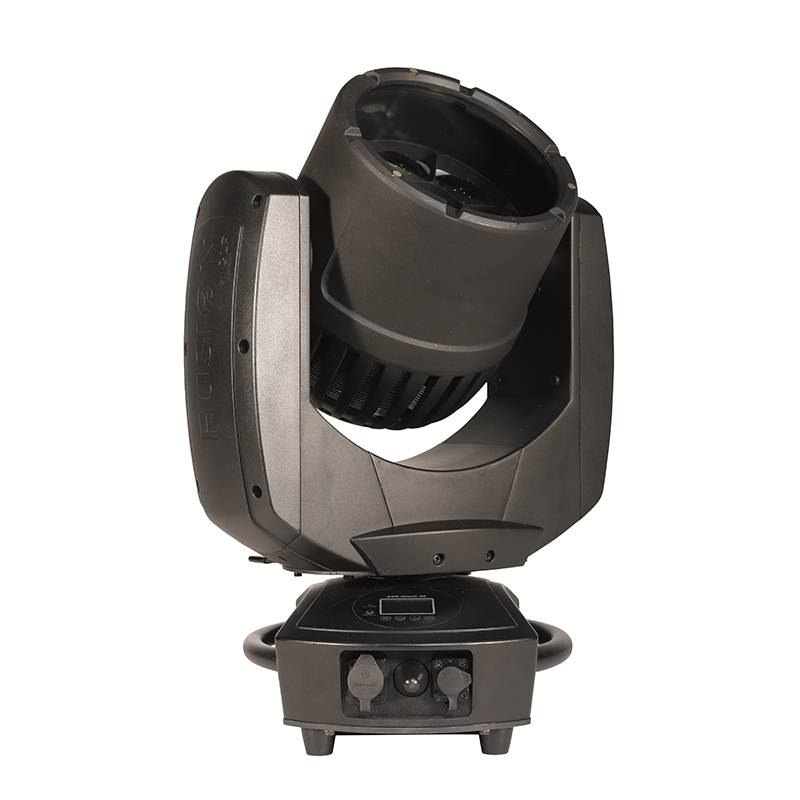

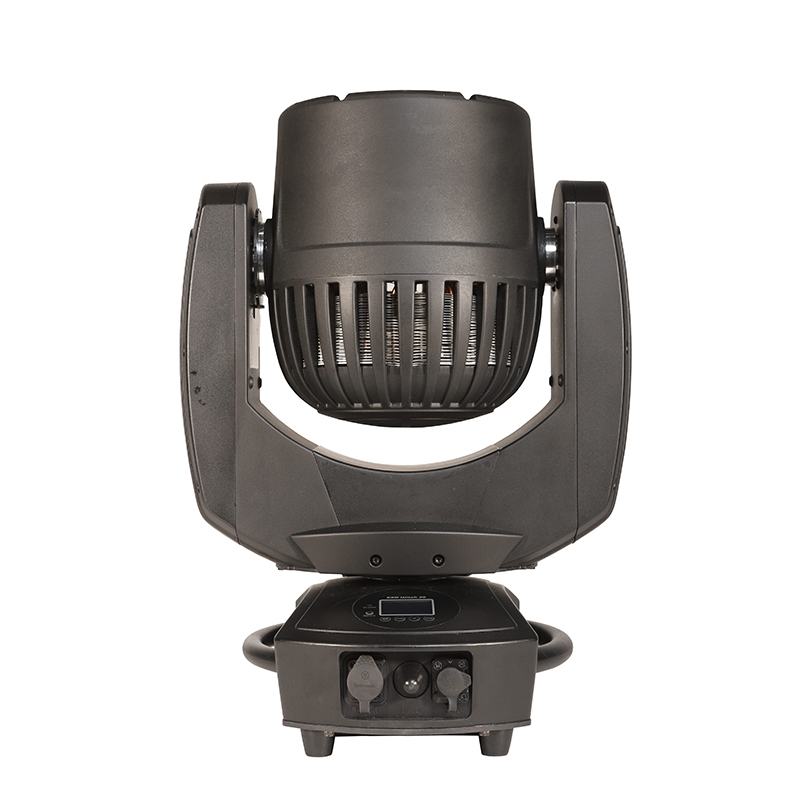

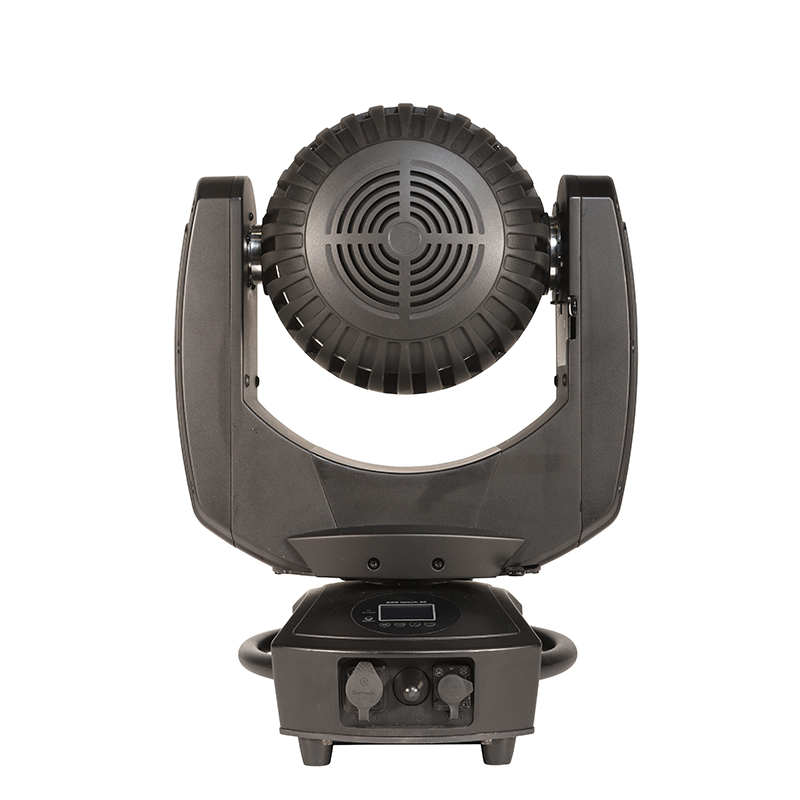

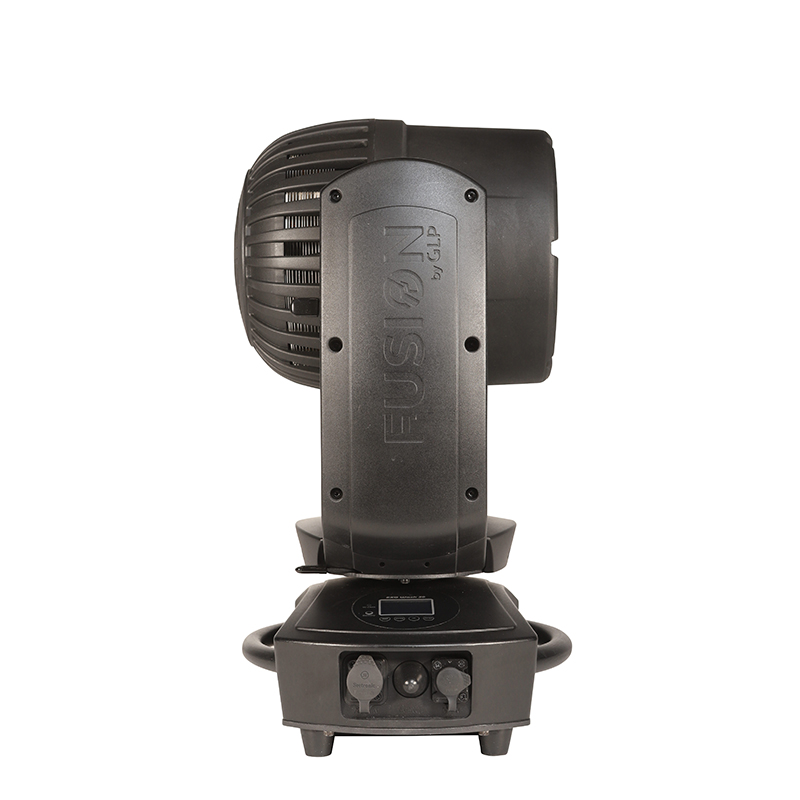

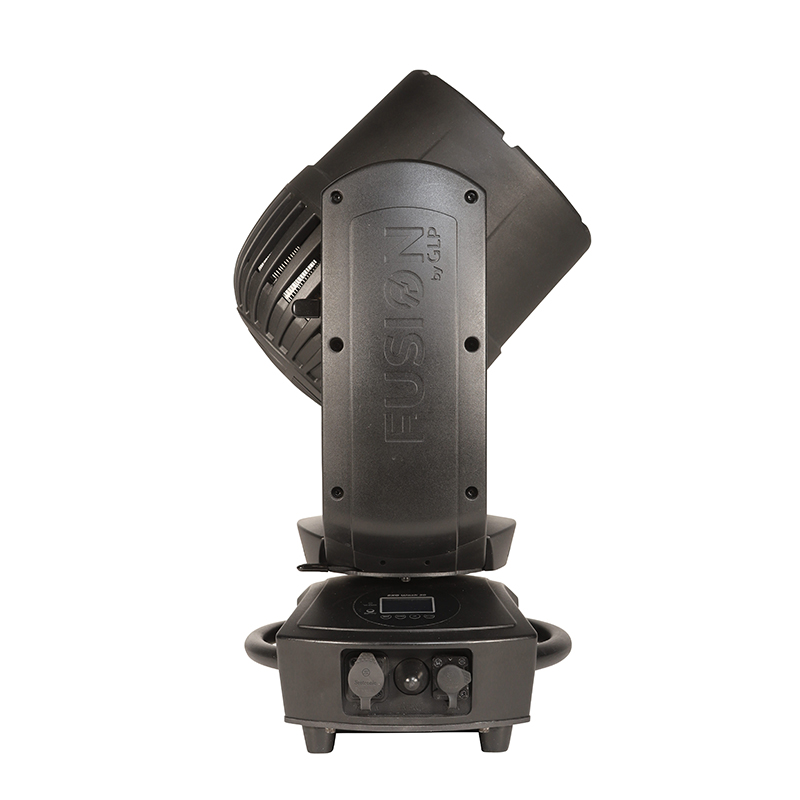

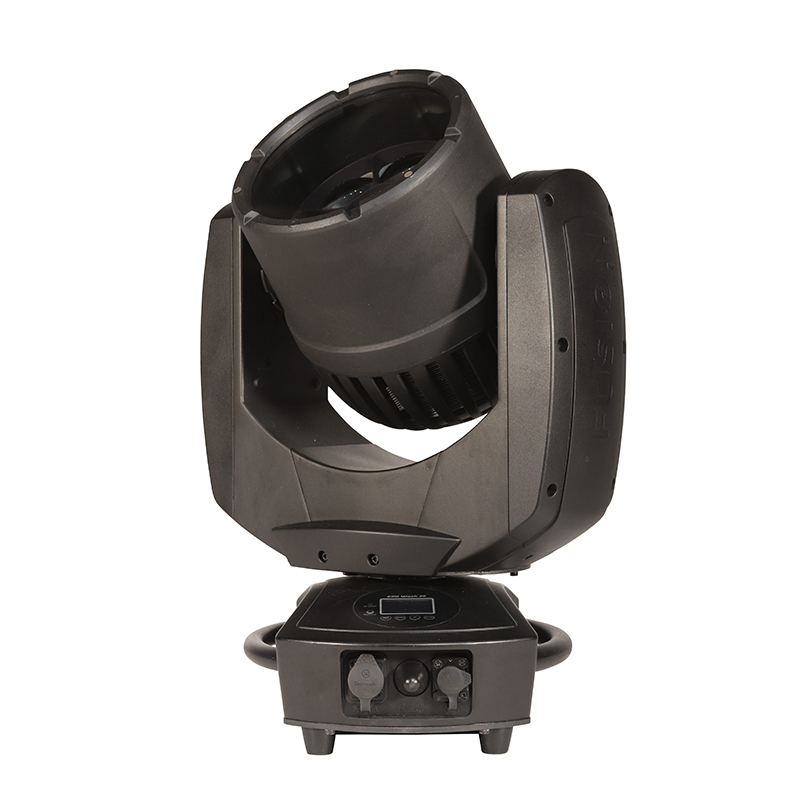

The Exo Wash from GLP’s Fusion range is an IP65 rated moving head wash fixture with pixel mapping control and a zoom of 4° to 40°, in a compact housing.



The Exo Wash from GLP’s Fusion range is an IP65 rated moving head wash fixture with a full feature set in a compact housing.

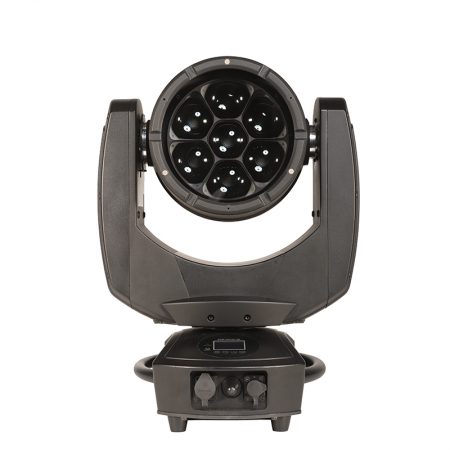

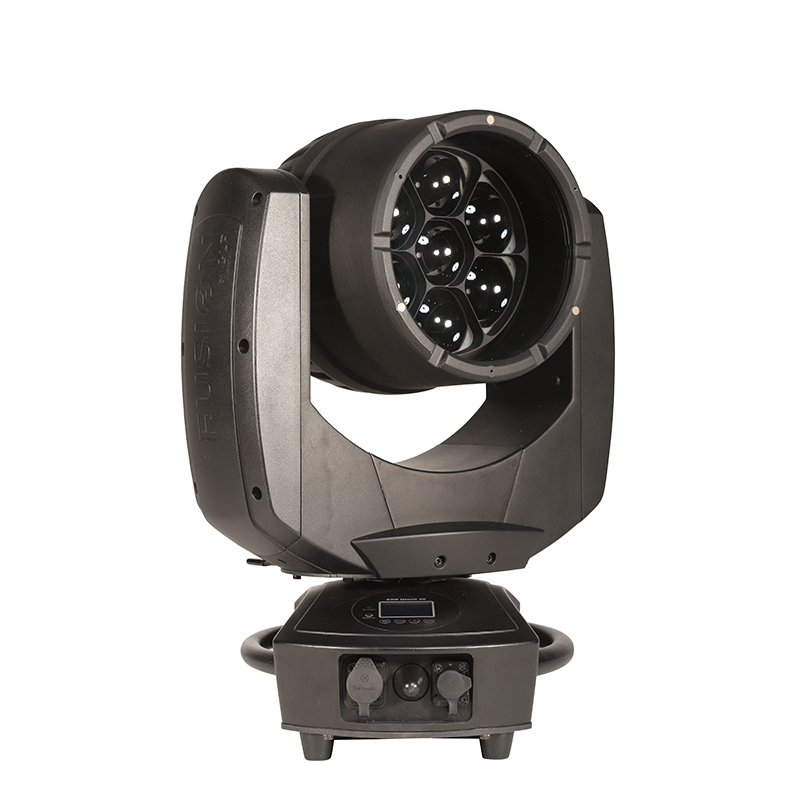

Featuring a durable and robust die cast housing, the Exo Wash is ready for the toughest of outdoor weather conditions. With 7 powerful pixel-mapping 40 W RGBW Osram LEDs, the Fusion Exo Wash delivers a solid, bright beam in a full color range from the deepest saturates to the lightest pastel shades, and offers color control over each individual pixel.

Supporting the stunning output is a zooming optical system that can vary the beam continuously from 4° to 54°.

The Exo Wash incorporates Neutrik True1 in and out connectors, variable PWM control, and also features easy to use magnetic head mounts for filter holders and any other future attachments.





Contact us for more information on the Exo Wash
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

Light Source

  • 7x 40 W RGBW Osram LED
  • 50,000 lifetime hours



Optical System

  • 4° – 54° zoom range (half peak)
  • Multiple dimmer curves



Effects

  • Pixel control
  • Magnetic head mounts
  • Anti-fog system
  • RGBW color mixing



Movement

  • 16 bit pan (630°) / tilt (267°) movement, with position feedback



Control

  • DMX 512 protocol
  • RDM
  • 4 button OLED display
  • DMX Channels 13/22/37/50



Power

  • Auto sensing 100-240 VAC / 50-60Hz
  • Neutrik powerCON True1 in and out
  • 300 W (max.)



Thermal Specifications

  • Max. ambient temperature 113°F (45°C)
  • Min. ambient temperature -4°F (-20°C)



Connectors

  • XLR 5-pin signal connection
  • Neutrik powerCON TRUE1 power input/ output



Mounting Options

  • 2 pairs of 1/4 turn locks
  • Safety wire attachment point
  • Built in rubber feet
  • Operates in any orientation



Dimensions

  • L x W x H
    • 11 in. x 14.9 in. x 20.4 in.
    • 27.9 cm x 37.9 cm x 51.9 cm



Net Weight

  • 43 lbs. (19.7kg)

Manuals

PDFIcon Exo Wash User Manual EN Rev B

DMX

PDFIcon Exo Wash Channel Layout

CAD

ZIPIcon Exo Wash Dimensions in DWG Format

ZIPIcon Exo Wash DWG

ZIPIcon Exo Wash STP

Fixture Libraries

Coming Soon

Specifications

PDFIcon Exo Wash Product Specification Card
