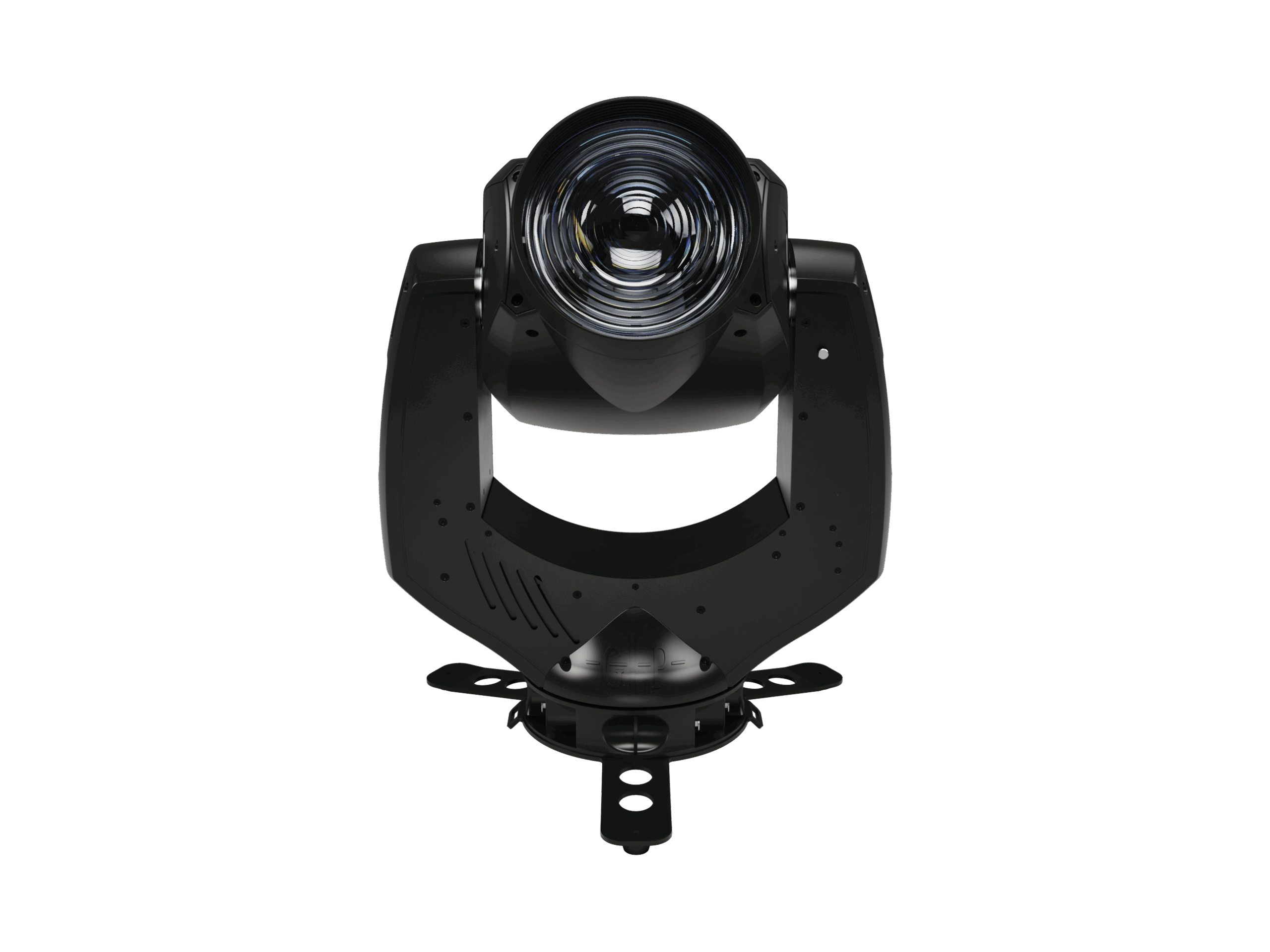

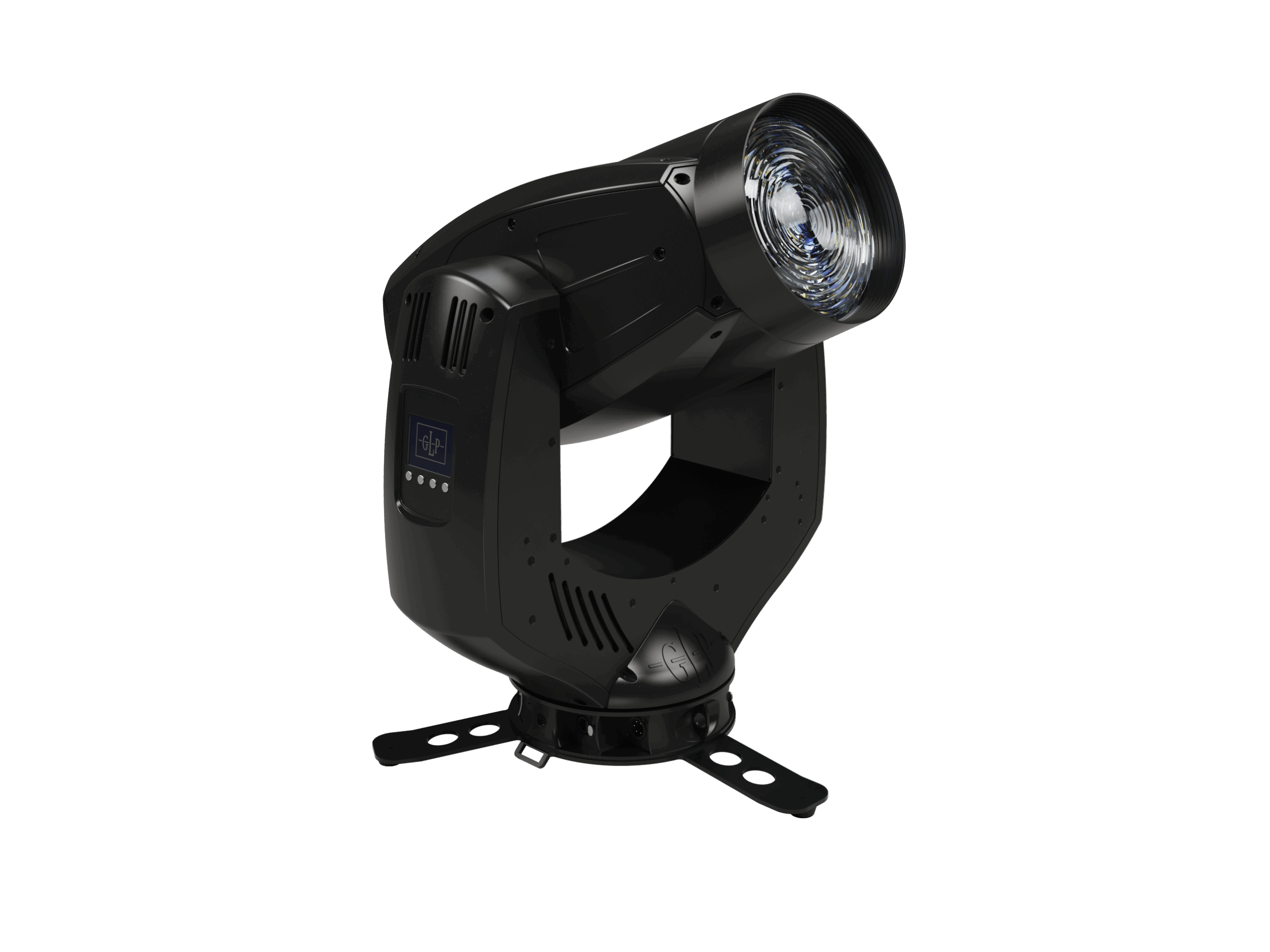

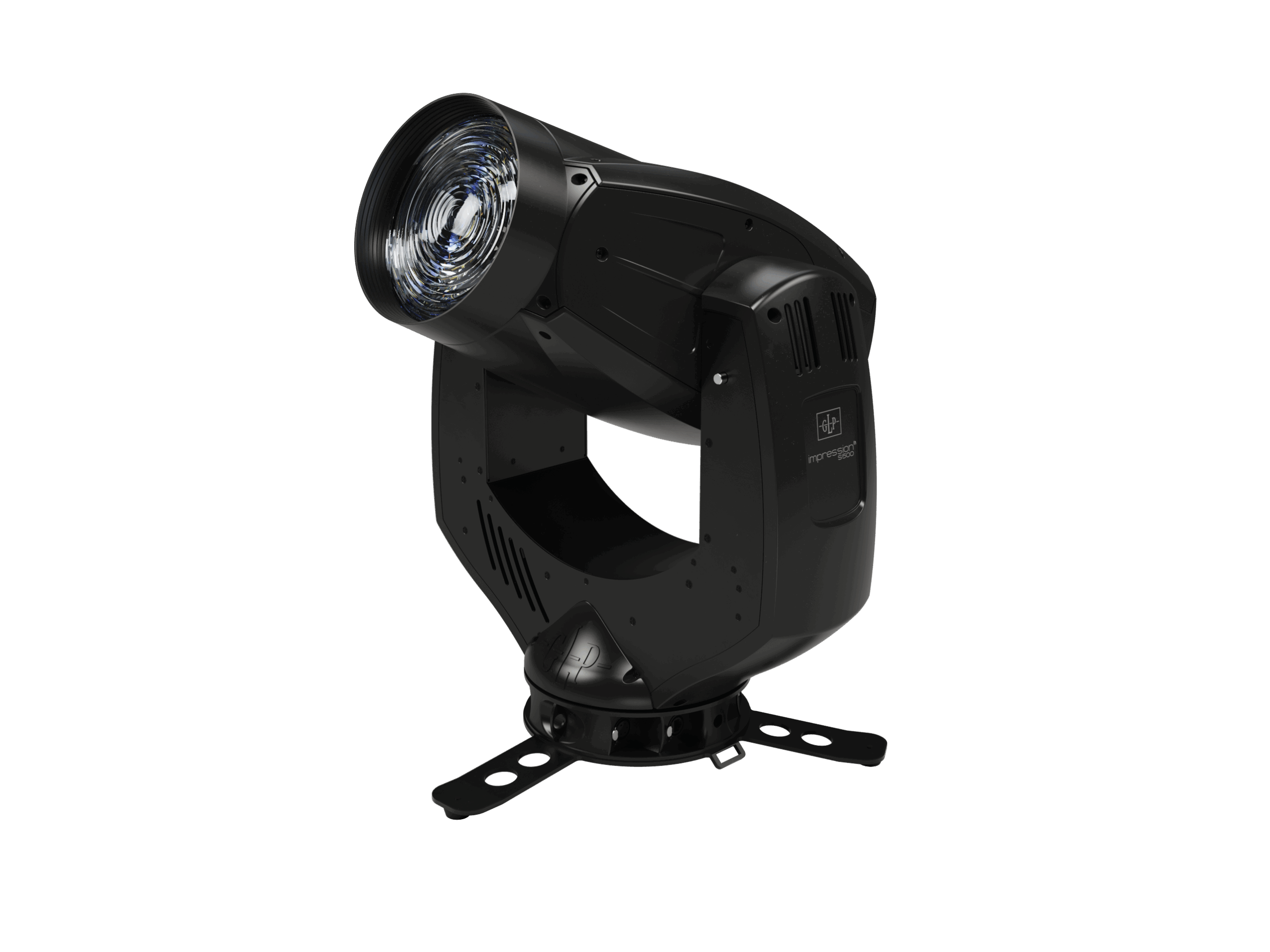

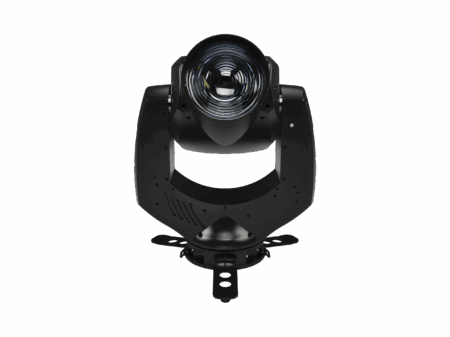

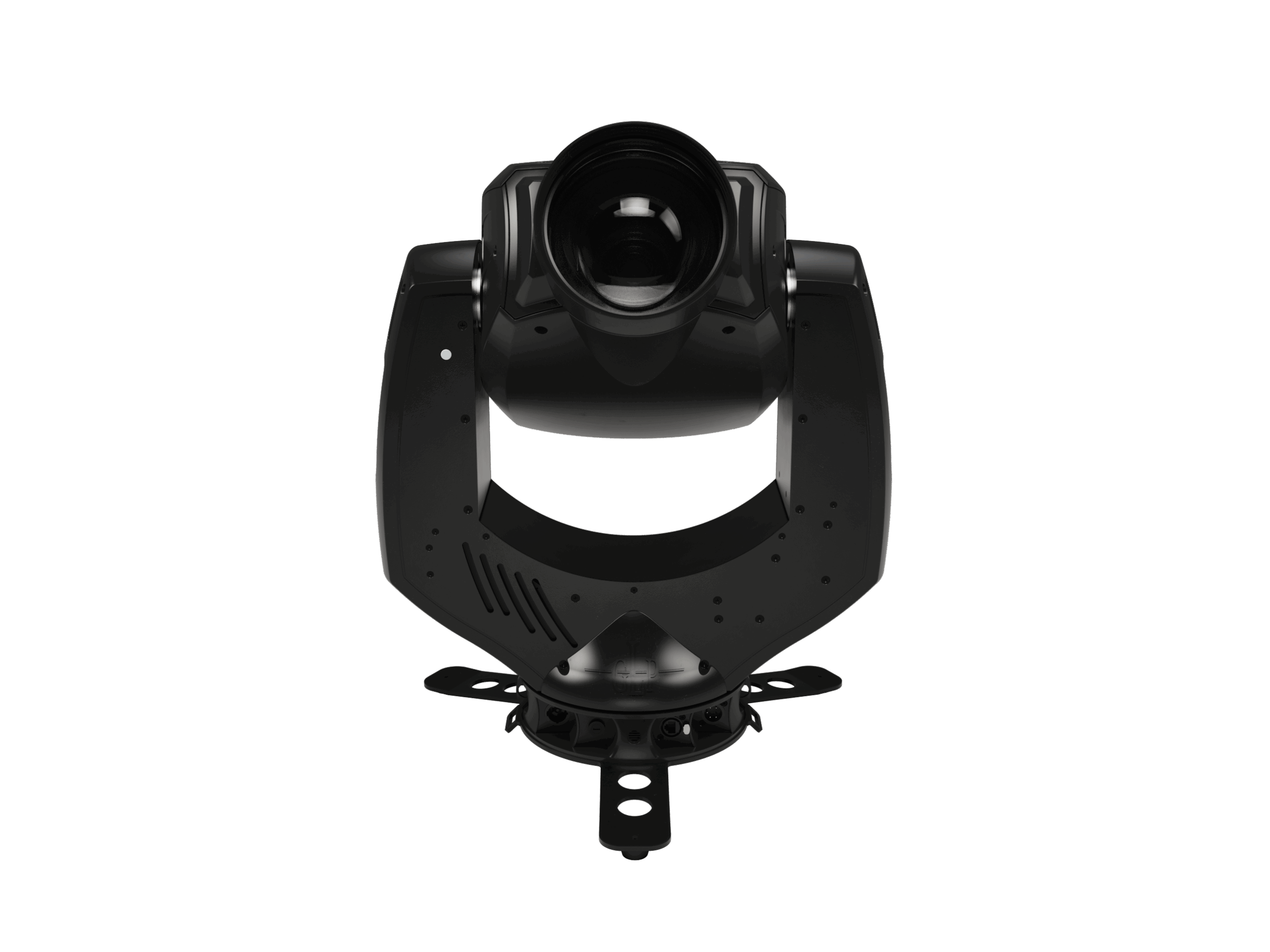

The impression S500 Wash HC combines a proven high light quality (CRI and TLCI over 90), natural color rendering and homogeneous illumination properties with the intelligent function package and low-noise operation familiar from the S350.
The white LED engine with 26,000 lm at native 6,000 K produces a very balanced light spectrum for excellent color rendering (CRI and TLCI over 95). Its great light quality guarantees natural and realistic skin colors and a total lumen output of 13,100 lm.
The 185mm fresnel lense offers a very homogeneous illumination in the range of 7° Beam to 65° field angle. The vast feature package houses a CMY color mixing system, an innovative CTC color control system, a color wheel with 6 full colors and 4 color correction filters, an motorized Iris, a precise 4-blade framing system with blade tilt and framing rotation and motorized 540°/565° pan and 256° tilt movement.
The IP20 compact housing only weighs 26,6 kg (58.6 lbs.) and allows low-noise operation, making the fixtures perfect for noise sensitive professional applications such as TV studios, theaters or musicals.
Thanks to the intelligent development based on the existing design platform of the well-established S350, the impression S500 Series can be offered at a very attractive price, ensuring a fast ROI.
Light Source
- Lamp type: White LED (High Color Rendering Spectrum)
- Power: 500 W
- Lifetime: 20,000 hours
- Color temperature: 6,000 Kelvin
- Total Output: 26,000 lm
- CRI: 95+
- TLCI(Qa): >95+
Optical System
- Output: up to 13,100 lm
- min. Zoom: 7°
- max. Zoom: 65°
- Zoom Ratio: 1:5
- Focus: 16 bit
- Focustracking: optional
- Front Lens Diameter: 185 mm / 7.3 in
Dynamic Effects
- Color Mixing: CMY, 8 bit, variable 0 – 100 %
- CTC: variable 2,500 – 8,000 K, using CMY System
- Color Wheel: 10 static + open | 7 fix | 4 spectral filter (incl. High CRI and Minus Green)
- Dimmer / Shutter: 0 – 100%, electronical, 16 bit
- Framing: 4 separately movable shutters | +/-30° positionable | 100% positionable into the beam | +/- 45° rotatable module
Control and Programming
- DMX Channels: 27
- Control Modes:1
- High-Res Channels: Dimmer | Pan | Tilt
- Dimming Curves: linear | soft | S-Curve
- Performance Modes: Fast | Normal (Balanced) | Smooth
- Fan Modes: regulated | high | medium | low | minimum
- PWM: Optimal | High 1 | High 2 | Max
- Setting & Addressing: backlit graphic LCD | 4 Button Menu Navigation | DMX | RDM | GLP iQ.Mesh | 1 Scene Stand Alone
- Software Update: DMX Link via Dprog | GLP iQ.Mesh | GLP iQ.Tool
- No Signal: Blackout | Hold | Stand Alone Scene
Connections
- Power Input: Neutrik powerCON TRUE1 In/Out
- Signal Connection: Neutrik XLR 5-Pin In/Out, Neutrik etherCON port A & B (failsafe)
Constructions
- Housing Material: high-impact flame-retardand thermoplastic | aluminum | steel metal plates
- Protection Rating: IP20
- Construction Features: Tilt-Lock-System | Multicolor Display | Baseless Design
Electrical Specifications
- Power Input: 100 – 240 VAC / 50 – 60 Hz
- Power Supply Unit: auto-ranging electronic switch-mode
- max. Power (@ 230 V): 750 W
Installation
- Mounting: 4 pairs of 1/4-turn locks | 2 eyelets for safety cable
- Orientation: any | vertical hanging | horizontal sideways
- Location: Dry
- min. distance to combustible materials: 0.1 m
- min. distance to illuminated surfaces: 1.0 m
Movement
- Pan Angle: 540°, 16 bit | extended: 565°
- Tilt Angle: 256°, 16 bit
Shipping
- Single Fixture: carton
- Tourpack: 2-way | Omega Brackets
Thermal Specifications
- Cooling: combined convection and forced air
- Overheating Protection: automatic
- Min. Ambient Temperature: 5 °C / 41 °F
- Max. Ambient Temperature: 45 °C / 115 °F
- Total Heat Dissipation: 2,100 BTU/h
Dimensions & Weight
- Height: 652 mm / 25.67 in
- Width: 472 mm/ 18.58 in
- Depth: 230 mm / 9.06 in
- Weight (net): 26.6 kg / 58.6 lbs.
