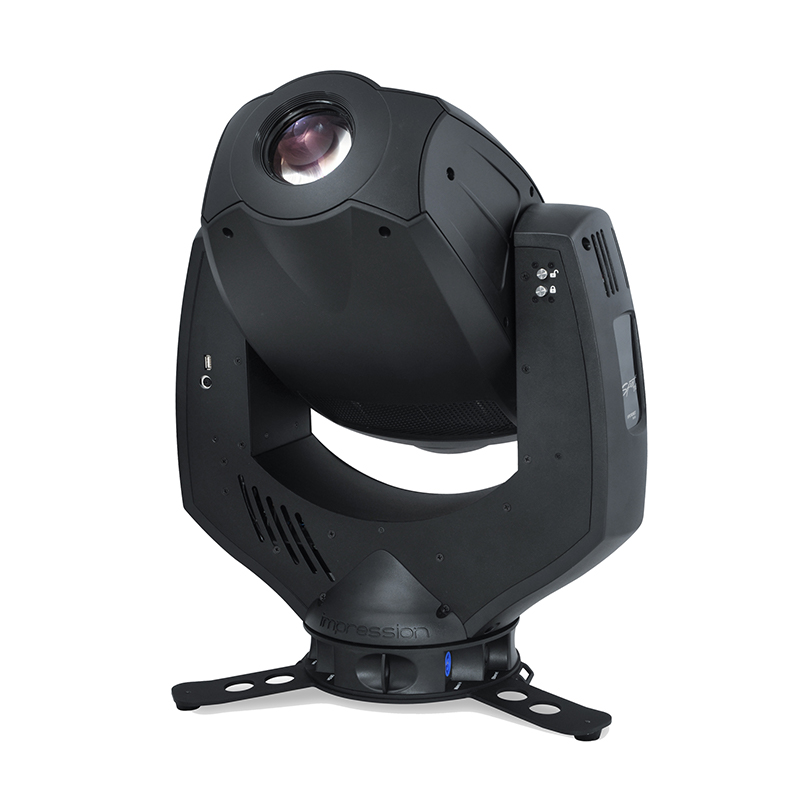

The impression Spot One features a Bright RGB LED Output, even light distribution and a full, crisp color palette. With a clean white range of 3000 Kelvin-8000 Kelvin and high CRI, the fixture produces instant color bumps and impressively sharp image projections.

The Spot One features a zoom of 9° to 32° complimented by a feature set of 2 rotating gobo wheels, gobo animation wheel, super fast iris, rotating prism, and smooth 100% dimming. The fixture can also produce variable speed strobe effects increasing its versatility. The Spot One has 16 bit movement. It features the classic baseless GLP design and is near silent when running. Weighing in at just 48.5 lbs. (22kg), the impression Spot One remains relatively lightweight and easy to set up.

The impression Spot One can significantly lower handling and service costs with no starters, no expensive ballast, and no costs for discharge lamps. The Spot One also doesn’t have fragile dichroic colors or broken reflectors. The tight LED binning for identical fixture performance ensures that the Spot One can keep up with other fixtures on the market. RDM feedback with service information and more than 20,000 hours lifetime make the Spot One a great long term fixture.





Contact us for more information on the impression Spot One
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

rgb2 zoom2focus2 iris2 rot-gobo2 prism2 rdm art-net

Light Source

  • 400 Watt RGB LED chipset
  • Average service life: 20,000 hours



Control

  • USITT DMX 512 protocol
  • DMX & Artnet in/out
  • 24 DMX channel: normal mode
  • 31 DMX channel: high resolution mode
  • Back lit graphic LCD menu with 2 illuminated buttons
  • Over temperature protection
  • Internal color presets



Electromechanical Effects

  • Gobo wheel 1: 7 gobos + open, rotating and indexable, interchangeable
  • Gobo wheel 2: 7 gobos + open, rotating and indexable, interchangeable
  • Rotating and indexable effect wheel, different designs interchangeable
  • High speed iris 100%-4% (aperture time 0.2 sec)
  • Rotating and indexable interchangeable 3-facet prism
  • Separated LED engine prevents contamination
  • 3 Phase Stepper motors



Electronic Effects

  • Electronic dimmer 0-100%
  • Electronic high-speed shutter 0-10Hz



Connectors

  • DMX data: XLR 3 pin in/out
  • DMX data: XLR 5 pin in/out
  • Artnet: Neutrik Ethercon
  • Mains power: Neutrik Powercon



Power Supply

  • Power consumption: max. 550VA (Watt)
  • Power input: auto sensing 100-240V AC, 50-60 Hz
  • Fuse protection



Operating Conditions

  • Maximum ambient temperature: 113°F  (45°C)



Mounting Options

  • Omega bracket attachment
  • 2 attachment points for safety wire
  • Upright: tripod (supplied) with brackets for ratchet belt
  • Hanging (vertical): M12 nut with lockable installation position for half coupler or other clamp
  • Hanging (horizontal): adjustable bar for sideways truss installation (optional)
  • Any orientation



Optical System

  • Full red, green and blue additive color mixing system
  • Motorized zoom: 10° – 32°
  • Motorized focus: 2m – infinity



Movement

  • 8 or 16 bit resolution selectable
  • 540° pan / 280° tilt
  • Position feedback
  • High precision 3 phase stepper motor control



Approvals

  • Designed to US safety standards UL 1573 and UL 8750
  • Designed to Canadian safety standard CAN/CSA C22.2 No. 166



Shipping

  • Cardboard box
  • 2 way tour pack (with omega bracket and omega brackets with handle) in flight case



Housing Colors

  • Standard color is black
  • For other colors please contact sales department



Dimensions

  • (L x W x H): head vertical
    • 18.6 in. x 9 in. x 24.3 in. (47.2 cm x 22.9 cm x 61.8 cm)



Net Weight

  • Weight: 50.7 lbs. (23 kg)

Manuals

PDFIcon  Impression-SpotOne-Manual-V1.97-EN(1)

PDFIcon Impression SpotOne DMX V1.55 EN

Illustrations

PDFIconimpression Spot One Dimensions

ZIPIconVectorworks GLP Library_v2014

ZIPIconimpression Spot One 3D DWG

ZIPIconimpression Spot One_3D DXF

Photometrics

PDFIconImpression Spot One Photometric Data

Specification

PDFIconimpression Spot One Specifications
