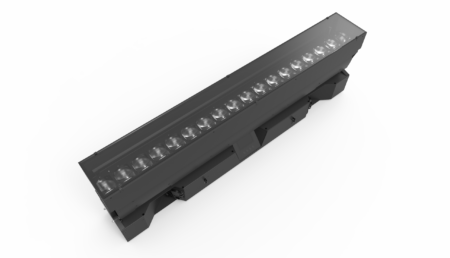

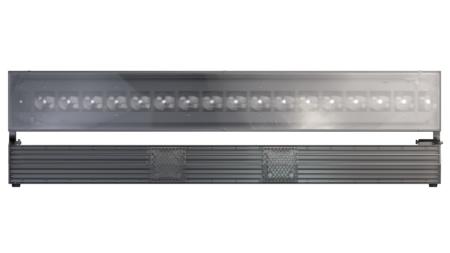

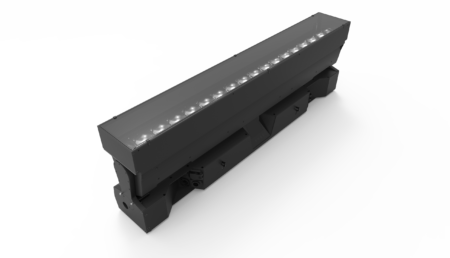

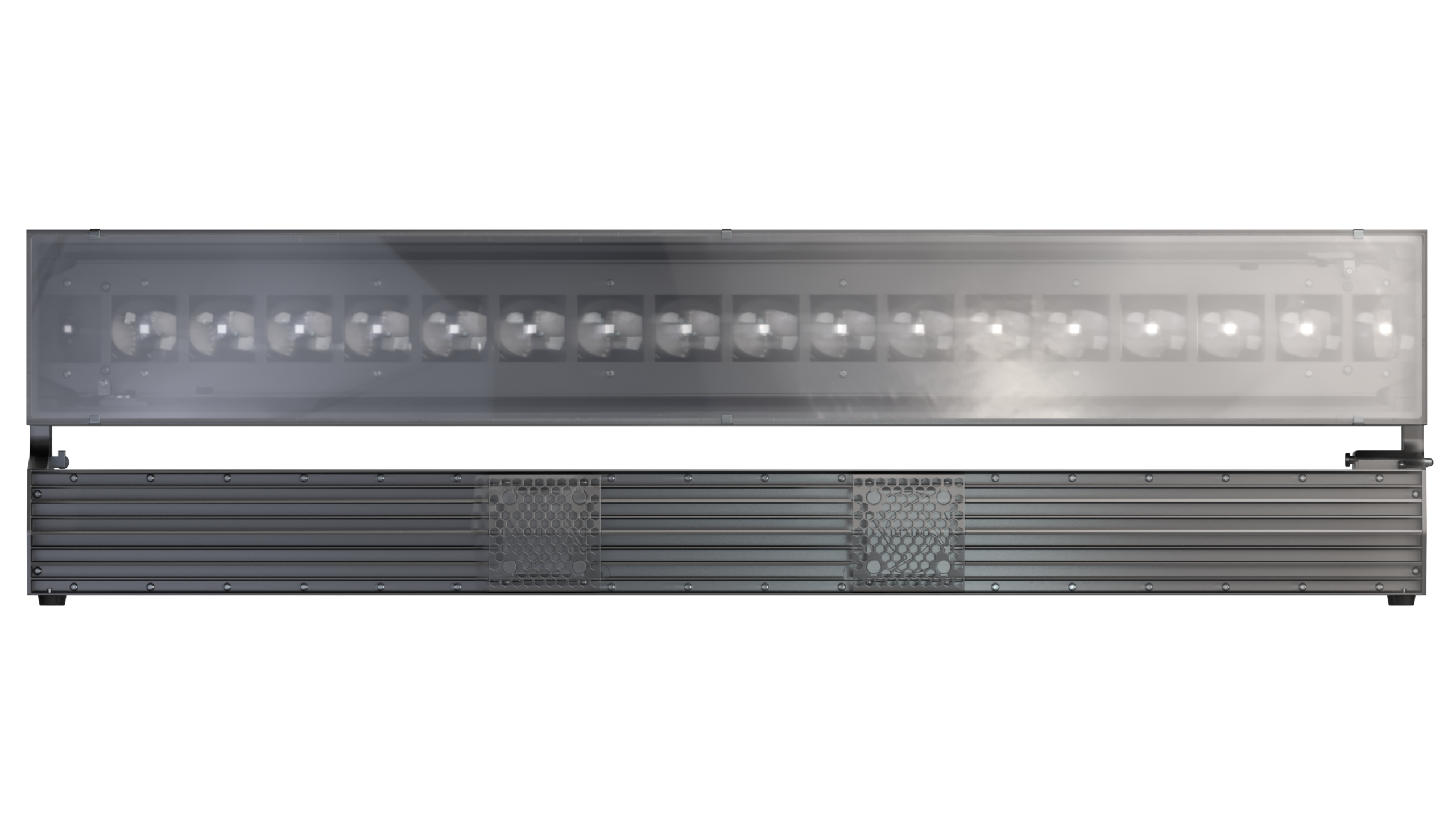

The GLP impression X5 IP Bar 1000 is an IP65 rated, linear LED batten with 18 powerful 40 W RGBL LED’s, a wide zoom range, and the new GLP iQ.Gamut color calibration algorithm that creates perfect white spectrums with excellent color rendering.

The new squared lens design ensures maximum lumen efficiency and gives an unprecedented curtain of light at its narrowest angle of just 4.5°, and delivering smooth and homogenous washes all the way out to its widest 60° wash.

As a part of the new GLP X5 family it offers a wide feature package, including selectable calibrated white points, a tungsten simulation channel, magenta / green correction, virtual color wheel and variable CTC, along with twin layer effects with plenty of dynamic pattern macros.

The impression X5 IP Bar 1000 offers our patented fast tilt movement in combination with seamless pixel pitch across fixtures, and features wired and wireless control as standard.

The impression X5 IP Bar 1000’s enclosure is just as suitable for indoor use on the stage to protect against confetti, fog, pyro and dust.

Light Source

18 RGBL LEDs
Light source power – 40 W
Light source lifetime – 50,000 hours
LED refresh rate – low 550Hz, optimum (default), high 1 4,600Hz, high 2 13,000Hz
CCT – default white point: 6500 Kelvin; optional: 8000 Kelvin; 5600 Kelvin; 4200 Kelvin; 3200 Kelvin
Duv – perfect white point match low Duv values
CRI (Ra) – 8000 Kelvin: 87 | 6500 Kelvin: 86+ | 3200 Kelvin: 84+
TLCI – 8000 Kelvin: 90 |6500 Kelvin: 98+ | 3200 Kelvin: 74+

Optical System

Output – up to 7,500 lumens
Min. zoom – 4.5°
Max. zoom – 60°
Zoom ratio – 1:13

Control

DMX channels – Mode 1- 20 channels / Mode 2 – 33 / Mode 3 – 48 / Mode 4 – 84 / Mode 5 – 63 / Mode 6 – 81
Control modes – M1: Basic / M2: Normal / M3: Segment / M4: Multipix Advanced / M5: Multipix Compressed / M6: Multipix Compressed RGBL
Protocol –
- DMX (USITT DMX512-A)
- RDM (ANSI/ESTA E1.20)
- Art-Net
- sACN
- iQ.Mesh
- iQ.DMX
- Optional: Lumenradio CRMX
Setting and addressing –

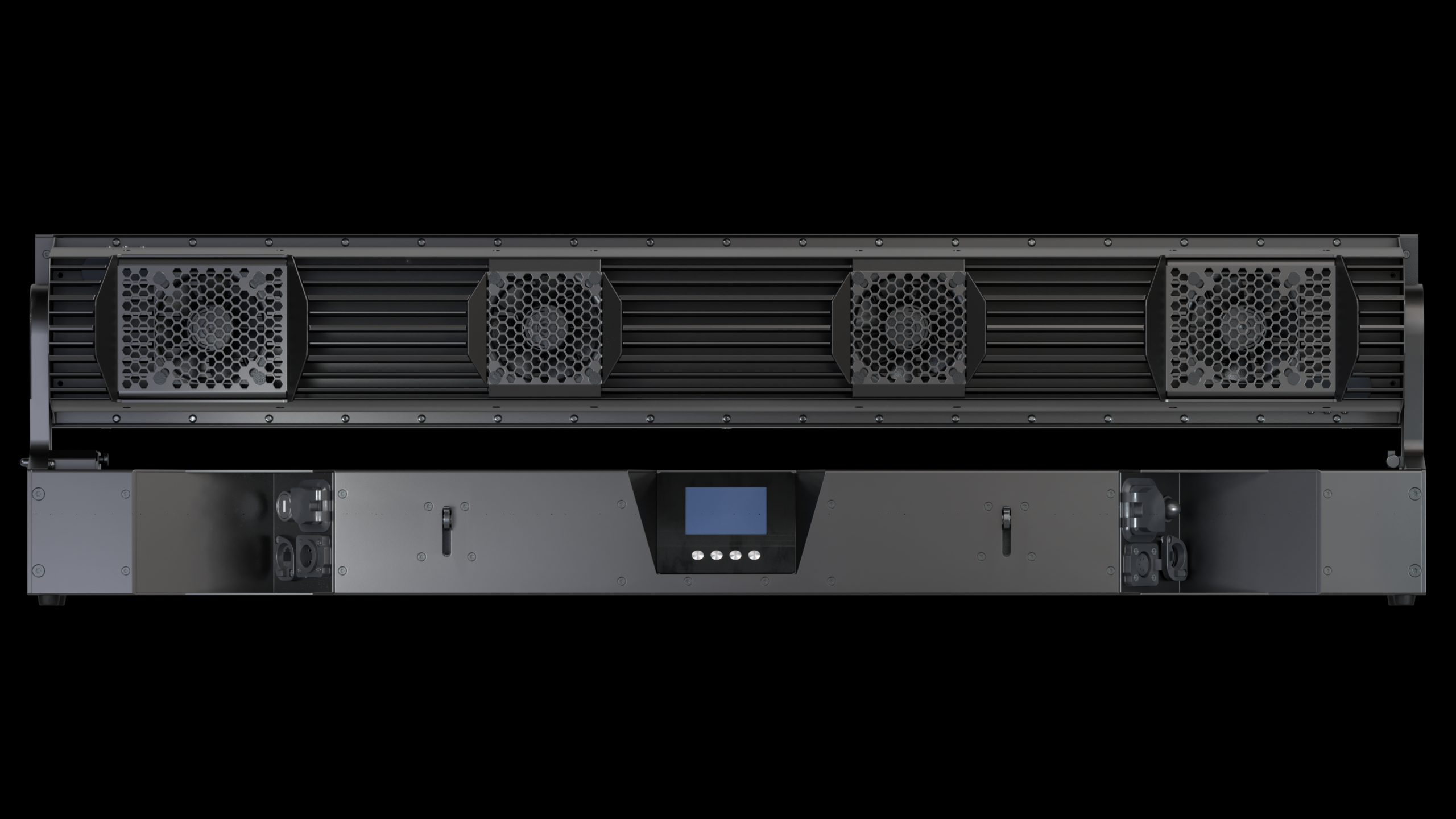

- Control panel with backlit monochrome graphic display
- 4 button menu navigation
- DMX
- RDM
- iQ.Mesh
- NFC
Software update –
- DMX link
- Via DProg
- iQ.Mesh
High-res channels –
- Intensity global
- Tilt
- Colormix
Performance modes –
- Fast
- Normal (balanced)
- Smooth
Dimming curves –
- Linear
- Soft
- S-curve
Subfixture mode –
- Normal
- Independent
White points – default white point: 6500 Kelvin; optional: 8000 Kelvin; 5600 Kelvin; 4200 Kelvin; 3200 Kelvin
Other controls –
- Stand Alone 1 captured scene
- Art-Net/sACN node
- Data Conversion
- iQ.Mesh
- Subfixture split

Effects

Dimmer – 0 – 100%; 16 bit
Shutter – Variable speed strobe with effects – pulse, sparkle, etc.
Color mixing –
- RAW
- RGBL
- x;y
Various settings for color mix priority
CTC (color temperature control) – 2,500 – 10,000 Kelvin
CQC (color quality control) –
- High output (HO)
- High quality (HQ)
Magenta/green-shift – yes
Tungsten simulation – 8x linked to fix CCT, 8x relative to Colormix
Color wheel – virtual color wheel, 64 LEE referenced colors, rainbow
Pattern effects – 50 dynamic pattern macros with special effects
Tilt movement angle – 195°, 16 bit resolution
Tilt movement speed – super fast

Connectors

Signal connection –
- Neutrik XLR 5-Pin In/out
- Neutrik etherCON port A & B (failsafe)
Power input –
- Neutrik powerCON TRUE1 In/out

Power

Power input – 100 – 240 VAC / 50 – 60 Hz
Power supply – auto-ranging electronic switch-mode
Power supply cable –
- US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft.
- EU: 16 A, 1.5 mm², H05VV-F, 1.5 m
Max. power (@230V) – 750 W

Mounting Options

Mounting –
- 2 eyelets for safety cable
- 4 pairs of 1/4-turn locks for two rigging/installation brackets
Orientation – any
Location –
- Indoor permanent
- Outdoor temporary

Thermal Specifications

Cooling – combined convection and forced air
Min. ambient temperature (Ta min.) 14 °F / – 10 °C
Max. ambient temperature (Ta max.) 115 °F / 45 °C
Total heat dissipation (calculated, +/-10%) – 2,600 BTU/h

Construction

Housing color – black
Housing material –
- High-impact flame-retardant thermoplastic
- Aluminum
- Steel metal plates
Protection rating –
- IP 65
Construction features –
- Hand gaps for carrying
- Tilt lock system
- Alignment system
- Thread sockets for external accessory

Dimensions

Height – (head vertical) 12.44 in. / 316 mm
Height – (head straight down) 10.57 in. / 269 mm
Width – (across yoke) 39.4 in. / 1,000 mm
Depth – 5.65 in. / 144 mm

Net Weight

Weight – 59.5 lbs. / 27 kg
