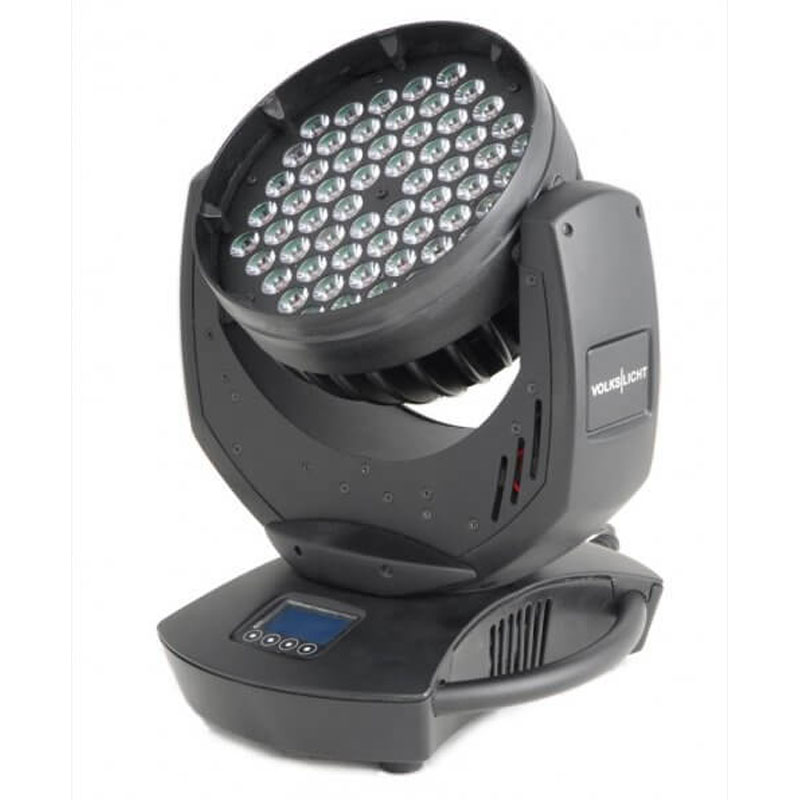

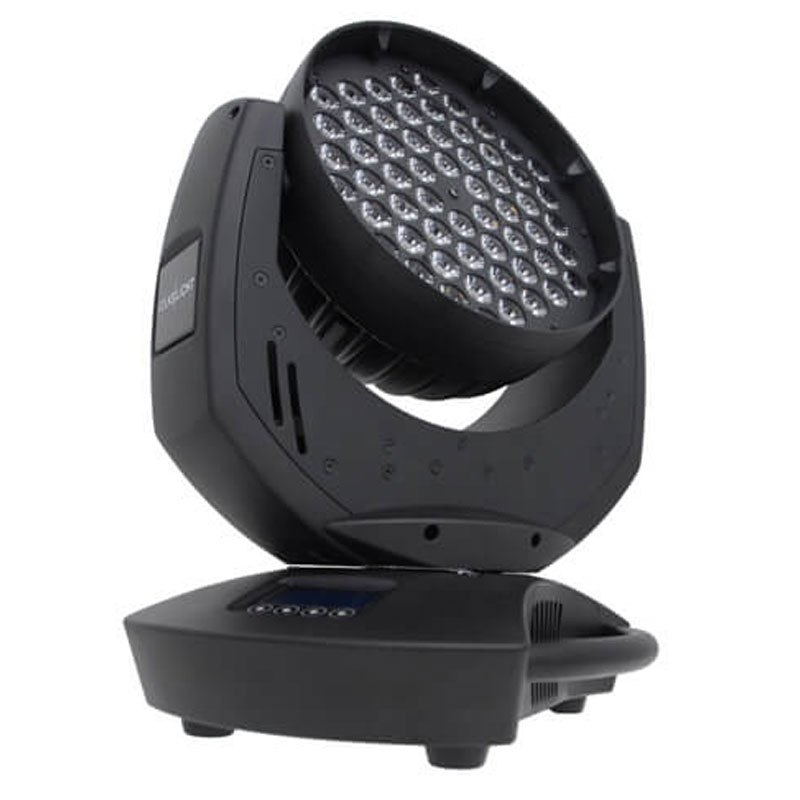

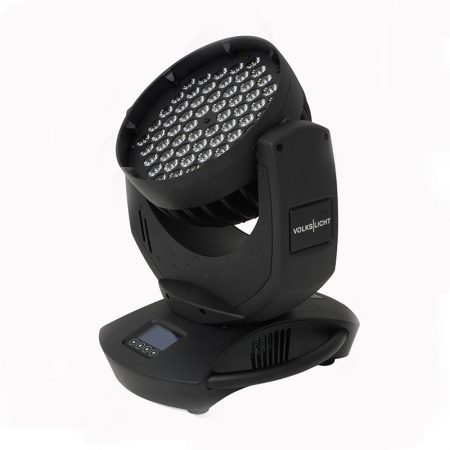

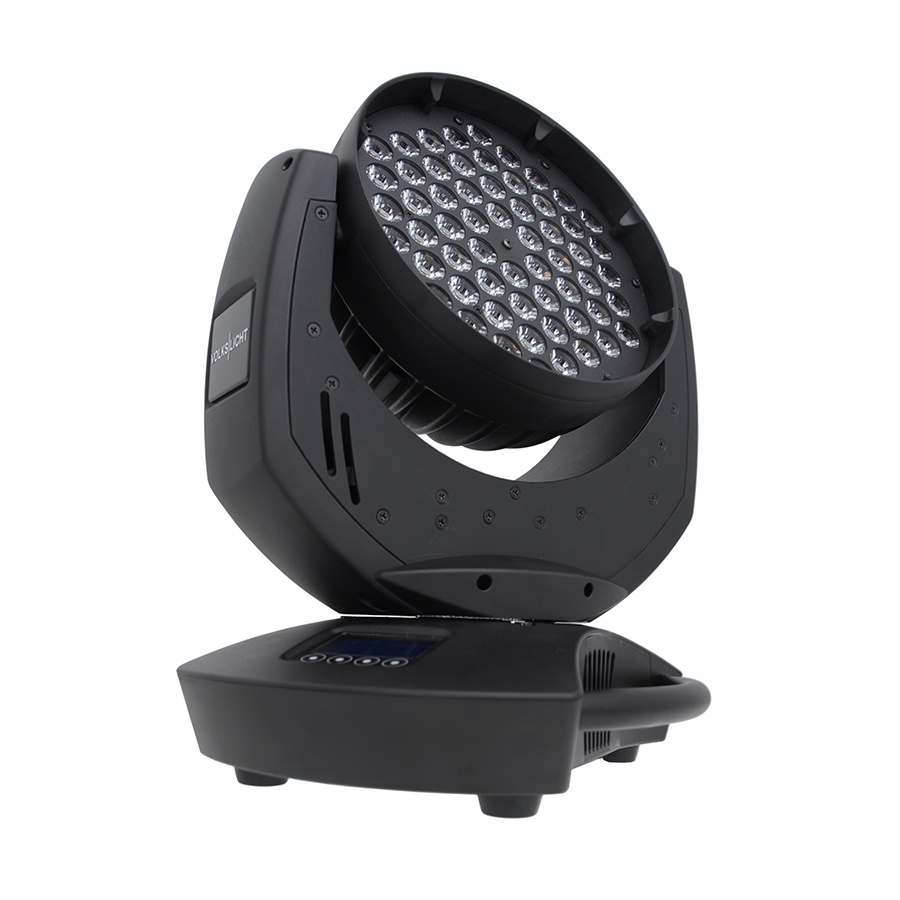

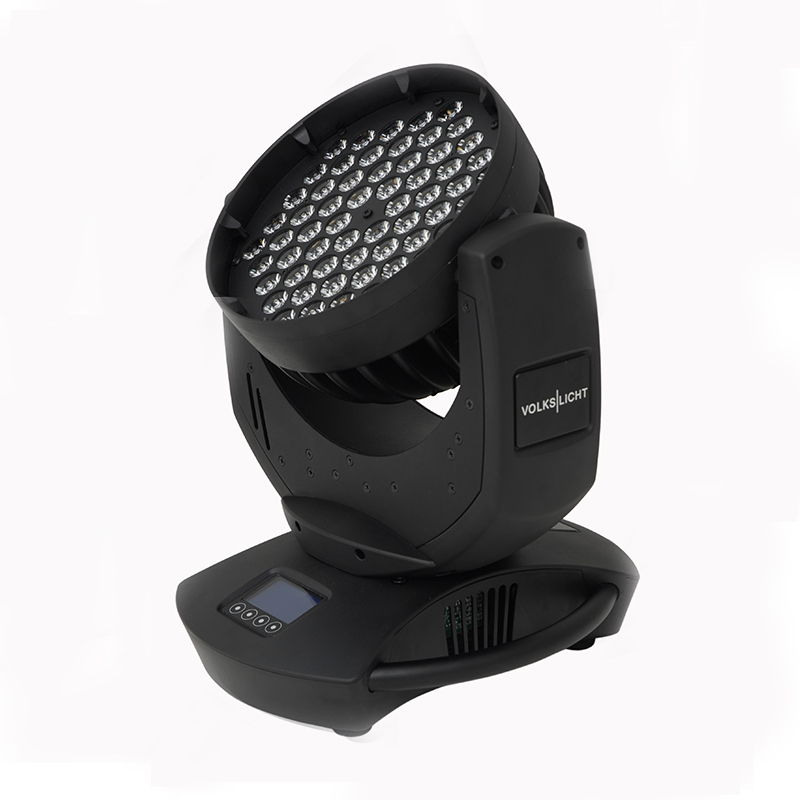

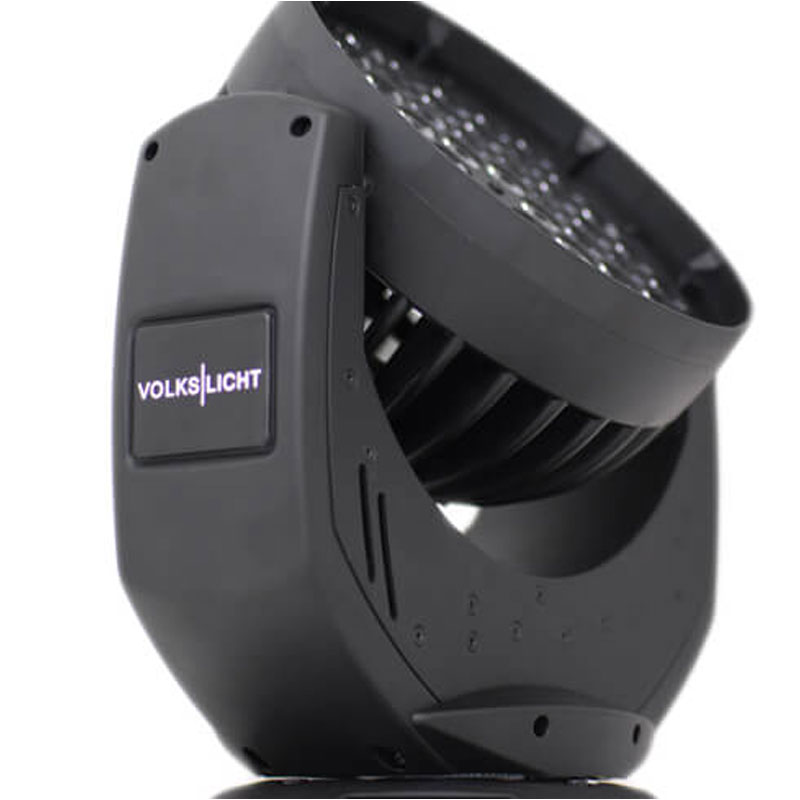

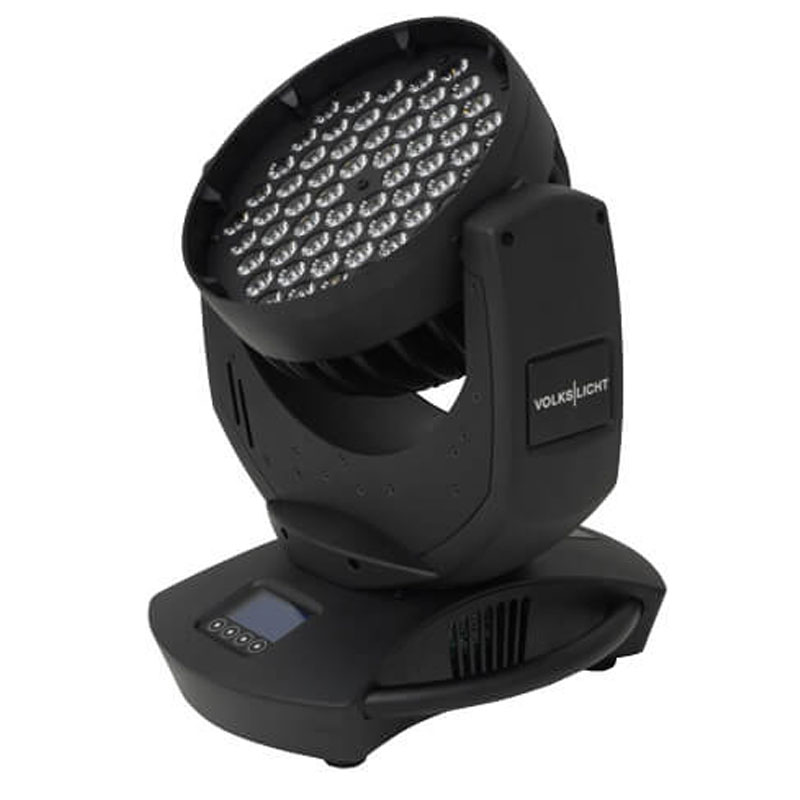

The Volkslicht combines the best technology features with the footprint and weight of a small and unobtrusive fixture. The fixture has a motorized zoom, changing its beam size from 10 to 26°, whilst maintaining a strong output.

Categories: , Tags: , , , ,

The VolksLicht uses 60 Luxeon Rebel LEDs in an RGB configuration to give a broad mixing palette of colors. From its primary saturates, through to the more subtle pastel shades.

Being small and light means it also has speed, the pan and tilt move at incredibly fast speeds, almost enough to match the solid state LEDs themselves!





Contact us for more information on the Volkslicht
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

rgb2 rebel2

Light Source

  • Additive color mixing
  • LED type 60x Luxeon Rebel high powered LEDs
  • Average service life: 50,000 hours



DMX Control

  • Standard USITT DMX-512, 3 pole XLR; [+] = Pin 3 [-] = pin 2 [Ground] = pin 1.
  • Addressing starts at the DMX channel [001]



Connectors

  • DMX: XLR 3 pin



Power Supply

  • Power consumption: 180 VA (Watt)
  • Power input: ~100 – 240V AC, 50-60 Hz (wide range input)
  • Fuse protection: micro fuse 5x20mm, T 4A



Operating Conditions

  • Maximum ambient temperature: 113°F (45°C) (integrated overheating switch)



Mounting Options

  • Mounting positions: standing on floor, sideways or hanging (please follow instructions in manual)



Optical System

  • Highly efficient collimator cluster
  • Interchangeable lens carrier with 11° beam angle



Movement

  • 8 or 16 bit resolution selectable
  • Position feedback
  • Maximum speed: 660° pan in 3 seconds, tilt 300° in 3 seconds



Shutter / Dimmer

  • Strobe – effect with variable speed between 1 – 10 flashes per second, random – strobe, pulse effects
  • Continuous dimmer 0 – 100%



Approvals

  • ETL safety approved
  • US safety approved: UL 1573 and UL 8750
  • Canadian safety approved: CAN/CSA C22.2 No. 166



RGB Version

  • 18 red LEDs, 21 blue LEDs, 21 green LEDs, wave lengths optimized for a maximum visible color gamut



Housing Colors

  • Standard colors are black, silver, and white
  • For other colors please contact sales department



Shipping

  • Cardboard box
  • 4-way tour pack in flight case (including half couplers)
  • 6-way tour pack in flight case (including half couplers)



Dimensions

  • L x W x H (head vertical): 9.5 in. x 11.2 in. x 14 in. (24.2 cm x 28.5 cm x 35.6 cm)



Net Weight

  • 17.2 lbs. (7.8 kg)
