impression S

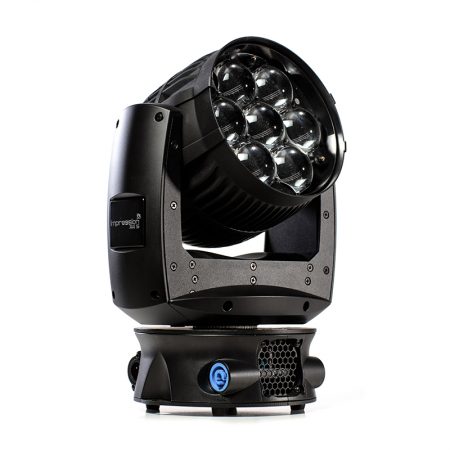

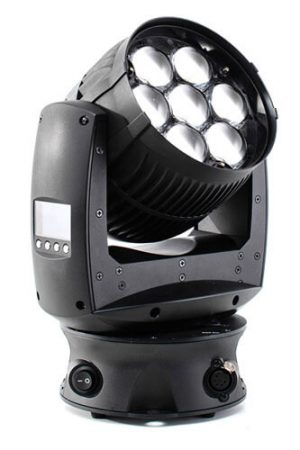

The impression X4 S packs a real punch in a compact and lightweight body. Despite its small size, the fixture does not give way to any compromise.

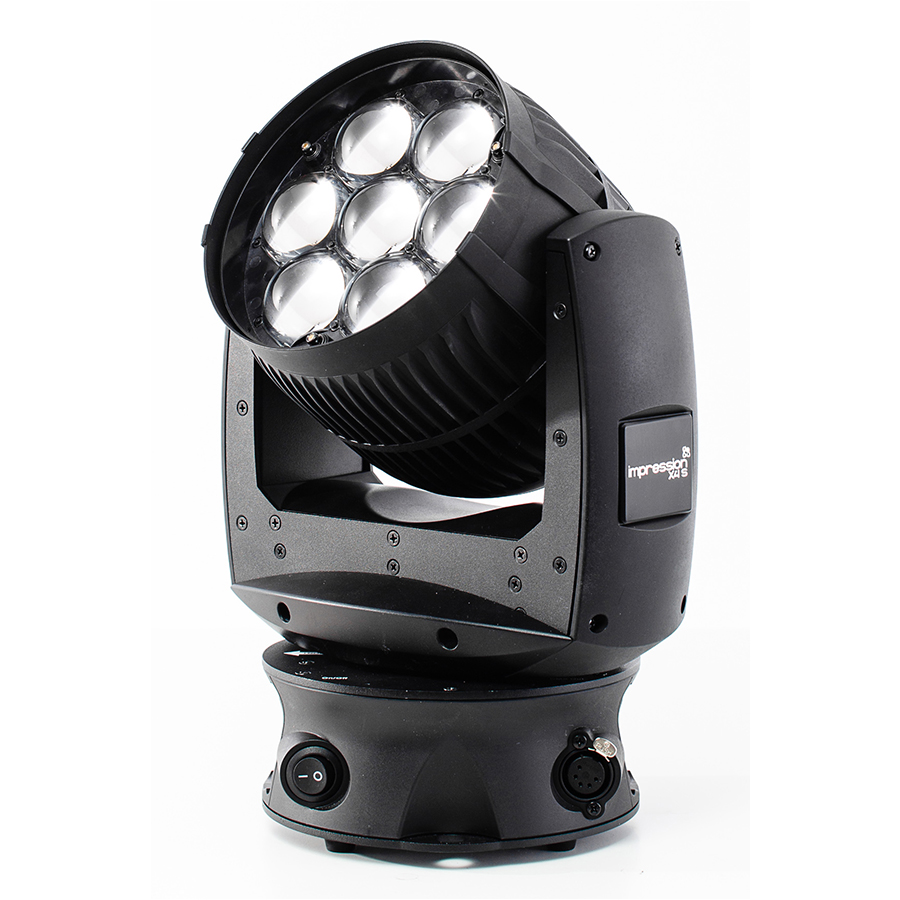

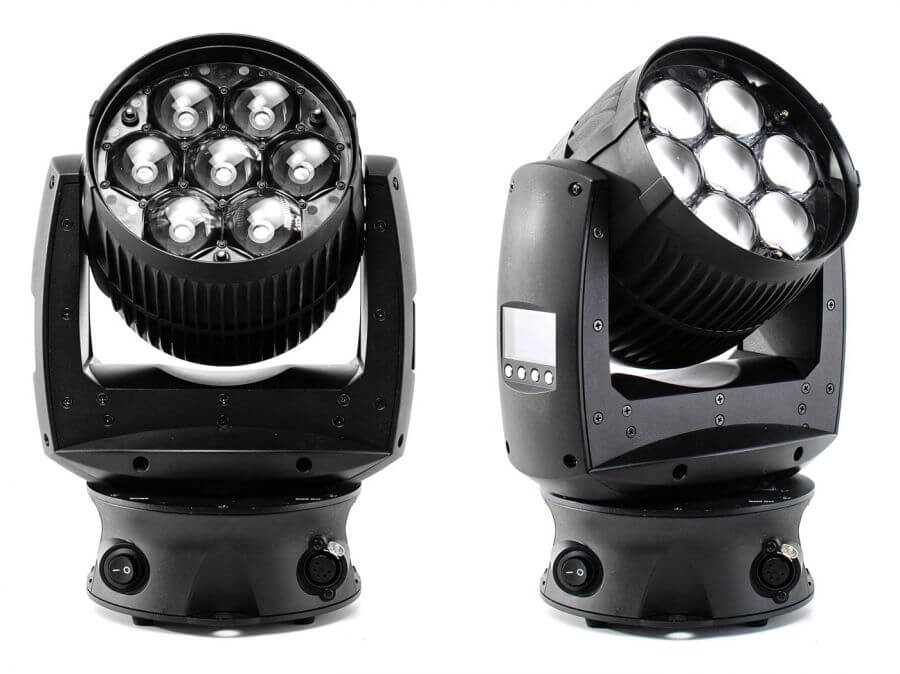

The heart of the compact impression X4 S features seven high powered RGBW LEDs, rated at 15 Watts each, which can combine to give a homogeneous output across its entire beam range.

The X4 S can also be equipped with variable white or RGBY LEDs, making the impression X4 range one of the most versatile ranges on the market, offering the perfect solutions for any production.

The zoom itself offers flexibility in a tight beam mode and also as a smooth edged wash light. A ratio of 7:1 provides a variable beam from 7° and all the way to 50°.

Full control over the quad color LEDs is done via DMX, with additional control over color temperature as standard. Additionally, the X4 S features precise full range dimming with no color drift at low intensities and a variable speed electronic strobe.

The most unique feature of the X4 S compact fixture is the ability to control the intensity of each LED individually, allowing you to program unique looks, animations, and patterns on the fly.

Physically the X4 S measures just 12 in. tall and weighs just 12 lbs. (5.4 kg). Rubber feet mounted to the base allow it to stand on its own and for hanging purposes, there are threaded sockets in the base allowing clamps to be directly inserted into the unit and keeping rigging height as low as possible.

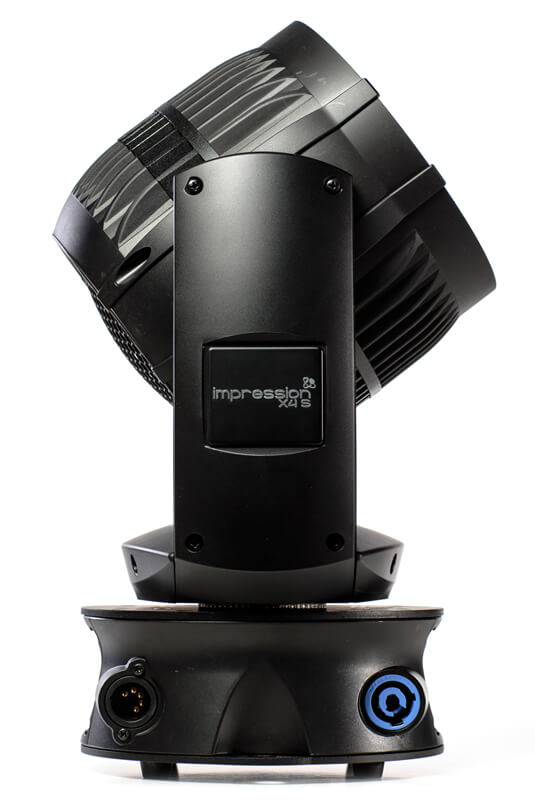

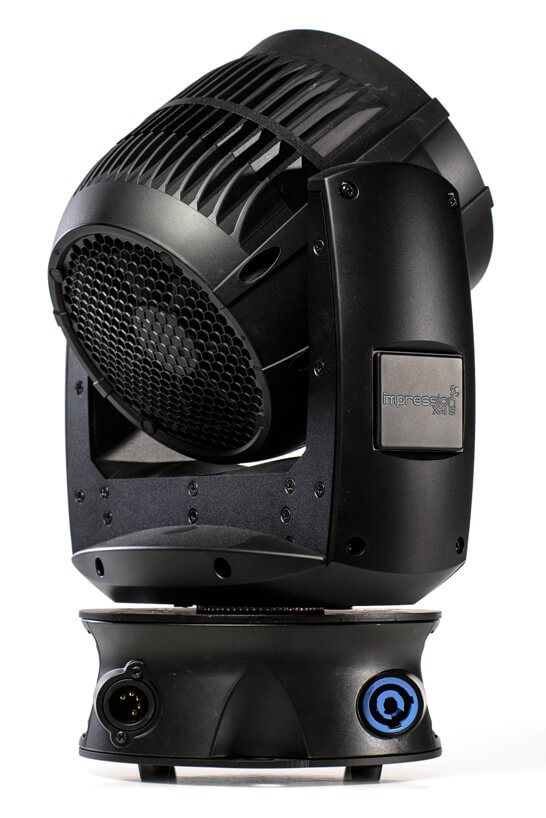

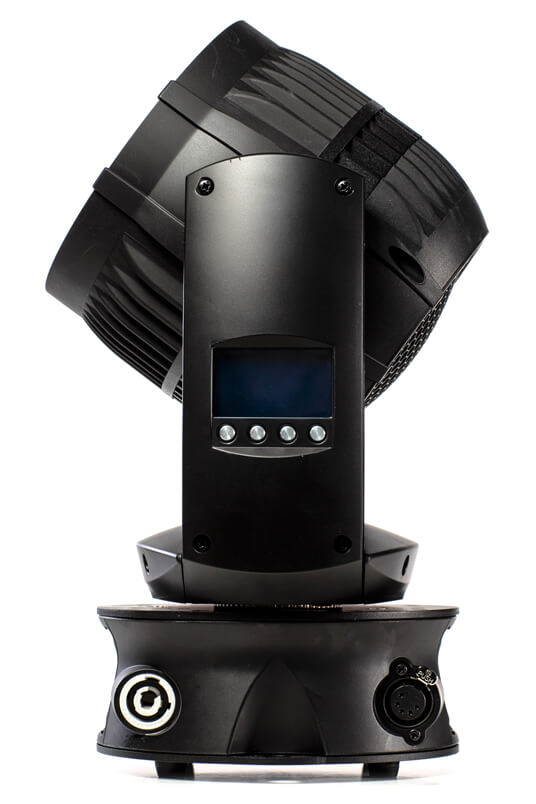

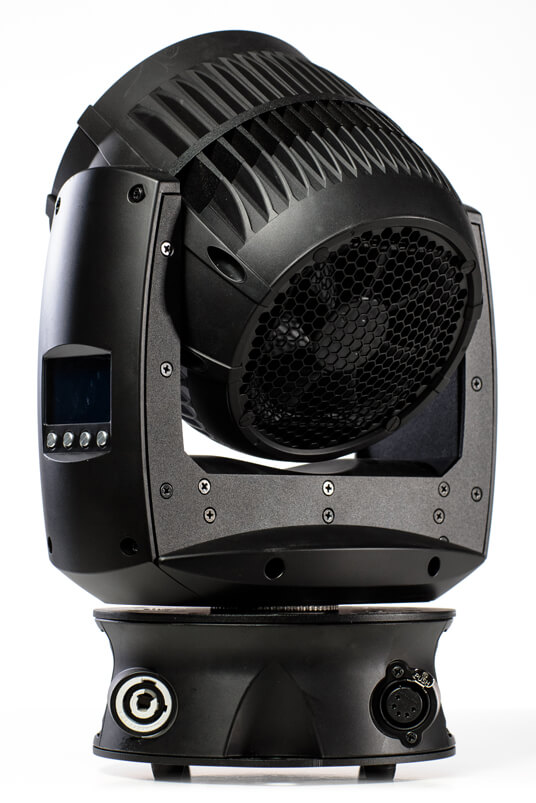

The elegant design of the impression X4 S contains a yoke mounted LCD display for addressing and configuring each unit with the base section containing data and power connections. The compact impression X4 S contains an auto sensing power supply from 100-240V at 50 or 60 Hz with Neutrik Powercon in and thru connectors.



Contact us for more information on the impression X4 S
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

zoom2 rgbw-multi

Available Light Sources:

  • 7 Osram high powered RGBW LEDs
  • 7 Osram high powered RGBY LEDs
  • 7 Osram high powered variable white LEDs
  • 50,000 hours rated life time



  • DMX 512 protocol
  • Macro operation of individual lenses
  • Very quiet temperature controlled ventilation
  • Internal color presets, and variable color temperature control from 2700 Kelvin -10,000 Kelvin
  • Back lit graphic LCD menu
  • Over temperature protection
  • Color calibration feature



  • DMX: XLR 5 pin
  • Power: Neutrik Powercon in and thru


Power Supply

  • Power consumption: 150 VA (Watt)
  • Power input: auto sensing 100-240 V AC, 50-60 Hz
  • Fuse protection: micro fuse 5 mm x 20 mm, T 2A


Operating Conditions

  • Maximum ambient temperature: 113°F (45°C)


Mounting Options

  • 3 M10 sockets for half coupler or other clamp
  • 2 attachment points for safety wires


Optical System

  • Motorized zoom system with 7° to 50° beam angle
  • 15W quad color LEDs
  • High efficiency collimator cluster for maximum light output



  • 8 or 16 bit resolution
  • Position feedback
  • Maximum speed: 660° pan in 2 secs. , 260° tilt in 1 sec.
  • High precision 3 phase stepping motor control


Shutter / Dimmer

  • Continuous dimmer 0-100%
  • Variable speed strobe of 1-25 Hz.
  • Random strobe effect
  • Pulse effects



  • Cardboard box
  • 6-way tour pack (complete with half couplers) in flight case
  • 8-way tour pack (complete with half couplers) in flight case


Housing Colors

  • Standard colors are black, silver & white
  • For other colors please contact sales department



  • (L x W x H): head vertical
    • 6.4 in. x 8.5 in. x 12 in. (22 cm x 15.5 cm x 31 cm)


Net Weight

  • 12 lbs. (5.2 kg)


PDFIconimpression X4 S manual


PDFIconimpression X4 S Channel Layout

PDFIcon impression X4 S CW/WW DMX Layout


PDFIconimpression X4 S Dimensions

ZIPIconimpression X4 S Vectorworks v2014

ZIPIconimpression X4 S 2D DWG

ZIPIconimpression X4 S 3D Studio Max

ZIPIconimpression X4 S 3D DXF


PDFIconimpression X4 S Photometric Data


PDFIcon  impression X4 S Product Card

PDFIcon  impression X4 S Spec Sheet

PDFIcon impression X4 Special Series Cut Sheet

Technical Notes

PDFIcon impression X4 Series Tech Note
