Fusion Par7

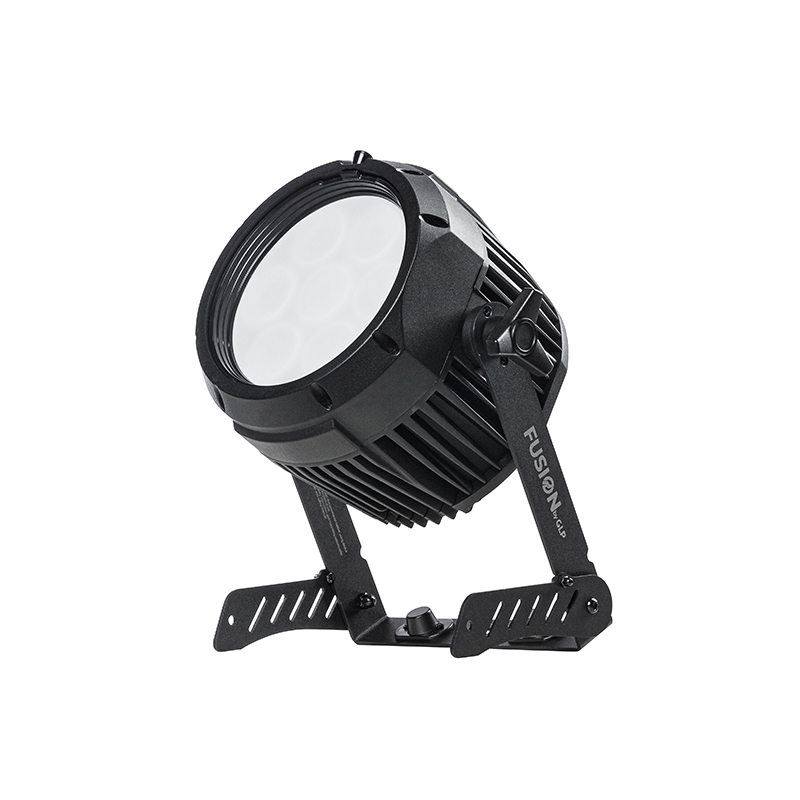

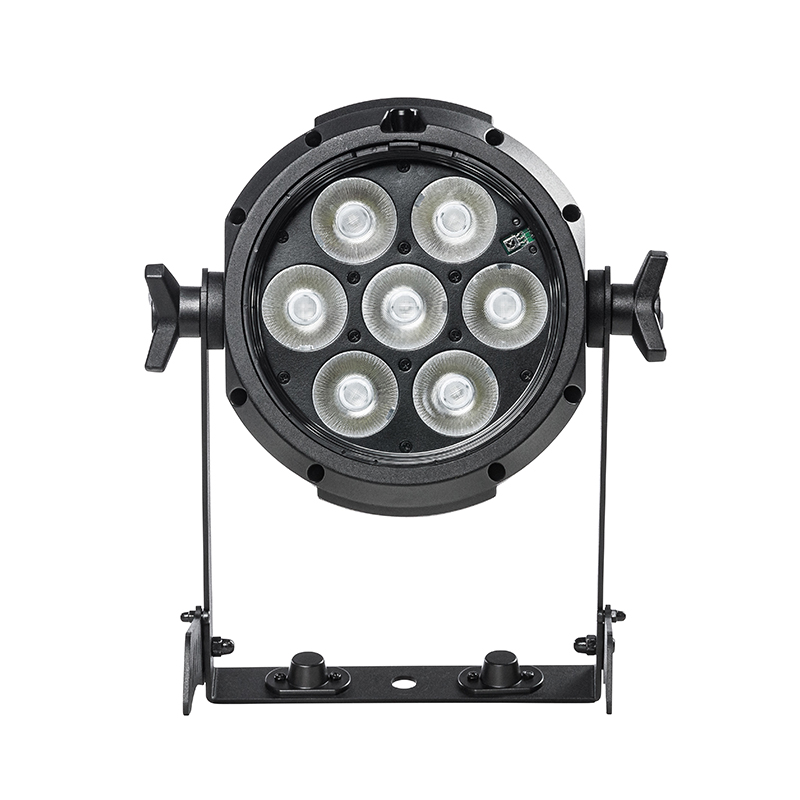

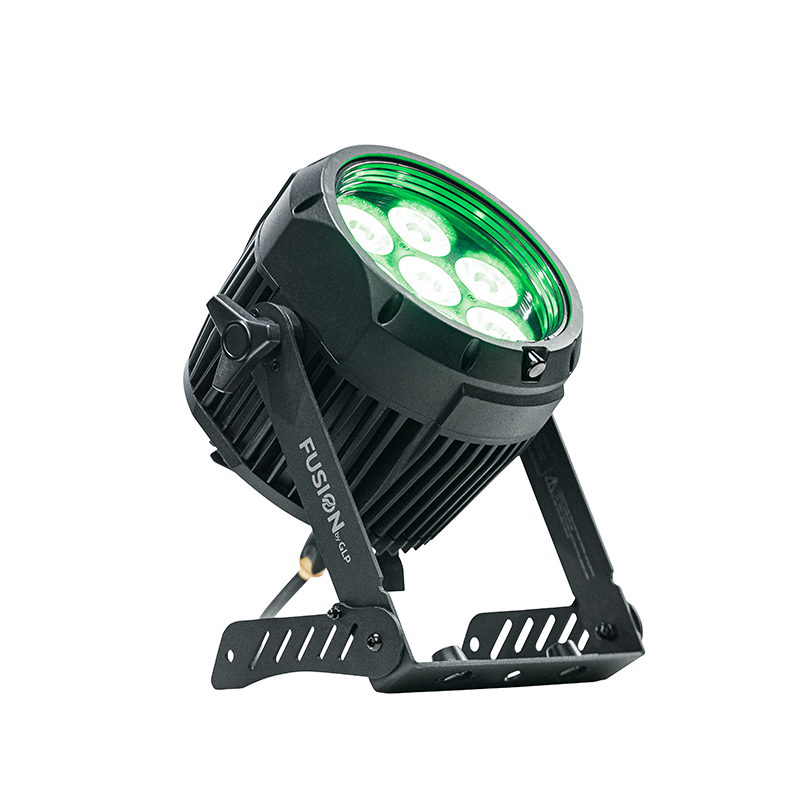

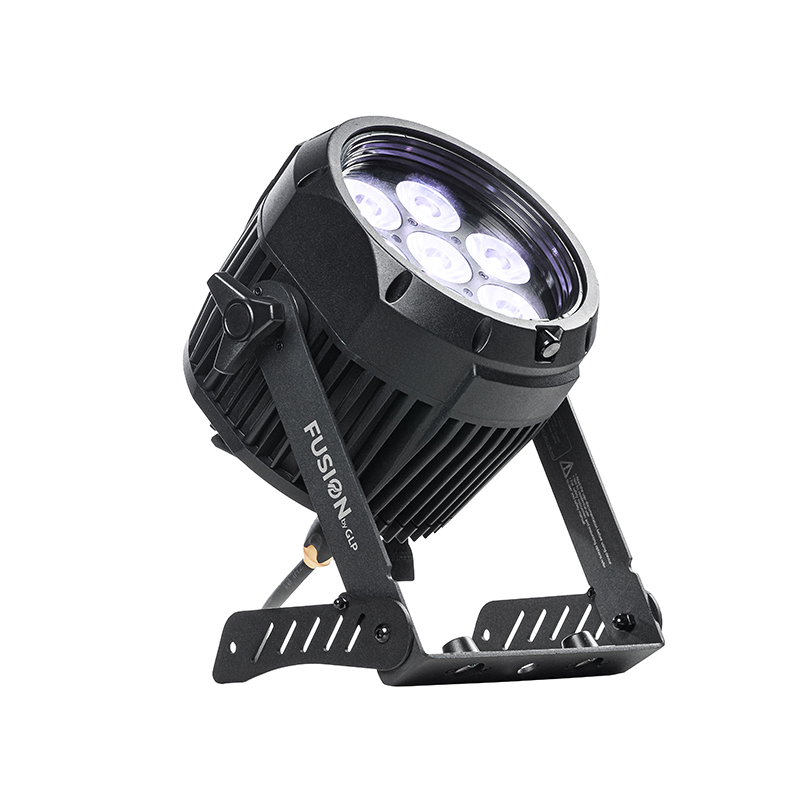

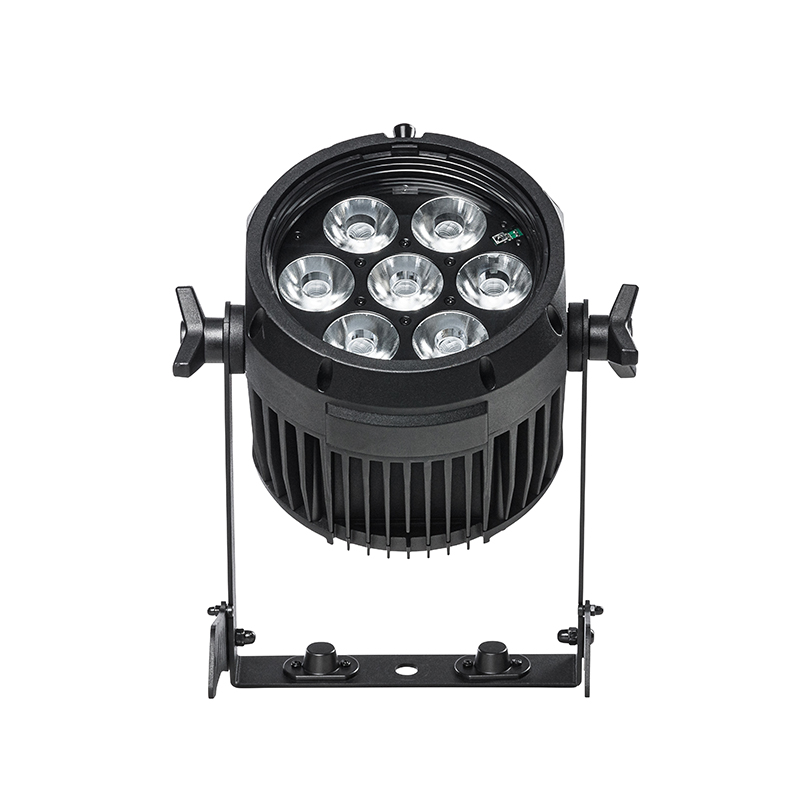

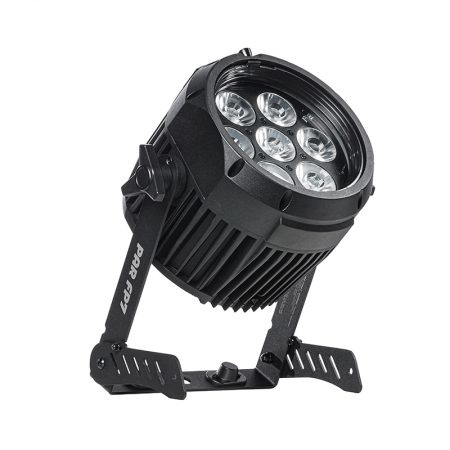

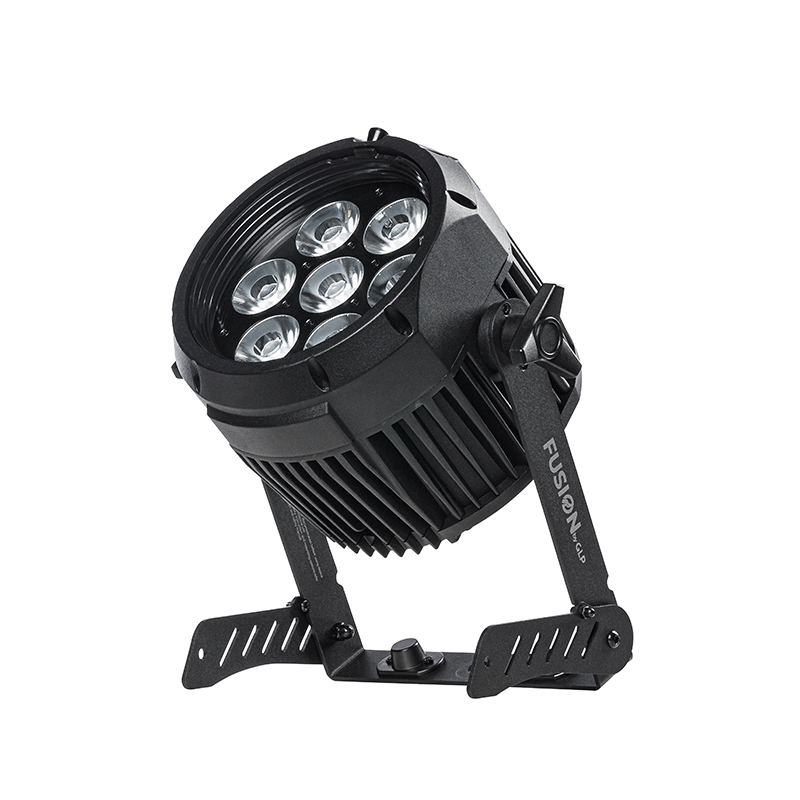

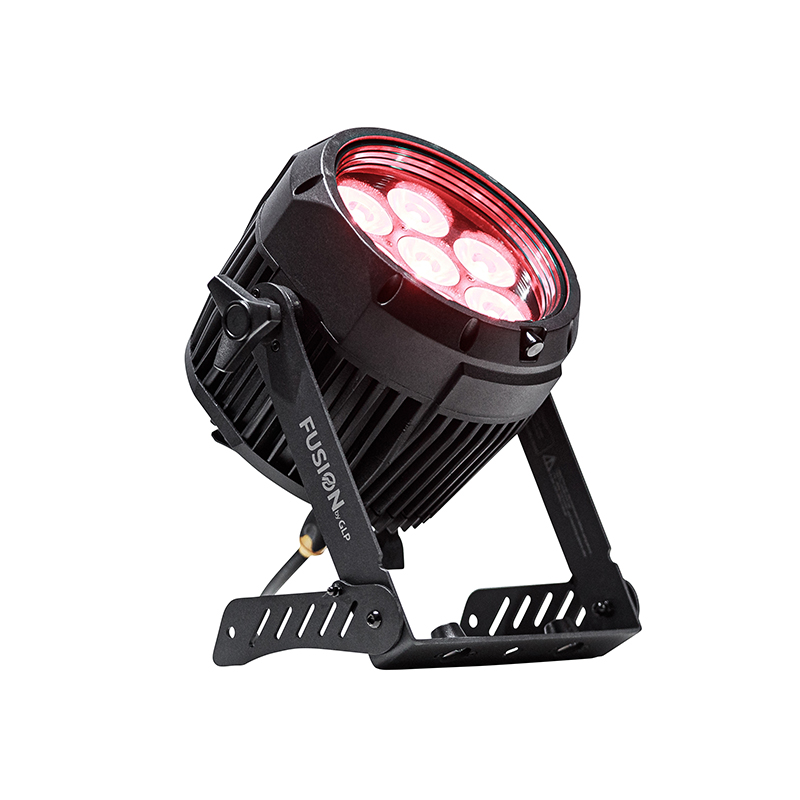

The Fusion Par 7 is equipped with seven high powered 30 Watt RGBW Osram® LEDs. With an IP65 rating, the Fusion Par 7 is capable of outdoor applications, even in the roughest of weather conditions. Also available are 20°, 40°, 60° and 60°x10° diffuser plates which can easily be fixed to the front of the fixture.

Category:

Contact us for more on the Fusion Par 7

Control

  • 4 button OLED display
  • USITT DMX 512-A
  • DMX channels: 2, 3, 4, 5, 6, 8
  • 6 control modes

Power

  • 100-240 VAC / 50-60Hz
  • auto ranging electronic switch-mode
  • 222W (max.)

Temperature

  • max 113°F (45°C)

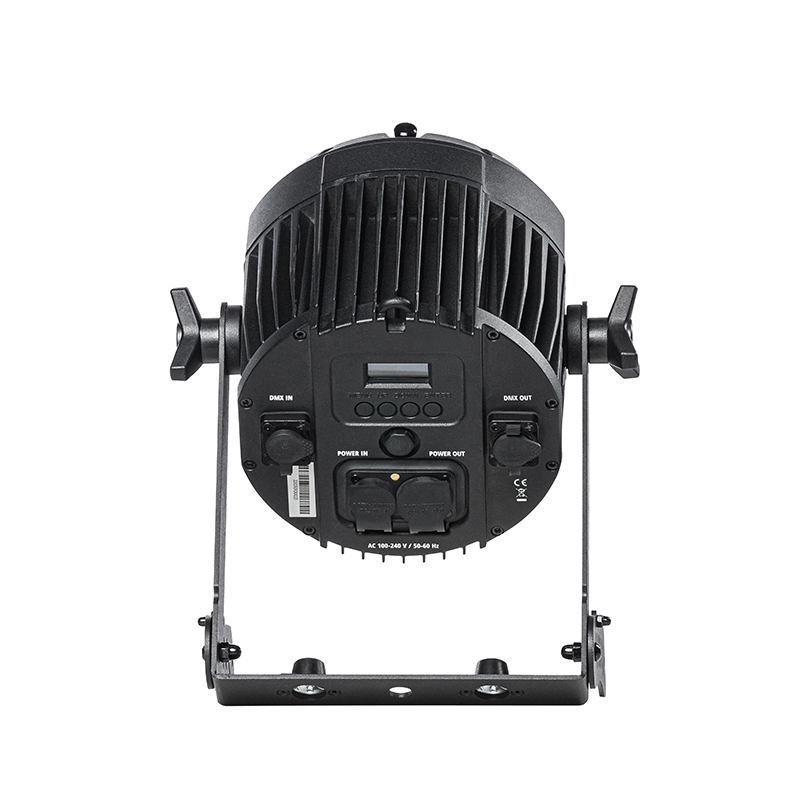

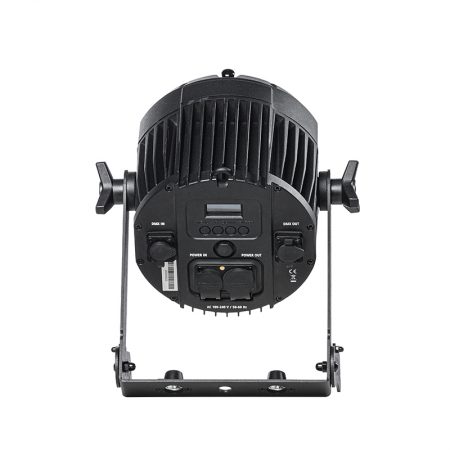

Connectors

  • XLR 5-pin signal connection
  • Neutrik powerCON TRUE1 power input

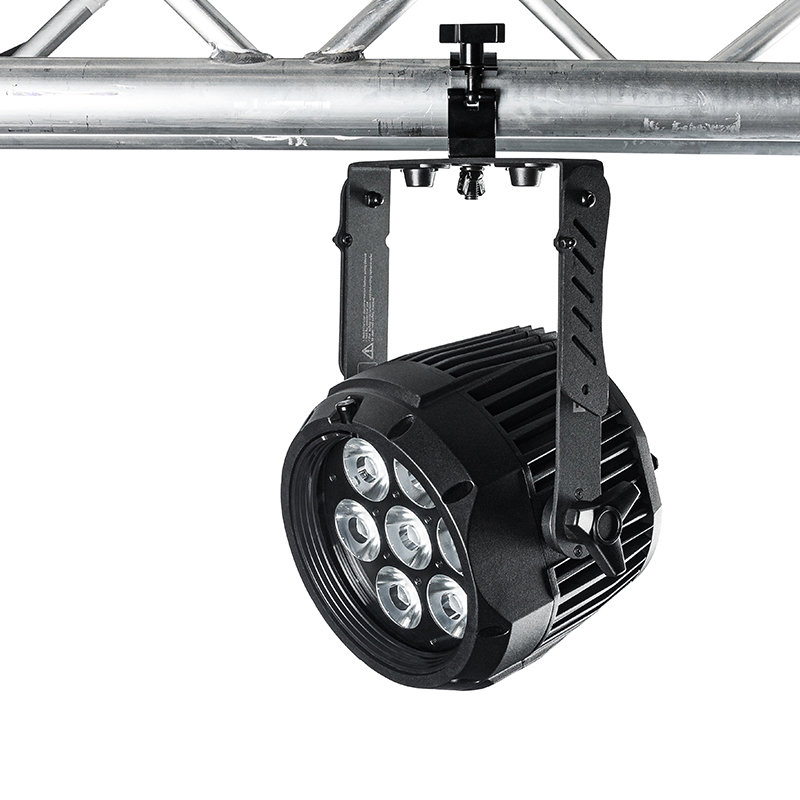

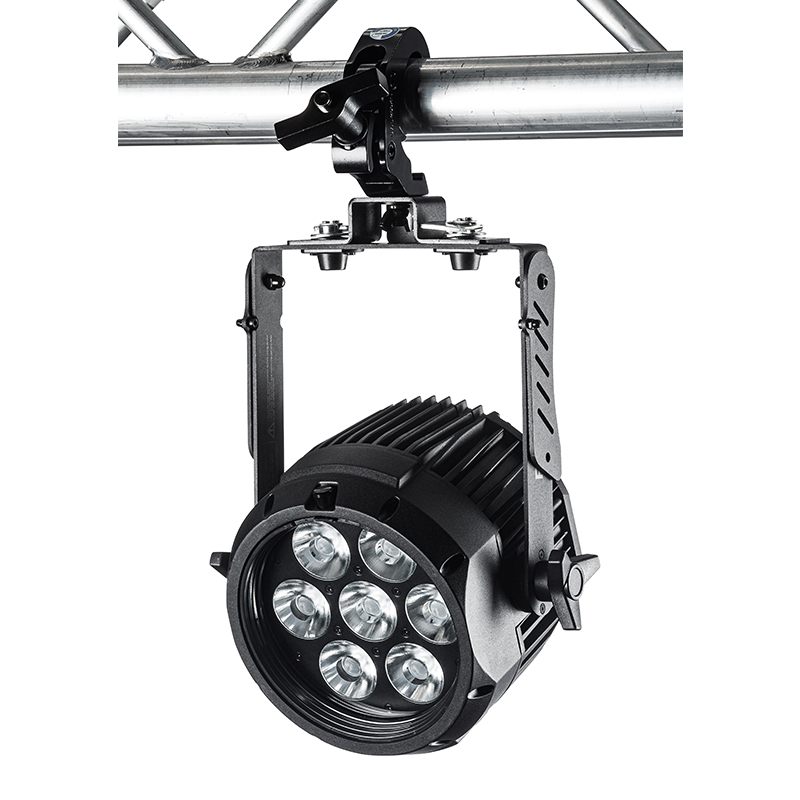

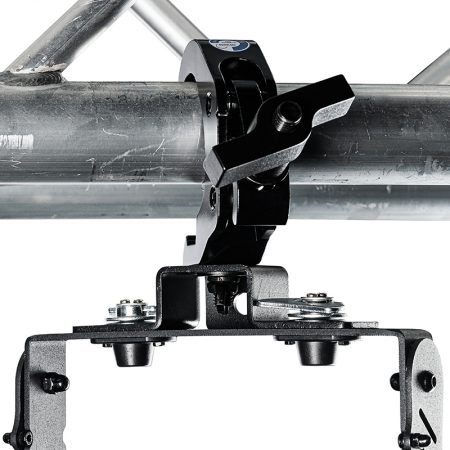

Mounting Options

  • 1 eyelet for safety wire attachment

Dimensions

  • LxWxH
    • 9.33″ x 6.53″ x 11.29″
    • 23.7 cm x 16.6 cm x 28.7 cm

Lightsource

  • 7x 30 W RGBW LEDs
  • 20,000 lifetime hours

Optical System

  • 6° beam angle

Effects

  • 0-100% electronic dimmer
  • Regular and random strobe
  • Pulse effects
  • Selectable dimmer curves
  • Virtual colorwheel featuring 39 colors and various whites
  • RGBW color mixing
  • 8,000 K – 2,500 K color temperature
