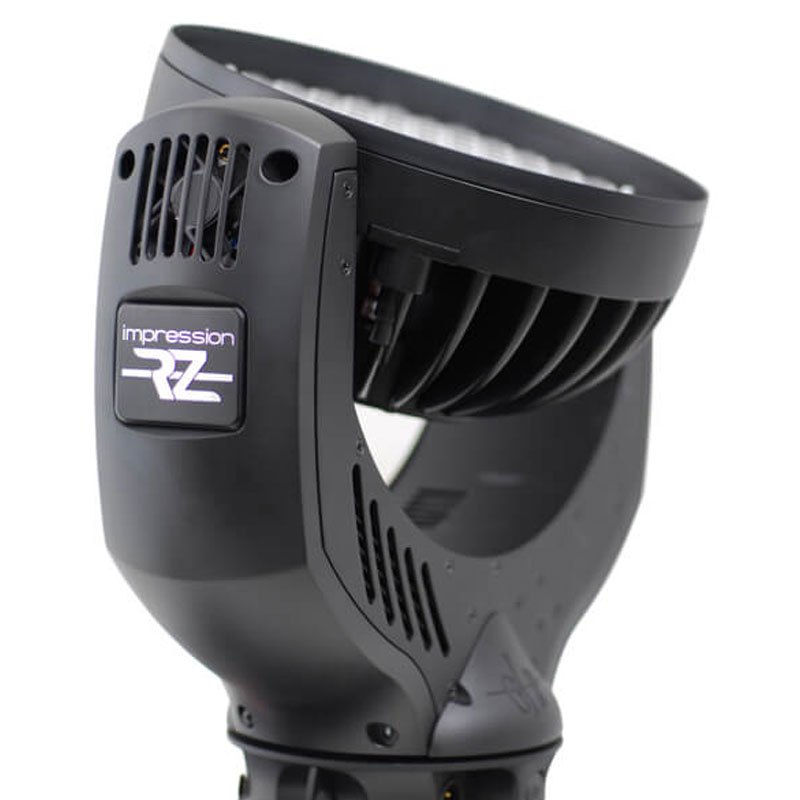

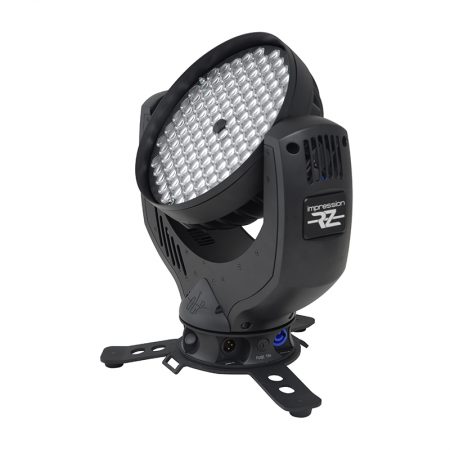

The impression RGB 120 RZ fixture has been born from the pedigree of the award winning impression series of LED based moving head fixtures. Designed and engineered in Germany.

The impression 120 RZ is built on the proven performance reputation that the impression brand has attained around the world. Additionally the fixture brings an automated zoom function to designers fingertips, combined with a new LED source.

The key, lighting designers told us, was not to lose any of the cool features from the original. Including the design with no base unit, the smooth dimming. The even color mixing, as well as the speed of operation are important features.

Contact us for more on the impression 120 RZ

rgb2 wcc2 wwc2 zoom2 rebel2

Light Source

  • Additive color mixing
  • 120 Luxeon Rebel high powered LEDs
  • Average service life: 50,000 hours

RGB Version

  • 42 green LEDs, 36 blue LEDs, 42 red LEDs, wavelength optimized for a maximum visible color gamut WWC version
  • 72 warm white (3,200K) LEDs plus 42 cold white (7,200K) LEDs

WCC Version

  • 42 warm white (3,200K) LEDs plus 78 cold white (7,200K) LEDs

Optical System

  • High efficient collimator cluster
  • Zoomable optical system with 10° to 26° light distribution angle

Movement

  • 8 or 16 bit resolution selectable
  • Position feedback
  • Maximum speed: 660° pan in 2sec, 300° tilt in 1sec
  • High precision stepping motor control

Shutter / Dimmer

  • Strobe effect with variable speed between 1-10 flashes per second, random-strobe, pulse effects
  • Continuous dimmer 0-100%

Control

  • DMX-512 protocol

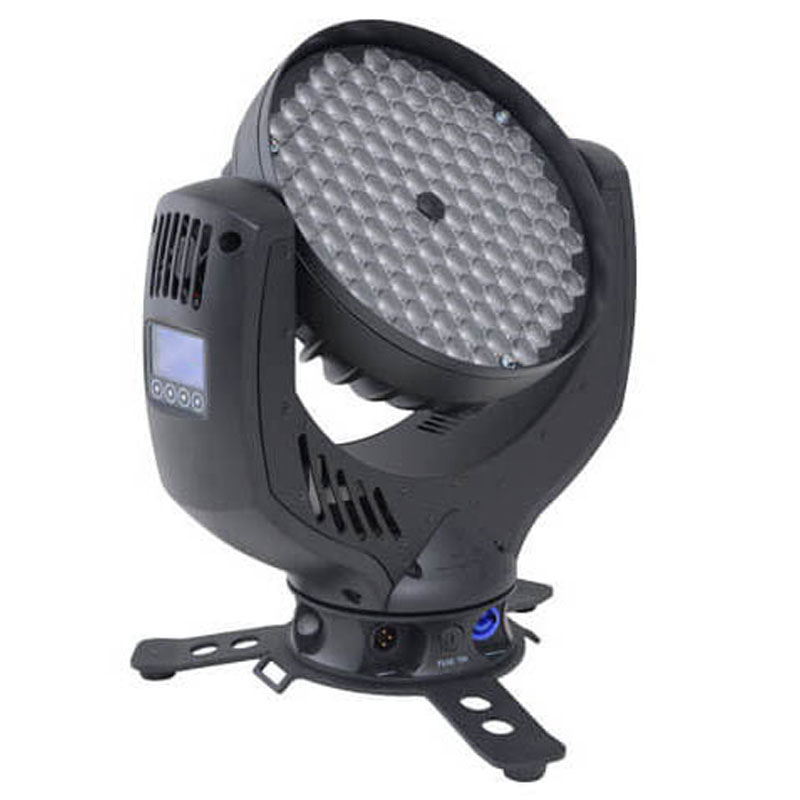

  • Backlit graphic LCD menu with 4 illuminated buttons

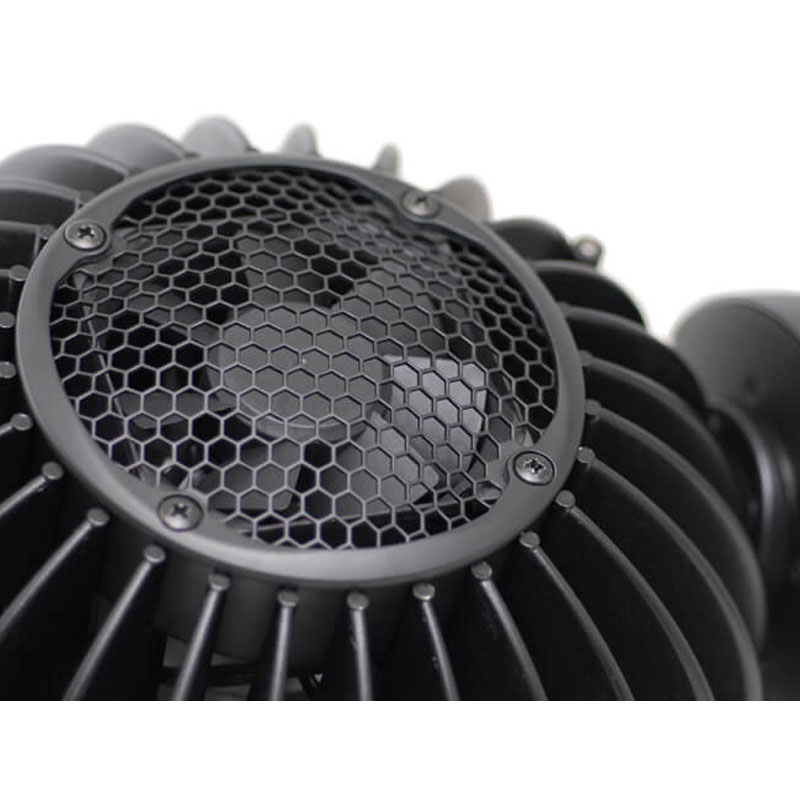

  • Very quiet, temperature controlled ventilation system
  • Convection cooling possible if needed
  • Over temperature protection
  • Color calibration feature
  • Internal color presets

Power Supply

  • Power consumption: 350 VA (Watt)
  • Power input: ~100-240 V AC, 50-60Hz (wide range input)
  • Fuse protection: micro fuse 5x20mm, T 5A

Connectors

  • DMX: XLR 3 pin
  • Mains voltage: Neutrik Powercon

Operating Conditions

  • Maximum ambient temperature: 113°F (45°C)

Approvals

  • ETL safety approved
  • US dafety approved: UL 1573 and UL 8750
  • Canadian safety approved: CAN/CSA C22.2 No. 166

Mounting Options

  • Omega bracket attachment
  • 2 attachment points for safety wire
  • Upright : tripod (supplied) with brackets for ratchet belt
  • Hanging (vertical): M10 nut with lockable installation position for a
  • Half coupler or other clamp
  • Hanging (horizontal): adjustable bar for sideways truss installation (optional)

Shipping

  • Cardboard box
  • 4 way tourpack (complete with half couplers and additional lenses) in flight case
  • 6 way tourpack (complete with half couplers and additional lenses) in flight case

Housing Colors

  • Standard colors are black, silver & white
  • For other colors please contact sales department

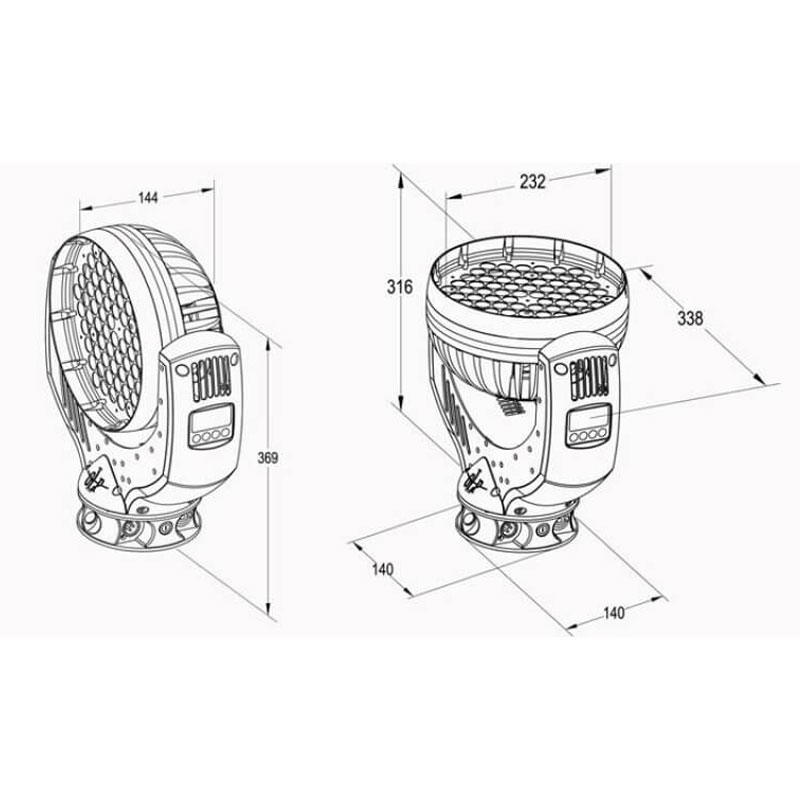

Dimensions

  • Length x width x height (head vertical): 5.7 x 13.4 x 14.6 inches (145mm x 340mm x 370mm)

Net Weight

  • 17.6 lbs (8 kg)
