Impression X5 Fixtures – Designer Stage Lighting- GLP

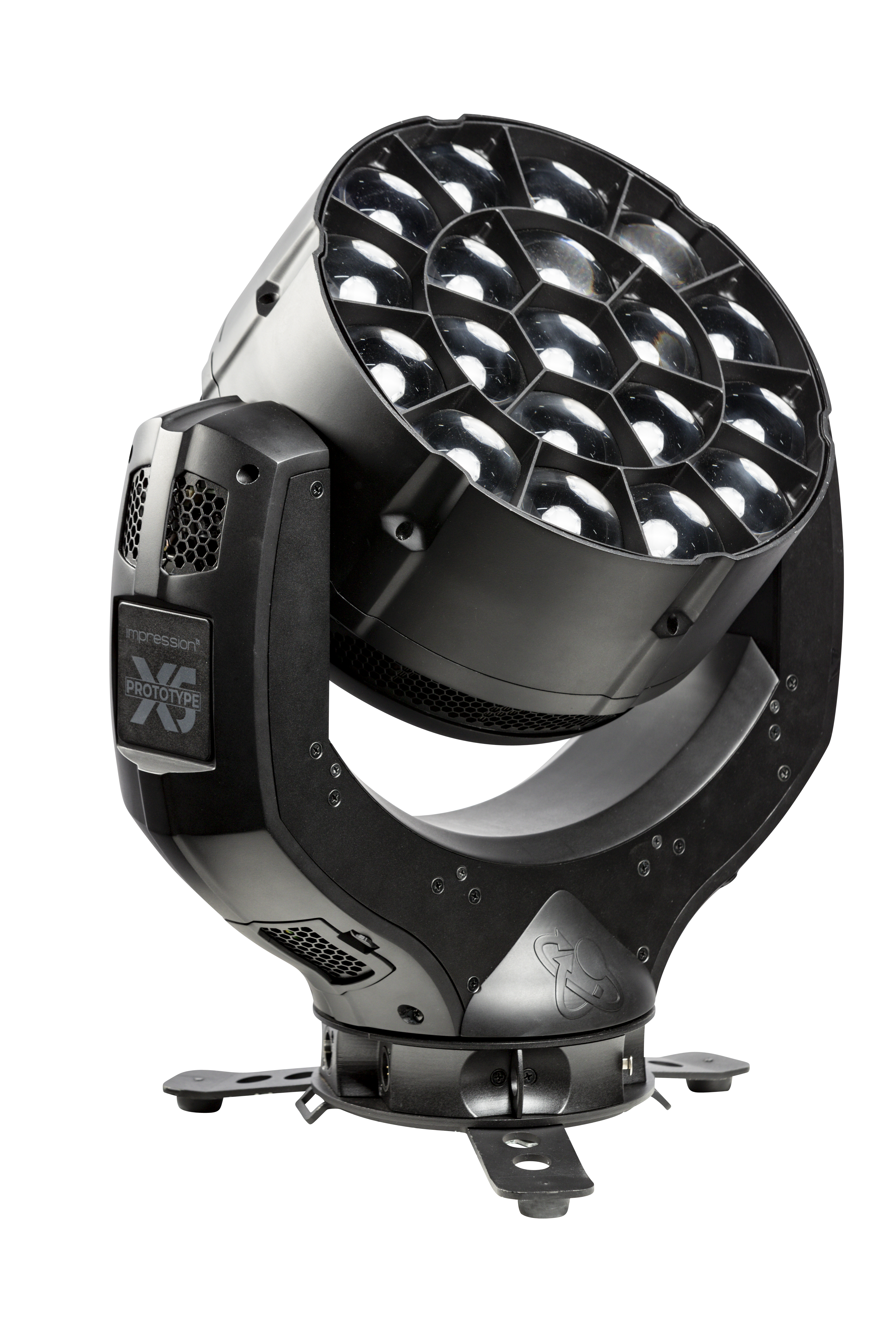

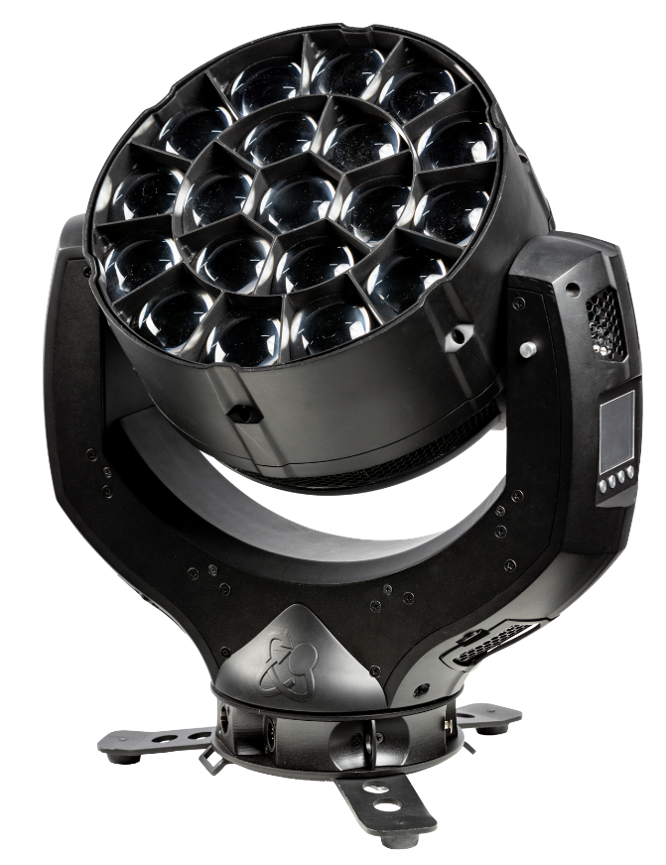

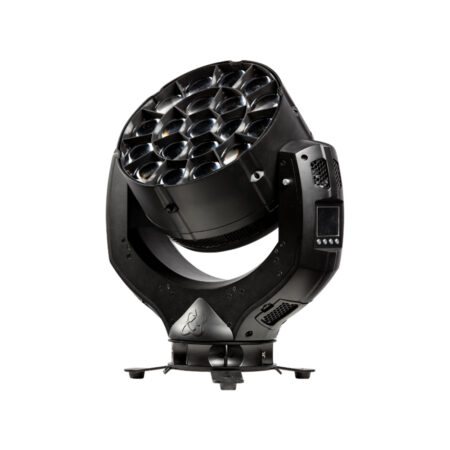

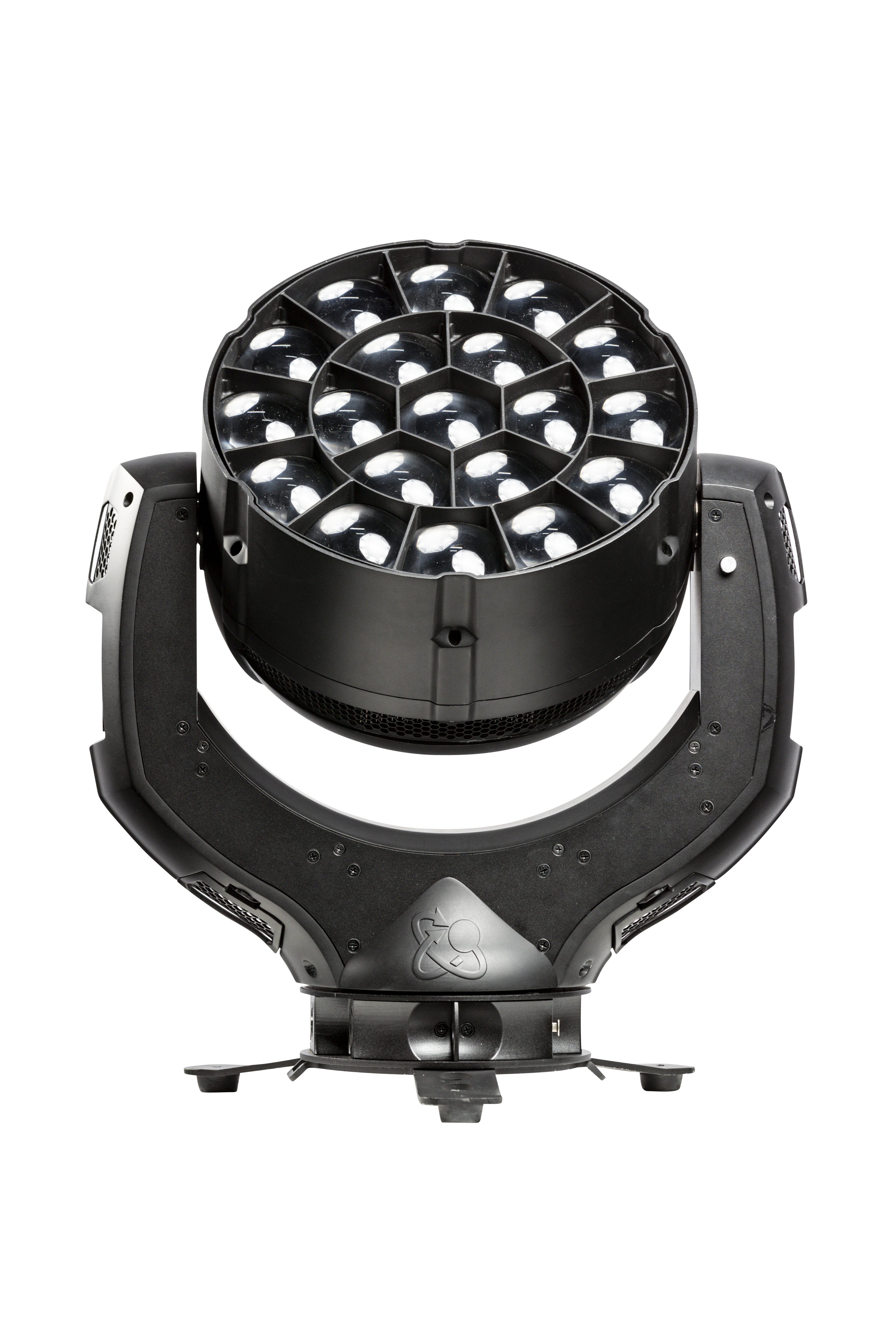

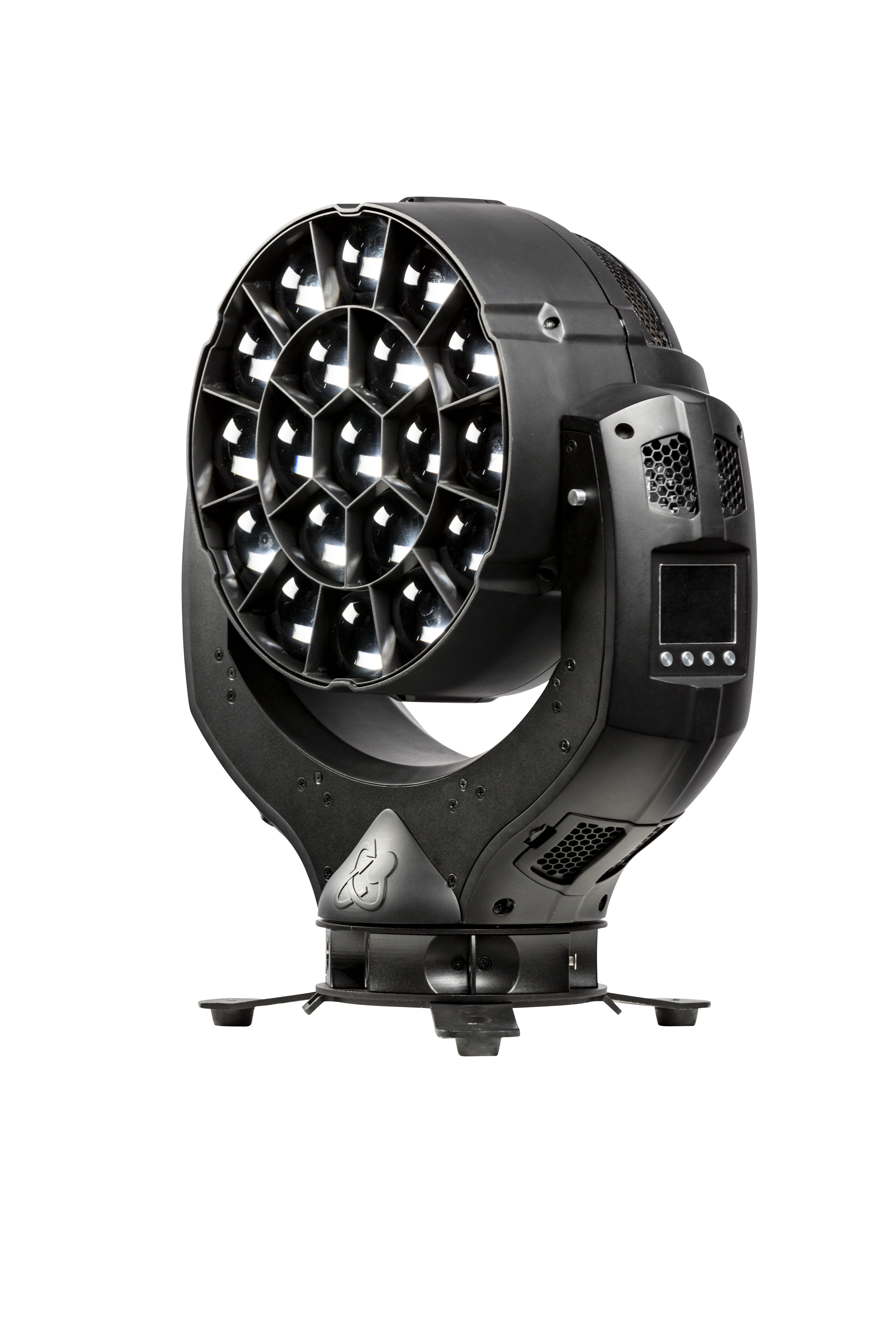

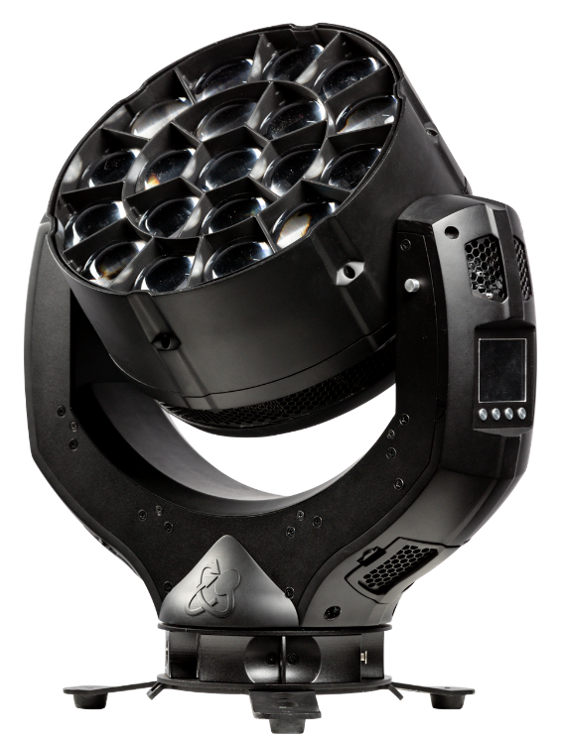

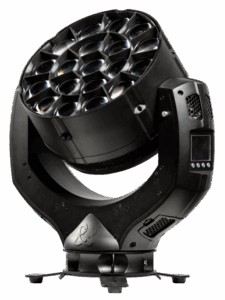

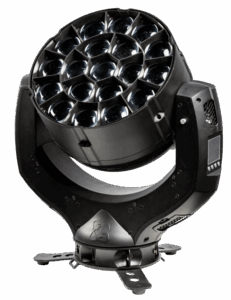

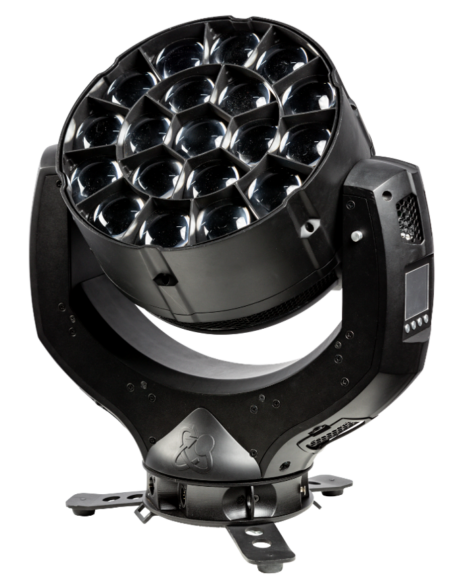

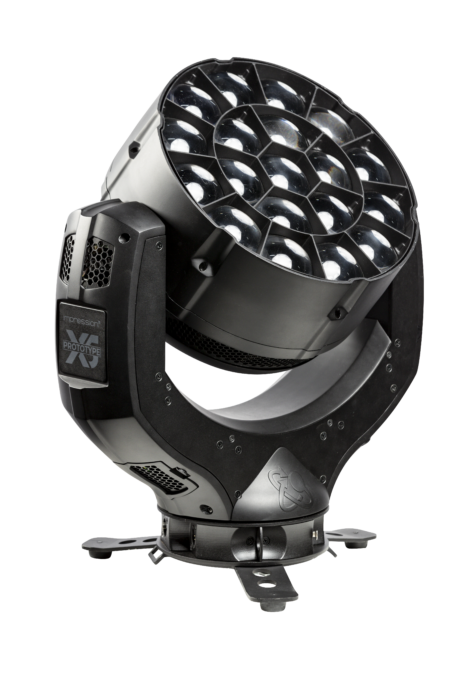

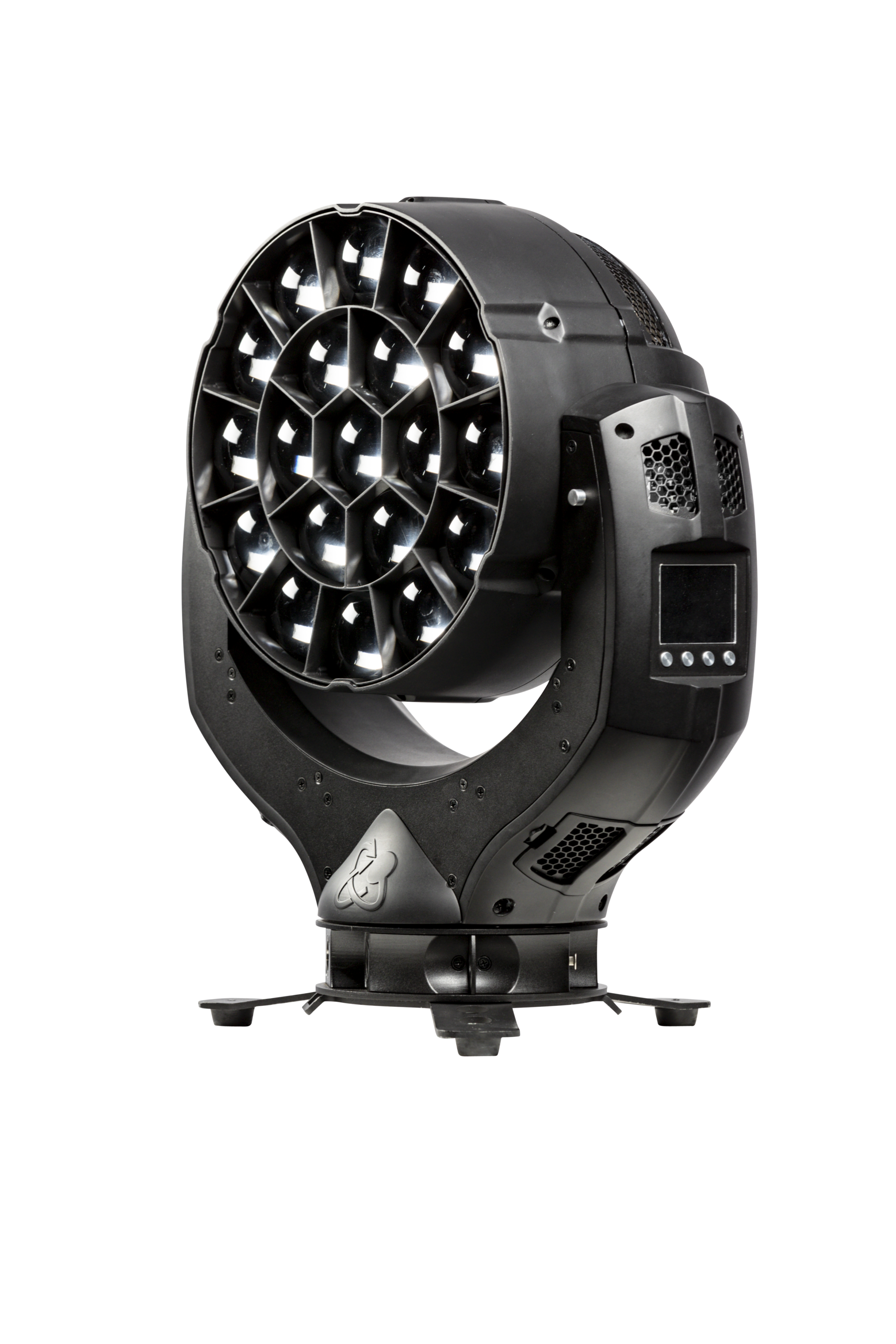

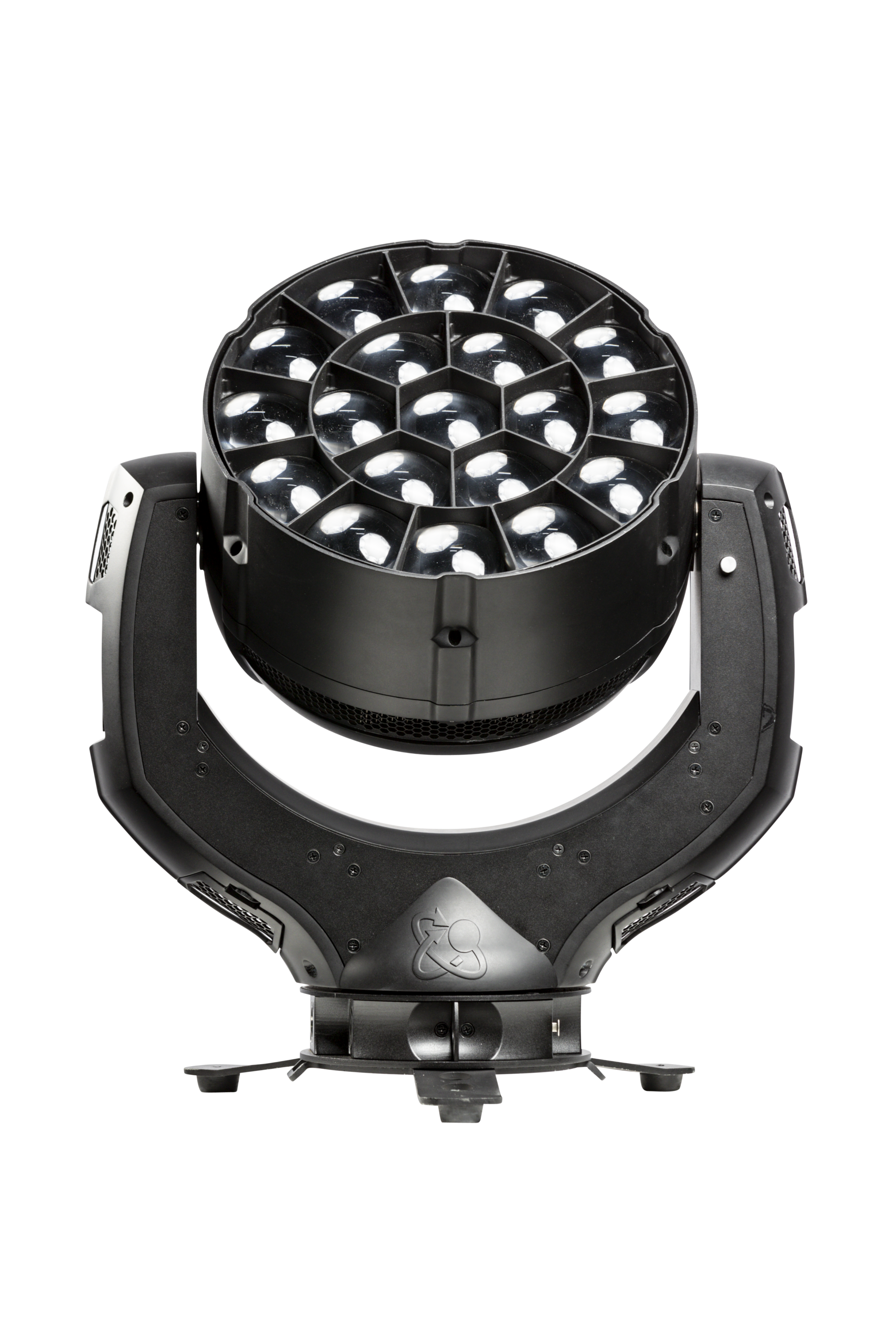

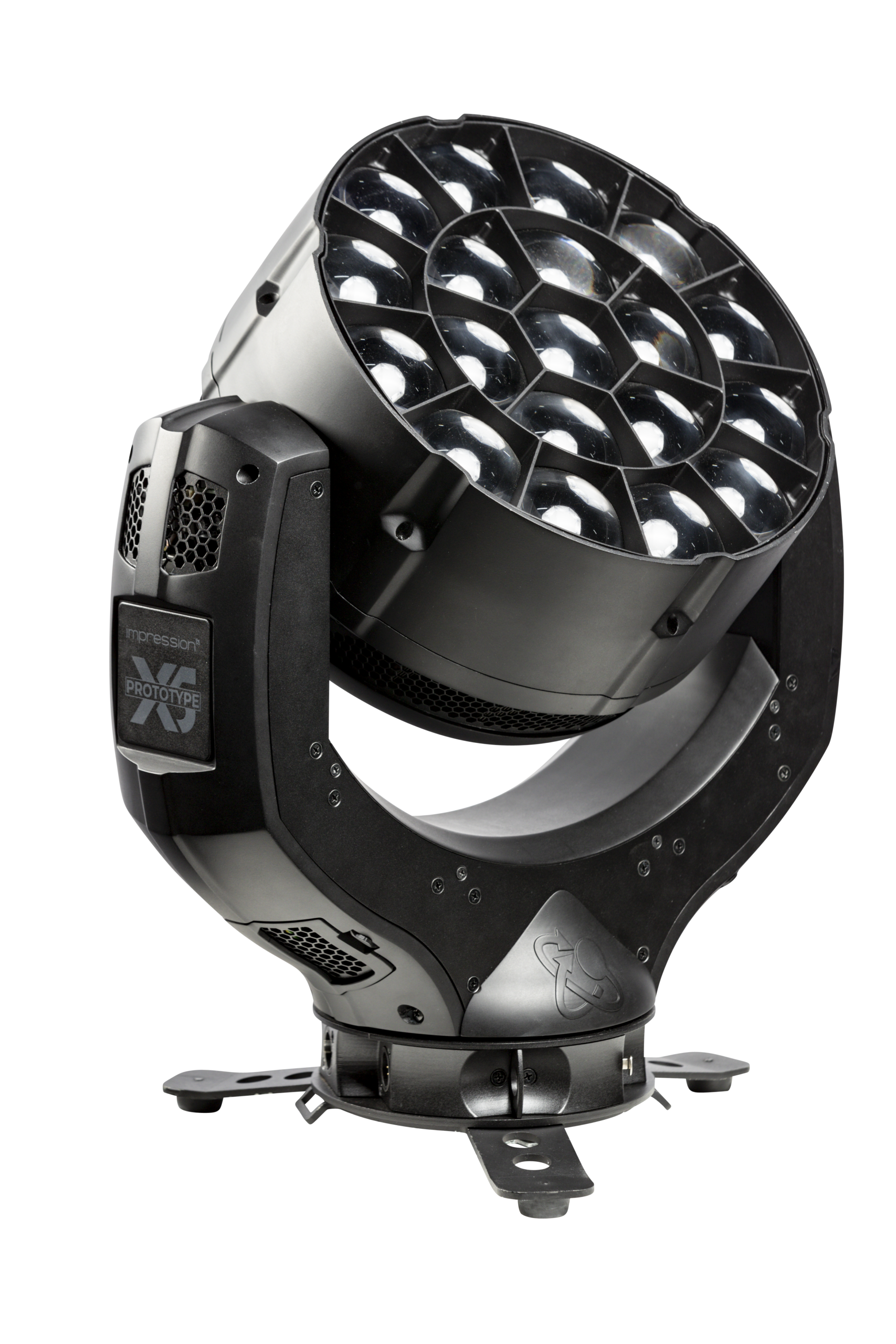

The GLP impression X5 uses 19 powerful 40 Watt RGBL LEDs to give an incredible output with increased color gamut.

GLP’s new iQ.Gamut calibration algorithm ensures the impression X5 creates clean white points with CRI 90 at 6500 Kelvin and the ability to switch to other fixed color temperatures instantly, all calibrated exactly to the black body line.

With new super-fast zoom mechanics, the impression X5 offers a 16:1 range running from 3.5° to 60° with homogenous light distribution across its entire range.

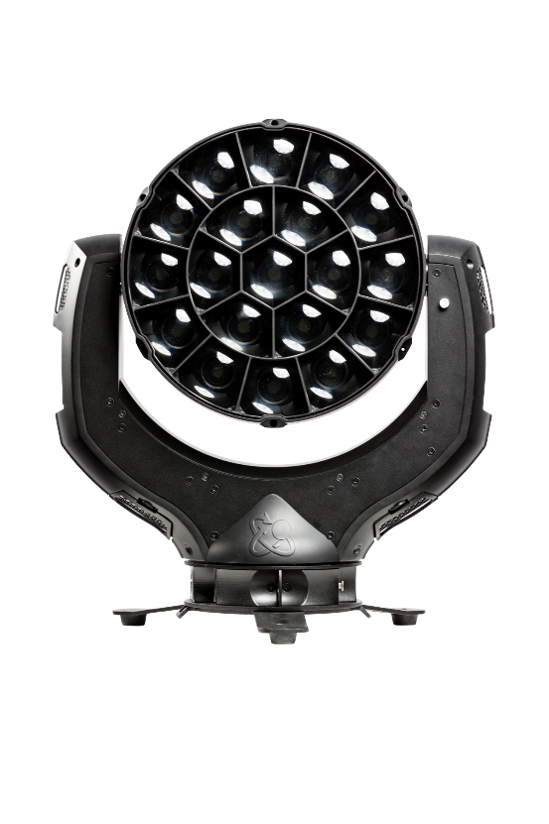

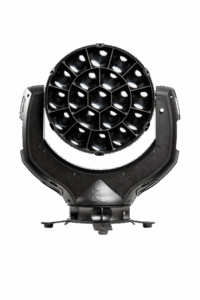

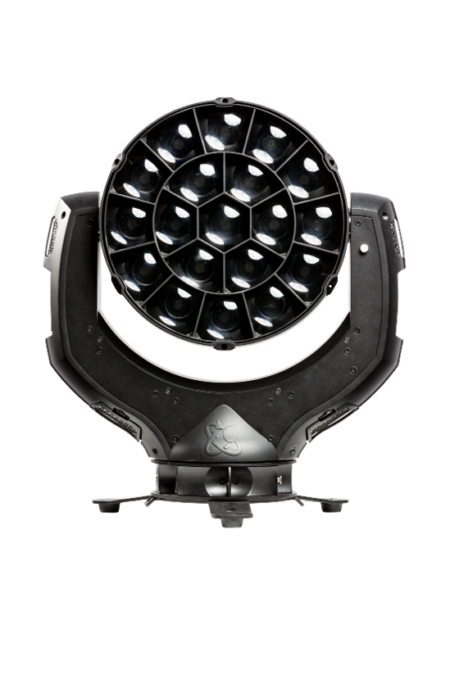

A new front face with a circular design offers a fresh modern look, a round aperture and has been designed to include geometric patterns for great looking Pixel mapping effects.

The impression X5 comes complete with an extensive feature package, including a virtual color wheel with 64 referenced LEE Filters, a new Color Quality Control, Magenta / Green Correction, a Tungsten Simulation and Effect Channel and a double layer effect option.

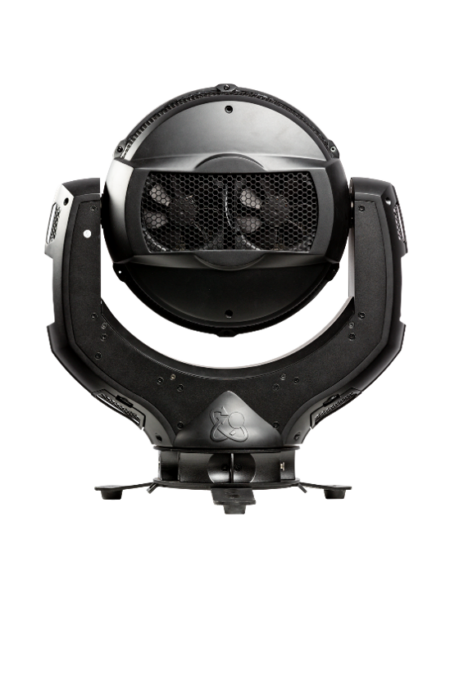

Featuring GLP’s trademark baseless design, the impression X5 weighs just 13.3 kg / 29.3 lbs. Its design also allows static front accessories or even electromechanical effect modules to be attached.

The impression X5 can be controlled via DMX, ArtNet or sACN and can be set up using Near Field Control.

Contact us for more information on the impression X5
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

Light Source

19 RGBL LEDs
Light source power – 40 W
Light source lifetime – 50,000 hours
LED refresh rate – 2,200 Hz; 3,000 Hz (Default); 4,800 Hz; 9,600 Hz; >20KHz for high speed
CCT – default white point – 6500 Kelvin; optional: 8000 Kelvin; 5600 Kelvin; 4200 Kelvin; 3200 Kelvin
Duv – perfect white point match low Duv values
CRI (Ra) – 8000 Kelvin: 90+ | 6500 Kelvin: 90 | 3200 Kelvin: 85
TLCI – 6500 Kelvin: 90 | 3200 Kelvin: 75
TM-30-15 – 6500 Kelvin: Rf/Rg: 87/105 | 3200 Kelvin: Rf/Rg: 85/110

Control

DMX channels – 22 / 33 / 105 / 71 / 40
Protocol –
- DMX (USITT DMX512-A)
- RDM (ANSI/ESTA E1.20)
- Art-Net
- sACN
- iQ.Mesh
- Optional: Lumenradio CRMX @ FPO
Setting and addressing –

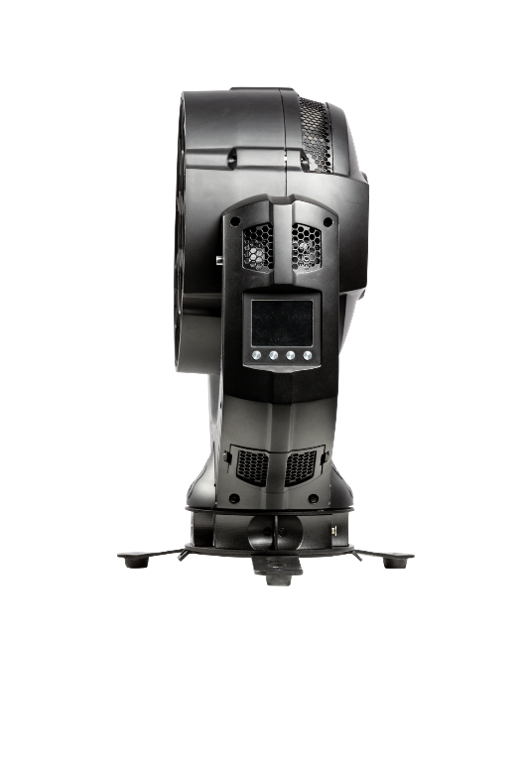

- Control panel with backlit monochrome graphic display
- 4 button menu navigation
- DMX
- RDM
- iQ.Mesh
- NFC (Collect & Connect)
Software update –
- DMX link
- Via DProg
- Internal Webinterface
- iQ.Mesh
- Fixture2Fixture Push
High-res channels –
- Intensity
- Pan
- Tilt
- Colormix
Performance modes –
- Fast
- Normal (balanced)
- Smooth
Dimming curves –
- Linear
- Soft
- S-curve
Fan modes –
- Regulated
- High
- Medium
- Low
- Off
Subfixture mode –
- Normal
- Independent
White points – default white point: 6500 Kelvin; optional: 8000 Kelvin; 5600 Kelvin; 4200 Kelvin; 3200 Kelvin
Other controls
- Stand Alone 1 captured scene
- Art-Net/sACN node
- Data Conversion
- iQ.Mesh
- FPO (Flexible Protocol Option)
- Internal webinterface
- SW Fixture2Fixture Push

Effects

Dimmer – 0 – 100%; 16 bit
Shutter – strobe, pulse, sparkle, etc.
Color mixing
- RAW
- RGBL
- x;y
CTC (color temperature control) – 1000 – 2500 Kelvin
CQC (color quality control)
- High output (HO)
- High quality (HQ)
Magenta/green-shift – yes
Tungsten simulation – 8x linked to fix CCT, 8x relative to Colormix
Color wheel – virtual color wheel, 64 LEE referenced colors, rainbow
Pattern effects – 50 dynamic pattern macros with special effects
Pan movement angle – 540° normal (650° extended), 16 bit resolution
Tilt movement angle – 230°, 16 bit resolution
Pan/tilt movement speed – super fast

Connectors

Signal connection
- XLR 5-Pin
- In/out
- Neutrik etherCON port A & B (failsafe)
Power
- Neutrik powerCON TRUE1
- In/out

Power

Power input – 100 – 240 VAC / 50 – 60 Hz
Power supply – auto-ranging electronic switch-mode
Power supply cable
- US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft.
- EU: 16 A, 1.5 mm², H05VV-F, 1.5 m
Max. power (@230V) – 710 W

Optical System

Output – up to 11,200 lumens
Peak luminous intensity – 1.79 Mcd
Min. zoom – 3.5°
Max. zoom – 60°
Zoom ratio – 1:16
Output lens diameter – 260 mm

Mounting Options

Mounting
- 1 pair of 1/4-turn locks
- 2 eyelets for safety cable
- M10 screw thread(s)
Orientation – any
Location – indoor permanent

Thermal Specifications

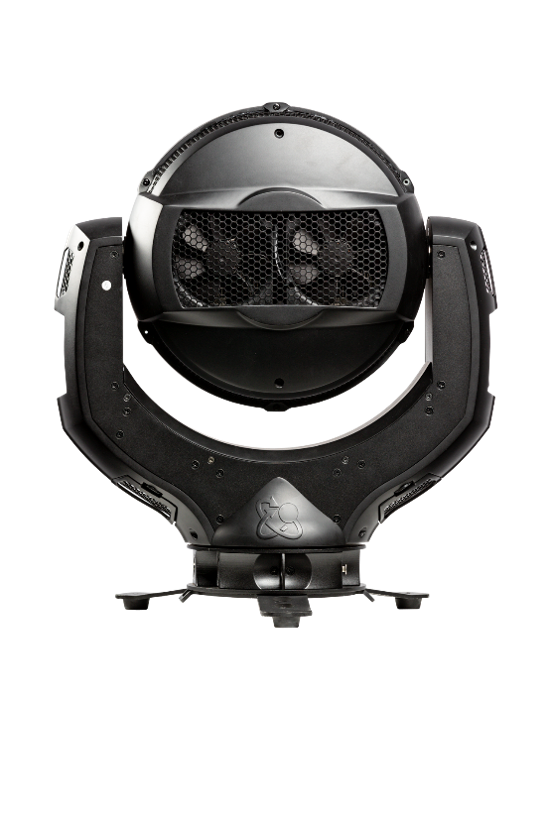

Cooling – combined convection and forced air
Max. surface temperature (Ta = 40°C) – 45 °C / 115 °F
Min. ambient temperature (Ta min.) – 5 °C / 40 °F
Total heat dissipation (calculated, +/-10%) – 2,650 BTU/h

Construction

Housing color – black
Housing material
- High-impact flame-retardant thermoplastic
- Aluminum
- Steel metal plates
Protection rating
- IP 20
Construction features
- Baseless design
- Prepared for external accessories (Egg Crate; Top Hat, electromechanical modules, etc.)

Dimensions

Height – 15.83 in. / 402 mm
Width (across yoke) – 16.4 in. / 415 mm
Length – 11.4 in. / 290 mm

Net Weight

Weight – 29.3 lbs. / 13.3 kg
