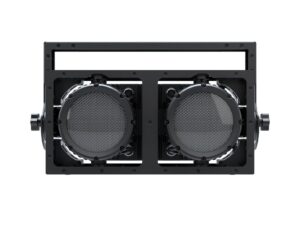

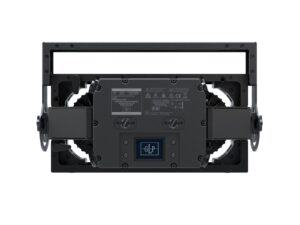

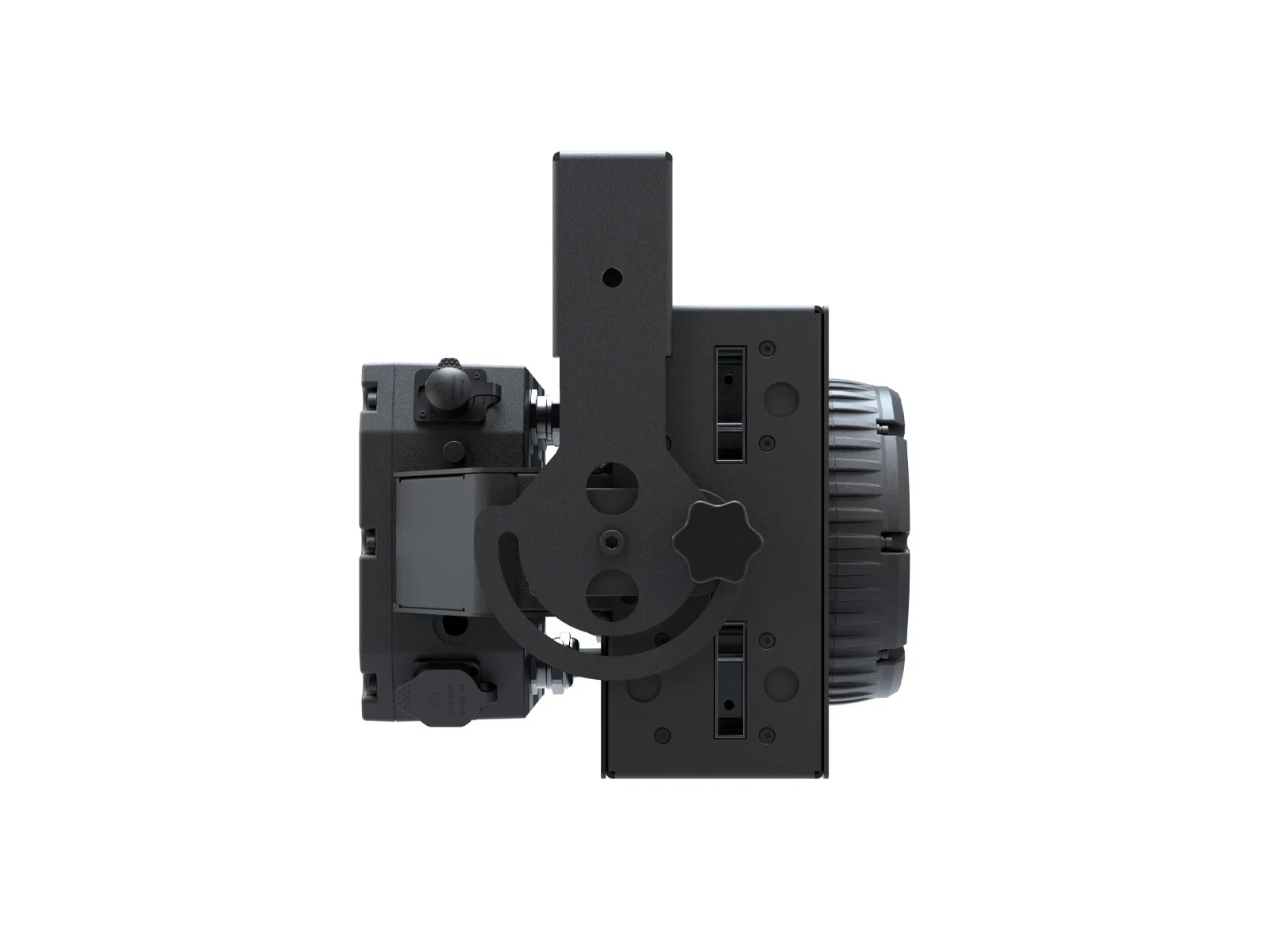

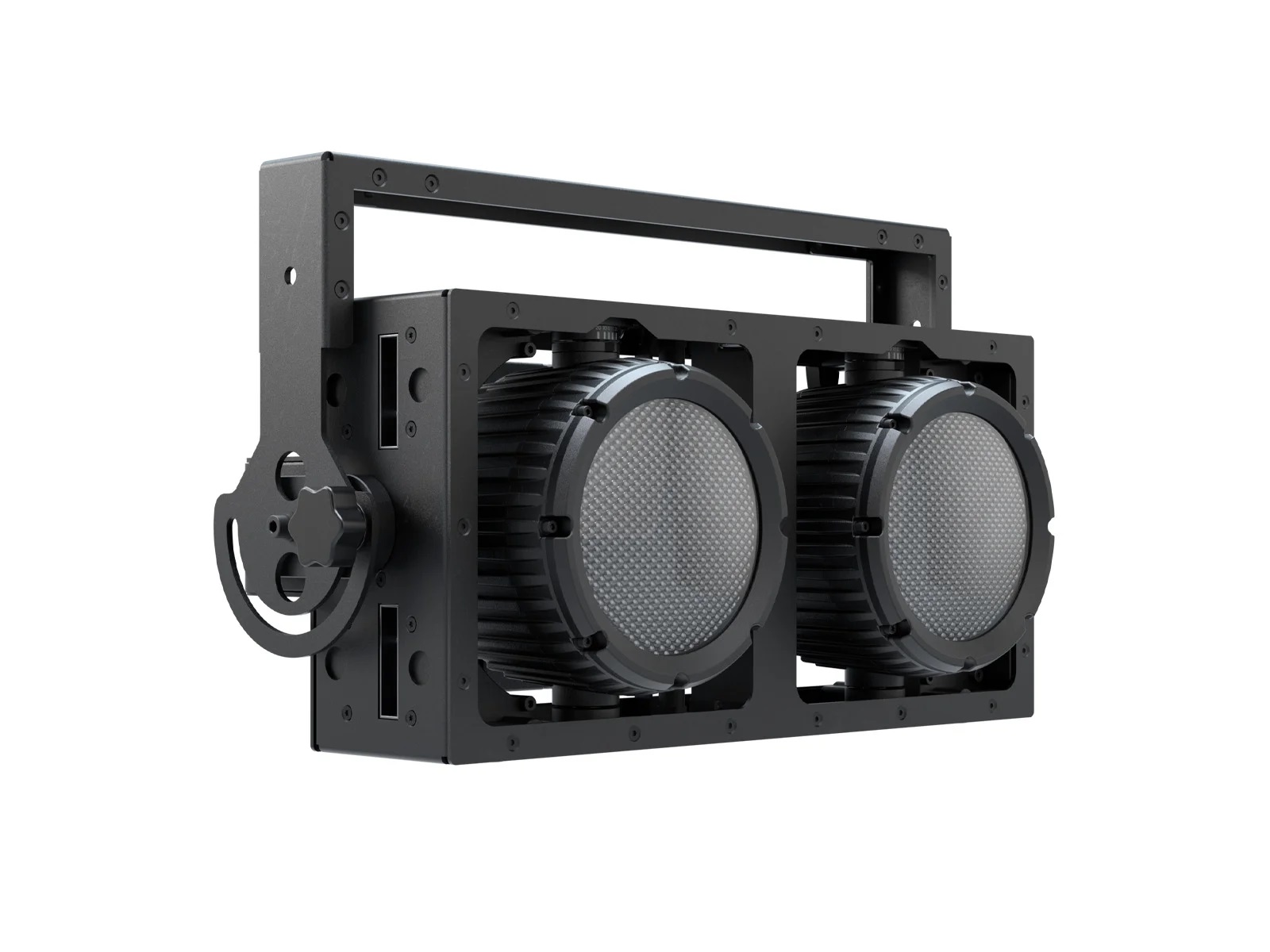

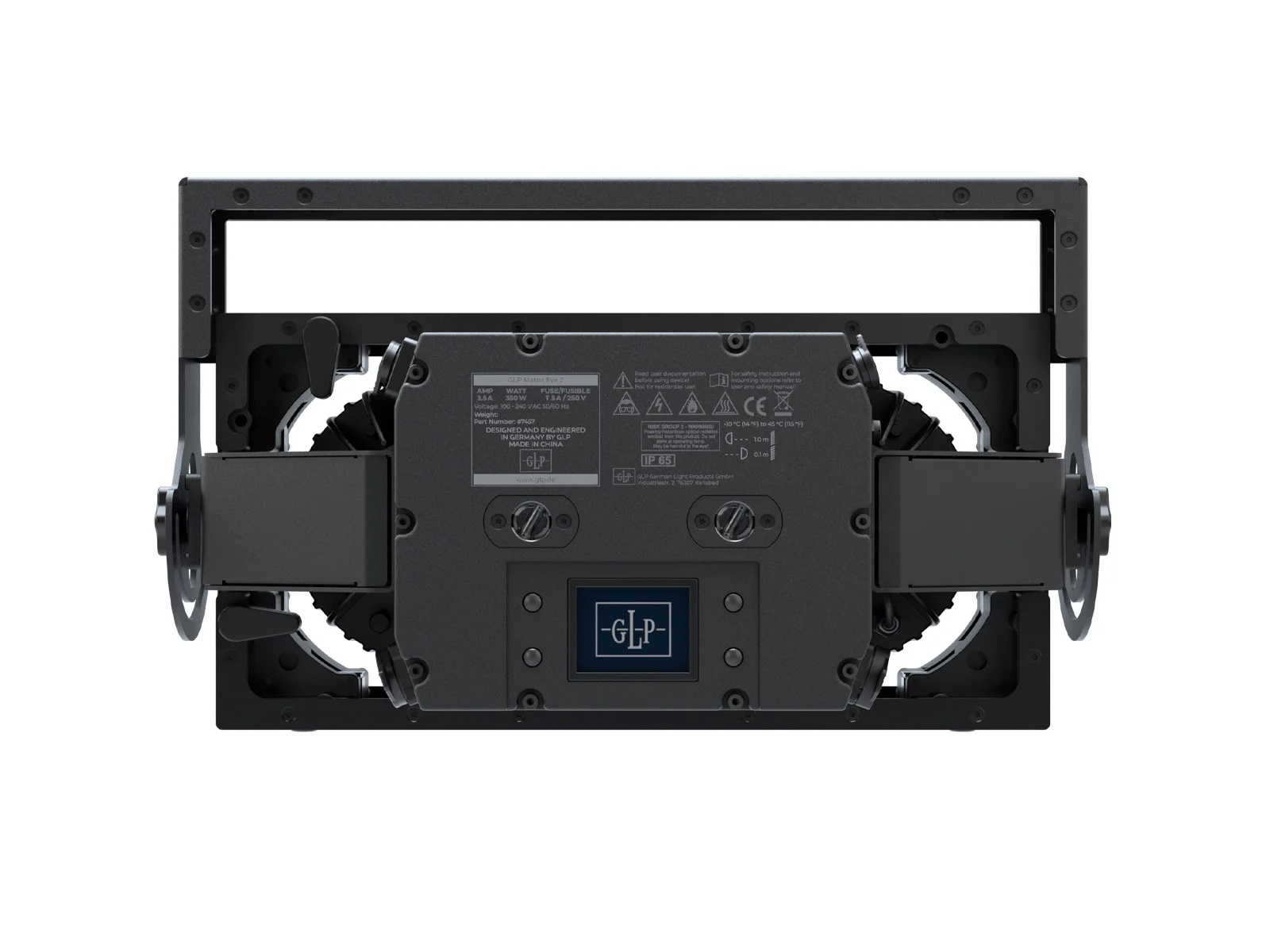

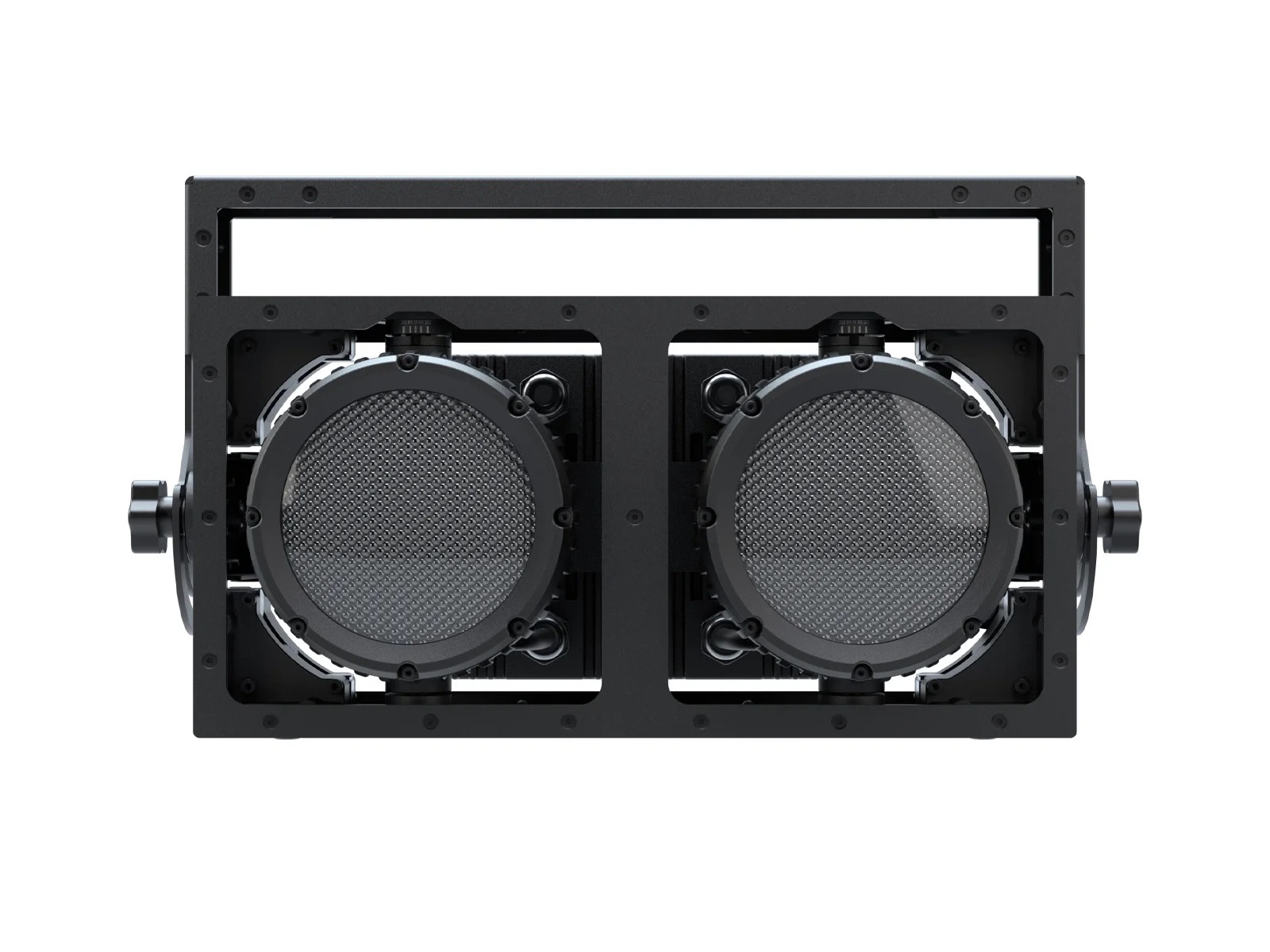

Matrix Eye 2 -

The GLP MATRIX Eye is the first fixture in the groundbreaking new MATRIX Series – a smart cluster system that allows you to mechanically link multiple frame fixtures into one seamless lighting unit. Build your own custom lighting system with LED Blinders and more, with additional MATRIX products coming soon.

Powered by high-efficiency RGBAL LEDs and the innovative GLP iQ.Gamut Color Algorithm, the MATRIX Eye delivers intense color output and high-quality white light with superior color rendering. It faithfully replicates the classic tungsten behavior of traditional DWE Blinders, offering an authentic, warm dimming curve with all the benefits of LED technology.

Designed for maximum performance and affordability, the MATRIX Eye features a smart yet cost-effective construction. This ensures a low investment price, rapid ROI, and competitive rental rates-making it the perfect choice for lighting professionals who demand reliability, versatility, and cost efficiency.

Elevate your lighting game with the GLP MATRIX Eye – where innovation meets tradition.

Light Source

Type – RGBAL LED
Count – 2 engines
Power – 500W per LED Engine
Lifetime – 50,000 hours

Optical System

Total Output – BOOST – 19,650 lumens (preliminary)
Total Output – CONSTANT – 13,165 lumens (preliminary)
Min. Beam angle – 60°
Min. Beam angle – 100°

Dynamic Effects

Color Mixing – RGB, RGBAL
CTC – Variable 2,500K to 10,000K
Tungsten Simulation – 8x linked to fixed CCT, 8x relative to Color Mix
Dimmer / Shutter – 0-100% electronic
Shutter Frequency – Duration / Rate & Intensity FX rate control

Control & Programming

Control Modes – 4
DMX Channels – 2 / 19 / 38 / 6
Protocols
- DMX (USITT DMX512-A)
- RDM (ANSI/ESTA E1.20)
- GLP iQ.Mesh
High-Res Channels
- Intensity
Dimming Curves
- Linear / S-Curve / Square
Color Mix Speeds
- Snap / Fade
Fan Modes
- Regulated / High / Medium / Low
Pixel Mirror
- x-mirror / y-mirror / xy-mirror
Pixel Rotation
- Off / 90° / 180° / 270°
White points
- Optional: 3,200 K / 4,200 K / 5,600 K / 6,500K / 8,000 K
PWM
- Optimal / High 1 / High 2 / Maximum
Duration control
- Normal / Percentage
Output Modes
- Boost / Constant
Setting and addressing –
- Control panel with backlit graphic display
- 4 Button Menu Navigation
- DMX
- RDM
- iQ.Service App
Software Update –
- DMX link via DPROG
- GLP iQ.Mesh
- GLP iQ Tool

Connections

Signal connection –
- Neutrik XLR 5-Pin In/Out
Power connection –
- Neutrik powerCON TRUE1 input

Construction

Housing Color –
- Black
Housing Material –
- High impact flame retardant thermoplastic / Aluminum / Steel metal plates
Protection Rating –
- IP 65
Construction Features –
- Alignment and linking system
- + / – 20° individual head pan angle adjustment

Electrical Specifications

Power input –
- 100 – 240 VAC / 50 – 60Hz
Power supply –
- auto-ranging electronic switch-mode
Max. power (@230V) – 600 W

Installation

Mounting –
- 3 pairs of 1/4-turn locks (Top, side and yoke)
- 2 eyelets for safety cable
Orientation –
- Any
Location –
- Indoor permanent
- Outdoor temporary
