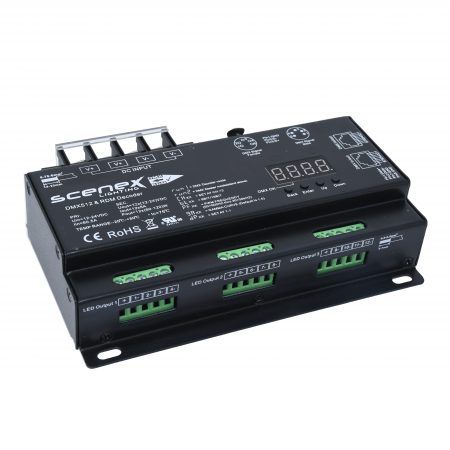

Take any 12 colors of non-pixel LED tape, plug it into this driver and now the tape can light up. You’ll still need a power supply (not included) and the tape, but this driver is the key operating piece needed to turn your tape on. Rugged, well thought out, and well designed, the LEDDRV12CHAN is the perfect tool for medium scale, non-pixel LED tape needs.

Scenex Lighting 12 channel drivers are perfect for any of your 12 and 24 Volt RGB, Warm White, and Cool White LED non-pixel tape needs. Depending on which signal cable is needed, they have connection inputs via a Neutrik 5 Pin DMX and RJ45 ethernet in and through, allowing the ability to daisy chain multiple drivers on a single signal run. Each of the drivers 5 channel outputs provide constant voltage at 5 amps per output (60 amps total) . Scenex lighting drivers are encased in a robust metal housing ensuring gear is manufactured to be durable and long lasting for continuous use.

The Scenex driver feature remote device management, RDM, capabilities, so you can monitor these drivers in real time. Perfect for troubleshooting and maintaining your systems infrastructure, saving valuable time and resources on the fly.

You demanded, we listened, to the need for a navigation-friendly numeric LCD digital display with control buttons to quickly set the system DMX address, output channel quantity, PWM resolution (8-bit 0r 16-bit), PWM frequency, and Gamma ray dimming curve values.

As an industrial level DMX512 & RDM controller, it features both a DMX decoder and DMX master capabilities. Making it incredibly easy to switch between master mode and decoder mode. Each driver has full up to date support of the latest DMX512, DMX512(1990), DMX512-A and RDM V1.0 (E1.20 – 2006 ESTA Standard) protocols.

When in master mode, the 12 channel driver can control RGB(WW)CW LED lighting from 0%-100% varying brightness with smooth linear dimming curves. Run 4 unique chasing effects and adjust the chasing speeds with 9 separate adjustable levels.

For more information, specification sheets and manuals, refer to the Features and Downloads tab section on this page.

Contact us for more on the 12 channel DMX Driver

Want to stay up to date with the latest from Scenex?
Click the link here to sign up for the Scenex Lighting mailing lists

  • Industrial level DMX512 & RDM LED controller
  • Unique Master Mode and Slave Mode Option Function
  • High temperature resistance numeric digital display, User-friendly interface
  • Durable and long-lasting metal outer shell
  • 5Amp, 12 channels constant voltage output
  • Abundant DMX signal input and output port design: XLR 5pin, XLR 3pin, RJ45, Screw DMX
  • DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 – 2006 ESTA Standard) signal protocols supported
  • RDM bi-directional communication function

Features Under Master Mode

  • Control each output channel brightness from 0% to 100%
  • Run 4 different chasing effects
  • 9 Levels of pattern changing speed adjustment

Features Under Slave Mode

  • Total 12 PWM output channels, common anode
  • Set DMX channel quantity from 1 channel to12 channel settable
  • Enable DMX512 master console to detect decoder, display decoder information and set DMX address
  • DMX control over each of the 12 color channels 16bit and 8bit switchable (default setting of the driver is 16bit).
  • 10 levels of PWM output frequency optional from 500Hz-30kHz, default setting is 1kHz
  • Decoding modes optional, enable to adjust brightness of each channel, master brightness of all channels and strobe effects, default mode is dp1.1
  • Gamma ray curves value adjustable from 0.1-9.9, logarithmic dimming and linear dimming optional
