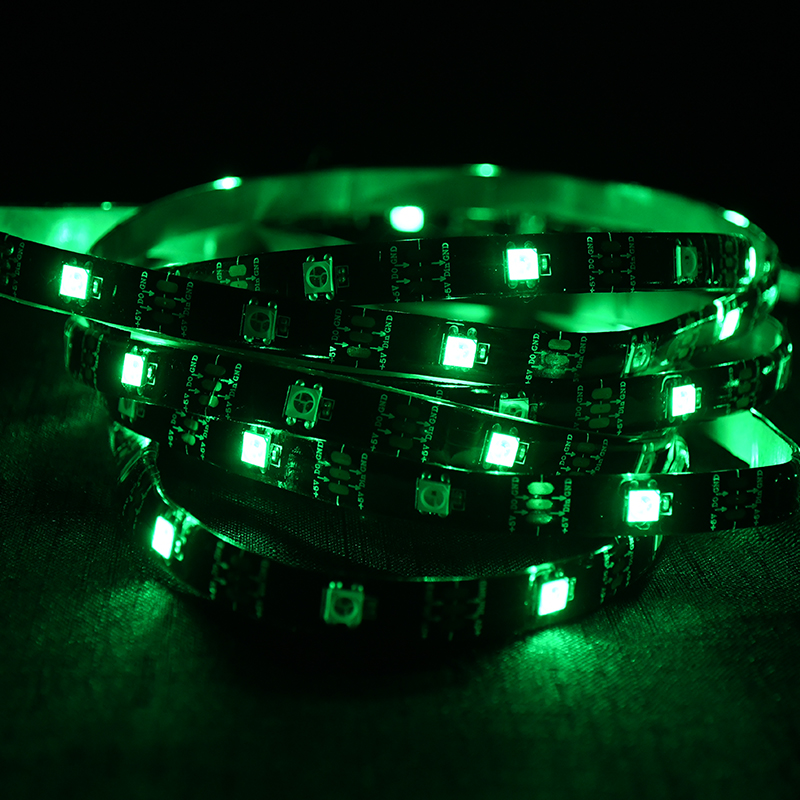

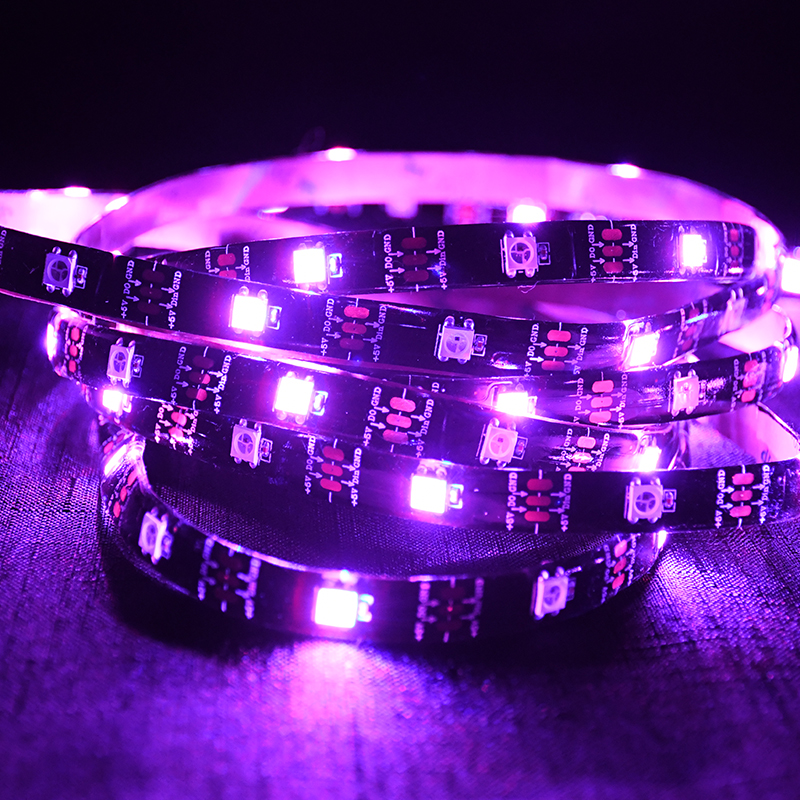

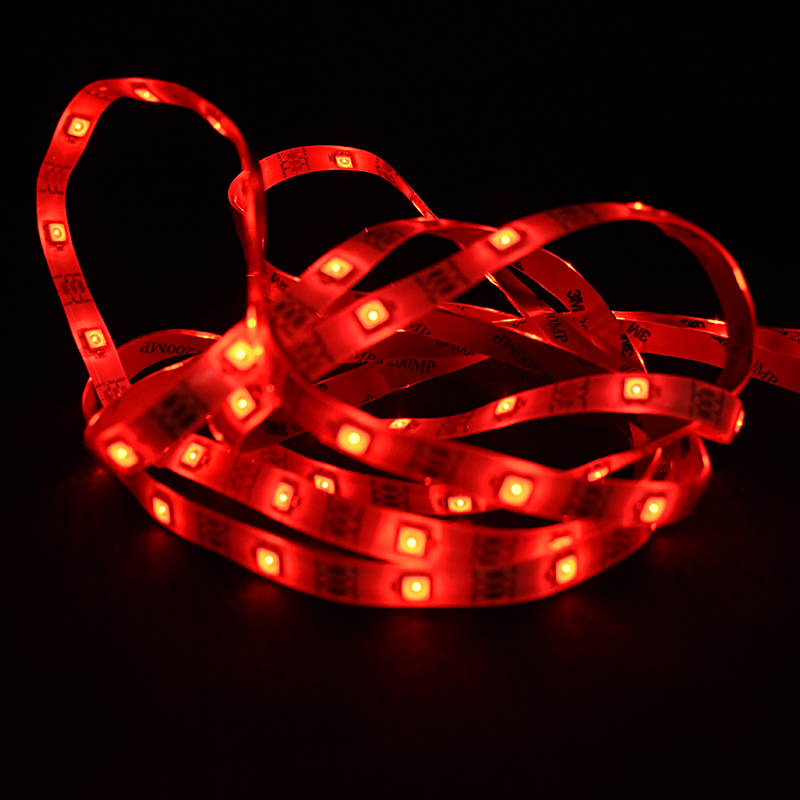

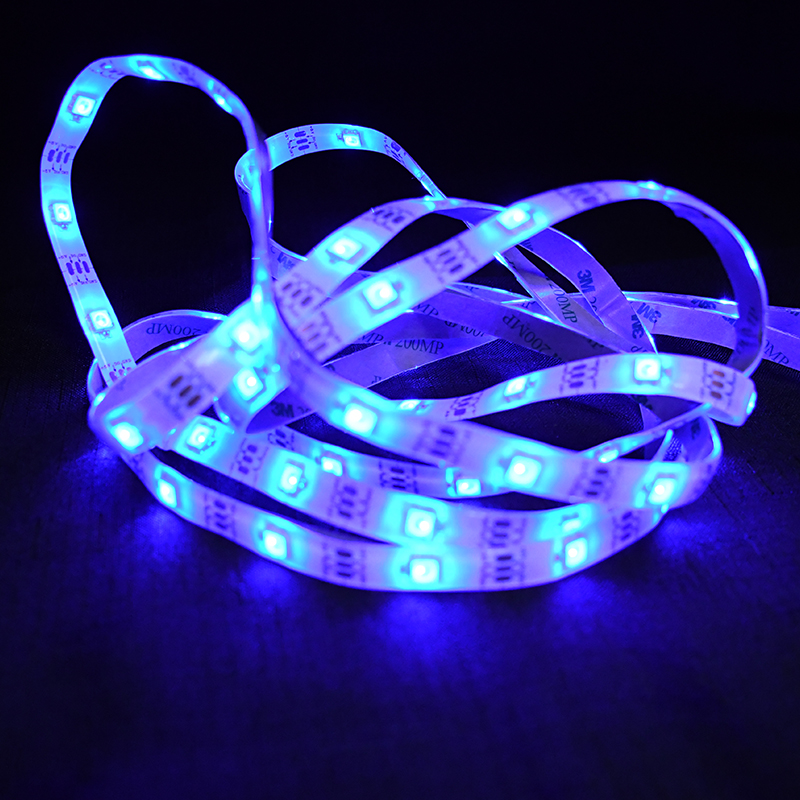

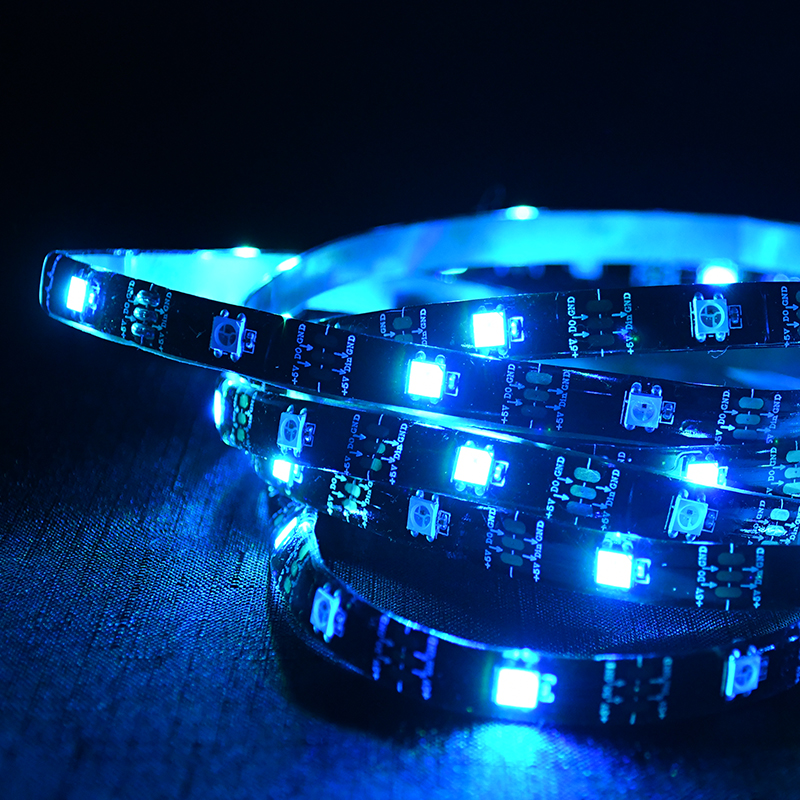

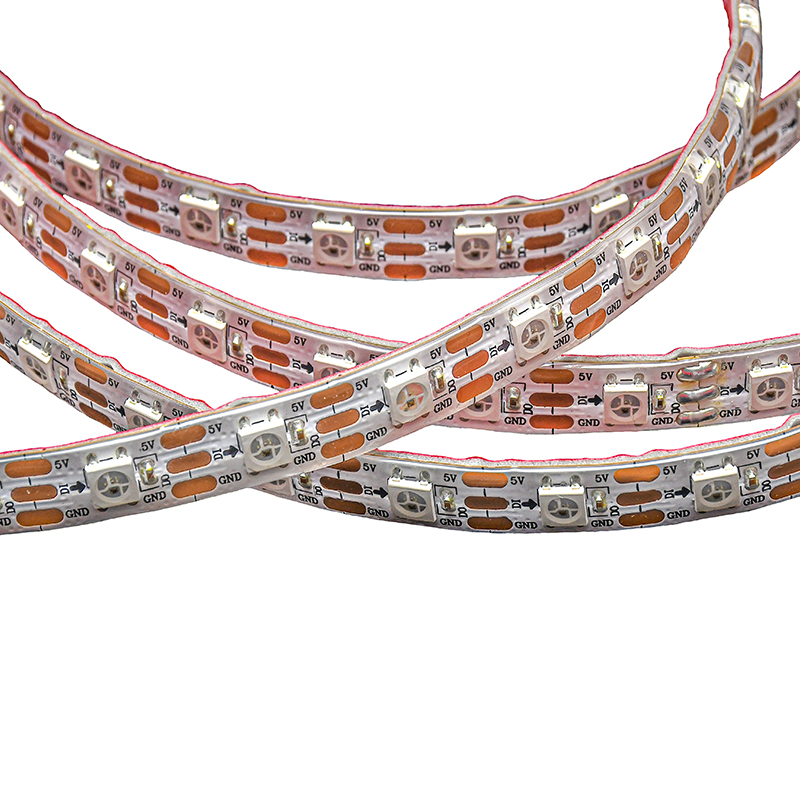

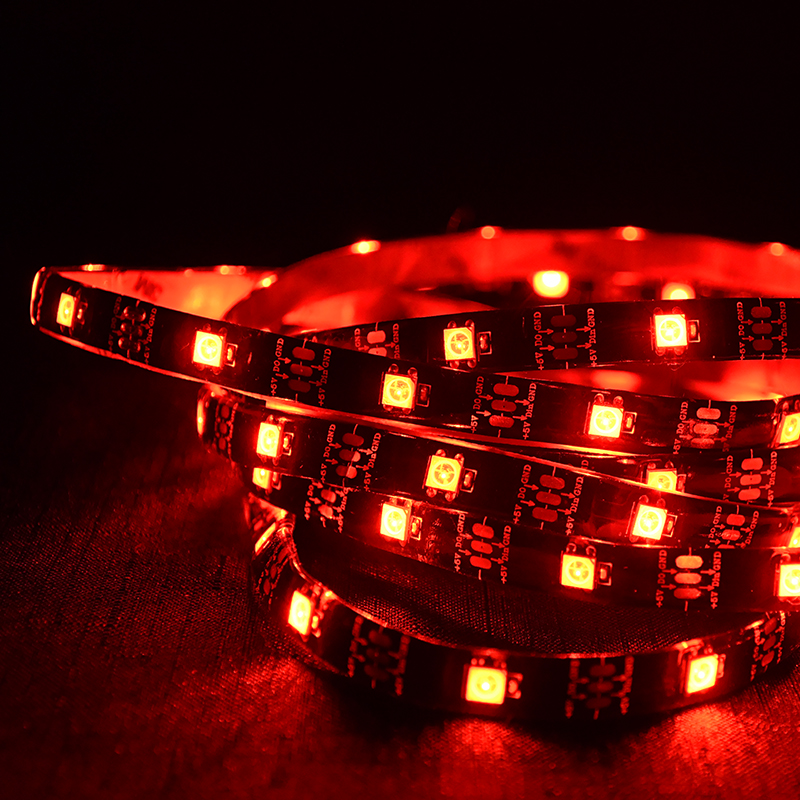

Scenex Lighting distribute a wide range of RGB LED pixel tape solutions. From single color to full RGB color mixing, from indoor to outdoor IP rated solutions and in both flexible and fixed variants. We’ve got them all. Directly applied silicone coatings give every RGB LED pixel tape in the range an IP65 protection rating for outdoor use.

Designs for Scenex’s LED Tape can incorporate different size pixel pitches to give you detail when and where you need it. To ease system integration, all tapes come in lengths already cut for a half or full DMX universe. Every tape can be trimmed to fit after every single pixel.

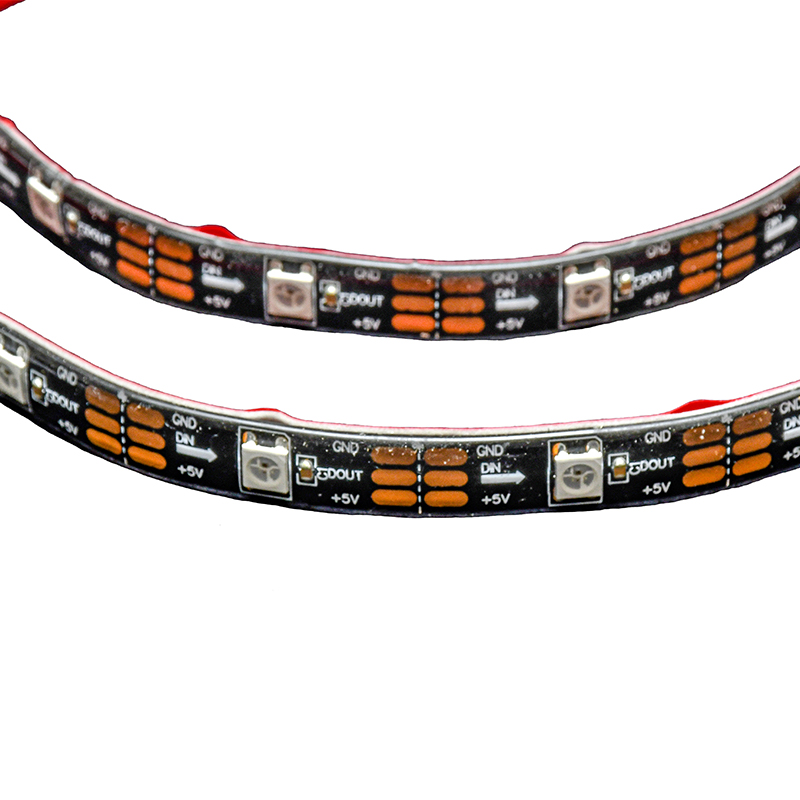

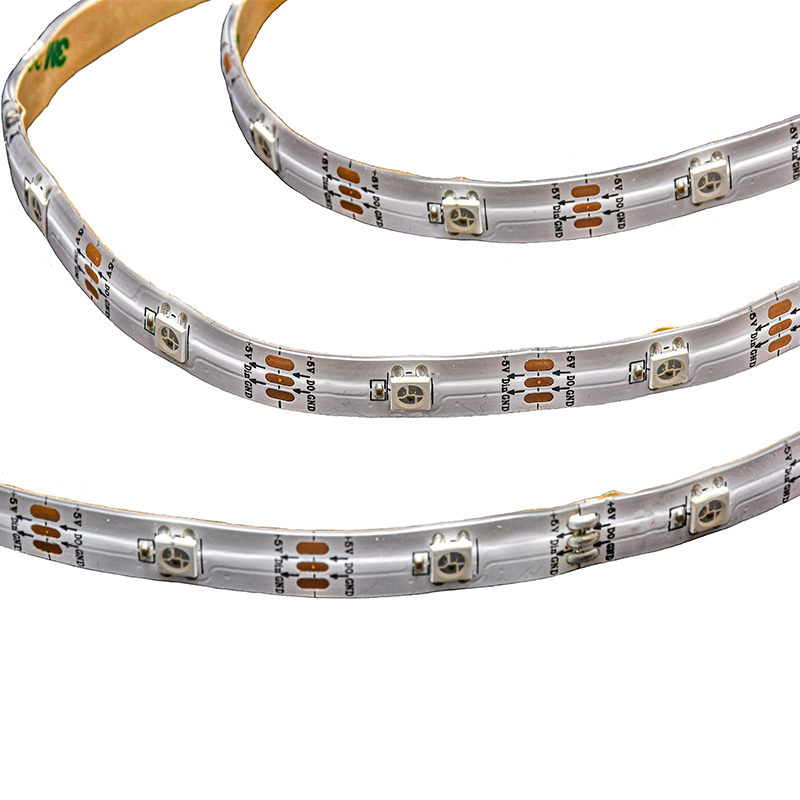

Additionally for cosmetic integration each tape can be supplied with a white or black PCB back.

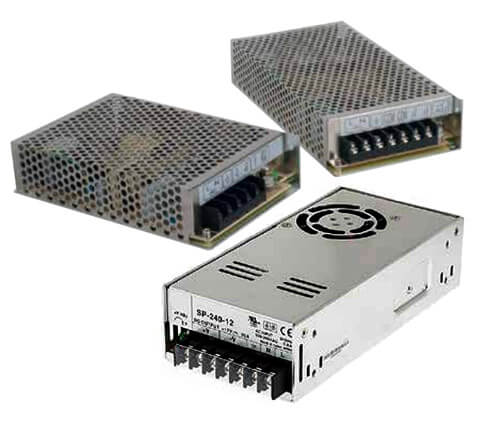

Scenex also offer a range of different power supply and DMX drive options, including Artnet integration for larger systems.

We are happy to consult and advise on any system design, free of charge and without obligation, in order to help support and make your vision become a reality.



Contact us for more information on the Color Mix RGB LED Tape
Want to stay up to date with the latest from Scenex?
Click the link here to sign up for Scenex’s mailing lists

Part Number 50503RGB 50503RGB-60 50505RGB-60
Wavelength 450~630nm 450~630nm 450~630nm
Color temp n/a n/a n/a
Lumens pr. mtr. / pr strip n/a n/a n/a
LED’s pr mtr / pr strip 30 / 90 60 / 180 60/300
LED type SMD 5050 SMD 5050 SMD 5050
Field angle 120° 120° 120°
Housing material Flexible strip with silicone covering Flexible strip with silicone covering Flexible strip with silicone covering
Color White White or black White or black
Protection rating IP 67 IP 67 IP 67
Mounting Adhesive backing Adhesive backing Adhesive backing
Wiring connection 4 cable tail (R,G,B, V+) 4 pin connector (R,G,B, V+) 4 pin connector (R,G,B,V+)
Power voltage 12V 12V 12V
Current pr mtr. / pr strip 7.2W / 21.6W 14.4W / 43.2W 14.4W / 72W
Energy saving class Class A Class A Class A
Operating temp. 23°F  –  104°F
(-5°C   –  40°C)
5°F  –  104°F
(-15°C  –  40°C)
5°F   –  104°F
(-15°C  –  40°C)
Cutting possibility Every 3.9 inches  (10cm) Every 1.9 inches  (5cm) Every 1.9 inches  (5cm)
Dimensions – inches L x W x H
118.1 x 0.47 x 0.1
L x W x H
118.1 x 0.4 x 0.1
L X W x H
196.8 x 0.4 x 0.1
Dimensions – centimetres L x W X H
300 x 1.2 x 0.3
L x W X H
300 x 1 x 0.3
500 x 1.0 x 0.3

Data Sheet

PDFIconPDF Scenex LED Tape
