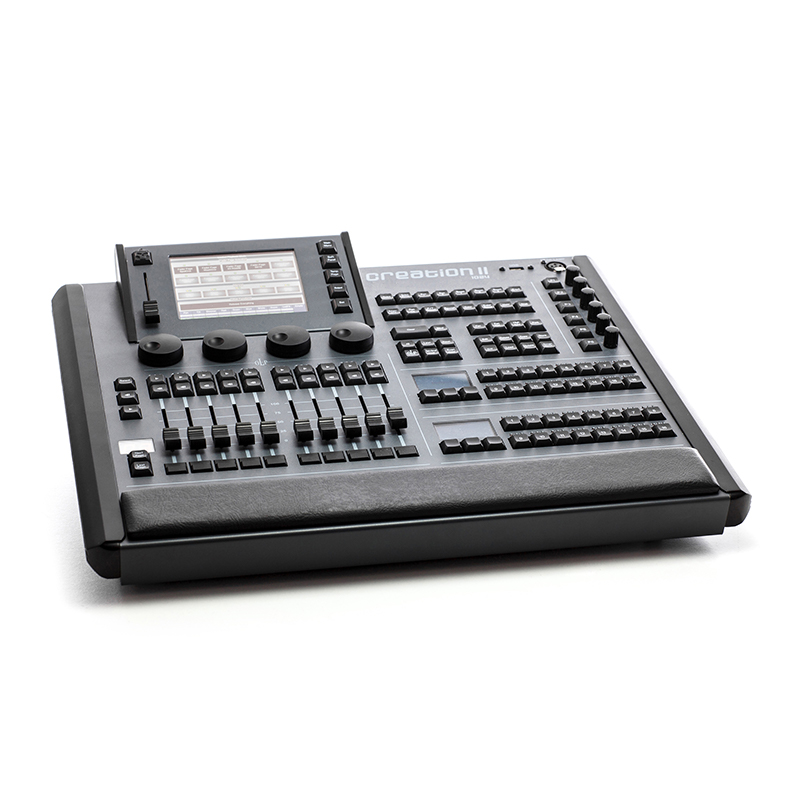

The Creation II – 4096 is the first lighting controller in GLP’s Creation II Series. Thanks to its intuitive interface and the 5.7″ inch full-color touchscreen, it is possible to control even large and complex setups in a simple and efficient manner.

The Creation II – 4096 Features a dedicated media server section, multi-console networking, a comprehensive effects generator, a powerful fanning engine, full HTP/LTP configuration, individual parameter timings, fixture cloning, a touch screen color picker, time-code input and output, and a multi-functional, user definable button and fader configuration, making it a flexible and powerful state of the art lighting control solution.

The Creation II – 4096 controls up to 2048 channels over DMX or 8 ArtNet universes. The console comes equipped with a comprehensive fixture library and a powerful fixture setup wizard, which makes fixture configuration simple and efficient. The integrated library editor allows you to add new fixtures or update existing ones at any time – even during the show.

The Creation II – 4096 also supports on the fly replacement of complete fixture types, which is particularly handy when an already programmed fixture of one brand needs to be replaced by another. All updates and backups are done simply via the in-built USB ports.

As for the hardware, the Creation II – 4096 is based on a fanless industrial single board computer, which runs from a solid state disk. Together with the auto sensing fanless power supply, we eliminated any mechanical parts inside the console, greatly increasing the robustness and reliability of the hardware. In combination with our embedded Linux operating system, which has a boot time of 42 seconds, the console delivers maximum stability and reliability.

The combination of the comprehensive feature set, the compact hardware design, and a sensible market based price, make the Creation II – 4096 an excellent choice for all shows and venues with up to 320 lighting fixtures, with a maximum of 2048 DMX channels or 8 ArtNet universes.

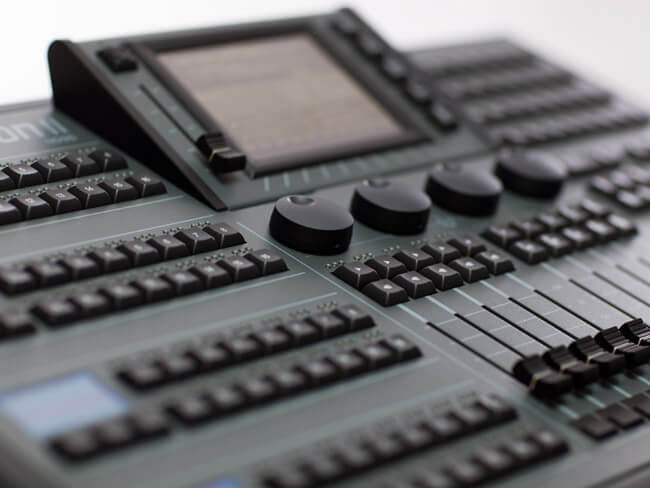

The Creation II – 4096 features advanced functionality in a number of areas for such a small and compact console. One of these is the multi-functional button panel which gives full flexibility without needing to invest in additional hardware.

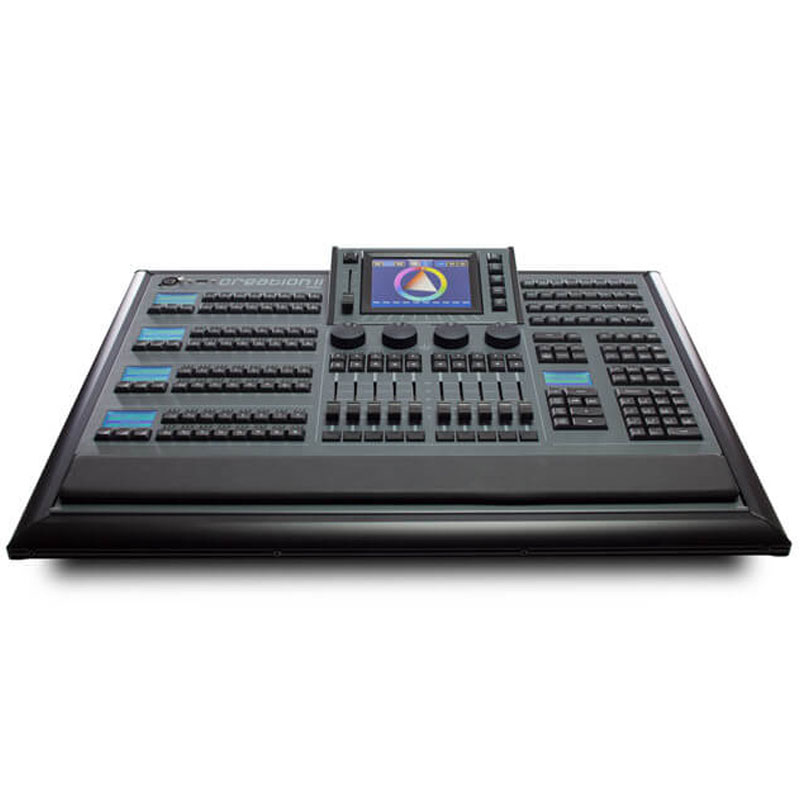

4 panels are included in the standard desk configuration with each of these panels having 16 memory buttons, along with a graphical status display. Using the control section, you can reconfigure the behavior of each of the 4 button panels at any time. You can individually choose options such as fixture and group selection, playback of cue-lists, effects activation, preset recall or even macro playback, among others. This easy and fast re-configuration makes it possible to quickly adapt the consoles‘ user interface to any demands during the show. It doesn’t matter whether you enjoy having dozens of extra buttons for programming or if you prefer having up to 64 additional cue-lists at your fingertips when it comes to showtime – any configuration can be achieved within seconds.

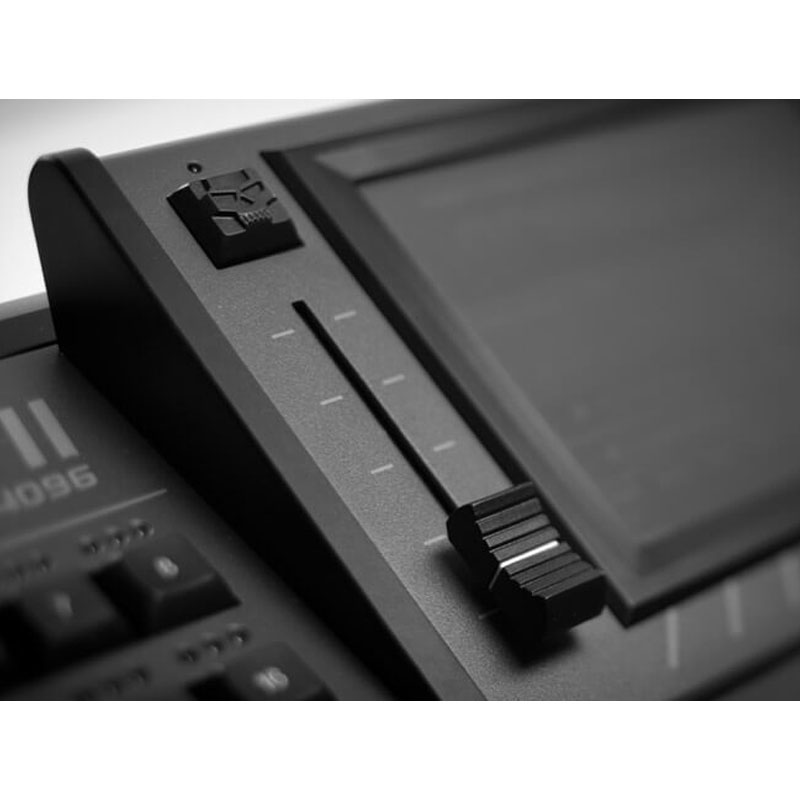

The desks‘ control faders are also configurable by the user to match their preferred setup. Whether it be intensity sub-masters for fixture groups, effect or cue-list controls, or even master speed timing control, the choice is yours.

Presets now have the functionality of much more than just fixture parameters, such as colors and positions. The Creation II – 4096 allows you to create effect presets or timing presets – timing can be stored with other parameters, or as a separate entity to be applied to any transition. As you would expect, all cues referencing these presets are updated when you make any changes, no matter what information they are storing.

  • Embedded Linux operating system
  • Fast boot time of less than 60 seconds
  • Dedicated media server section
  • Comprehensive effects generator
  • Full ArtNet compatibility
  • Built-in library editor
  • Extensive fixture library
  • Multi console networking
  • Total flexibility of HTP or LTP controls
  • User definable fader and button setup
  • 16 bit operation throughout
  • Comprehensive list of connectivity options
  • Highly intuitive operation
  • Highly reliable industrial hardware
  • Affordably priced





Contact us for more information on the Creation II – 4096
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

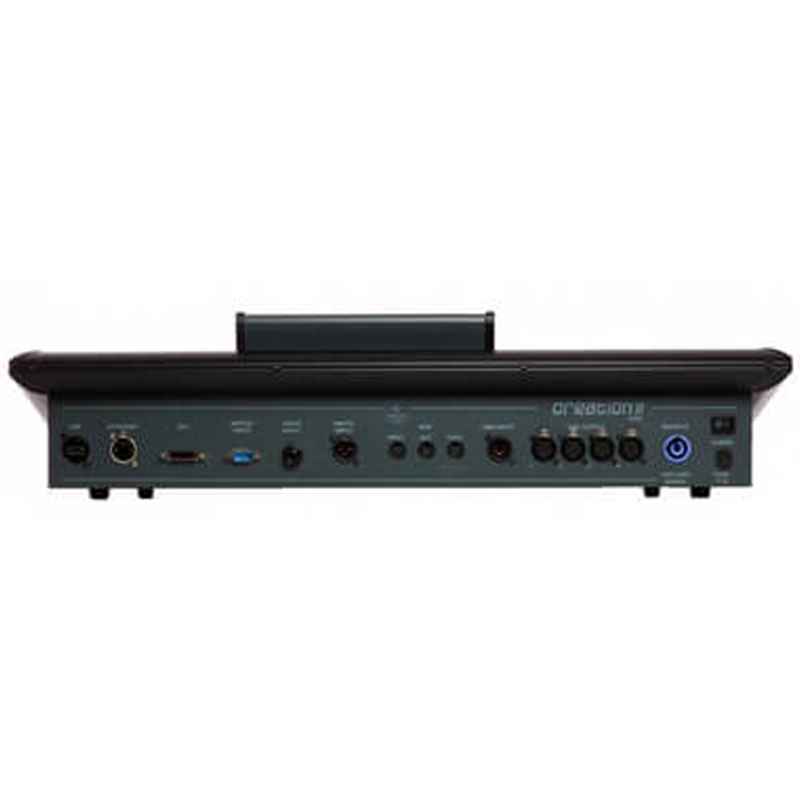

Connectivity

  • 4 x DMX output (fully isolated, 5 pin XLR, RDM ready)
  • 1 x DMX input (fully isolated, 5 pin XLR)
  • 1 x gigabit ethernet through ethercon connector

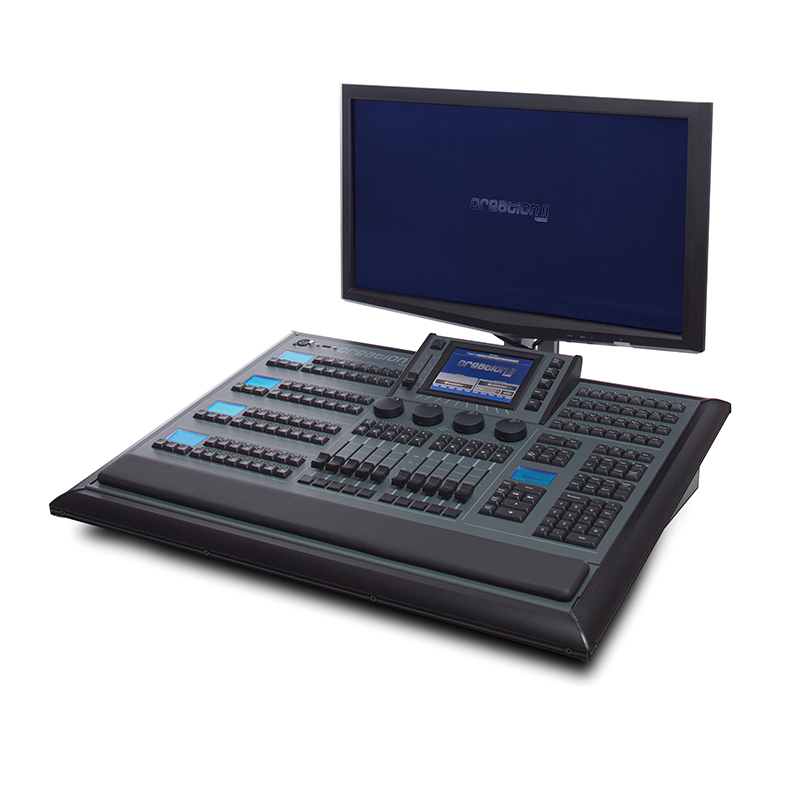

  • 1 x external DVI monitor port (up to 1920 X 1200)
  • 2 x USB 2.0 port
  • Support for USB mouse/keyboard/touchscreen
  • Midi in/out/thru
  • Audio input (fully isolated, 6,3mm Jack)
  • SMPTE input (3 pin XLR)
  • 6 x switch input (9 pin sub-d)
  • Powercon input for autoranging power input (100-240V, 50/60 Hz)



Hardware Specification

  • Internal 5.7″ full color touchscreen
  • 4 x Bourns high endurance encoders
  • 11 x ALPS faders
  • 10 x genuine digitast flash buttons
  • 5 x internal graphic LCD screen
  • 189 x cherry buttons with tactile feedback
  • 295 x colored status LEDs
  • Industrial single board computer
  • Single level cell industrial grade solid state disk
  • Completely fanless design
  • Weight: 35.3 lbs  (16 kg)



Software Specifications

  • Based on custom built embedded Linux
  • 4096 DMX channels sent ArtNet and 2048 channels sent by DMX
  • Internal 32-bit high precision computation
  • Easy show setup
  • Powerful fixture library
  • Editor including virtual dimmer/shutter functions
  • Easy fixture setup and patching
  • Function based storage enabling subsequent repatch or even replacement of fixtures
  • Fully selective programming concept including selective presets, cuelists and effects
  • Powerful fanning engine (grouping/buddying)
  • Dedicated media server section
  • Powerful networking options including full tracking backup and multi user modes
  • Linking of cues on effects, cuelists and scenes powerful cuelist options including tracking, HTP/LTP, looping and a lot more
  • No limitation on the number or type (HTP/LTP) of simultaneously running memories
  • Powerful and comprehensive effects generator, which operates on any parameter virtually unlimited number of fader pages
  • Template page functionality
  • Fader can be connected dynamically to almost any function including cuelist, effects, submaster and more group sub selection (even, odd, first/next, previous, x‘th out of y)
  • Standard keypad for fast programming
  • Live programming
  • Backup to USB memory sticks
  • Software update via USB memory sticks, network or internet



Approvals

  • Designed to US safety standards UL 1573 and UL 8750
  • Designed to Canadian safety standard CAN/CSA C22.2 No. 166



Dimensions

  • (L x W x H)
    • 27 in. x 17.7 in. x 5.3 in.  (68.5 cm x 45 cm x 13.5 cm)
  • Tour pack dimensions
    • 35.5 in. x 23 in. x 8.5 in.  (90.1 cm x 58.4 cm x 21.6 cm)
