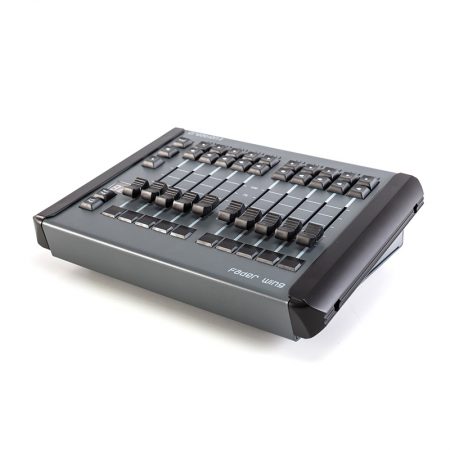

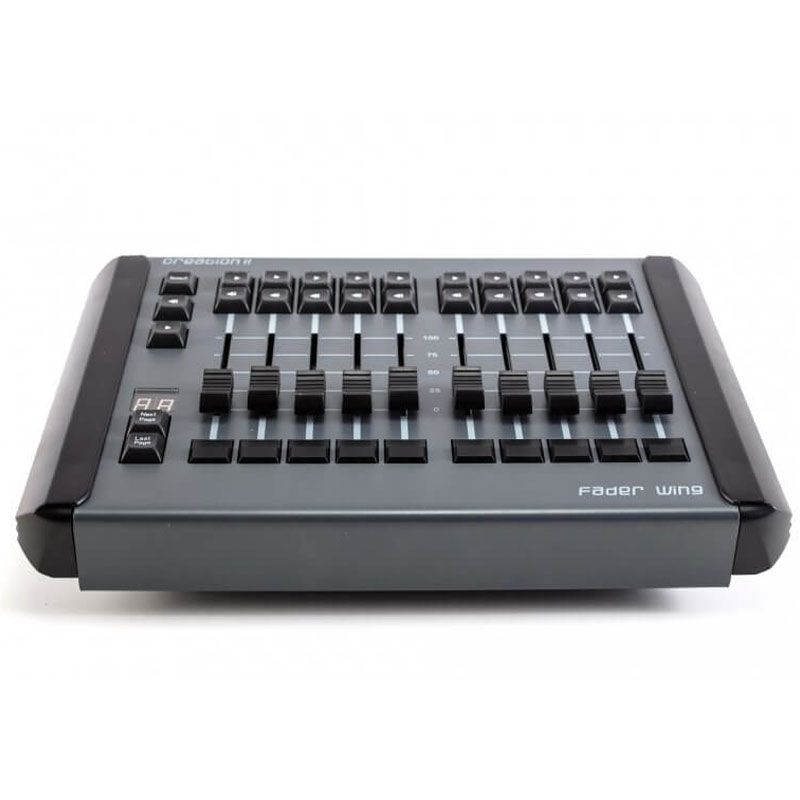

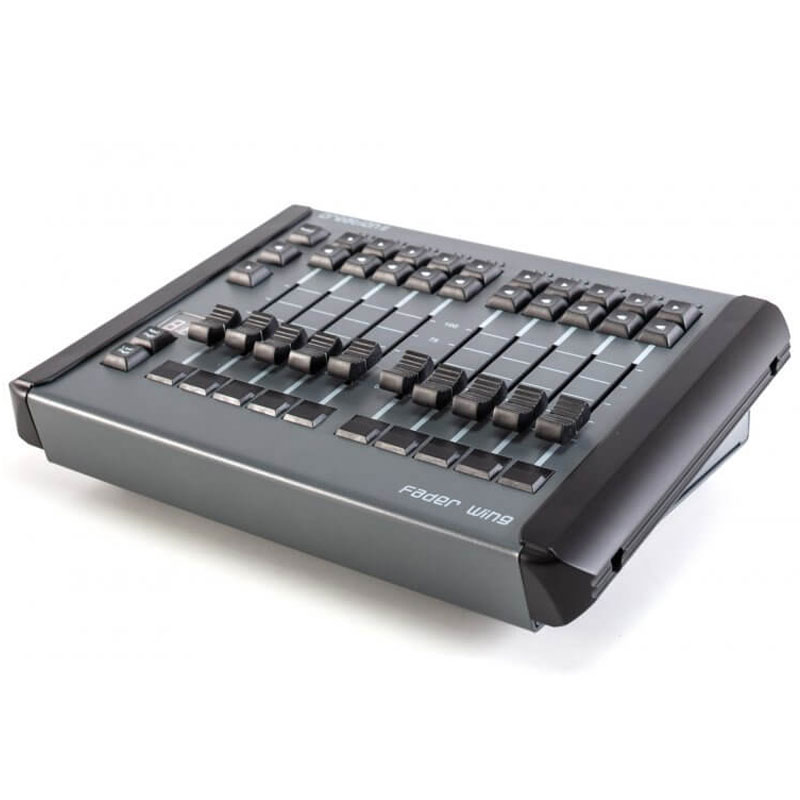

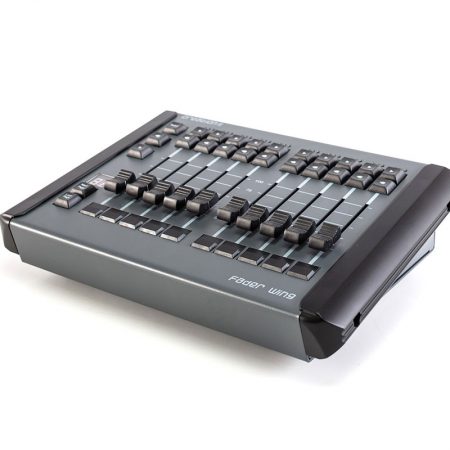

The Creation II Fader Wing offers ten additional master faders and is the perfect solution for when you need some additional fader control for your show. Additionally, each master control consists of a fader, two cherry buttons and a short travel flash button.

The Fader Wing connects directly to any Creation II – Series desk, or the Creation II OnPC, via a USB cable, and is entirely self powered and self contained.

The Creation 1024 is at home controlling productions of up to 800 fixtures with ease, and offers exceptional usability for both fixed and temporary installations.

Features, such as integrated media server functionality, multi-console networking, a comprehensive effects generator, a powerful fanning engine, full HTP/LTP configuration, individual parameter timings, fixture cloning, a touch screen color picker, time-code input and output, and a multi-functional, user definable button and fader configuration, make it a flexible and powerful state of the art lighting control solution.



Contact us for more information on the Creation II Fader Wing
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists



  • 4 x DMX output (fully isolated, 5 pin XLR, RDM ready)
  • 1 x DMX input (fully isolated, 5 pin XLR)
  • 1 x gigabit ethernet through ethercon connector
  • 1 x external DVI monitor port (up to 1920 X 1200)
  • 2 x USB 2.0 port
  • Support for USB mouse/keyboard/touchscreen
  • Midi in/out/thru
  • Audio input (fully isolated, 6,3mm Jack)
  • SMPTE input (3 pin XLR)
  • 6 x switch input (9 pin sub-d)
  • Powercon input for auto ranging power input (100-240 V, 50/60 Hz)
  • 10 x ALPS faders
  • 10 x short travel high endurance flash buttons
  • 25 x cherry buttons with tactile feedback
  • 30 x colored status LEDs
  • Connects via USB
  • USB powered
  • Weight: 3.3 lbs. / 1.5 kg
  • Dimensions: 12.2 in. x 8.7 in. x 3.4 in. / 31 cm x 22.1 cm x 8.6 cm


Hardware Specification

  • Internal 5.7 in. full color touchscreen
  • 4 x bourns high endurance encoders
  • 11 x ALPS faders
  • 10 x genuine digitast flash buttons
  • 5 x internal graphic LCD screen
  • 189 x cherry buttons with tactile feedback
  • 295 x colored status LEDs
  • Industrial single board computer
  • Single level cell industrial grade solid state disk
  • Completely fanless design
  • Weight: 16 kg / 35.3 lbs.
  • Dimensions: 68.5 cm x 45 cm x 13.5 cm / 27 in. x 17.7 in. x 5.3 in.
  • Tour pack dimensions: 90.1 cm x 58.4 cm x 21.6 cm / 35.5 in. x 23 in. x 8.5 in.


Software Specification

  • Based on custom built embedded Linux
  • 4096 DMX channels sent ArtNet and 2048 channels sent by DMX
  • Internal 32-bit high precision computation
  • Easy show setup
  • Powerful fixture library
  • Editor including virtual dimmer/shutter functions
  • Easy fixture setup and patching
  • Function based storage enabling subsequent repatch or even replacement of fixtures
  • Fully selective programming concept including selective presets, cuelists and effects
  • Powerful fanning engine (grouping/buddying)
  • Dedicated media server section
  • Powerful networking options including full tracking backup and multi user modes
  • Linking of cues on effects, cuelists and scenes powerful cuelist options including tracking, HTP/LTP, looping and a lot more
  • No limitation on the number or type (HTP/LTP) of simultaneously running memories
  • Powerful and comprehensive effects generator, which operates on any parameter virtually unlimited number of fader pages
  • Template page functionality
  • Fader can be connected dynamically to almost any function including cuelist, effects, submaster and more group sub-selection (even, odd, first/next, previous, xβ€˜th out of y)
  • Standard keypad for fast programming
  • Live programming
  • Backup to USB memory sticks
  • Software update via USB memory sticks, network or internet
