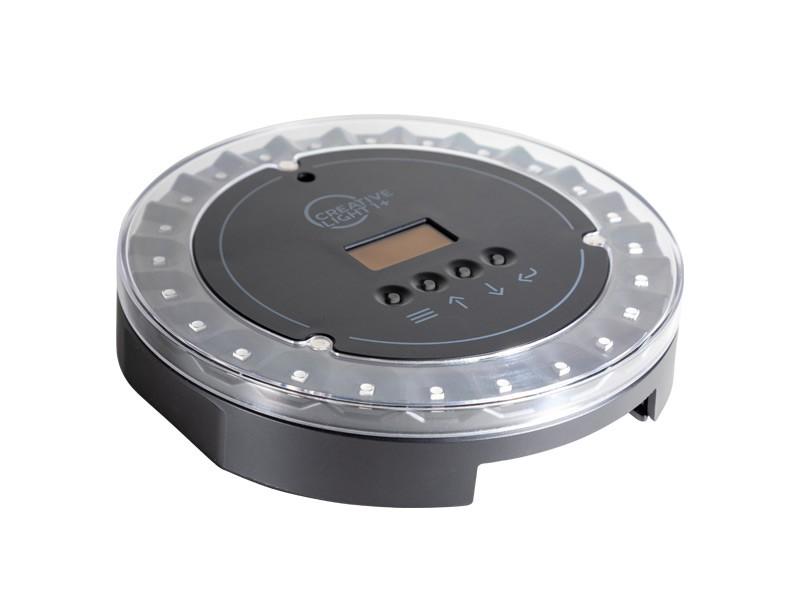

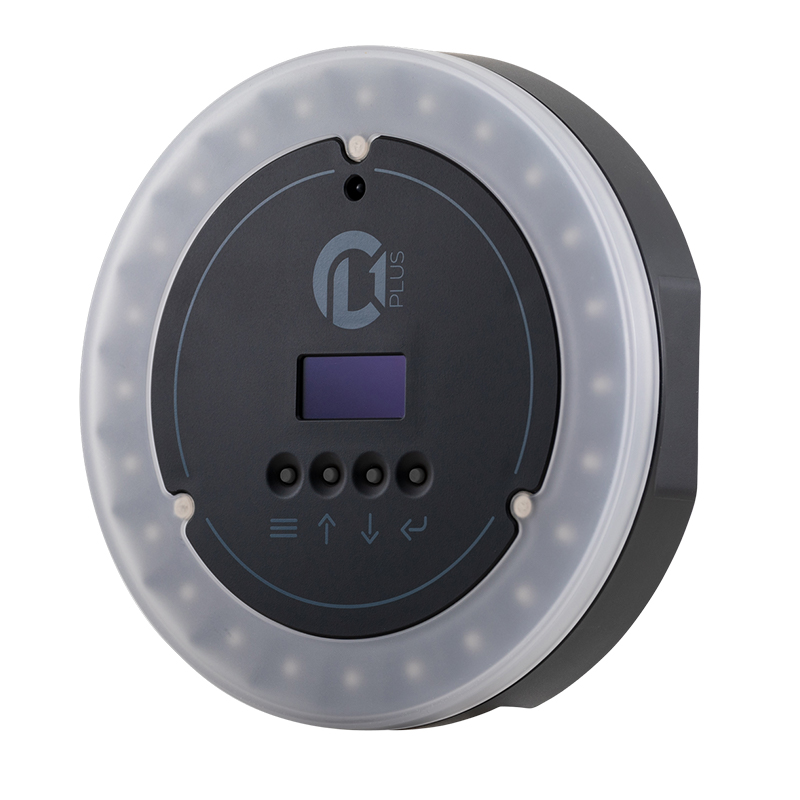

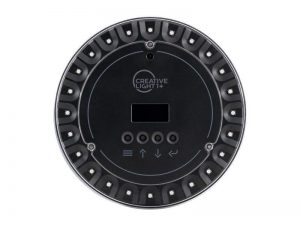

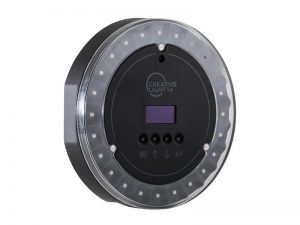

GLP’s Creative Light 1 and Creative Light 1 Plus are the first battery powered and completely wireless creative LED systems on the market.

GLP’s Creative Light 1 and Creative Light 1 Plus are the first battery-powered and completely wireless creative LED systems, providing maximum flexibility in an unlimited range of applications.

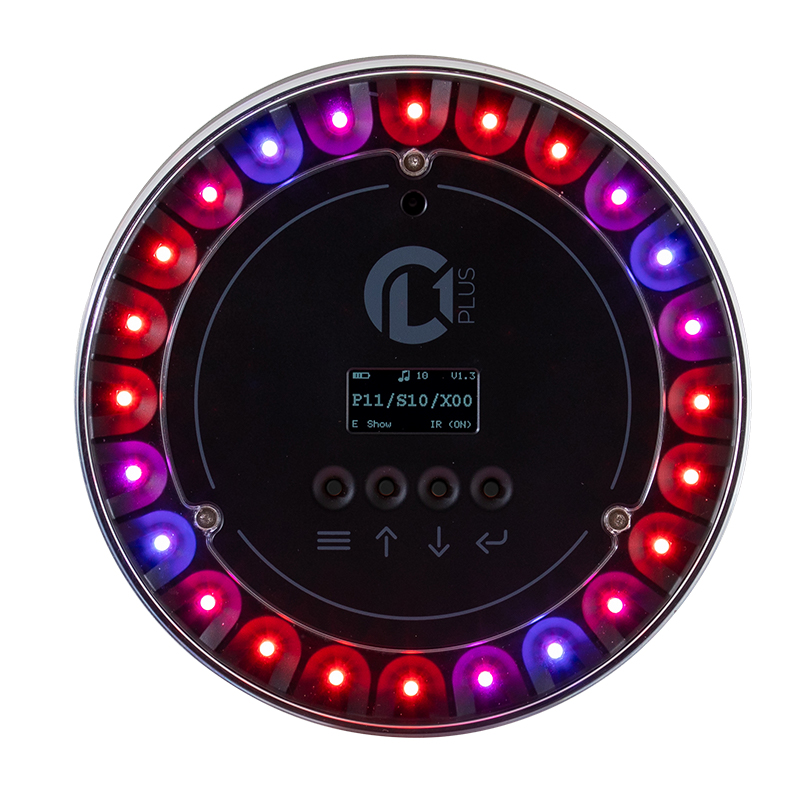

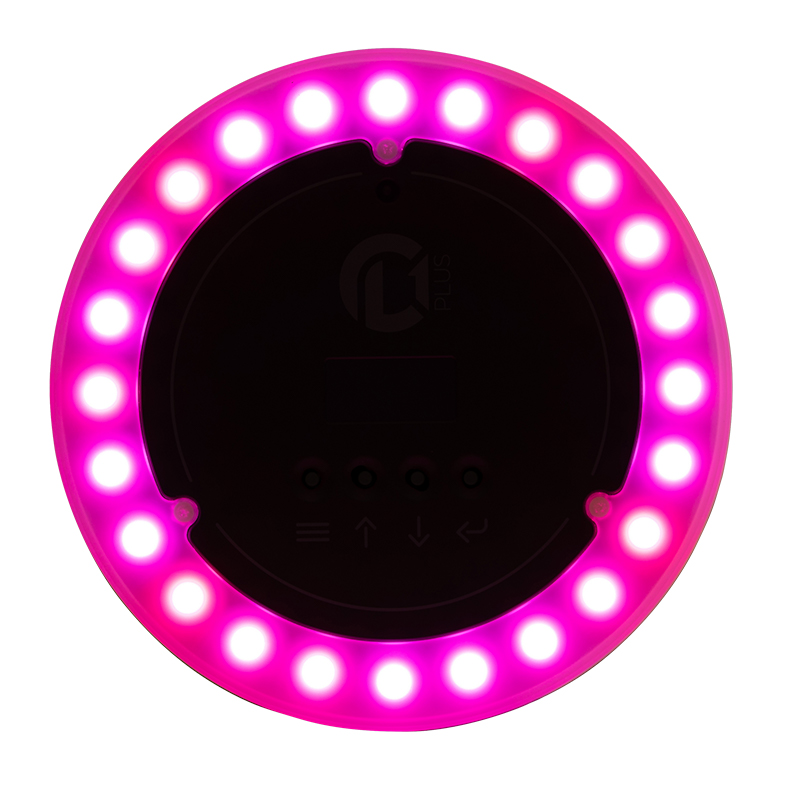

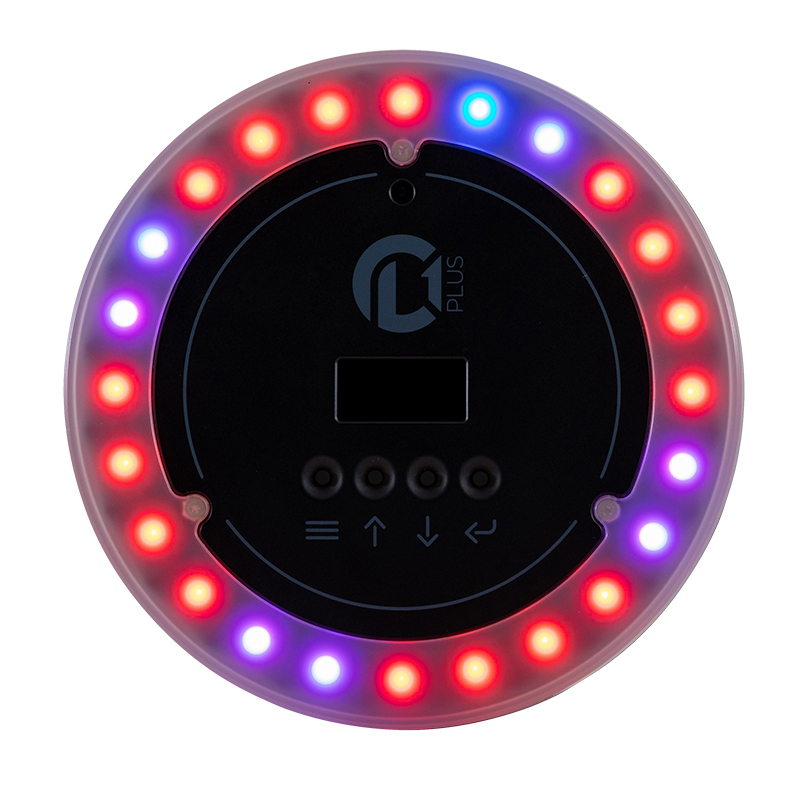

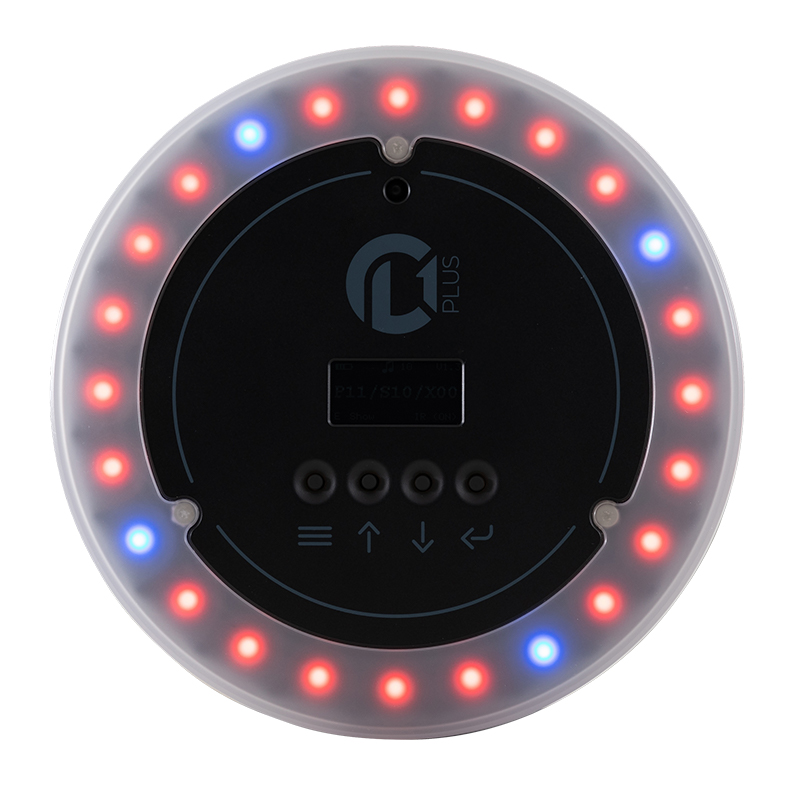

With 24 individually addressable RGB pixels, the Creative Light 1 system offers countless design possibilities. Whether all pixels are used together, individually (via pixel-mapping), or via the integrated Double Layer FX engine, the visual effects are incredible.

The integrated battery offers enormous power with 10,000 mAh, and the selectable power modes ensure an enduring performance of up to 24 hours. Whether intended for use at a garden party, gala event, theater, cabaret, TV studio, or large festival stage, the Creative Light delivers. Boasting enormous flexibility, minimal space requirements, space-saving transport, easy storage, minimal configuration, and rapid response times.

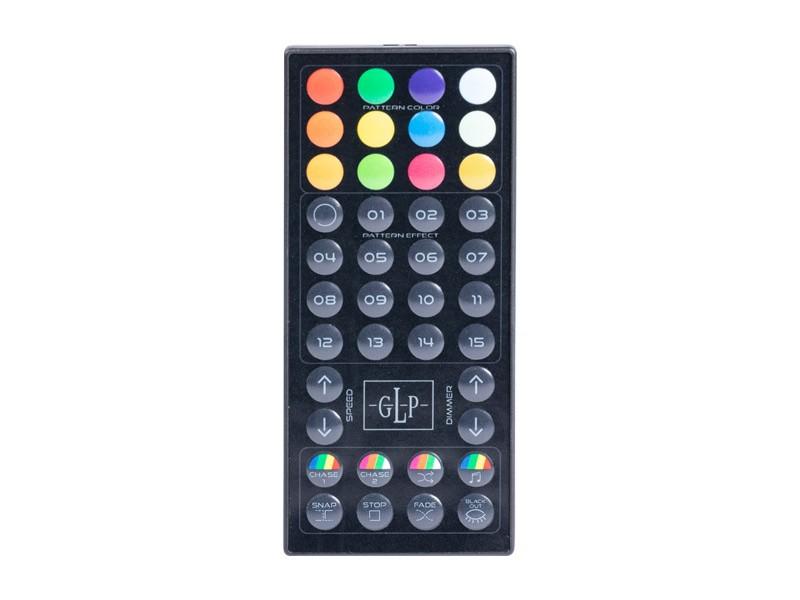

The Creative Light is available in two versions. The Creative Light 1, which offers the same performance as the Creative Light 1 Plus, but appeals more to the semi-professional user market with its intuitive control options (manual, IR remote, as well as Android and iOS app).

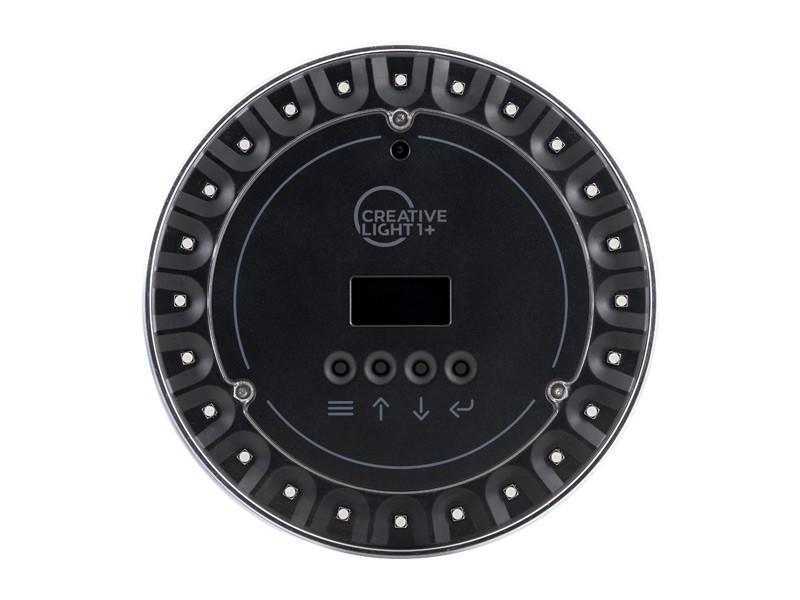

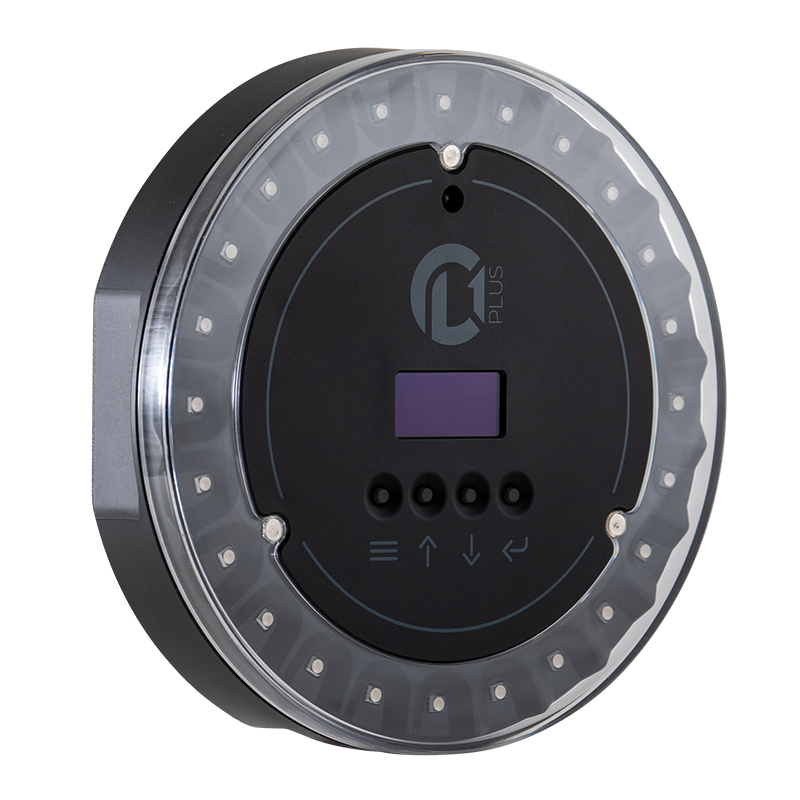

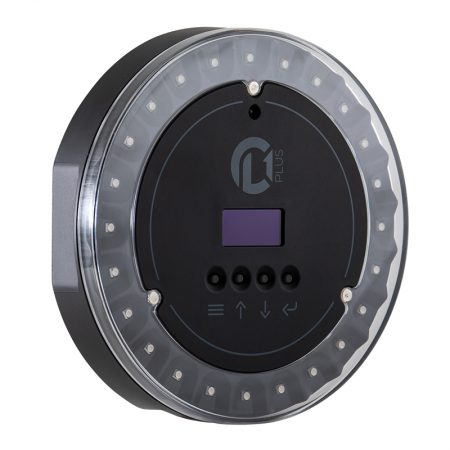

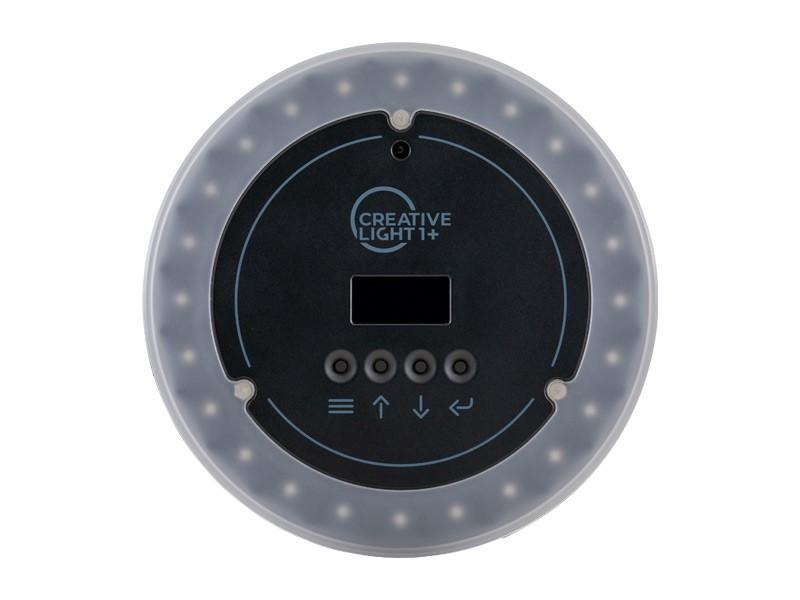

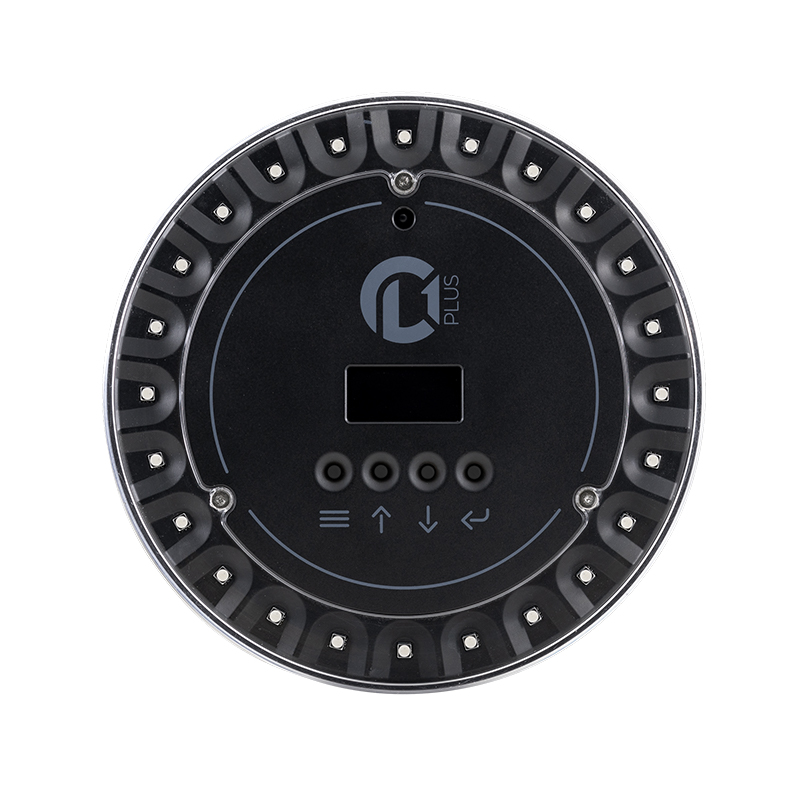

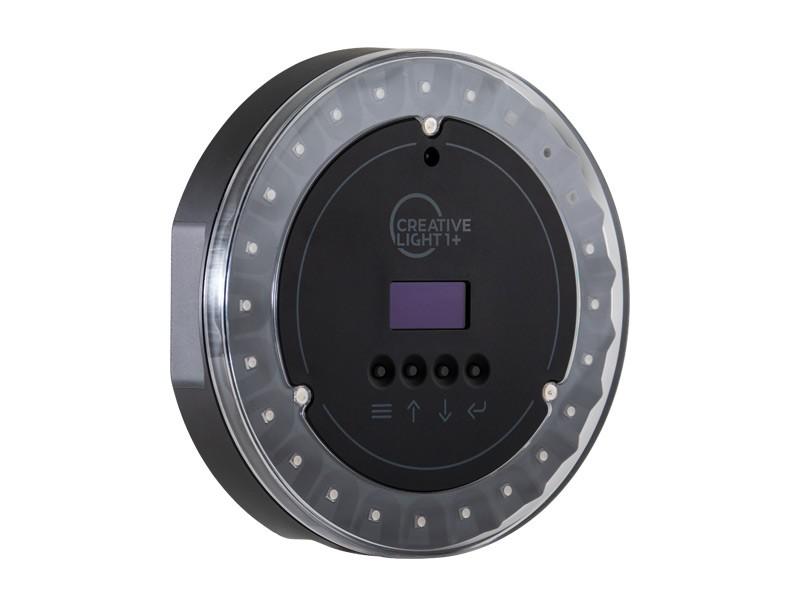

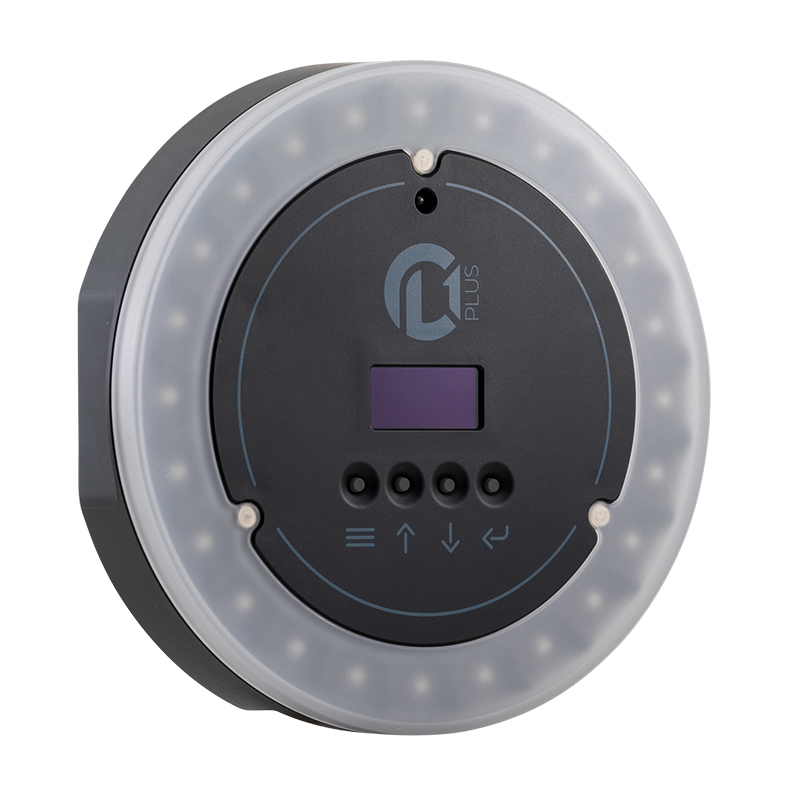

The Creative Light 1 Plus additionally features an integrated LumenRadio CRMX module, making it ideal for use in a professional setting and wherever the Creative Light 1 system is to be integrated into an existing DMX network. The control options of the Creative Light 1 version are of course also available in the Creative Light 1 Plus version.

When controlled via the smartphone app, the Creative Light 1’s generate a mesh network (GLP iQ.Mesh Network)—without any additional gateway. Within this network, each individual Creative Light 1 receives and amplifies the signal, enabling the creation of a network over long distances.

This smartphone app also provides an intuitive user interface and enables particularly fast system setup. Multiple devices can be grouped for live control of intensity, strobe and pulse effects, background and foreground colors, a variety of dynamic patterns, and sound-to-light.

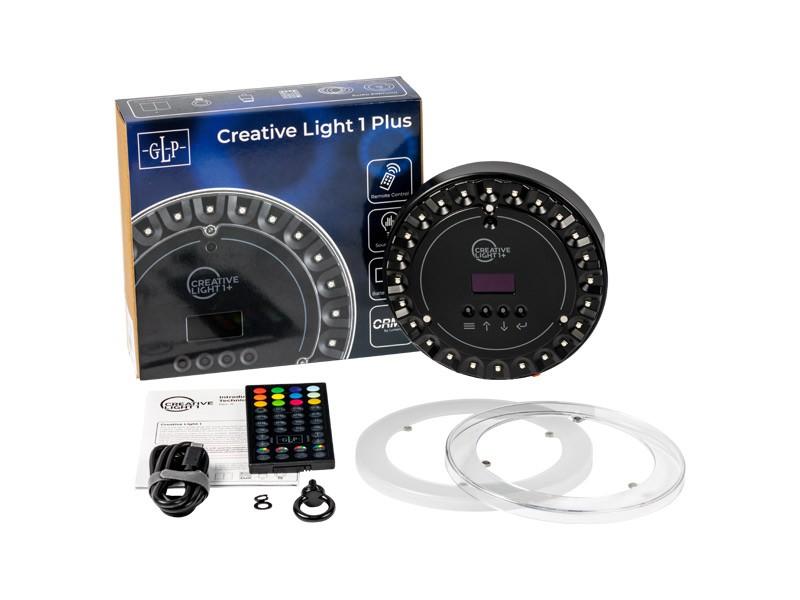

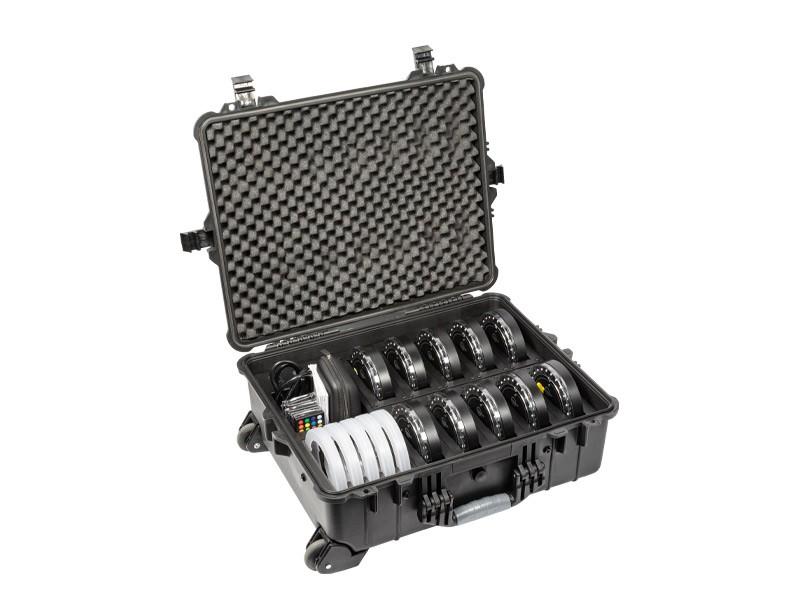

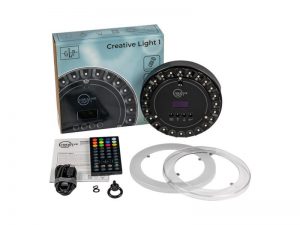

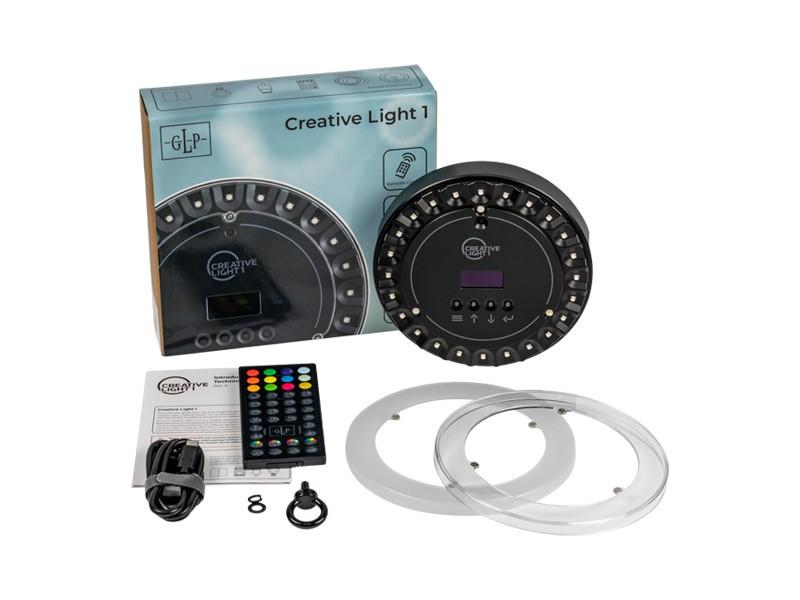

GLP Creative Light 1 and Creative Light 1 Plus are available as a single unit in a cardboard box, as a tour set in a 10-piece charging case, and as a set of six in a soft case.



Light Source

  • Type: RGB LED
  • Count: 24
  • Lifetime: 50,000 h



Control and Programming

  • DMX Channels: 7 | 15 | 75
  • Control Modes: 3
  • Power Modes: High, Normal

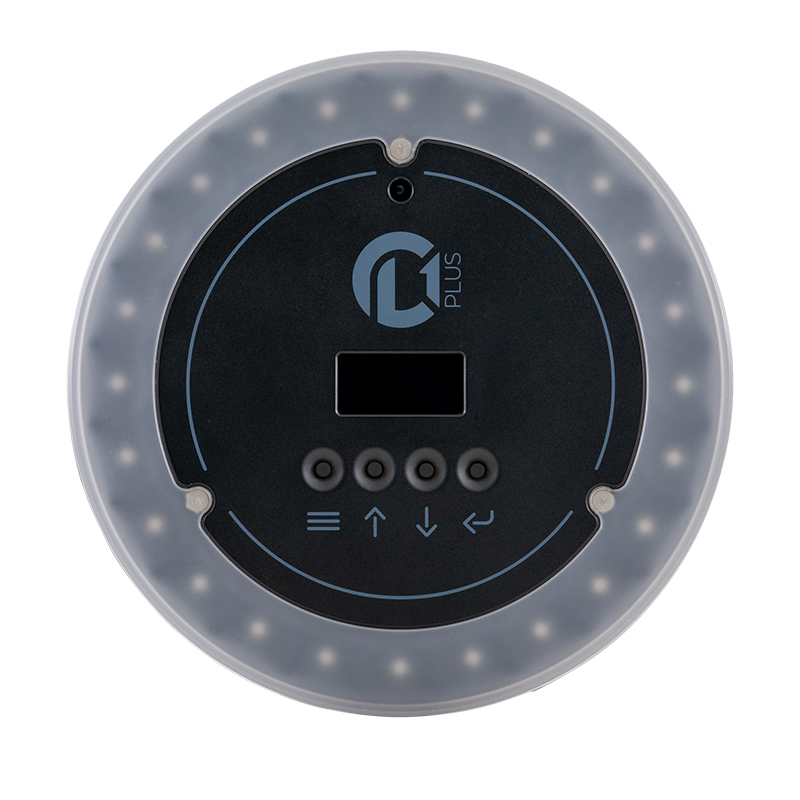

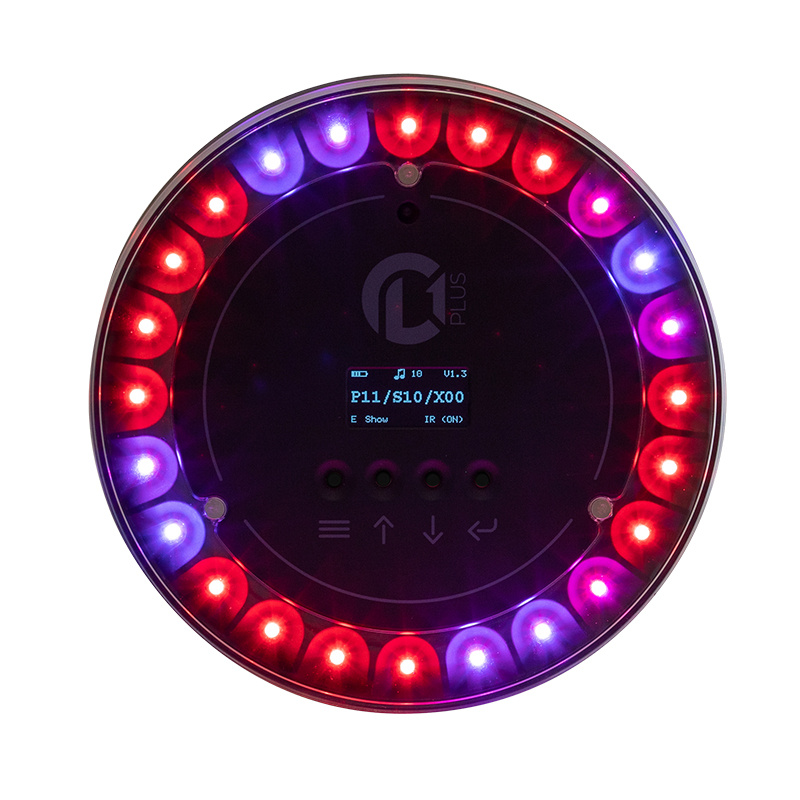

  • Setting & Addressing: OLED Display with 4 buttons | LumenRadio CRMX (DMX) | GLP iQ.Mesh | IR Sensor for Remote Control
  • Other Control Options: 2 Layer Pattern-FX-Engine | 40 dynamic Pattern Macros | Sound2Light via integrated microfone | Creative Light 1 Plus Version: CRMX (LumenRadio)
  • Software Update: GLP iQ.Mesh | USB-C



App System Requirements

  • Bluetooth Version: min. 4.2
  • Operating System Version: Android: min. 5.1 Lollipop | iOS: min. iOS 8
  • Screen Resolution: min. 480 x 850 pixel
  • RAM: min. 1 GB RAM
  • Memory Required: Android: min. 50 MB | iOS: min. 80 MB



Battery Power

  • High Mode: Full Output: up to 4 h | Single Color Output: >24 h
  • Normal Mode: Full Output: up to 6 h | Single Color Output: >24 h
  • ECO Mode: Full Output: up to 9 h | Single Color Output: >24 h
  • Charging Time (0 – 100%): approx. 5 h via fast charging (GLP Charging Box) | approx. 10 h default charging (USB-Kabel)



Connection

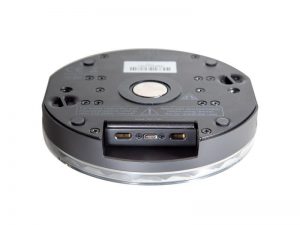

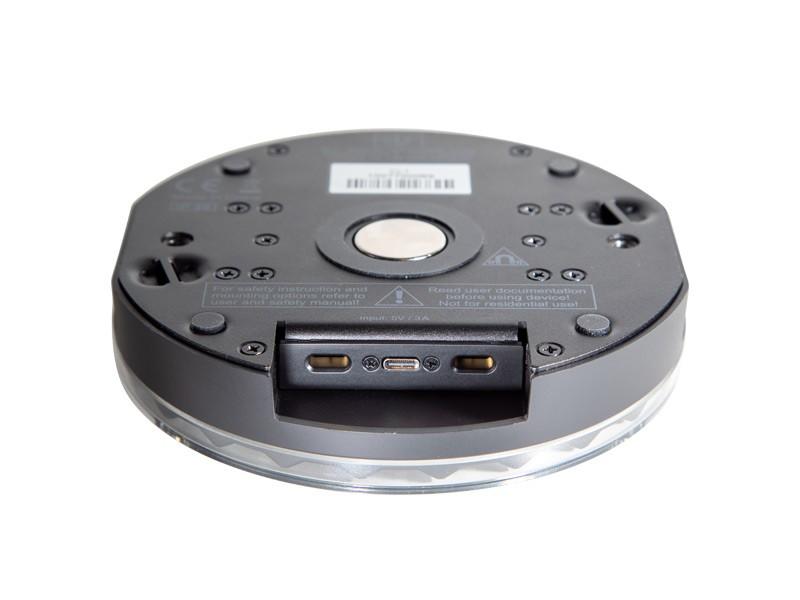

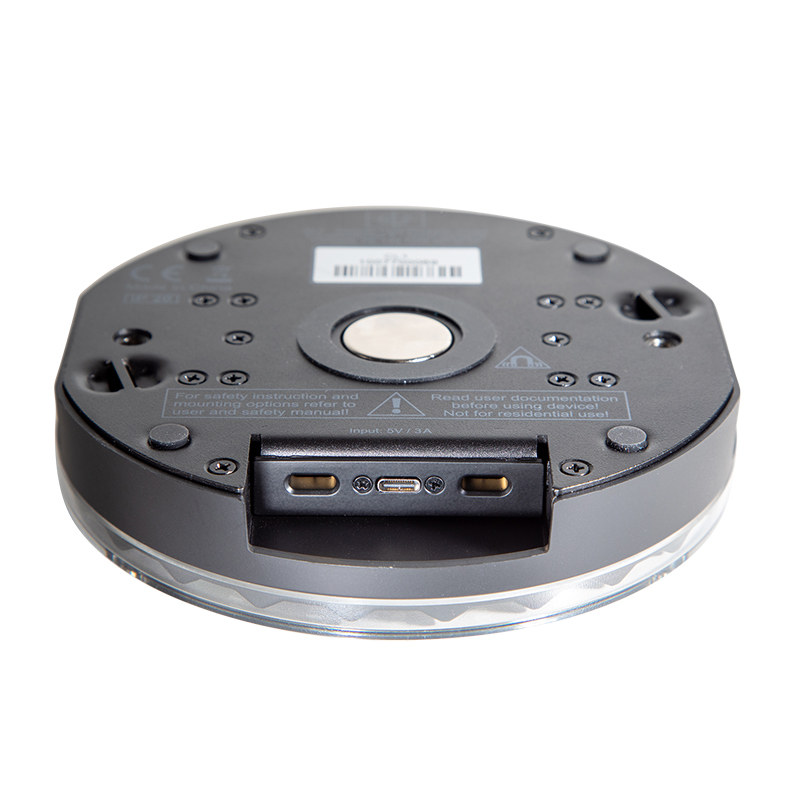

  • Power Input: USB-C | Charging Needles



Construction

  • Housing Color: Black
  • Housing Material: high-impact flame-retardant thermoplastic | aluminum | steel metal plates
  • Protection Ratin: IP20

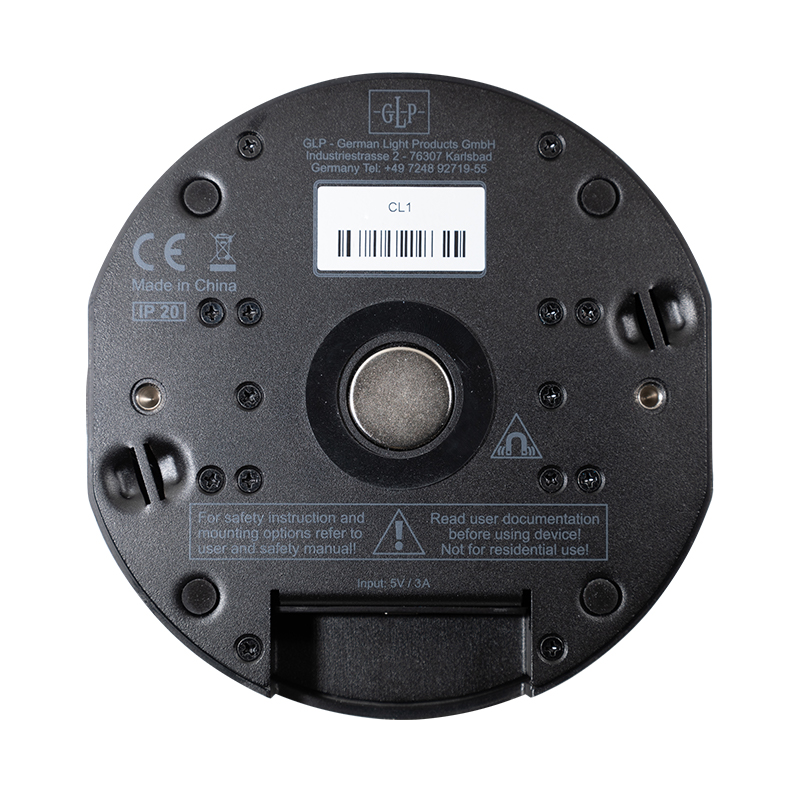

  • Construction Features: Rubber feet | magnetic front screen | Strong Magnet with anti slip rubber | IR Sensor for Remote Control | integrated microphone | Kensington Lock | 3x M6 Screw Threads for individual installation an eyebolt | 2 eyelets for safety cable



Electrical Specifications

  • max. Power (@ 230 V): 10 W



Installation

  • Mounting: 2 eyelets for safety cable | 3x M6 threads | Kensington Lock
  • Orientation: any
  • Location: trocken



Thermal Specifications

  • Cooling: convection
  • Overheating Protection: automatic
  • min. Ambient Temperature: 0 °C / 32 °F
  • max. Ambient Temperature: 45 °C / 115 °F



Dimensions & Weight

  • Height: 32 mm / 1.26 in
  • Width: Ø 156.5 mm / Ø 6.16 in
  • Min. Center Distance: 160 mm / 6.3 in
  • Weight (netto): 570 g / 1.26 lbs
