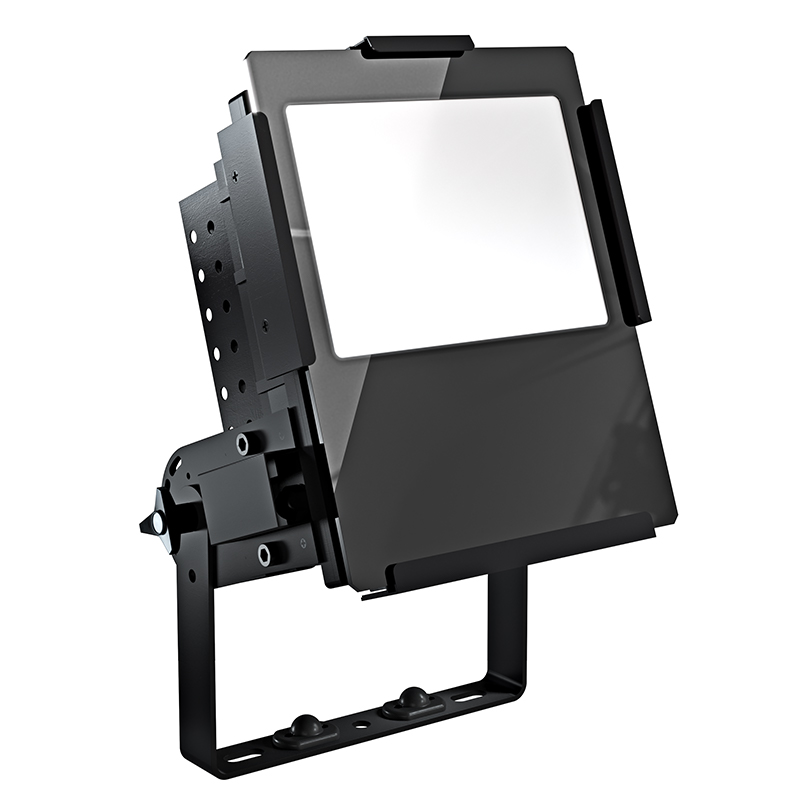

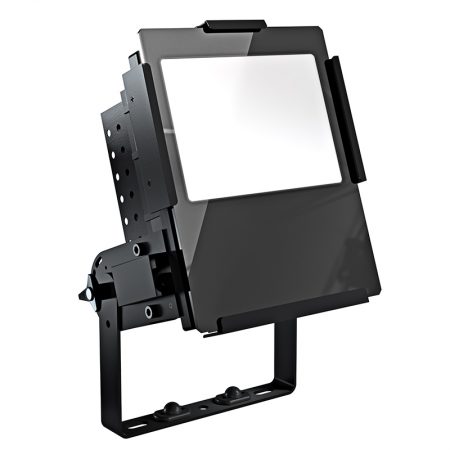

The MBL 20 is a powerful studio washlight with flexible controls and quick integration.

The MBL 20 is a tunable white floodlight with an adjustable color temperature range from 2700 to 6500 Kelvin. Due to the fanless concept, the MBL 20 is the ideal general light for fairs, events, sports, show areas, or in all sound sensitive areas. As with all FUSION fixtures, the MBL 20 is IP65 rated, making it suitable for outdoor use in any weather conditions. The integrated diffuser improves the lighting properties of the LED by reducing glare and providing a homogeneous visual impression.

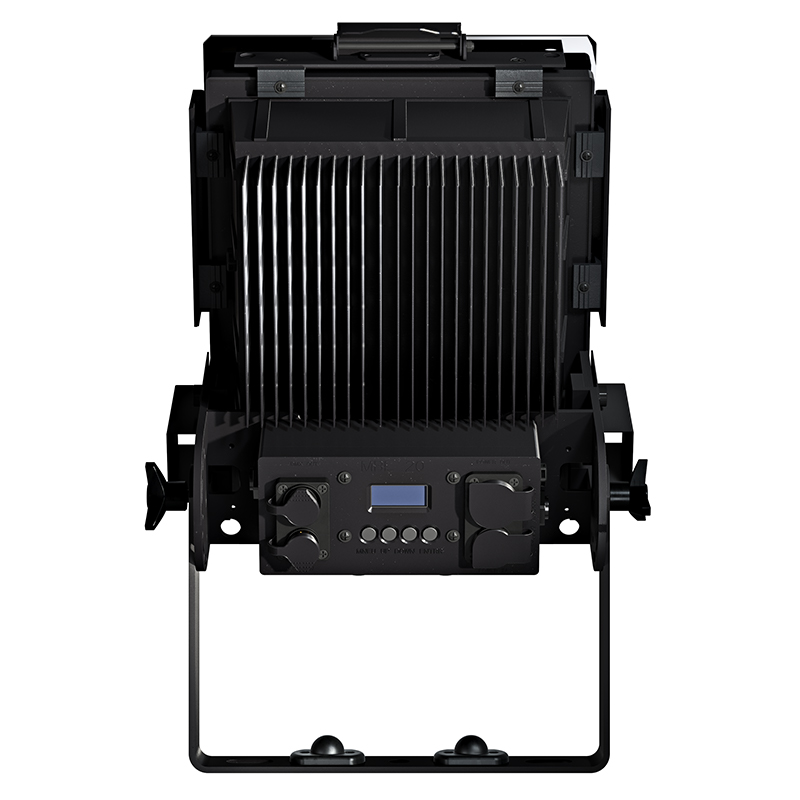

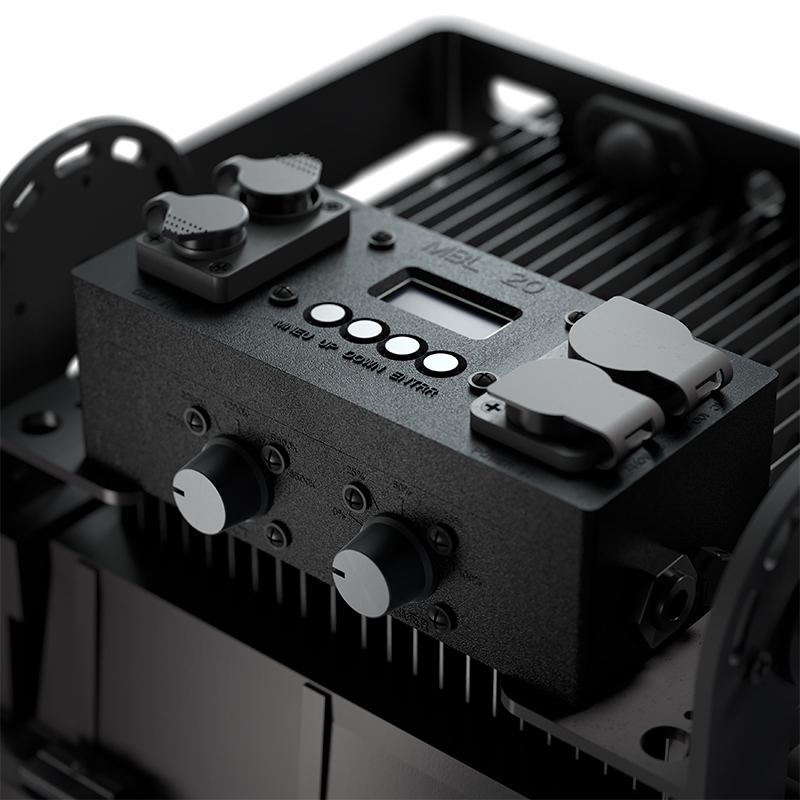

The fixture features direct selector switches for color temperature and brightness, which can be used to set the most important color temperatures and fixed brightness levels without control; ideal for simple plug & play applications. For easy integration in pre-existing installations, the MBL 20 supports DMX 512 as well as having individual control. The fixture features selectable PWM frequencies (up to 30 KHz) perfect for video and TV applications. The MBL 20 has In/Out connections for DMX and power (Power Twist TR1) which makes the installation and dismantling quick and easy.

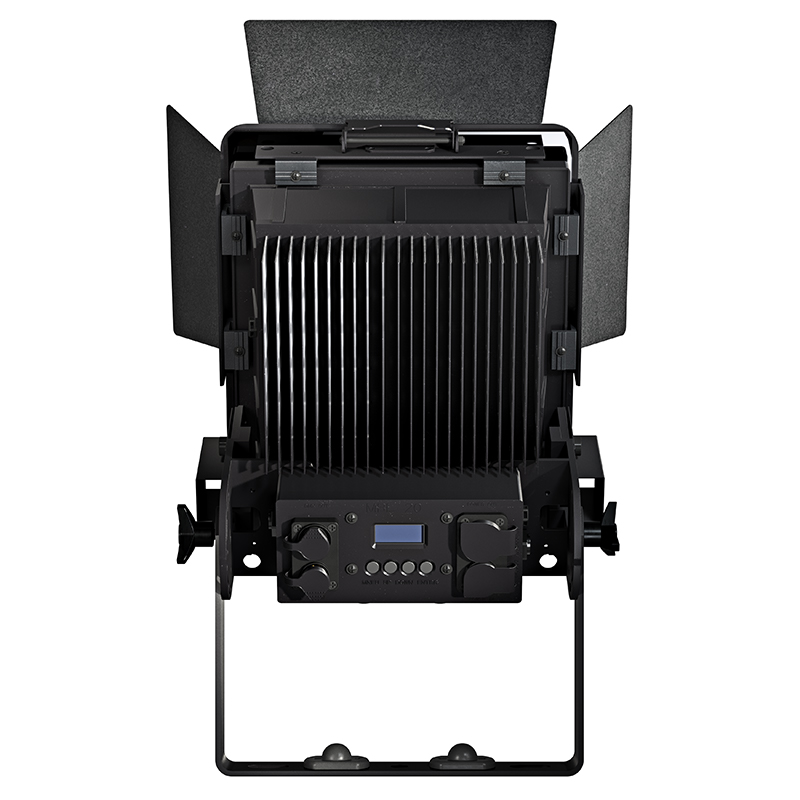

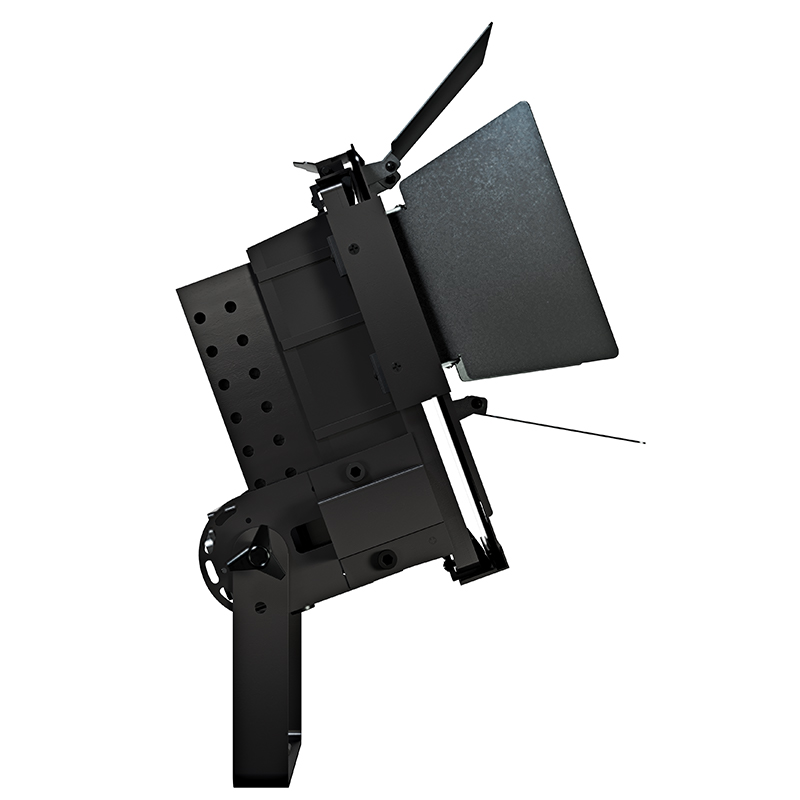

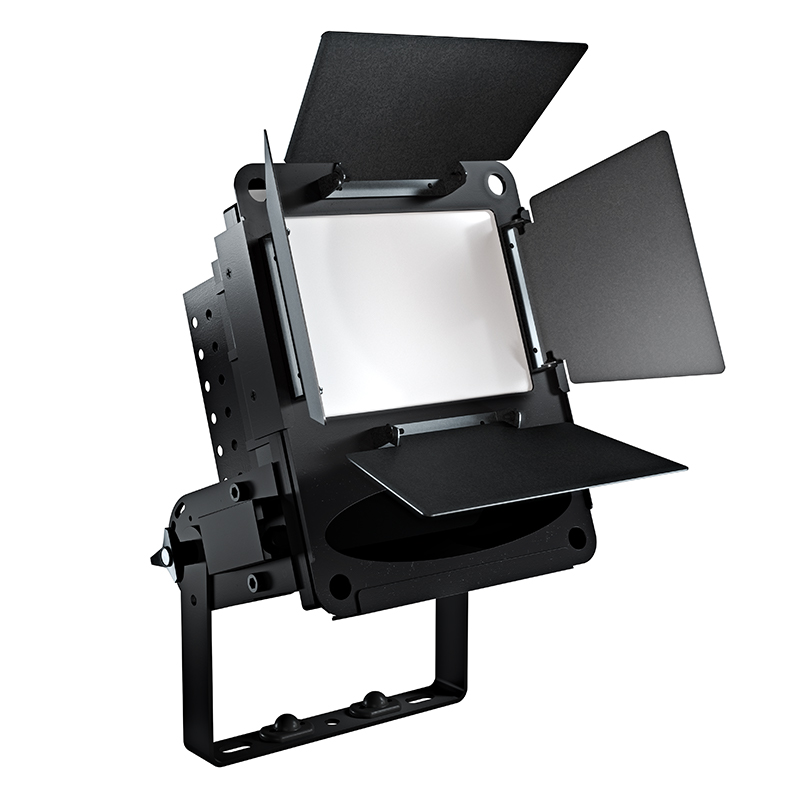

Optional accessories such as hinged barn doors for an extended optical protection (glare shield) and to limit the light are available at product launch.



Contact us for more information on the Fusion MBL 20
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

Light Source

  • 27x WW & 27 CW LEDs
  • 50,000 lifetime hours
  • CRI 80+



Control

  • 4 button OLED display
  • USITT DMX 512-A
  • RDM ANSI/ESTA E1.2
  • DMX Channels 2/5



Effects

  • Dimming Curves: Inv. square, Linear, Square law, Theatre
  • Rotary switch CCT: 2700 Kelvin, 3200 Kelvin, 4200 Kelvin, 5600 Kelvin, 6500 Kelvin
  • Rotary switch brightness: 20%, 40%, 60%, 80%, 100%



Connectors

  • XLR 5-pin
  • Neutrik powerCON True1



Power

  • 100-240 VAC/50-60 Hz
  • Auto ranging electronic switch-mode
  • Max. 200 W @ 230 V



Operating Conditions

  • Temperature overheating protection
  • Max: 115°F (45°C)
  • Min: 14°F (-10°C)
  • IP65 rated

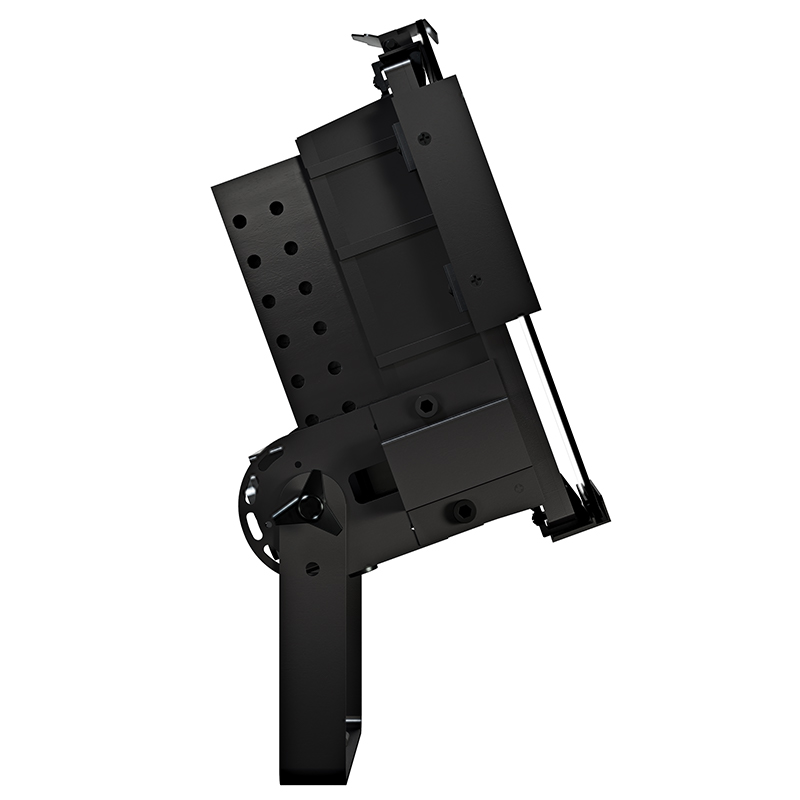

Mounting Options

  • 1/4 turn locks
  • Two safety cable attachments



Optical System

  • 100° Beam angle



Dimensions

  • MBL 20
    • Height including bracket: 37 cm / 14.5 in.
      Height without bracket: 27 cm / 10.6 in.
      Width: 25 cm / 9.8 in.
      Depth: 17 cm / 6.69 in.



Net Weight

  • 5 kg (11 lbs.)
