The GLP XDC1 IP Hybrid merges a high-performance strobe with a very powerful wash light, offering superior color quality—all packaged in a weatherproof IP65 housing.

Categories: ,

The XDC1 offers impressive light output and color rendering quality based on the innovative color mixing of the X5 (RGB plus the special GLP Lime) in combination with two extremely powerful white strobe lines for all applications that require particularly powerful performance.

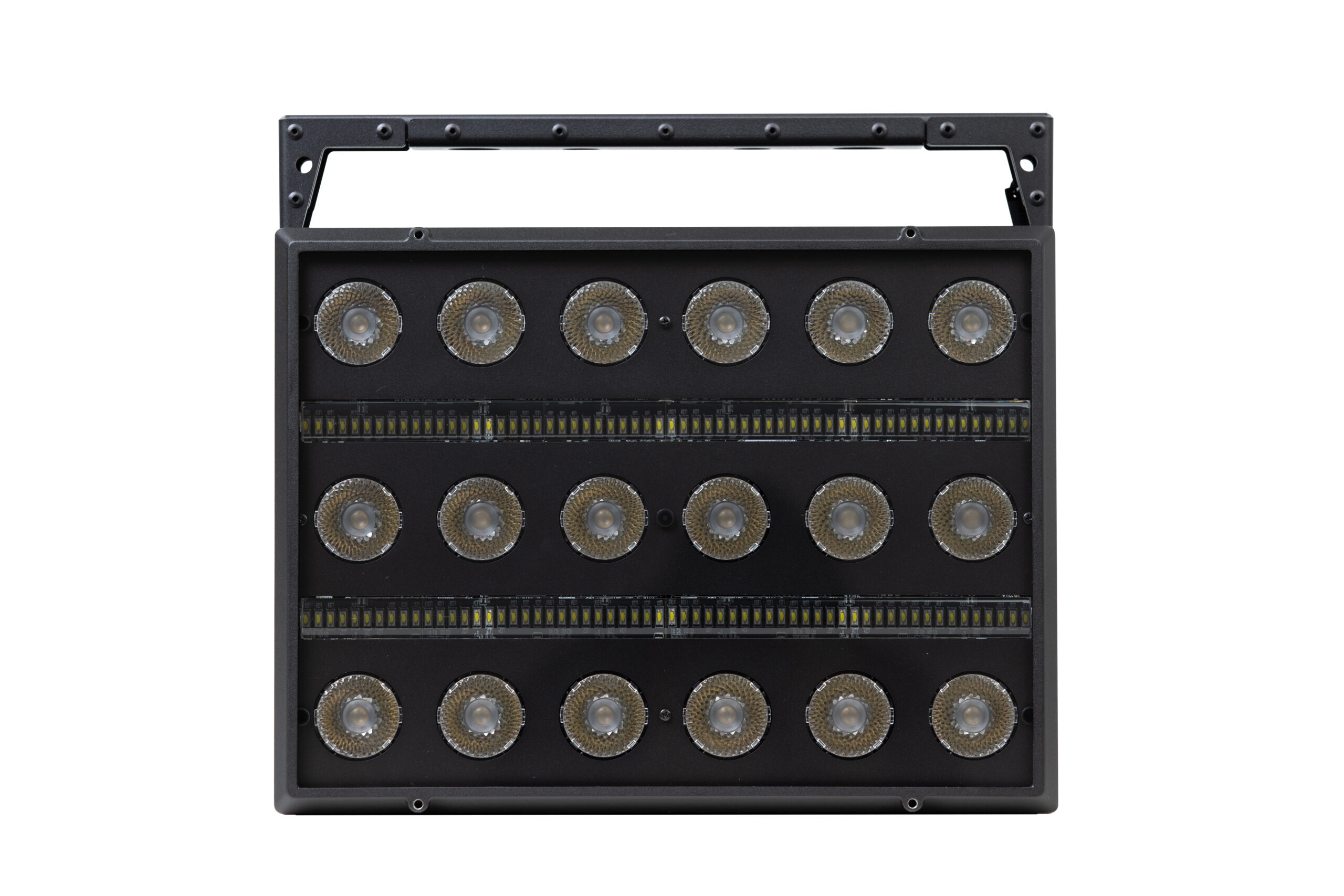

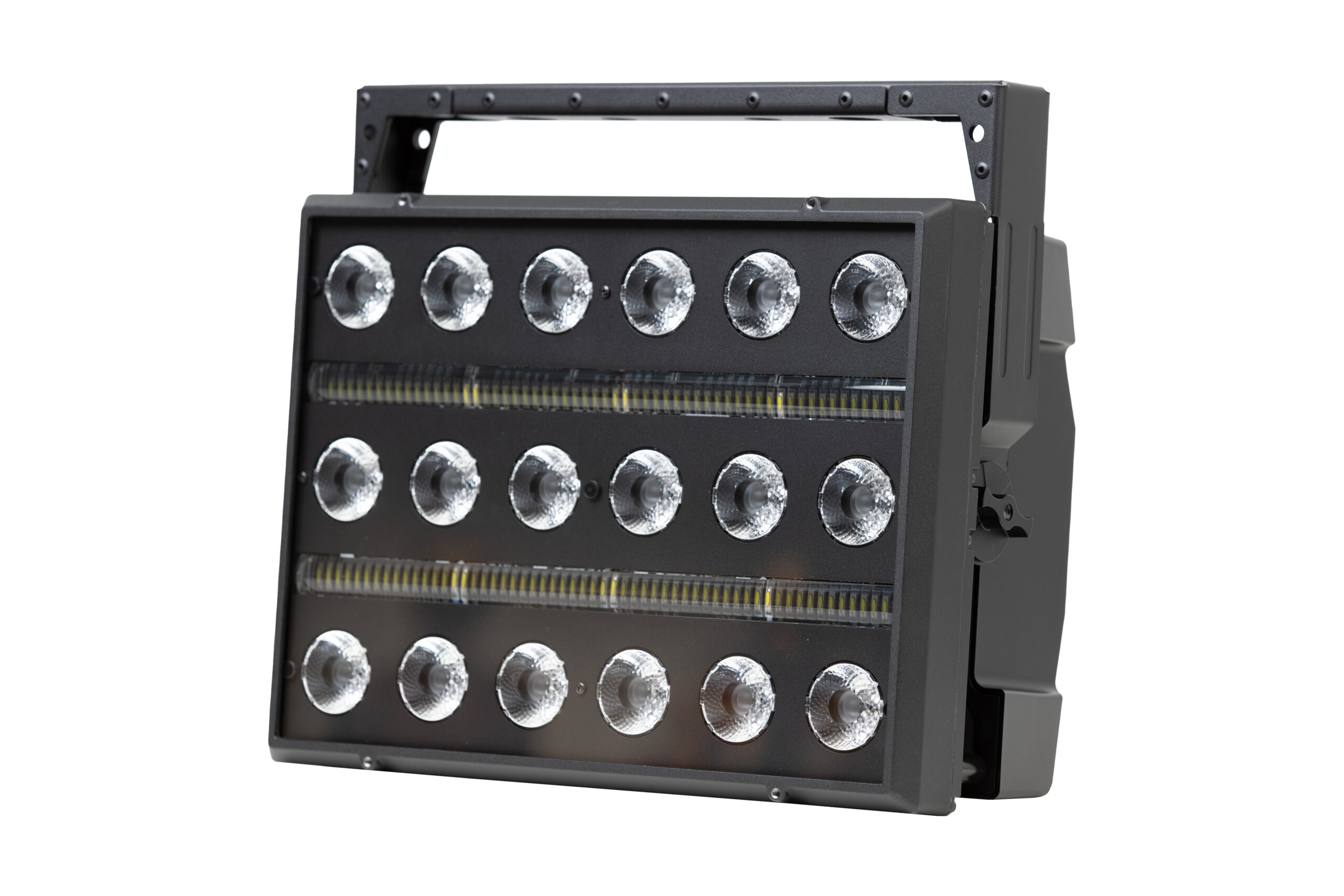

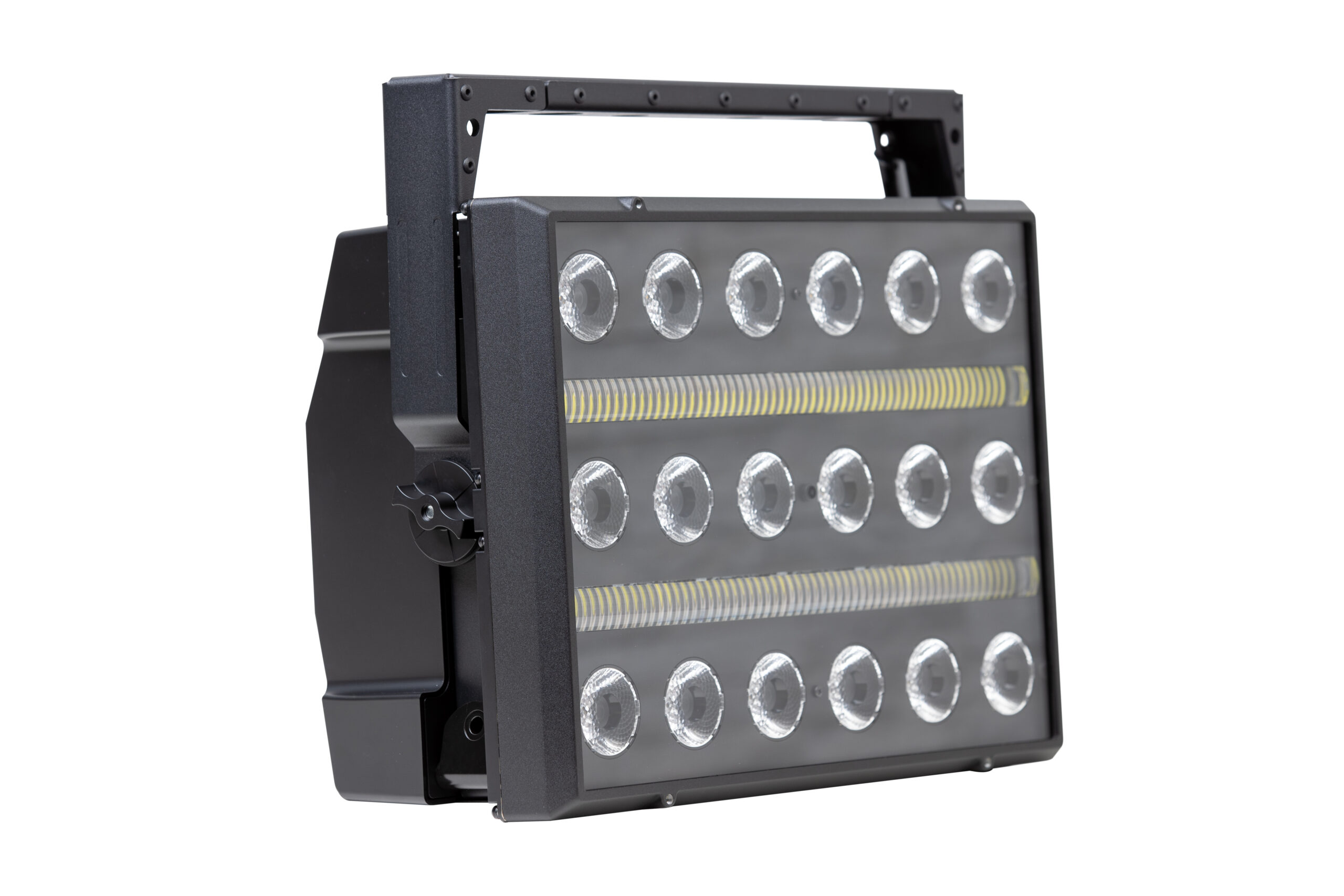

As with the fixtures in the new impression X5 series, the XDC1 features GLP’s proprietary iQ.Gamut color algorithm. This ensures optimum light output with excellent color rendering at any color temperature. It features a total of 18 wash LEDs, with 40W light output each, in three rows of pixels with 6 per row. The particularly narrow 10° optic ensures impressive mid-air effects, especially for applications at very long distances. The proven, extended color functions such as a referenced color wheel, color temperature control, color quality control with desaturation, magenta/green shift, etc. are also available in the XDC1. Thanks to the new tungsten channel, the weatherproof hybrid spotlight can also be used as a powerful audience blinder.

The two high-performance strobe lines of the XDC1 offer up to 1000W of strobe power, sufficient to illuminate entire stadiums and arenas. The wide beam pattern of the strobe lines ensures maximum impact as well as a diffused luminous flux.

For even more dynamic impact, all 18 wash LEDs can be controlled individually in a second layer level. Here, depending on the mode selected, a wide range of static or dynamic pattern effects can be accessed. Alternatively, the pixels can be recorded with a media server via pixel mapping. These effects can be further enhanced by including the two strobe lines, each segmented into six zones. The combination of pixel control of wash LEDs and strobe lines gives designers maximum creative scope.

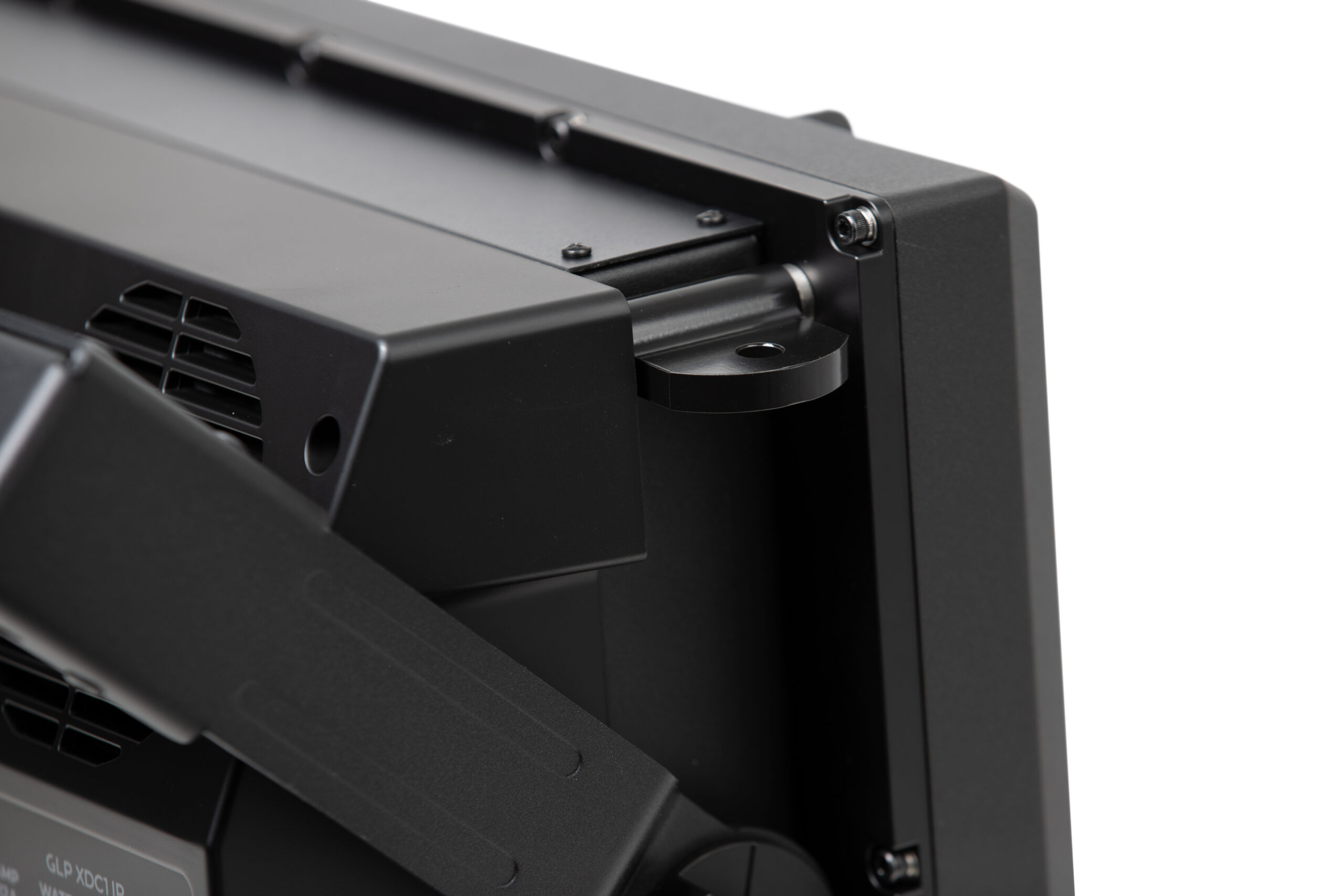

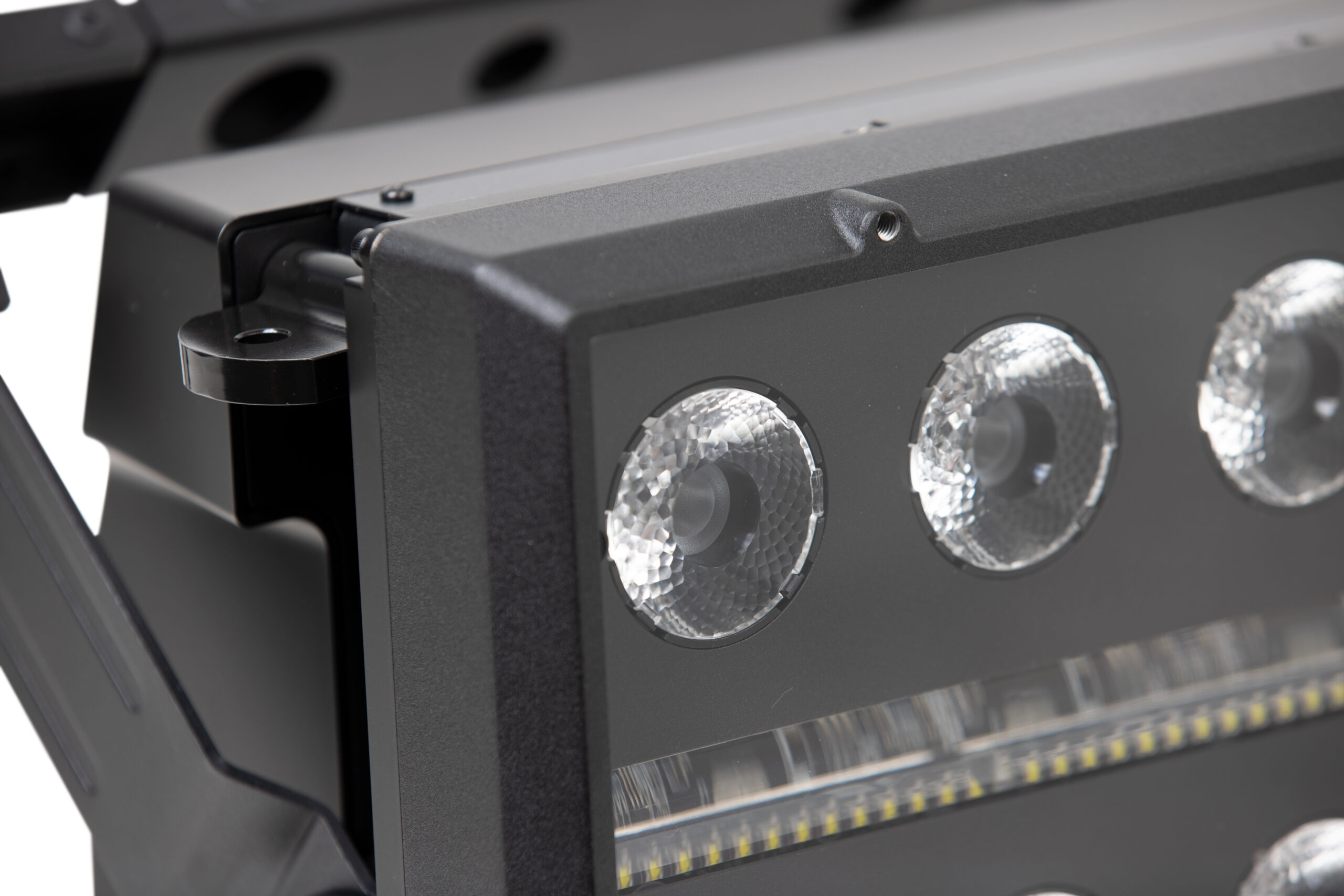

Four integrated folding eyelets allow several units to be aligned vertically or horizontally. This allows the design of horizontal or vertical lines, which can be used to create gigantic light objects, e.g. for large events and festivals. The IP65 rating allows the XDC1 to be used in most weather conditions without the need for unattractive weather protection devices.

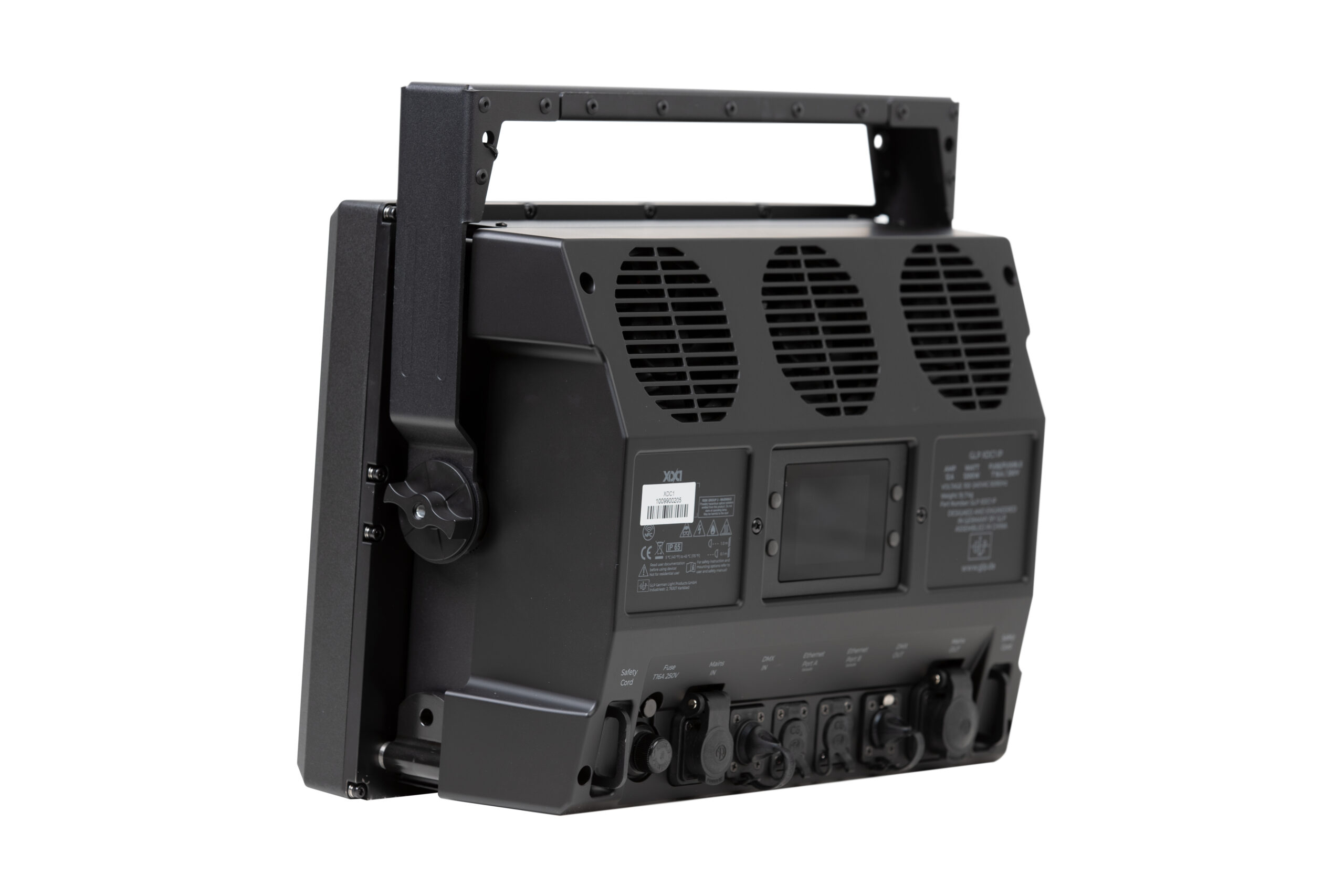

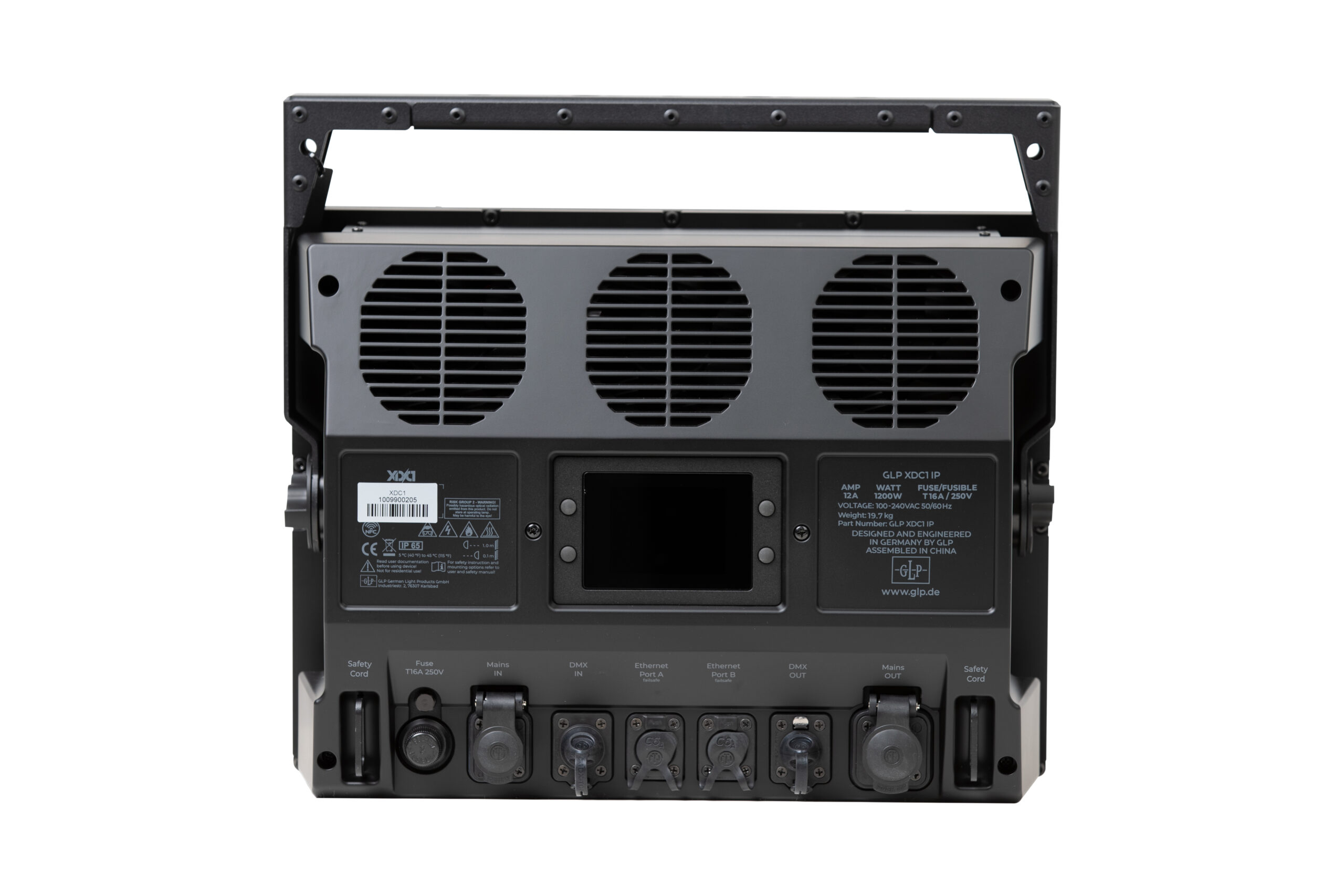

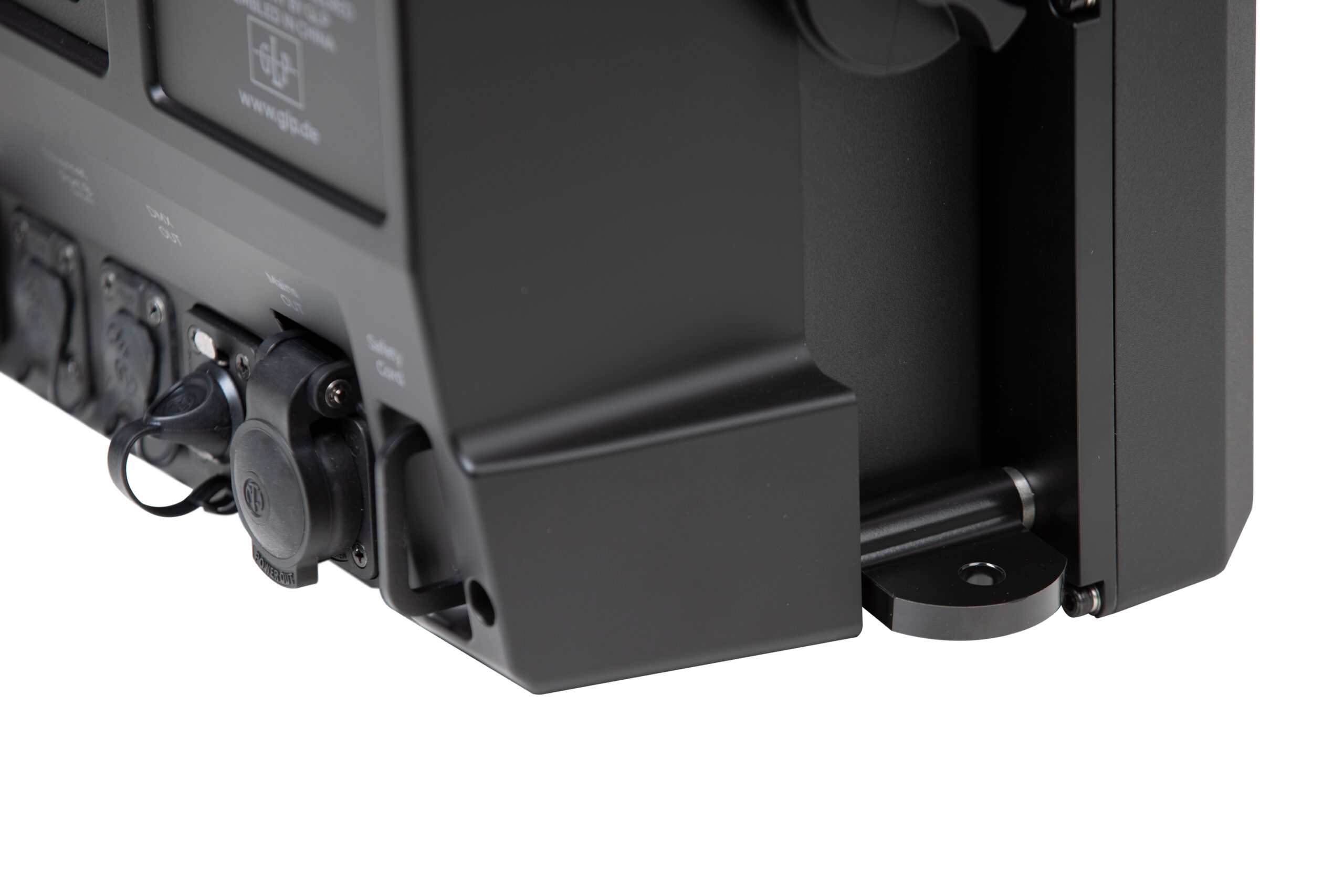

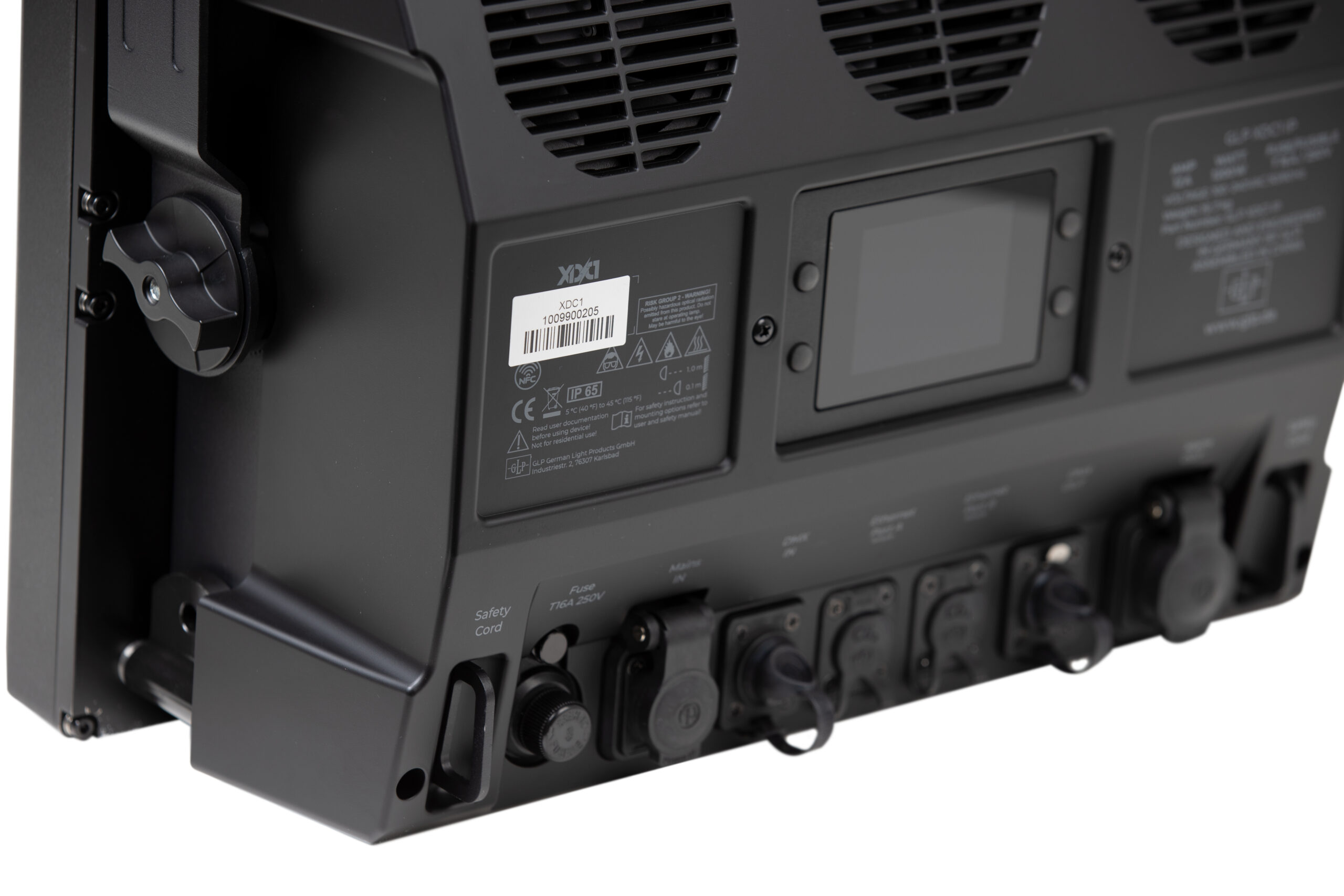

For particularly easy installation, each unit is equipped with PowerCon True1 In and Out, DMX In and Out, as well as two fail-safe EtherCon ports for ArtNet or sACN. The integrated NFC sensor with iQ.Mesh Module allows for particularly user-friendly configuration via the new GLP iQ.Service app.

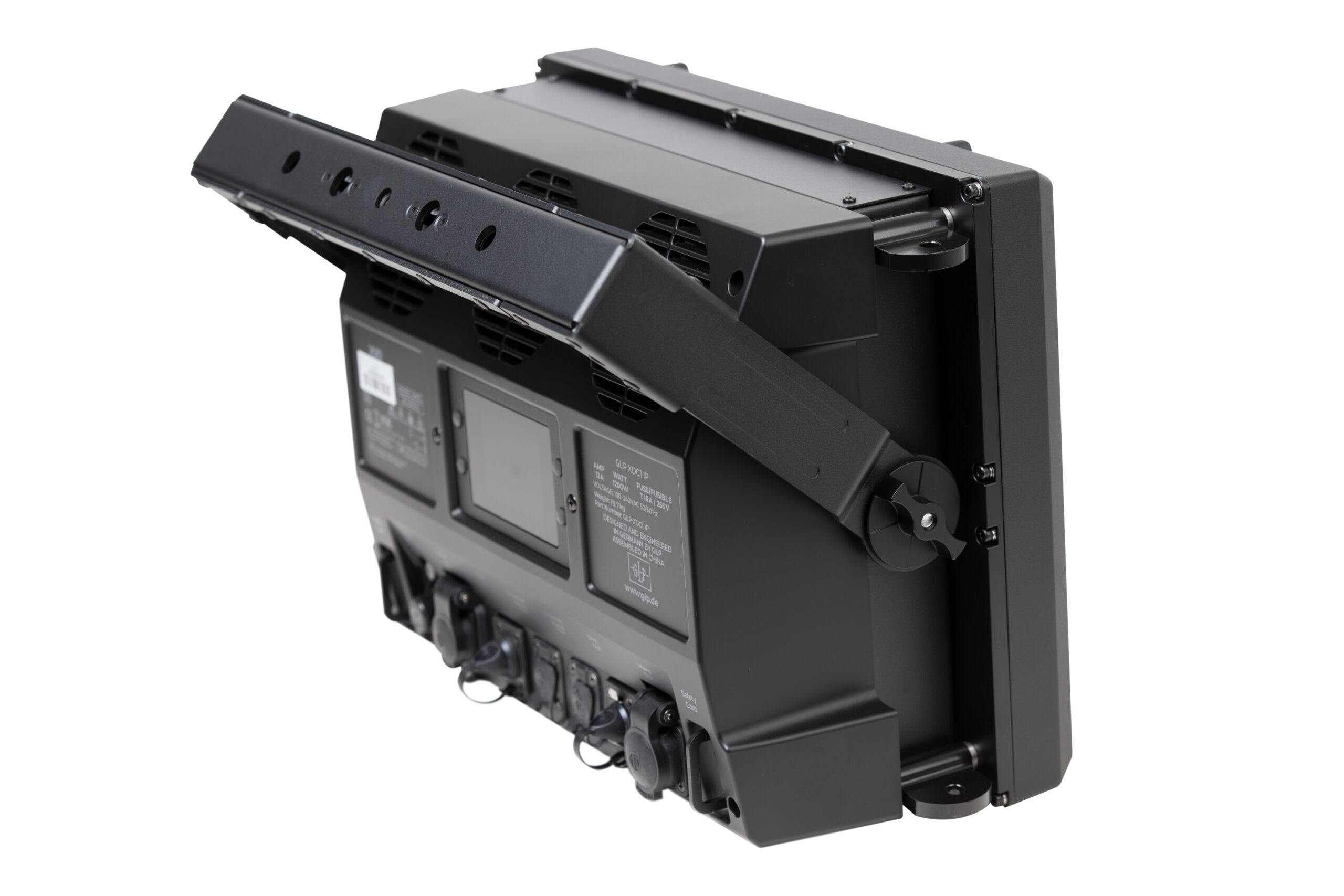

As an optional accessory, a stand is offered that can be conveniently attached to the bracket using the Camlock quick-release fastener. This allows the XDC1 to be quickly placed on the floor and aligned.

The optional filter frame can be mounted without tools to adjust the optical beam angle. A selection of filter discs for six wash pixels each can be used to perfectly adjust the optical impression to individual needs. The light emission surfaces of the two strobe lines are not touched by the filter frame.

Contact us for more information on the XDC1
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

Light Source

  • Type – Strobe: White LED; Wash: 40 W RGBL LED
  • Light Source –  CountStrobe: 2×60; Wash: 3×6
  • LED Refresh Rate – Optimal, High 1, High 2, Max
  • CCT – Wash Default: 6,500 K; Optional: 8,000 K; 5,600 K; 4,200 K; 3,200 K
  • Duv – < +/- 0.01
  • TLCI – Wash: 90 @ 6,500 K; 75 @ 3,200 K
  • TM-30-15 – Wash: 87/105 @ 6,500 K; 85/110 @ 3,200 K

Optical System

  • Output – Wash: 18,700 lm; Strobe: 66,400 lm; Strobe&Wash: 85,100 lm
  • Beam angle – Strobe: 140°/45° (field); Wash: 10° (beam)
  • Beam Mode – 3.5°

Effects

  • Dimmer – 0 – 100%; 16 bit
  • Color Mixing –
    • RGB
    • RGBL
    • x;y
  • Color Mix Priority – Different Layer Priority settings
  • CTC (Color Temperature Control) – 2,500 – 10,000 K
  • CQC (Color Quality Control) –
    • High Output (HO)
    • High Quality (HQ)
    • Desaturation
  • Magenta/Green-Shift – Yes
  • Tungsten Simulation – 8 Selectable Curves
  • Color Wheel – Virtual Color Wheel, 64 LEE Referenced Colors
  • Pattern Effects – Wide Range of Static and Dynamic Pattern Effects with XFade and Transition
  • Tilt Movement Angle – 180° (Manually)
  • Flash Rate / Intensity Effects Speed –
    • Strobe to Continuous Open
    • Different Intenisty Effect Speeds
  • Intensity Effects – Wide Range of Intensity Effects
  • Flash Duration –
    • Normal
    • Percentage

Control

  • DMX Channels – M1: 21 / M2: 50 / M3: 58 / M4: 113 / M5: 80 / M6: 92 / M7: 53
  • Control Modes – 7
  • Protocol –
    • DMX (USITT DMX512-A)
    • RDM (ANSI/ESTA E1.20)
    • Art-Net
    • sACN
    • iQ.Mesh
    • Optional: Lumenradio CRMX @ FPO
  • Setting and Addressing –
    • Control Panel with Backlit Graphic Display
    • 4 Button Menu Navigation
    • DMX
    • RDM
    • iQ.Service App
    • Internal Webinterface
  • Software Update –
    • DMX link
    • via DProg
    • Internal Webinterface
    • iQ.Mesh
    • Fixture2Fixture Push
  • High-Res Channels –
    • Dimming
    • Colormix
  • Power Modes –
    • Dynamic
    • Max Strobe
    • Max Wash
    • Balanced
  • Dimming Curves –
    • Linear
    • Soft
    • S-Curve
  • Fan Modes –
    • Regulated
    • High
    • Medium
    • Low
    • Off
  • Subfixture Mode –
    • Normal
    • Independent
  • White Points – Wash Default: 6,500 K; Optional: 8,000 K; 5,600 K; 4,200 K; 3,200 K
  • Others –
    • Stand Alone 1 captured Scene
    • Art-Net/sACN Node
    • Data Conversion
    • iQ.Mesh
    • FPO (Flexible Protocol Option)
    • Internal Webinterface
    • SW Fixture2Fixture Push
  • iQ.Gamut –
    • Full
    • Rec.709
    • Rec.2020
  • Flash Style –
    • Normal
    • Xenon
  • Duration Control –
    • Normal
    • Percentage
  • Signal –
    • Blackout
    • Hold
    • Houselight
    • Stand Alone Scene
  • Hibernation – Yes

Connectors

  • Power input –
    • Neutrik powerCON TRUE1
    • In/Out

Electrical Specifications

  • Power Input – 100 – 240 VAC / 50 – 60Hz
  • Power Supply – Auto-ranging electronic switch-mode
  • Fuse – T16A 250V 6x32mm
  • Max. Power (@230V) – 1,100 W

Thermal Specifications

  • Cooling – combined convection and forced air
  • Total Heat Dissipation (Calculated, +/-10%) – 3,760 BTU/h
  • Temperature Range, Operating – 5 °C / 40 °F to 45 °C / 115 °F

Mounting Options

  • Mounting –
    • 1 Pair of 1/4-turn Locks
    • 4 Hanging Eyelets
    • 3x 13mm for Rigging Clamp
    • Eyelets for Safety Cable
  • Orientation – Any
  • Location –
    • Indoor Permanent
    • Outdoor Temporary

Construction

  • Housing Color – Black
  • Housing Material –
    • High-Impact Flame-Retardant Thermoplastic
    • Aluminum
    • Steel Metal Plates
  • Protection Rating – IP 65
  • Construction Features –
    • Alignment System
    • Threads for External Accessory
    • Tiltable Bracelet
    • Same Vertical Pixel Pitch (Wash)

Dimensions & Weight

  • Height – 14.21 in / 361 mm
  • Width – 15.75 in / 400 mm
  • Length – 8.12 in / 206.3 mm
  • Weight – 49.6 lbs. / 22.5 kg
