FUSION X-Par 18 Z (Oom Par Par) -

The bigger brother to the Fusion 12 Z, the ‘Oom Par’ this is the 180W Fusion 18-Z – the Oom Par Par!

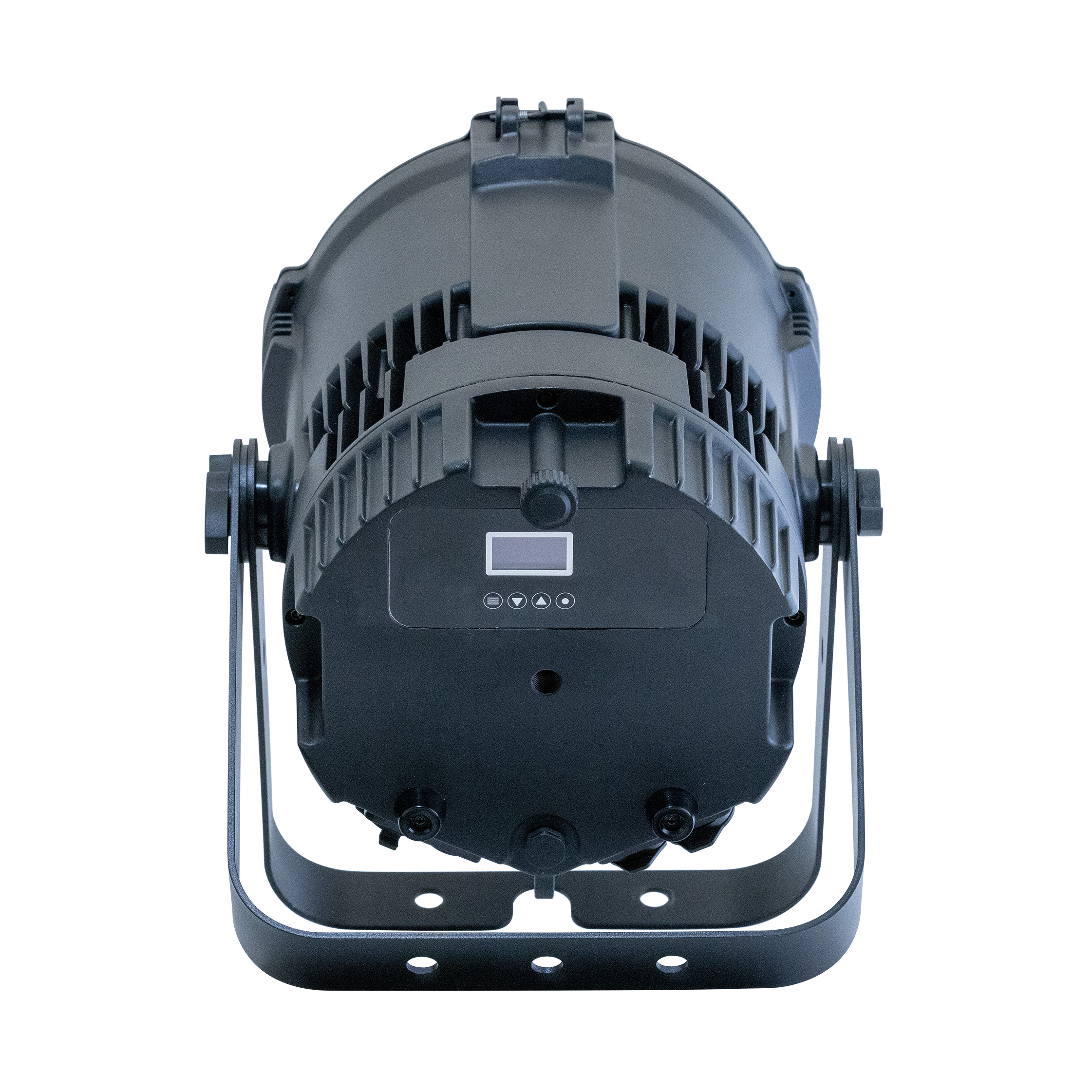

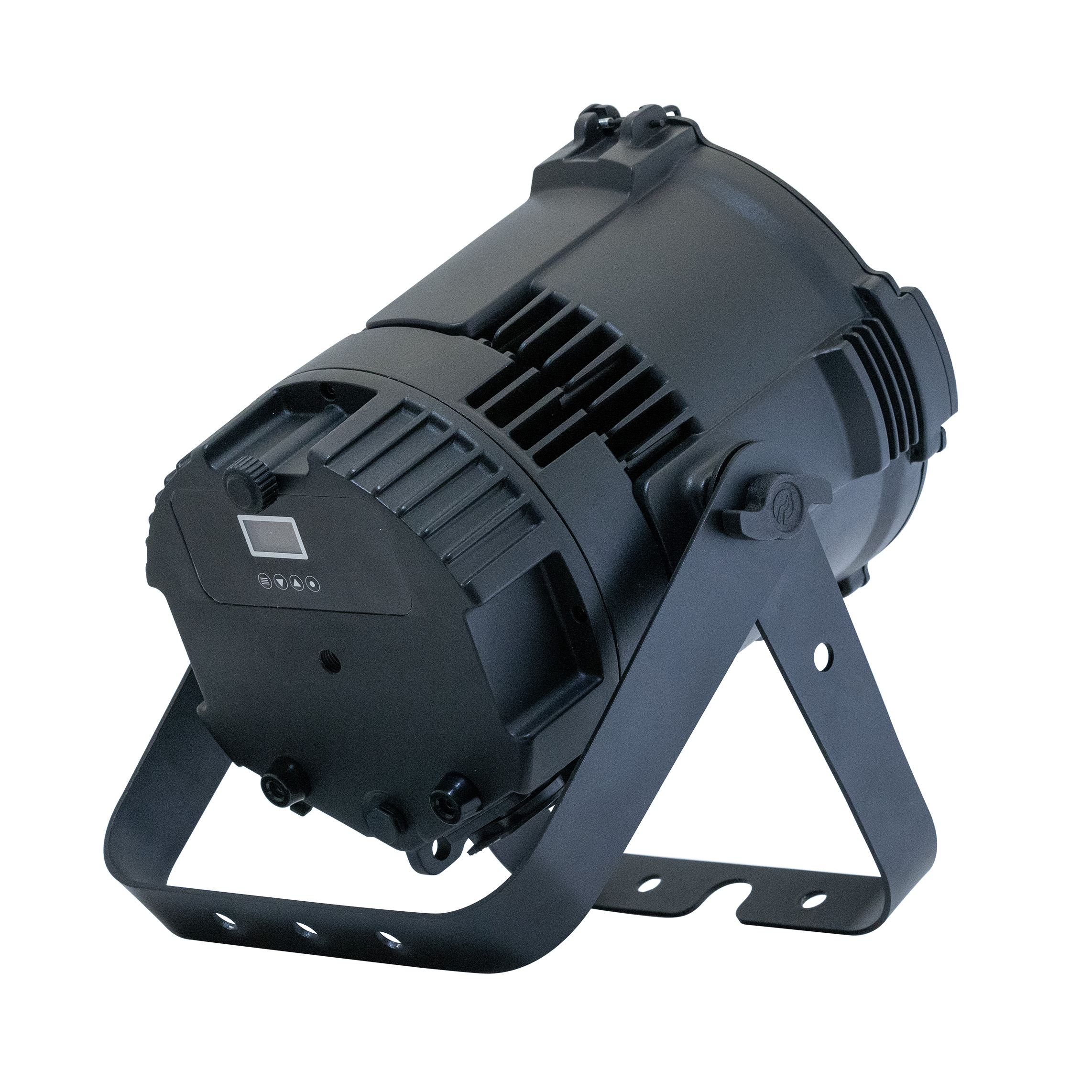

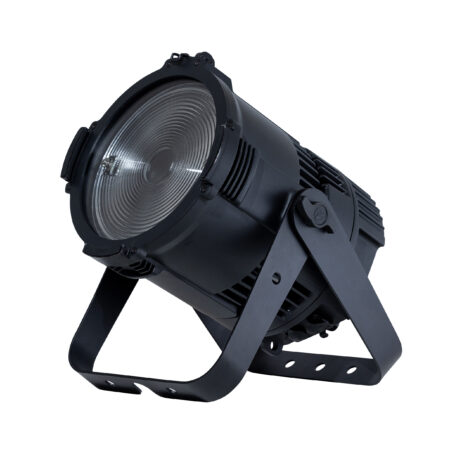

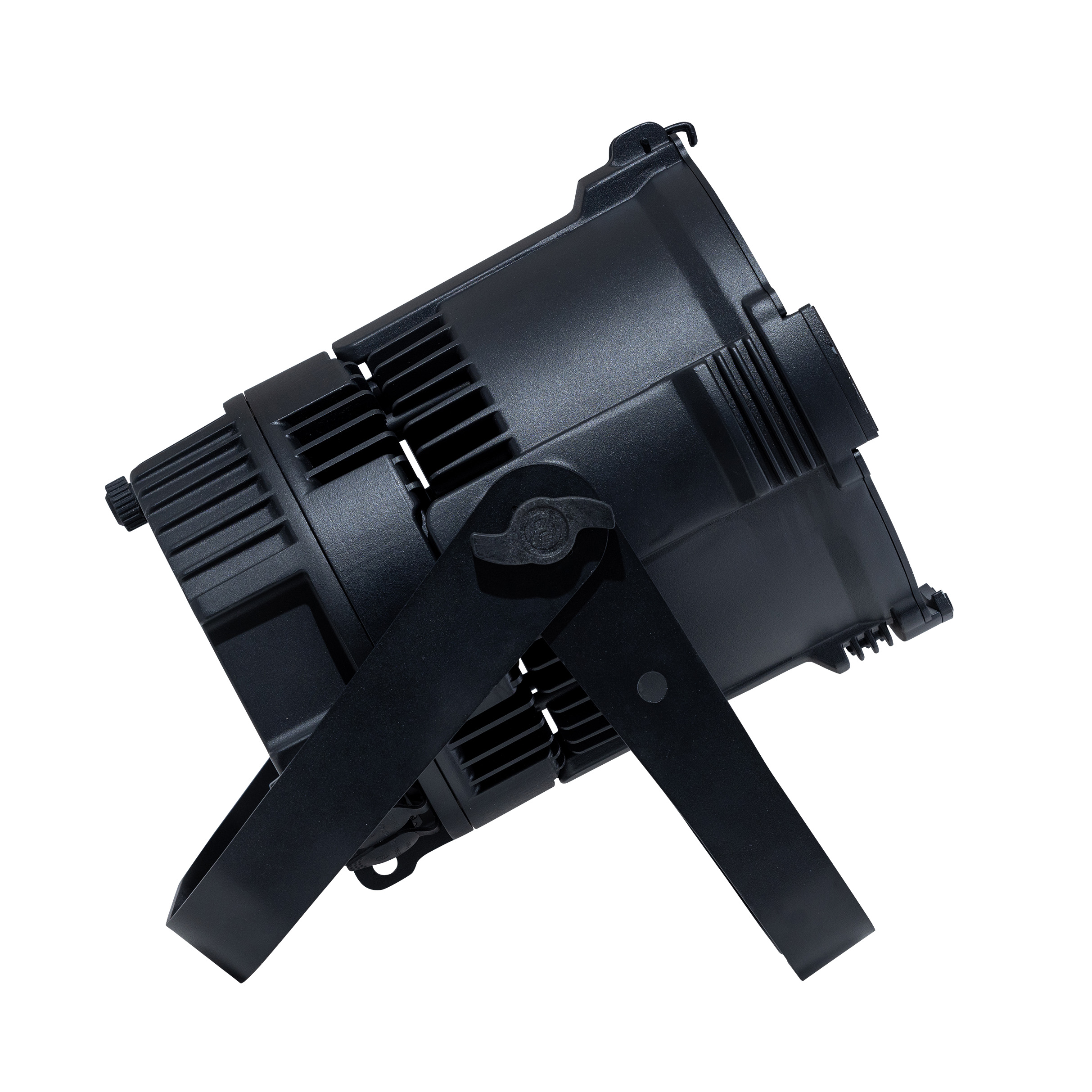

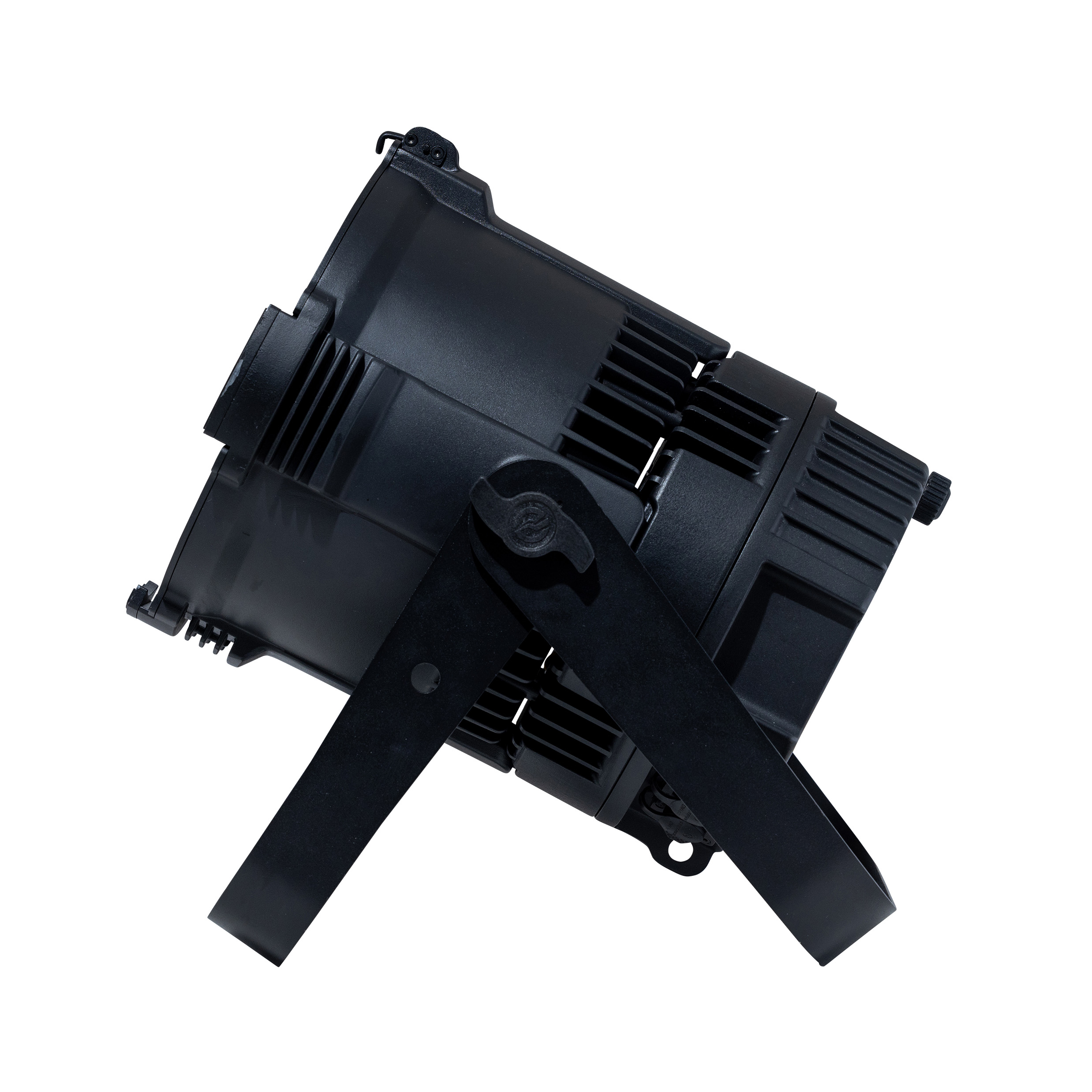

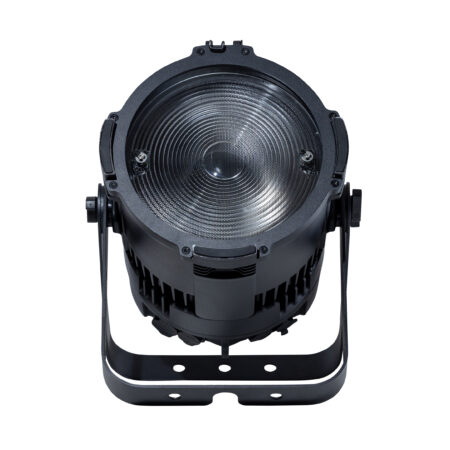

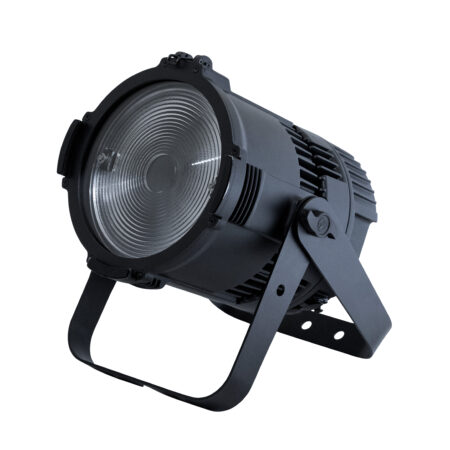

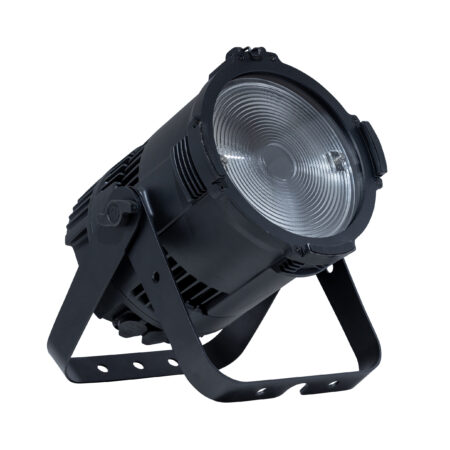

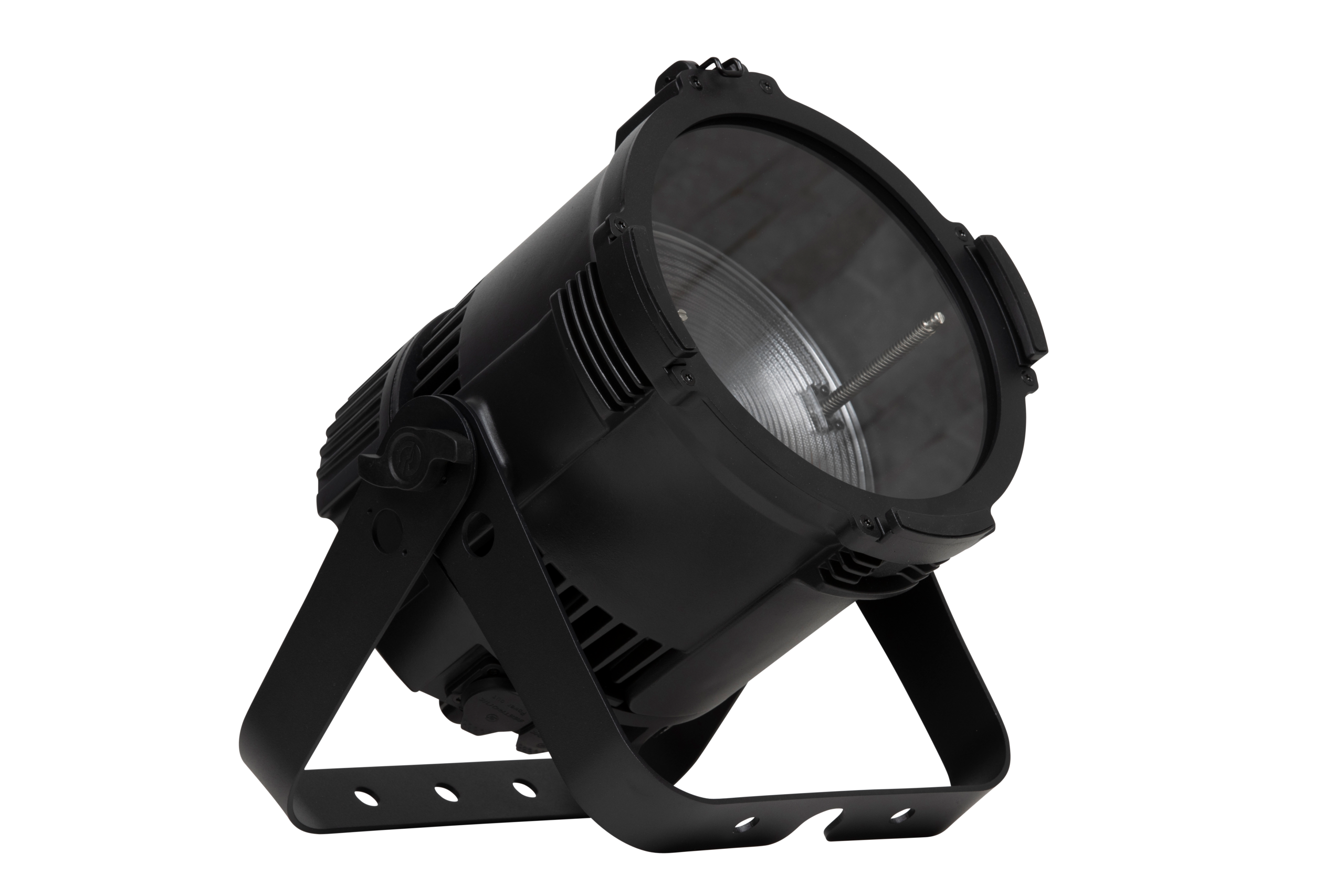

The Fusion X-Par 18 Z is a state-of-the-art LED fixture in IP65 design, powered by a single-source RGBL LED.

Featuring a 180 Watt RGBL light source and Fresnel optic, the fixture generates up to 4,790 lm output with a CRI 80+. The 190mm front lens provides an eye-catching light output that can be used to create powerful looks.

Combined with a wide zoom range of 8° to 52°, the Fusion X-Par 18 Z is a future-proof evolution of the LED PAR light fixtures.

The robust aluminum housing with an IP65 design allows problem free use indoors as well as outdoors in dust, dirt, or moisture., and reducing maintenance requirements in day to day use.

A filter frame and barndoors are available options.

Contact us for more information on the X-Par 18 Z
Want to stay up to date with the latest from FUSION by GLP?
Click the link here to sign up for GLP’s mailing lists

Light Source

Type – RGBL LED
Light Source Count – 1
Light Source Power – 180 W
CRI (Ra) – 80+
TLCI – 80+

Optical System

Output – 4,790 lm
Min. Zoom – 8°
Max. Zoom – 52°
Output Lens Diameter – 7.48 in / 190 mm

Effects

Dimmer – 0-100% Electronic, 8 or 16 bit
Shutter – Electronic 1-10 Hertz
Color Wheel – Virtual, 64 Lee Filter + 4 White Presets
Zoom – Motorized
CTC Range – 2500K – 10000K

Control

Control Modes – 6
Protocol – DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Lumen Radio CRMX, GLP iQ.Mesh
Setting and Addressing –
- OLED Display
- 4 Button Menu Navigation
Others –
- Stand Alone 1 captured Scene
- 4 Programmable Fan modes

Electrical Specifications

Power Input – 100 – 240 VAC / 50 – 60Hz
Power Supply – Auto-ranging electronic switch-mode
Power Supply Cable –
- US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft
- EU: 16 A, 1.5 mm², H07RN-F, 1.5 m
Max. Power (@230V) – 200 W

Thermal Specifications

Cooling – Combined convection and forced air
Max. Surface Temperature (Ta = 40°C) – 194 °F / 90 °C
Total Heat Dissipation (calculated, +/-10%) – 680 BTU/hr
Temperature Range, Operating – 14 °F / -10 °C to 104 °F / 40 °C

Mounting Options

Mounting –
- 1 Double Bracket with three mounting holes
- 1 M12 Thread, centered, for drop mount
- 1 Safety Cable attachment point
Location – Temporary outdoor
Orientation – Any
Min. Distance to Combustible Materials – 8 in / 0.2 m
Min. Distance to Illuminated Surfaces – 18.7 in / 0.5 m

Construction

Housing Color – Black
Housing Material – Die-Cast Aluminum
Protection Rating – IP 65
Construction Features –
- Floor standing with adjustable foot
- M12 Thread for drop mounting, low-ceiling mounting with bracket
- Holder for optional accessories (filter frame, barndoor)

Dimensions & Weight

Height – 9.65 in / 245 mm
Width – 9.65 in / 245 mm
Length – 11.7 in / 297.5 mm
Weight – 19.4 lbs. / 8.8 kg

User Manual

These will be published when available

DMX

These will be published when available

Illustrations

Fusion X-Par 18Z Dimensions

Fusion X-Par18Z Dimensions DWG

Fixture Profiles

These will be published when available

GDTF Files

For GLP GDTF fixture files, please visit the following link:
https://gdtf-share.com/user-page?name=German+Light+Products&page=fixtures

Photometrics

These will be published when available

Firmware

These will be published when available

Specifications

These will be published when available
