FUSION X-Par 12 Z (Oom-Par) -

It’s a Par; It’s from Germany; It’s the Oom-Par!

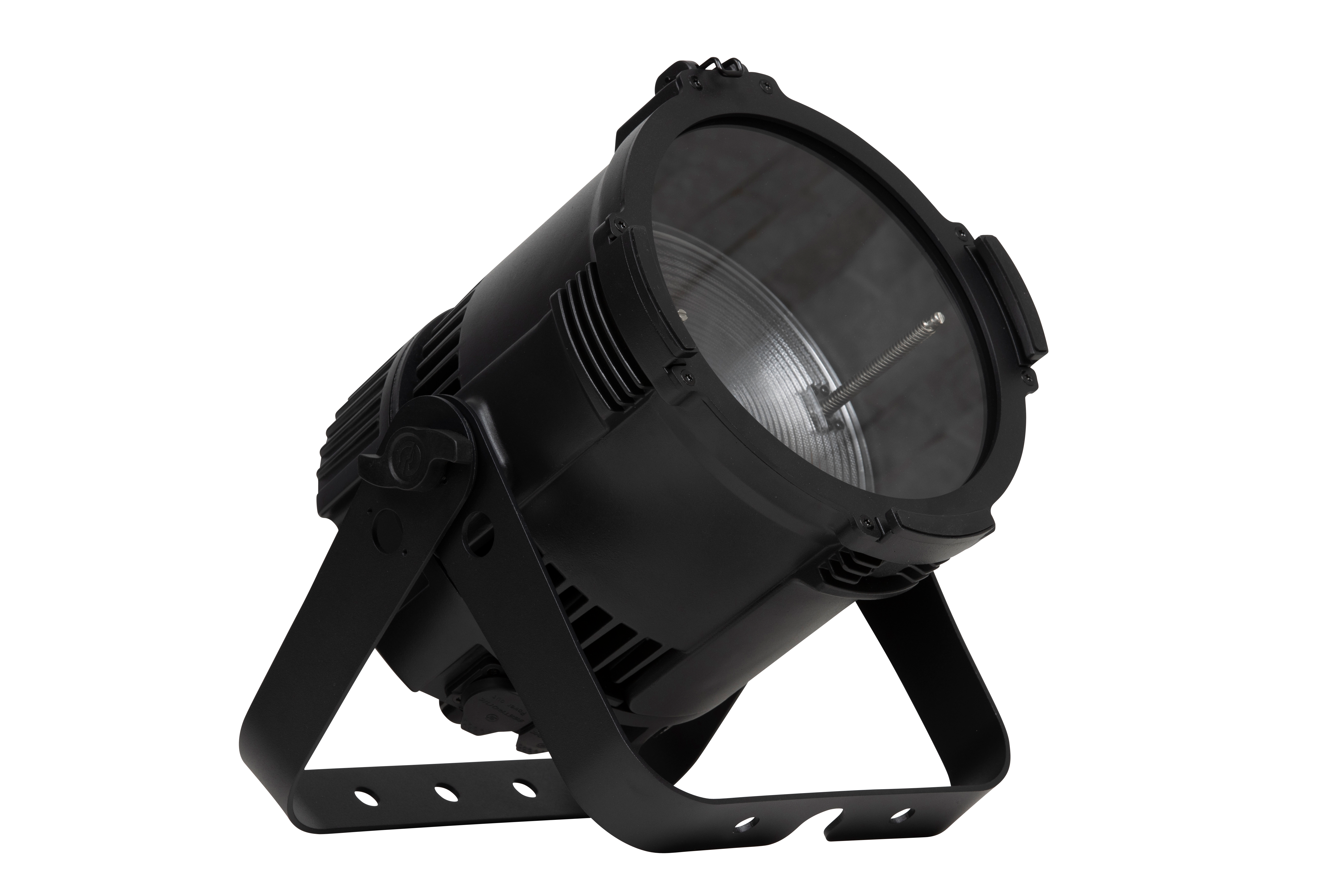

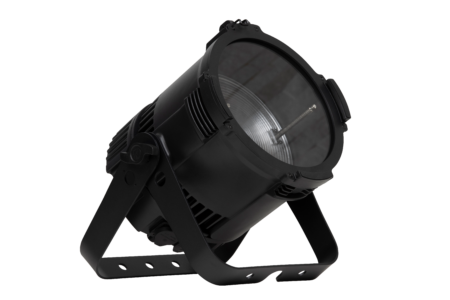

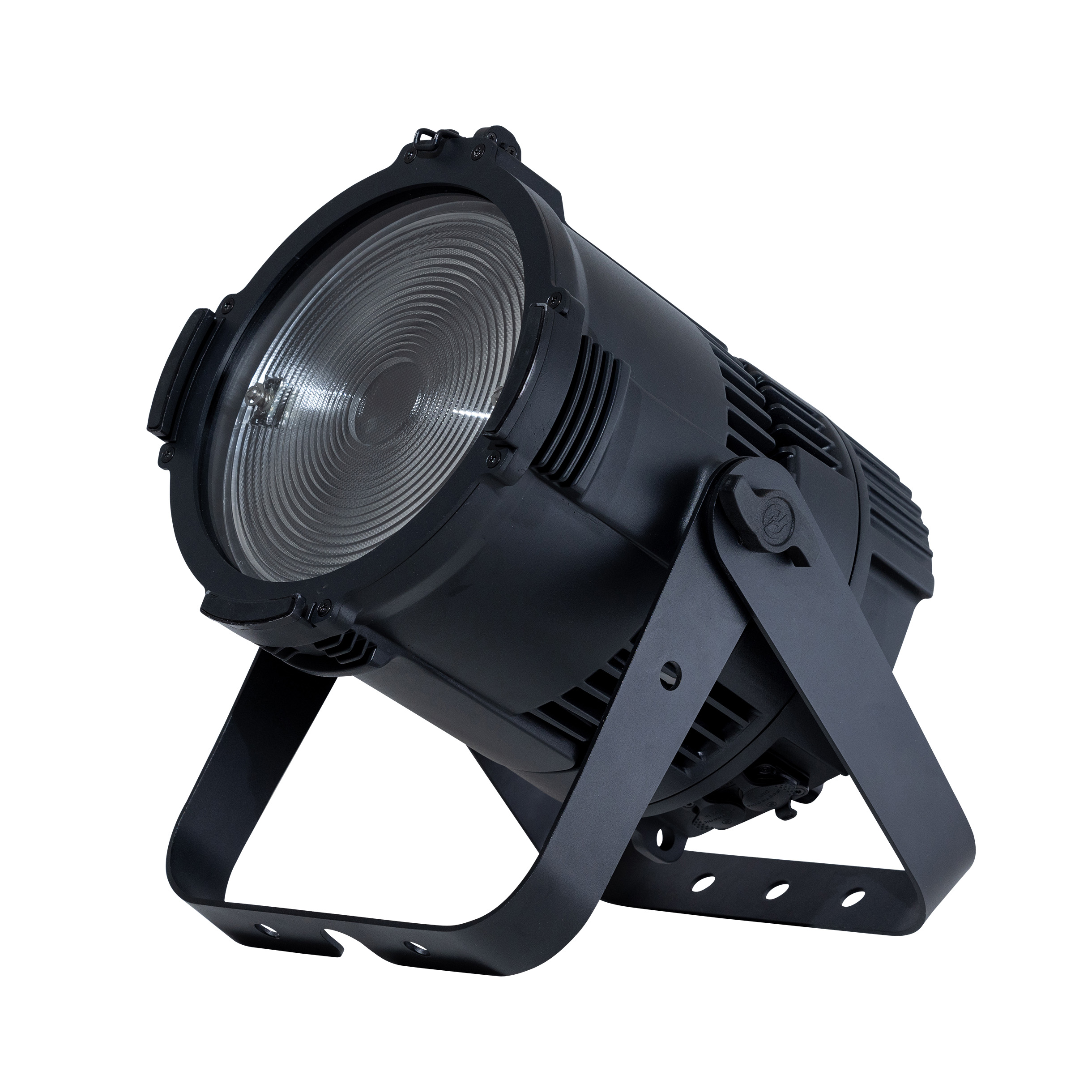

The FUSION X-Par 12 Z is a state-of-the-art LED fixture in IP65 design, powered by a single-source RGBL LED with convection cooling.

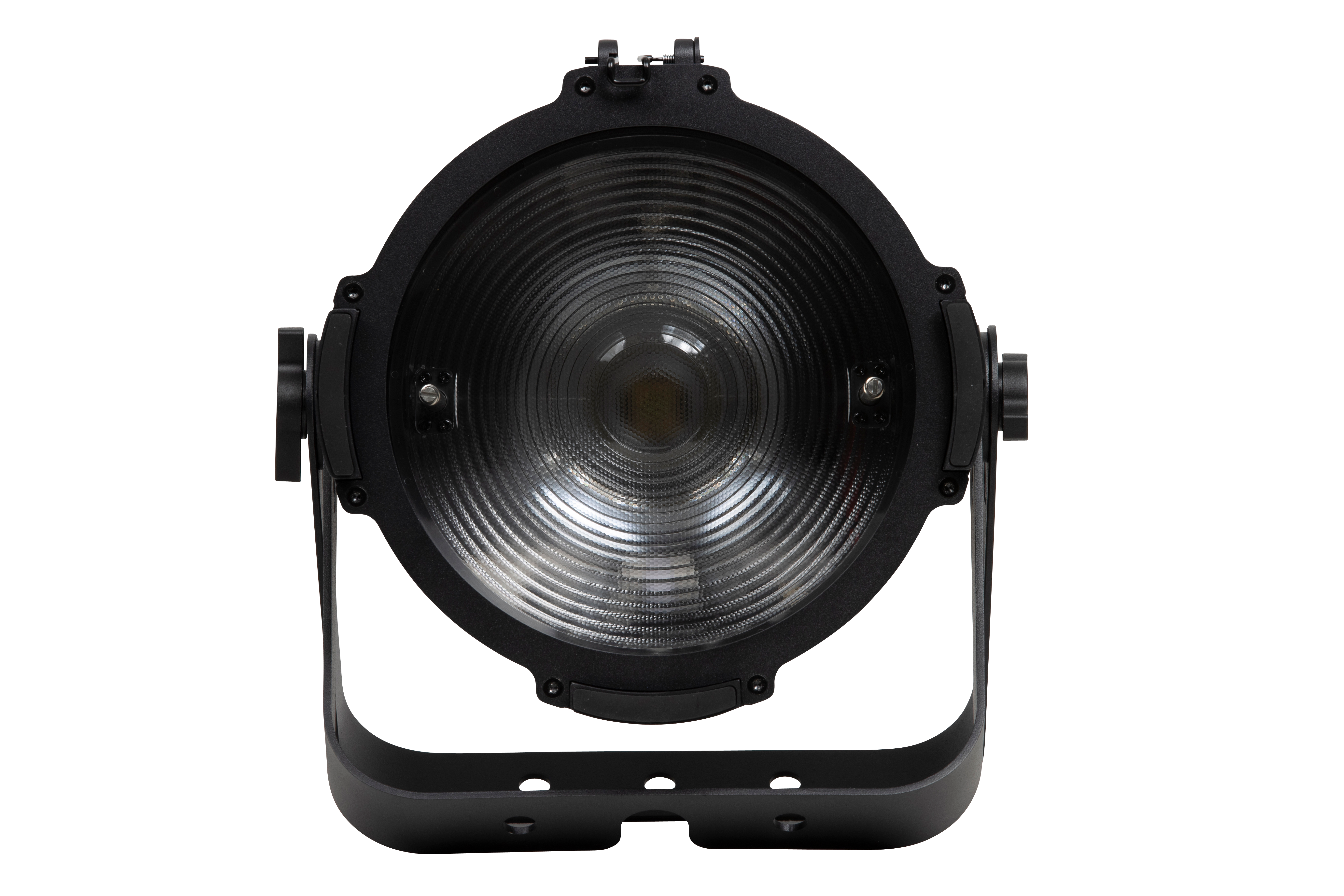

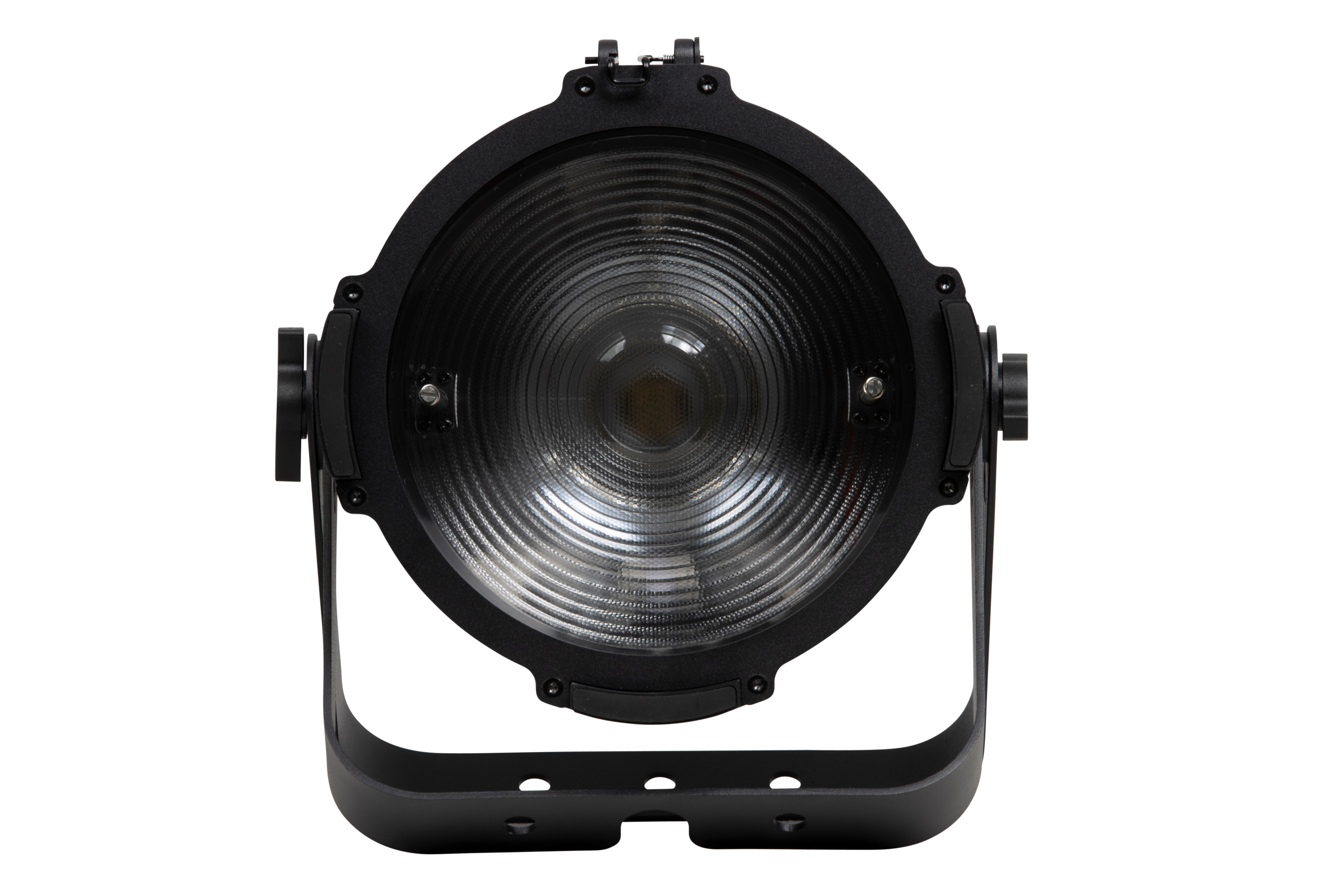

Featuring a 120 Watt RGBL light source and Fresnel optic, the fixture generates up to 2,520 lm output with a CRI 80+. The 190mm front lens provides an eye-catching light output that can be used to create powerful looks

Combined with a wide zoom range of 8° to 52°, the FUSION X-Par 12 Z is a future-proof evolution of the LED PAR light fixtures.

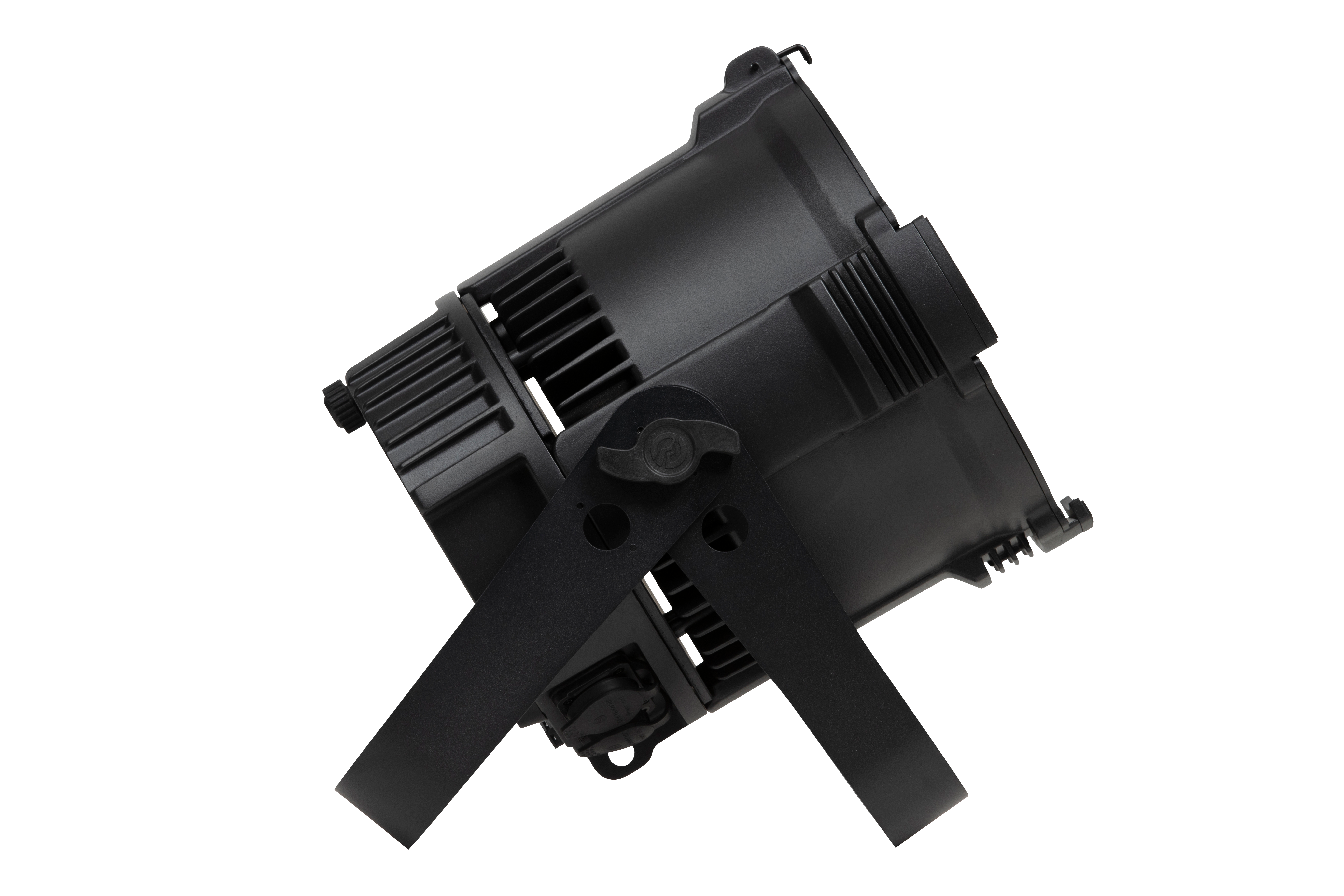

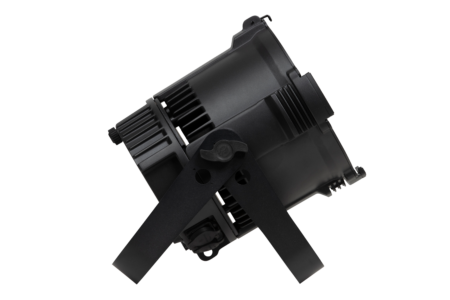

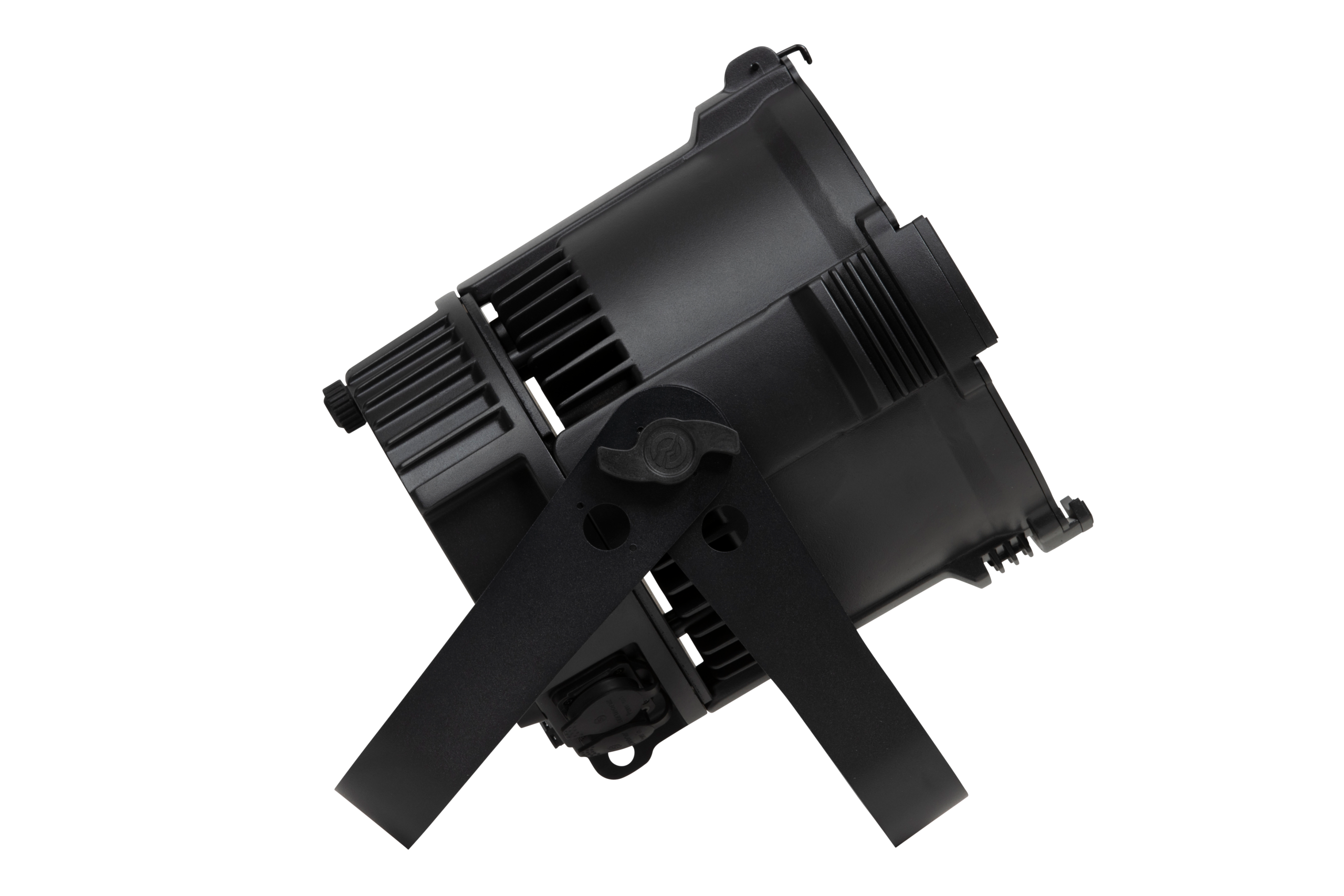

The robust aluminum housing with an IP65 design allows problem free use indoors as well as outdoors in dust, dirt, or moisture., and reducing maintenance requirements in day to day use.

A filter frame and barndoors are available options.

Contact us for more information on the X-Par 12 Z
Want to stay up to date with the latest from FUSION by GLP?
Click the link here to sign up for GLP’s mailing lists

Light Source

Type – RGBL LED
Light Source Count – 1
Light Source Power – 120 W
CRI (Ra) – 80+
TLCI – 80+

Optical System

Output – 2,520 lm
Min. Zoom – 8°
Max. Zoom – 52°
Output Lens Diameter – 7.48 in / 190 mm

Effects

Dimmer – 0-100% Electronic, 8 or 16 bit
Shutter – Electronic 1-10 Hertz
Color Wheel – Virtual, 64 Lee Filter + 4 White Presets
Zoom – Motorized
CTC Range – 2500K – 10000K

Control

Control Modes – 6
Protocol – DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20)
Setting and Addressing –
- OLED Display
- 4 Button Menu Navigation
Others –
- Stand Alone 1 captured Scene

Electrical Specifications

Power Input – 100 – 240 VAC / 50 – 60Hz
Power Supply – Auto-ranging electronic switch-mode
Power Supply Cable –
- US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft
- EU: 16 A, 1.5 mm², H05VV-F, 1.5 m
Max. Power (@230V) – 135 W

Thermal Specifications

Cooling – Convection cooling
Max. Surface Temperature (Ta = 40°C) – 194 °F / 90 °C
Total Heat Dissipation (calculated, +/-10%) – 460 BTU/hr
Temperature Range, Operating – 14 °F / -10 °C to 104 °F / 40 °C

Mounting Options

Mounting –
- 1 Double Bracket with three mounting holes,
- 1 M12 Thread, centered, for drop mount
- 1 Safety Cable attachment point
Location – Outdoor temporary
Min. Distance to Combustible Materials – 8 in / 0.2 m
Min. Distance to Illuminated Surfaces – 18.7 in / 0.5 m

Construction

Housing Color – Black
Housing Material – Aluminum
Protection Rating – IP 65
Construction Features –
- Floor standing with adjustable foot
- M12 Thread for drop mounting, low-ceiling mounting with bracket
- Holder for optional accessories (filter frame, barndoor)

Dimensions & Weight

Height – 9.65 in / 245 mm
Width – 9.65 in / 245 mm
Length – 10 in / 254 mm
Weight – 15.2 lbs. / 6.9 kg

User Manual

Fusion Oom-Par 12Z User Manual

Fusion Oom-Par 12Z Quick Start Safety Manual

DMX

Fusion Oom-Par 12Z DMX Channel Index

Illustrations

Fusion Oom-Par 12Z Vectorworks

Fixture Profiles

Fusion Oom-Par 12Z MA2

GDTF Files

For GLP GDTF fixture files, please visit the following link:
https://gdtf-share.com/user-page?name=German+Light+Products&page=fixtures

Photometrics

Fusion Oom-Par 12Z Photometrics

Firmware

XPAR 12Z V1.0.10-2023.3.3

Specifications

Fusion Oom-Par 12 Z Data Sheet
