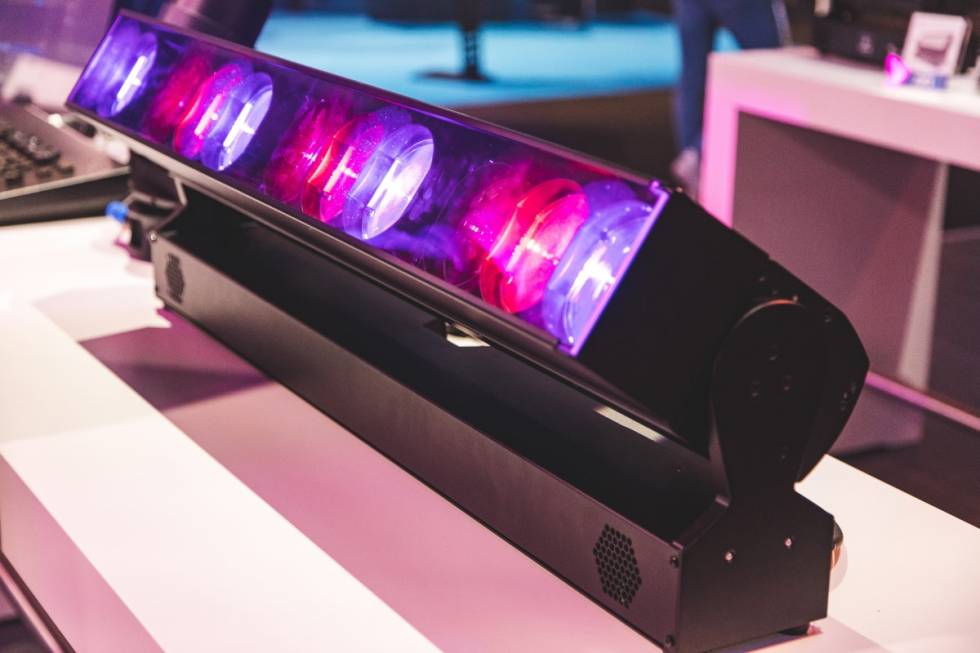

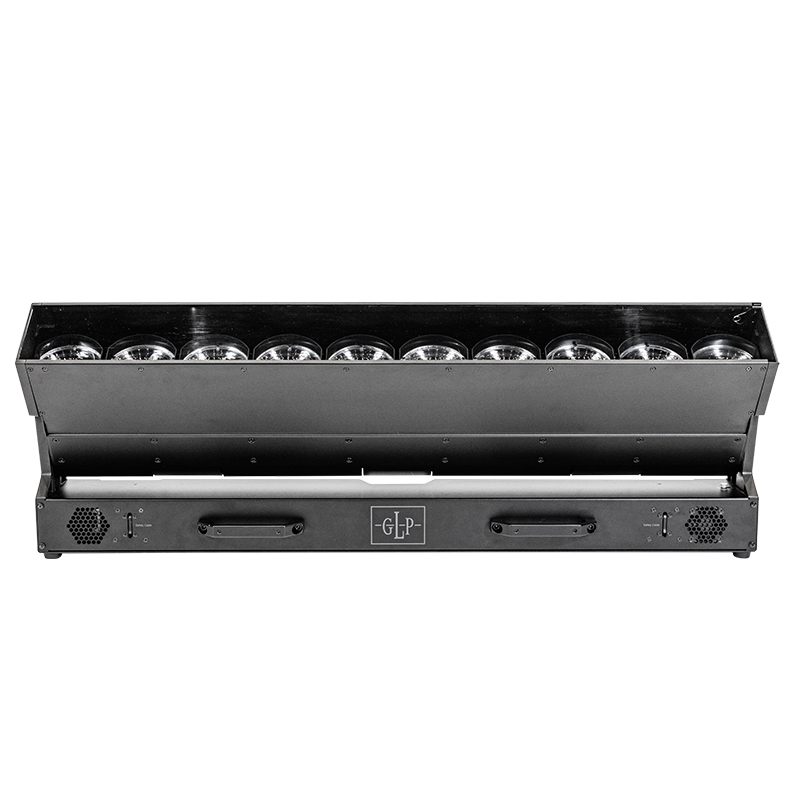

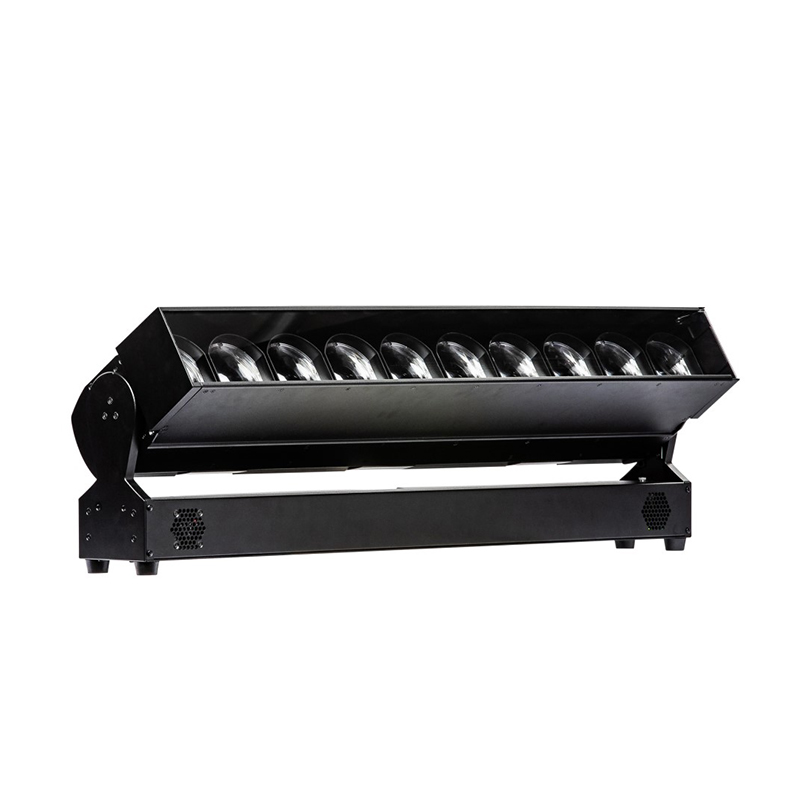

With a new optical system, the impression FR10 Bar uses a larger size output aperture, as used in the impression FR1, giving a new look from a familiar style. The impression FR10 Bar contains 10 sources, each containing a high output 60 Watt RGBW LED that color matches with the entire GLP X4 and FR series of fixtures.

Following on from the groundbreaking impression X4 Bar, GLP introduces the impression FR10 Bar, a linear format fixture that offers unrivaled output and creative control, whilst blending in with the existing X4 Bar series.

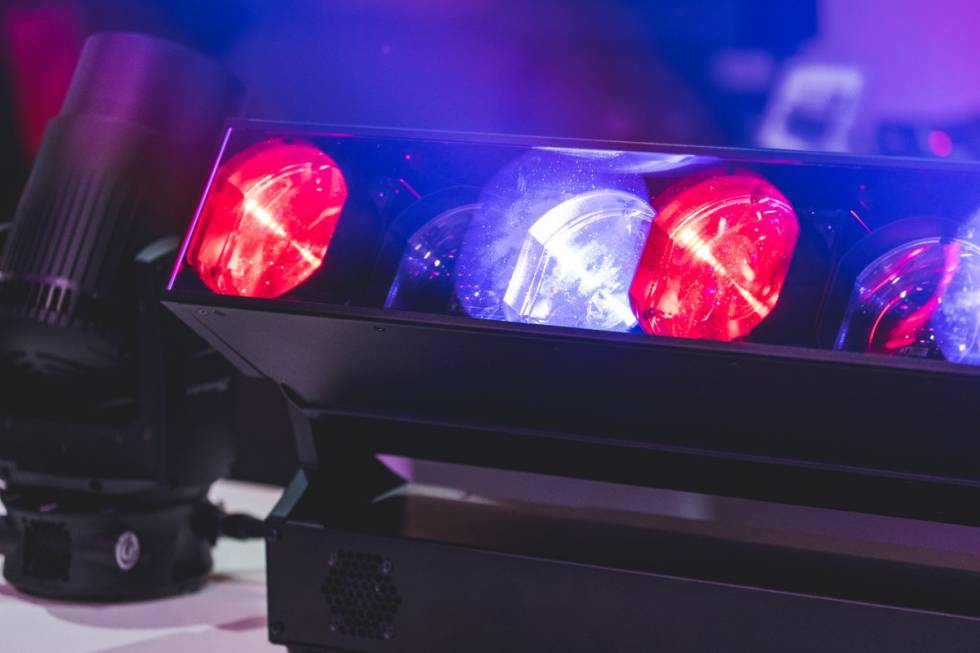

With a new optical system, the impression FR10 Bar uses a larger size output aperture, as used in the impression FR1, giving a new look to the familiar style. The FR10 Bar contains 10 sources, each containing a high output 60 Watt RGBW LED that color matches the entire impression X4 and FR series of fixtures. Each individual source features smooth, full range color mixing with strong, punchy output from a homogenized Fresnel lens. Along with individual color control, the FR10 Bar contains a series of built in color macros and a range of color filters.

The impression FR10 Bar has the incredible ability to control each zoom lens individually and independently. With a 10:1 ratio zoom range of 3.7° to 35, this functionality brings a whole new level of creativity, design possibility, and flexibility to the concept of linear lighting.

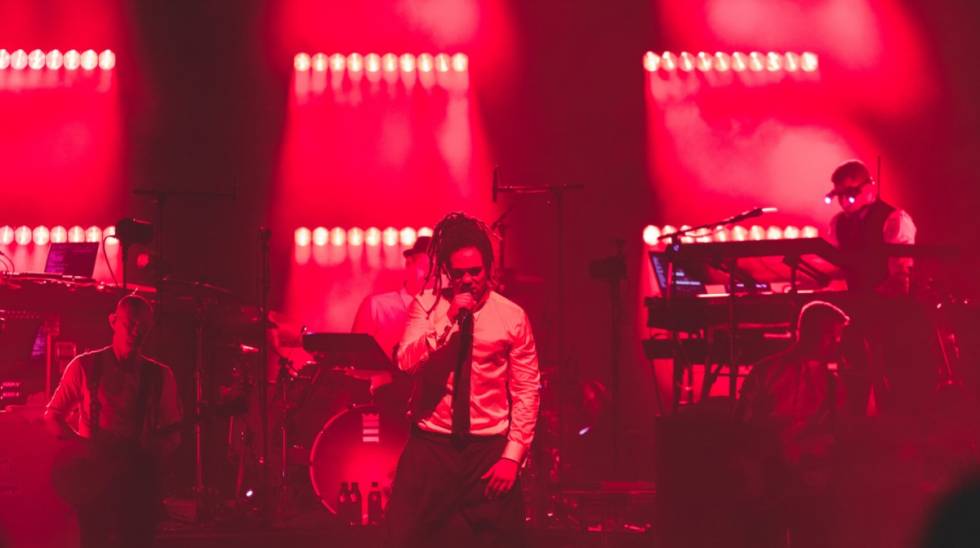

At its’ narrowest angles, the batten produces clean, seamless flat sheets of light that are incredibly dramatic and piercingly beautiful, along with arrays of pin point beams of light.

At wider angles, the impression FR10 Bar can wash areas and surfaces of stages, walls, cycloramas, and much more. The addition of individual zoom control gives huge mid-air possibilities, along with the subtlety when needed, to get clear focus control on specific performance areas, at an individual pixel level.

Utilizing the same physical construction as the popular X4 Bar 20, the FR10 Bar matches the X4 Bar 20 in length allowing the fixture to work effectively with the existing fixture. And just like the X4 Bar, the FR10 Bar features consistent pixel spacing between fixtures when using multiples connected together.

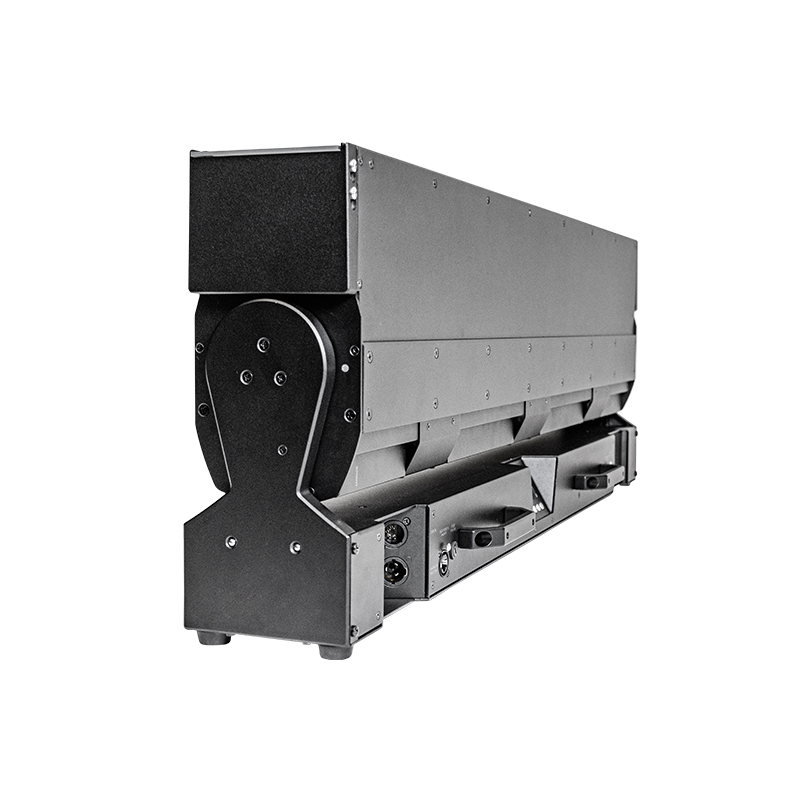

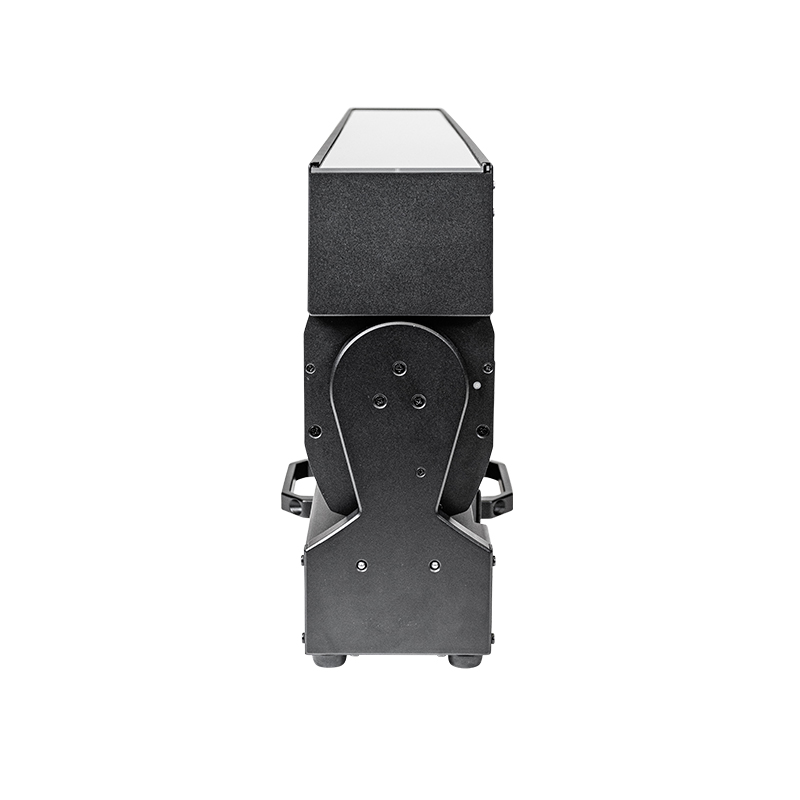

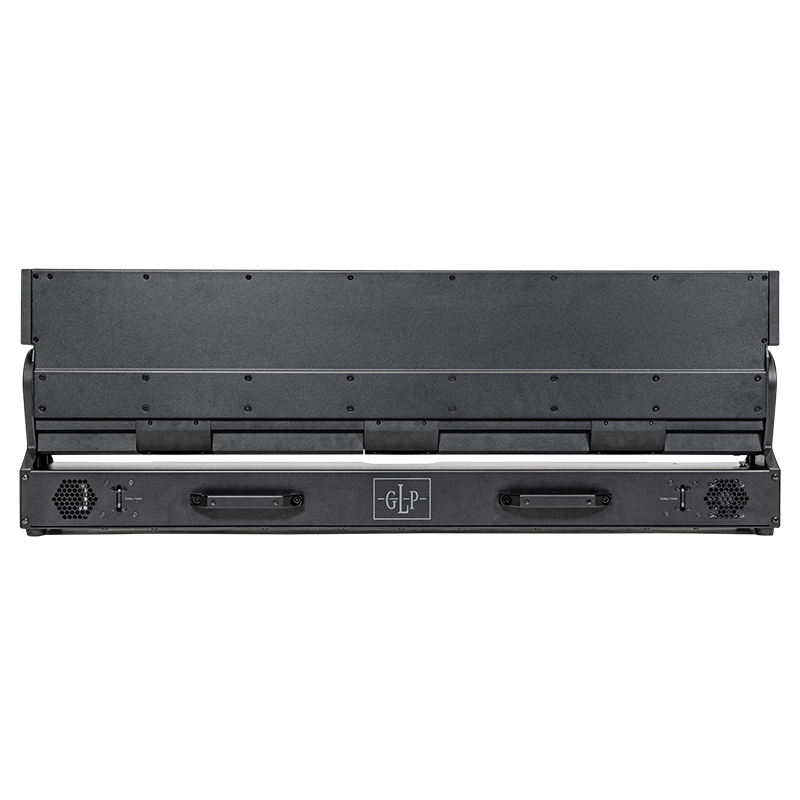

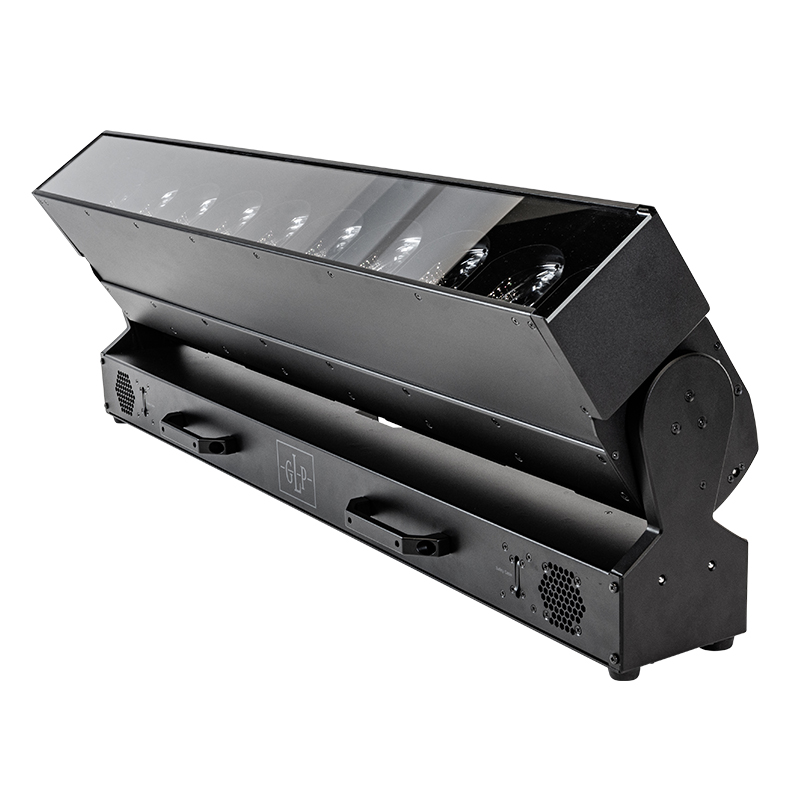

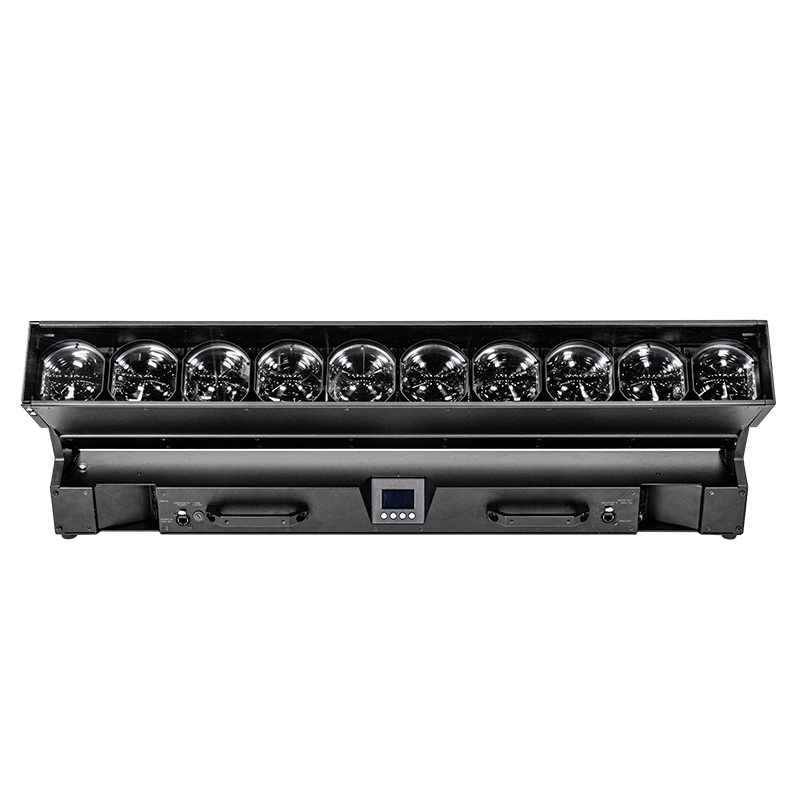

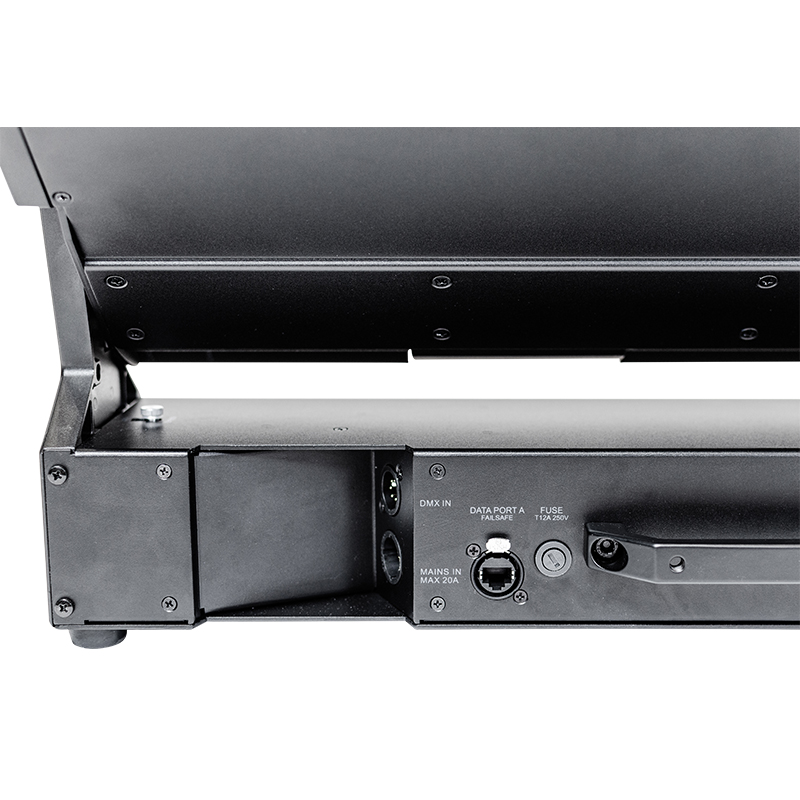

With its seamless integration, the FR10 Bar features 16 bit movement through a tilt range of 210 degrees, with integrated feedback. Power and data connectors are contained within the base of each unit for simple daisy chaining of multiple units. The FR10 can be rigged in any orientation and has in built rubber feet for floor mounting. Built in safety attachments, base handles and a tilt lock for transportation are all standard, along with a battery controlled menu system for easy fixture setup at any time.

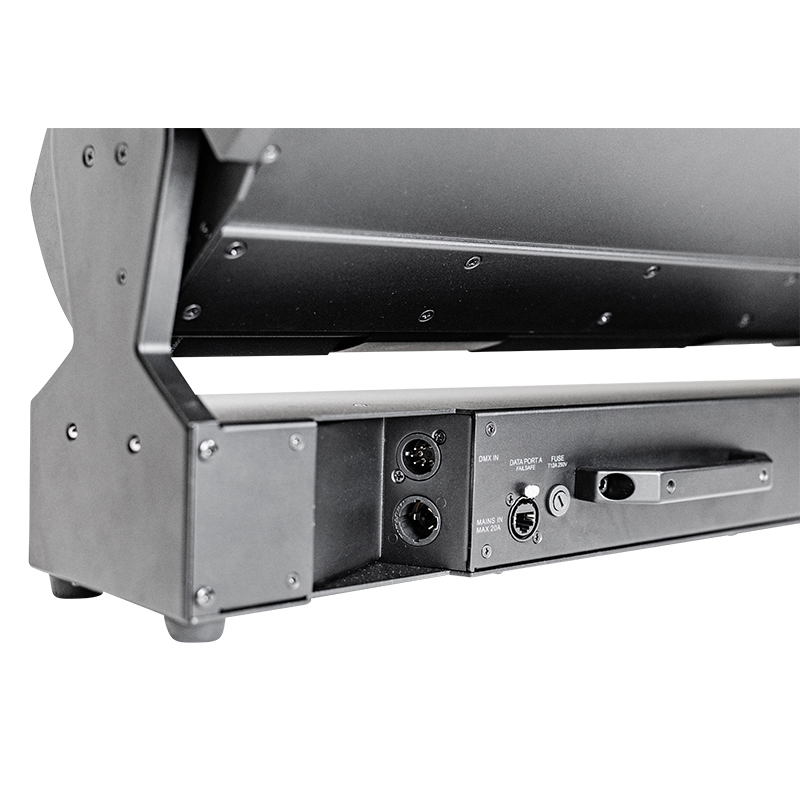

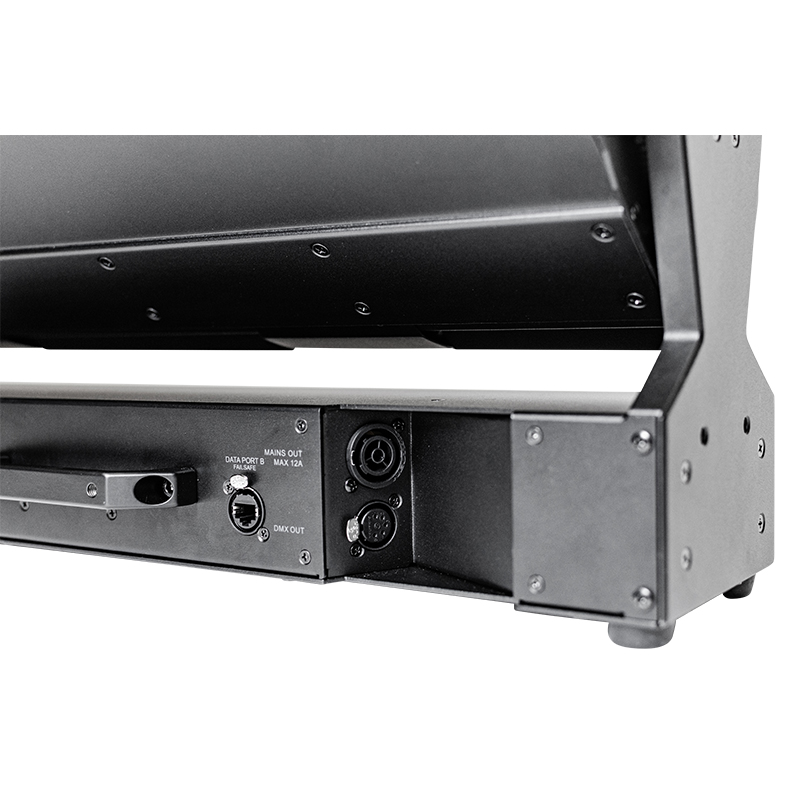

The impression FR10 is powered from a fully auto sensing power supply for use around the world and uses Neutrik powerCON True1 connectors, input and output, whilst 5 pin XLR connectors and etherCON support sACN, Artnet, DMX and RDM protocols.

While maintaining perfect backwards compatibility, the impression FR10 Bar gives designers more flexibility than ever before, and takes linear lighting to the next level.



Contact us for more information on the impression FR10
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

Light Sources

  • 10x 60 W, RGBW LEDs
  • Average service life: 50,000 hours
  • CRI (Ra): 80+
  • CQS: 80+
  • TLCI: 80+
  • TM-30Rf: 77
  • TM-30Rg: 106


  • Supports sACN, Artnet, DMX-512 and RDM protocols
  • Full pixel mapping control
  • Very quiet, temperature controlled ventilation system
  • Convection cooling option
  • Back lit graphic LCD menu
  • Battery operation of menu
  • Over temperature protection
  • Color calibration feature


  • RGBW color mixing
  • Variable CTC 2500 Kelvin-10,000 Kelvin
  • Continuous dimmer 0-100%
  • Electronic shutter
  • Variable speed strobe between 1-10 flashes per second
  • Random strobe effect
  • Pulse effects
  • Virtual color wheel with 15 colors and random effects


  • XLR 5 pin (in and thru)
  • etherCON (in and thru)
  • Mains: Neutrik True1 (in and thru)

Power Supply

  • Auto ranging power supply
  • 100-240 VAC / 50-60 Hz


Operating Conditions

  • Maximum ambient temperature: 113°F (45°C)
  • Minimum ambient temperature: 40°F (5°C)


Mounting Options

  • Omega bracket (X4 Bar 20 style) attachments mount directly to rear of fixture
  • Attachment points for safety wire
  • Built-in rubber feet for floor mounting

Optical System

  • Motorized zoom system with 3.7° to 35° light distribution angle
  • Zoom Ratio: 10:1
  • Output: 8,000 lumens
  • Variable PWM up to 25 kHz for flicker free operation


  • 16 bit resolution, 210° motorized tilt
  • Position feedback


  • Cardboard box
  • 3-way tour pack complete with omega brackets and flight case

Housing Colors

  • Standard color is black
  • For other colors please contact sales department


(L x W x H): head vertical

  • 7.7 in. x 39.4 in. x 13.3 in. (19.6 cm x 100 cm x 33.9 cm)

Net Weight

  • 53 lbs. (24 kg)
