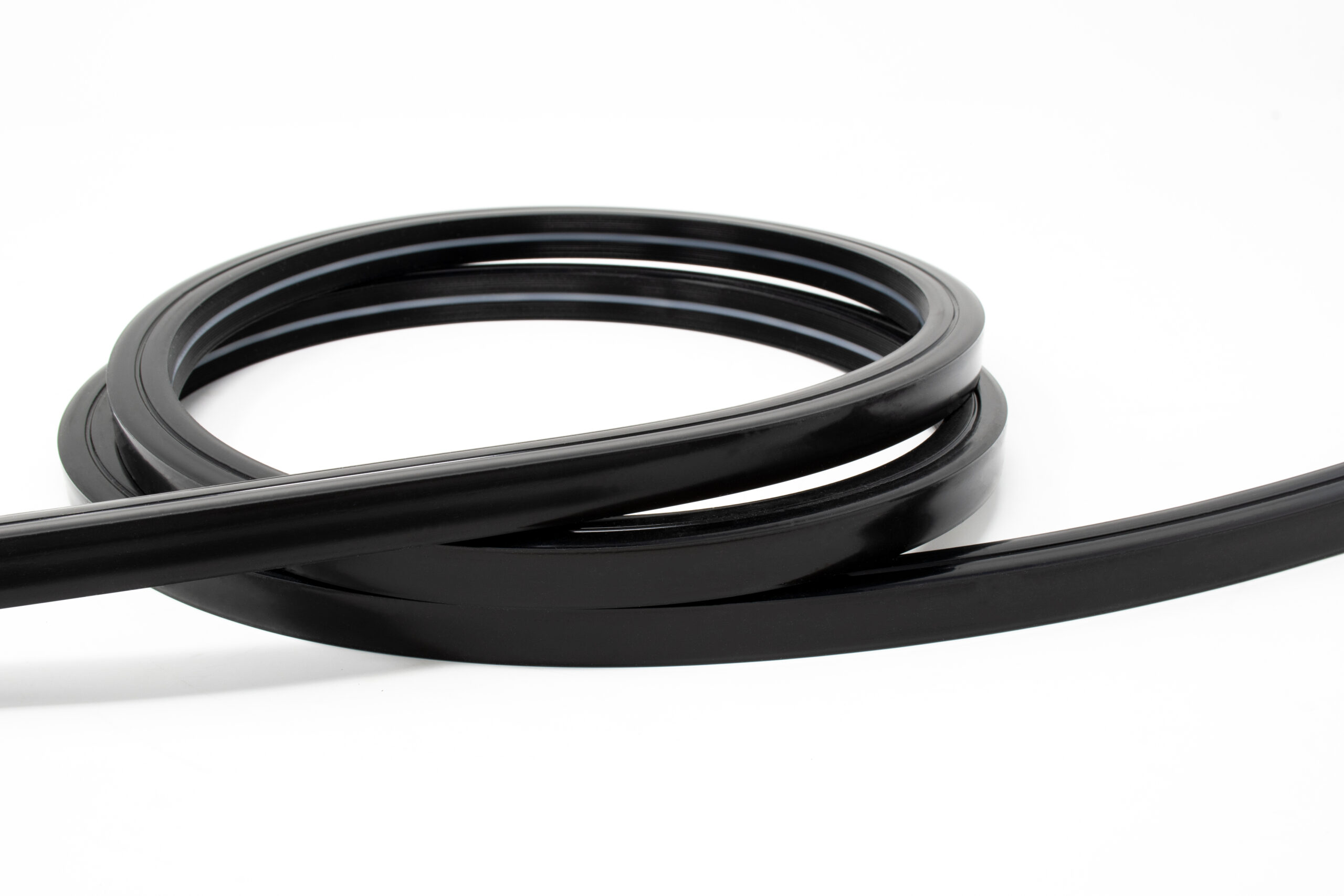

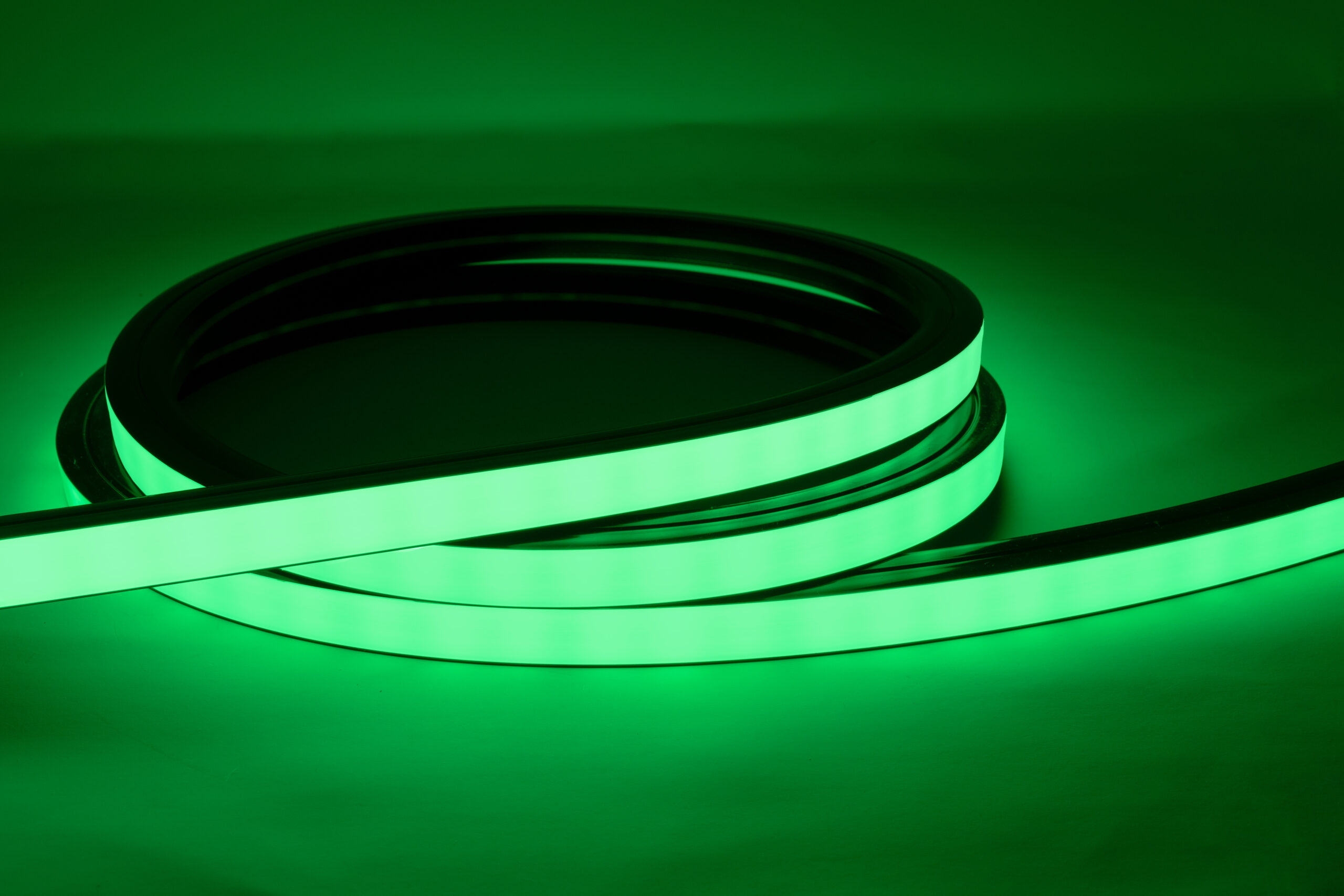

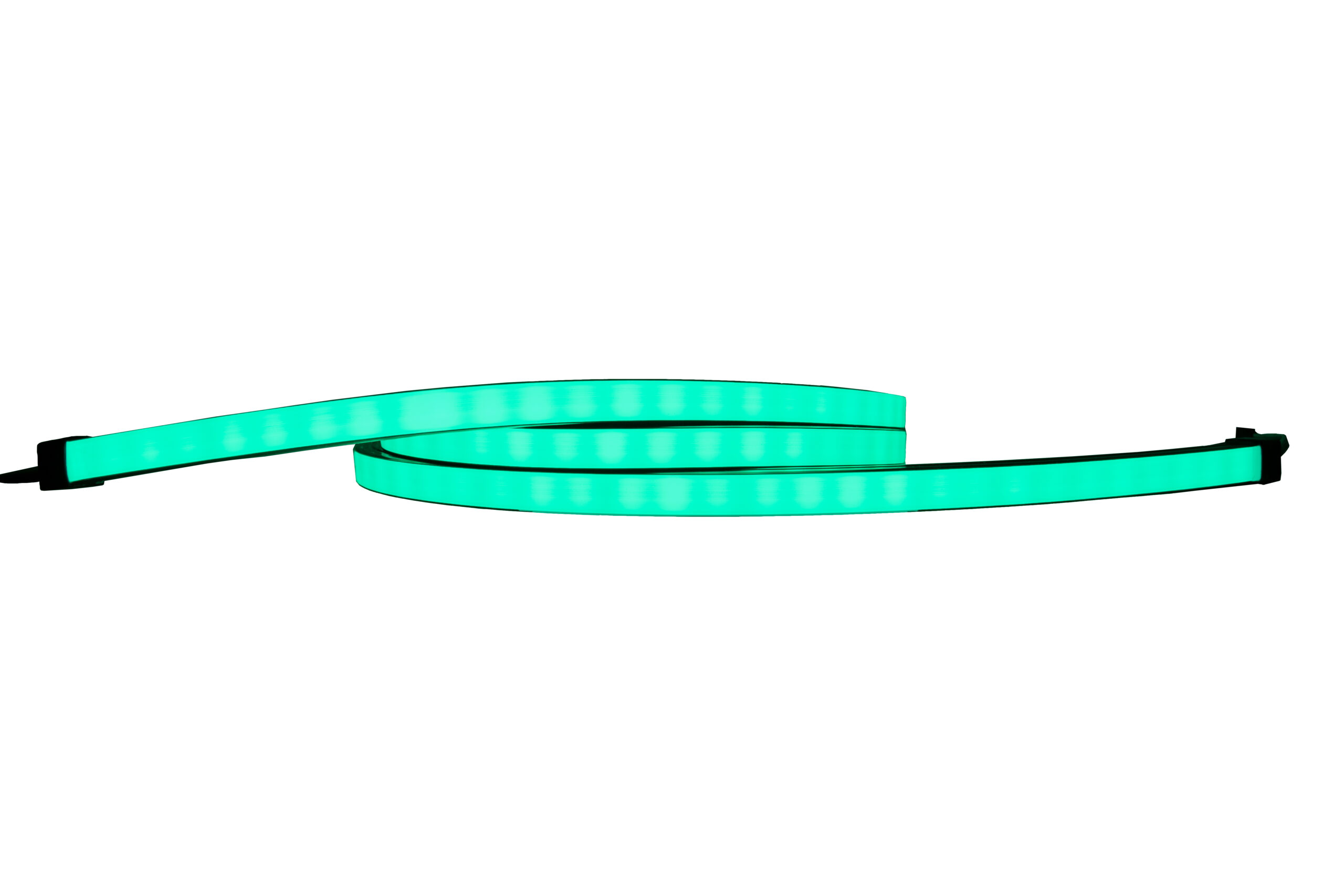

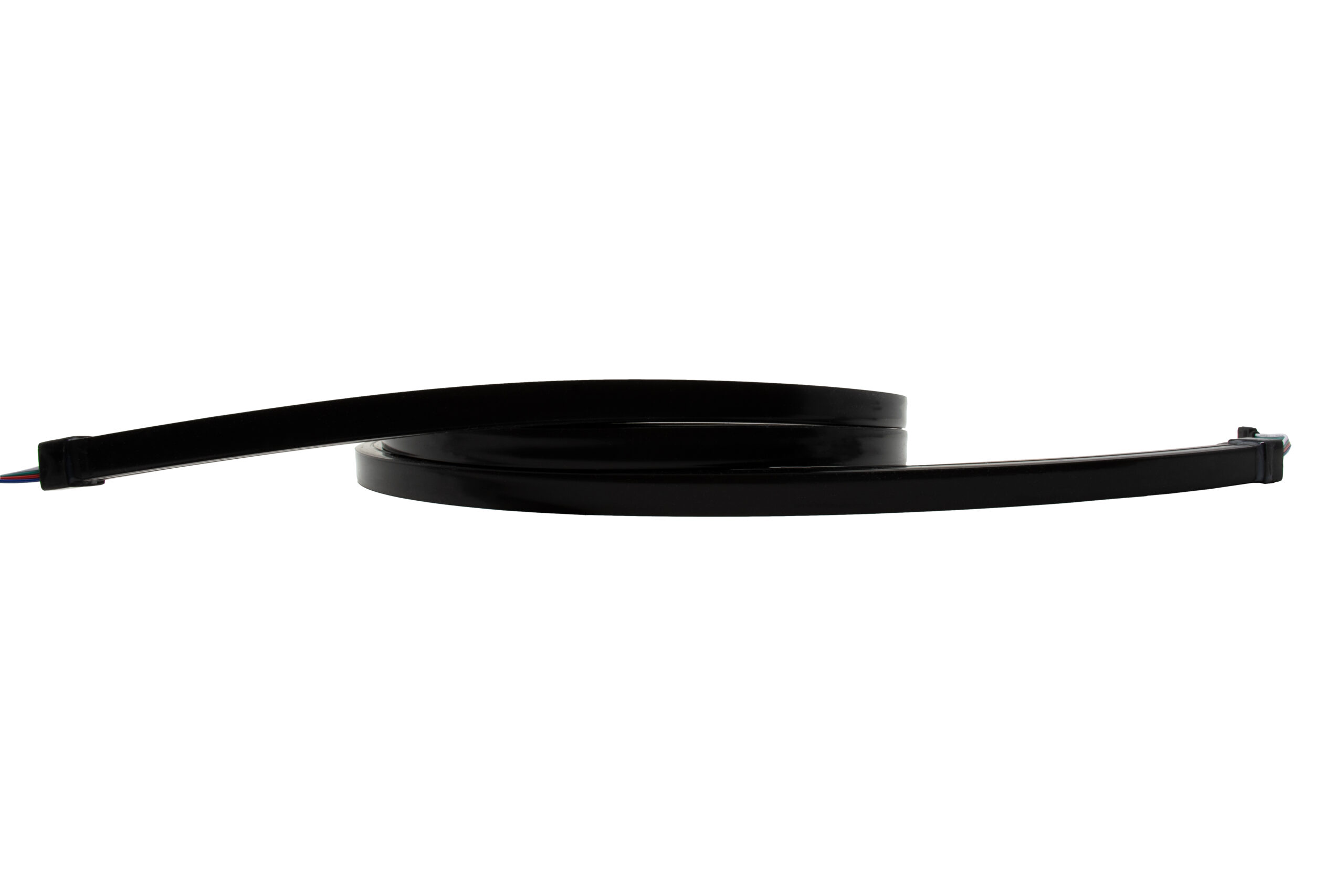

The Shadow Line series is a newly developed black housing for LED tape that appears completely invisible when turned off. Shadow Line series products come in a wide variety of LED options including single color, White variable, RGB, and RGBW, with and without individual pixel control, in a variety of different voltage options.

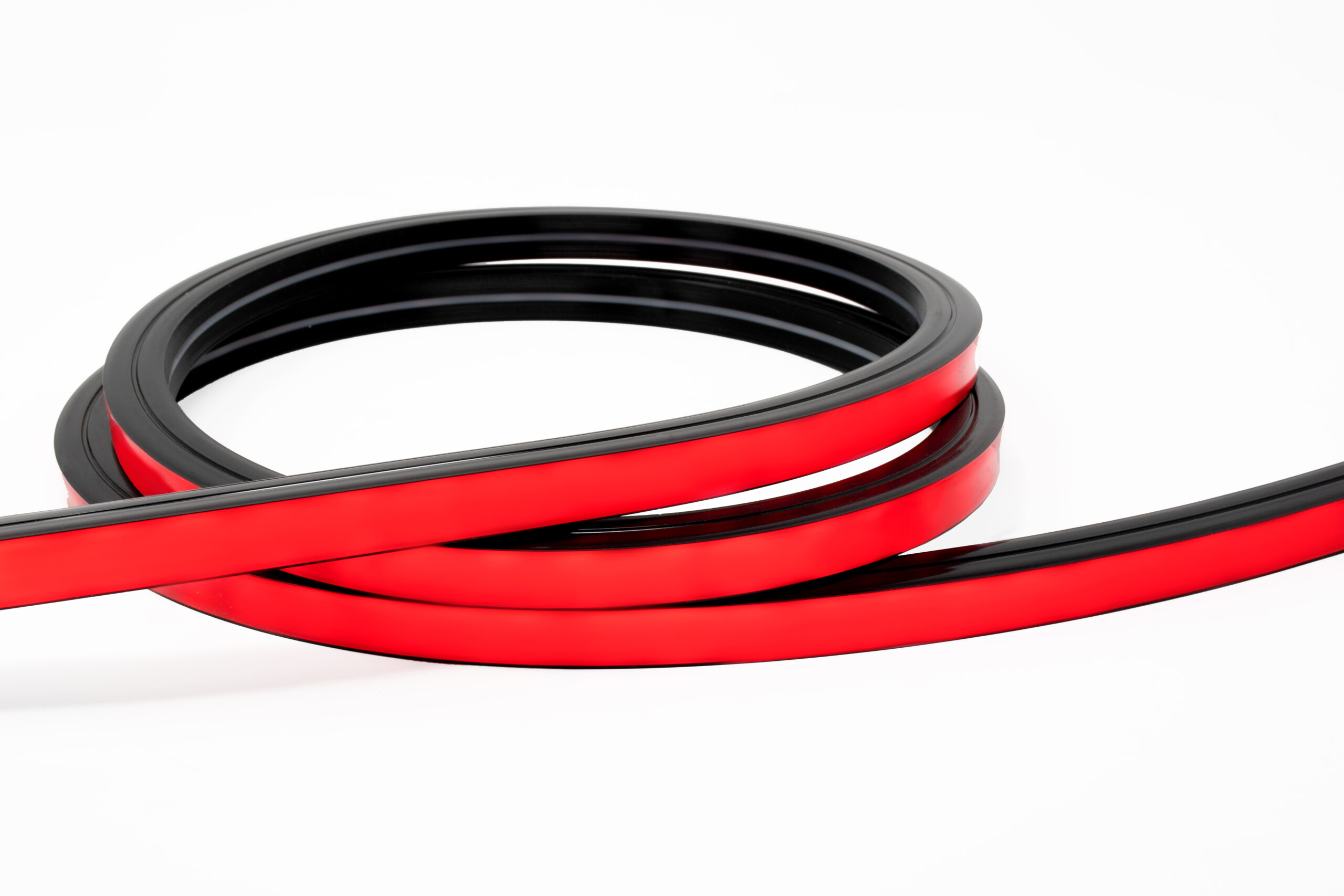

Scenex Lighting premiers a new range of flexible scenic LED solutions called Shadow Line. Incorporating a newly developed black housing for LED tape, the Shadow Line series appears completely invisible when turned off. The subtlety and innovation of the product design opens up a new world of creativity options for lighting, scenic, and production designers wanting to incorporate a clean and modern style, without the appearance of a dominant element when not being used.

Shadow Line series products come in a wide variety of LED options including single color, White variable, RGB, and RGBW, with and without individual pixel control, in a variety of different voltage options to meet all project design needs.





Contact us for more information on the Shadow Line
Want to stay up to date with the latest from Scenex?
Click the link here to sign up for Scenex’s mailing lists

Light Source

  • LED – 30/90, 60/80, 60/300 per meter
  • LED Colors – RGB, RGBW3K, RGBW4.2K, RGBW6.5K
  • Field Angle – 120°, 160°, 180°, 270°



Control

  • DMX IC Chipsets – WS2811, WS2812, TM1814
  • Connector – 3 pin JST, 4 pin JST
  • Protocols – WS2811, WS2812, SK6812, WS2813, WS2812b



Operating Conditions

  • Voltage – 5V, 12V, 24V
  • Outdoor Rating – IP65, IP 68
  • Max Temp. – 105°
  • Min Temp. – 13°

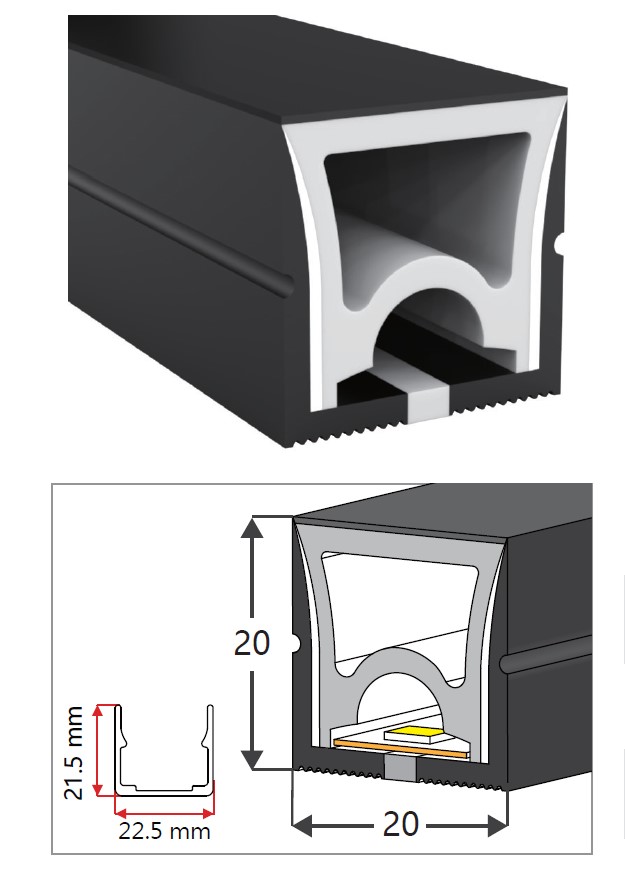

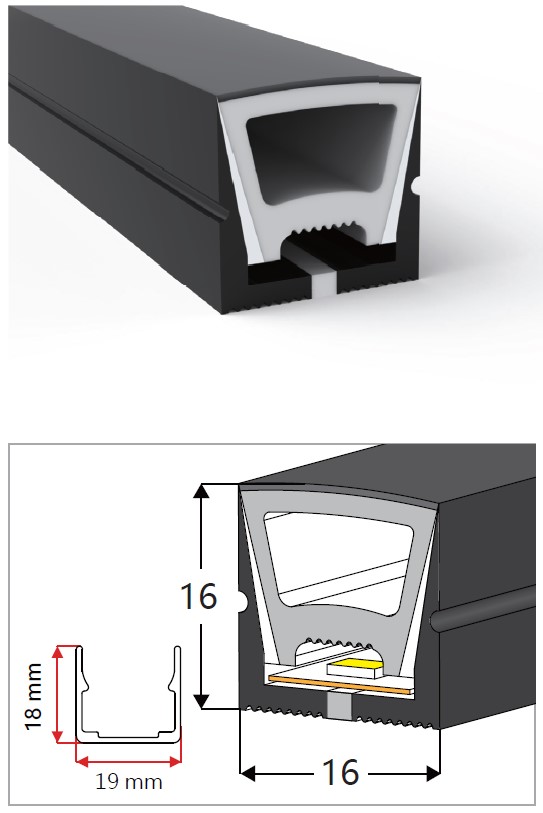

Housing

  • Black housing
  • Cutting cut lines and marks on housing after every pixel for custom lengths
  • Mounting screw mount aluminum bracket
  • Custom length by DMX universe

Data Sheet

PDFIconPDF Scenex Shadow Line
