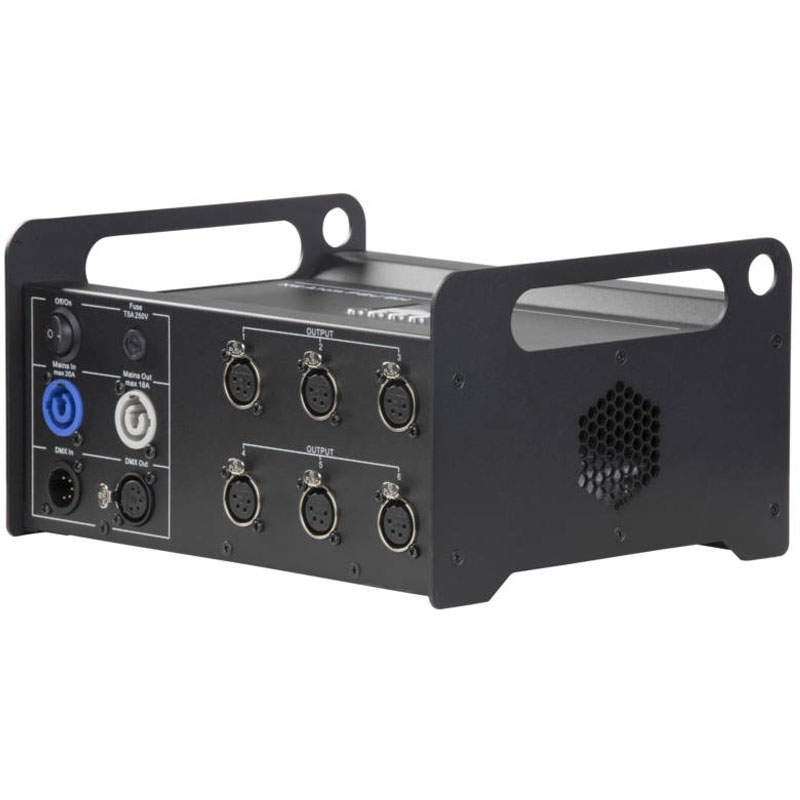

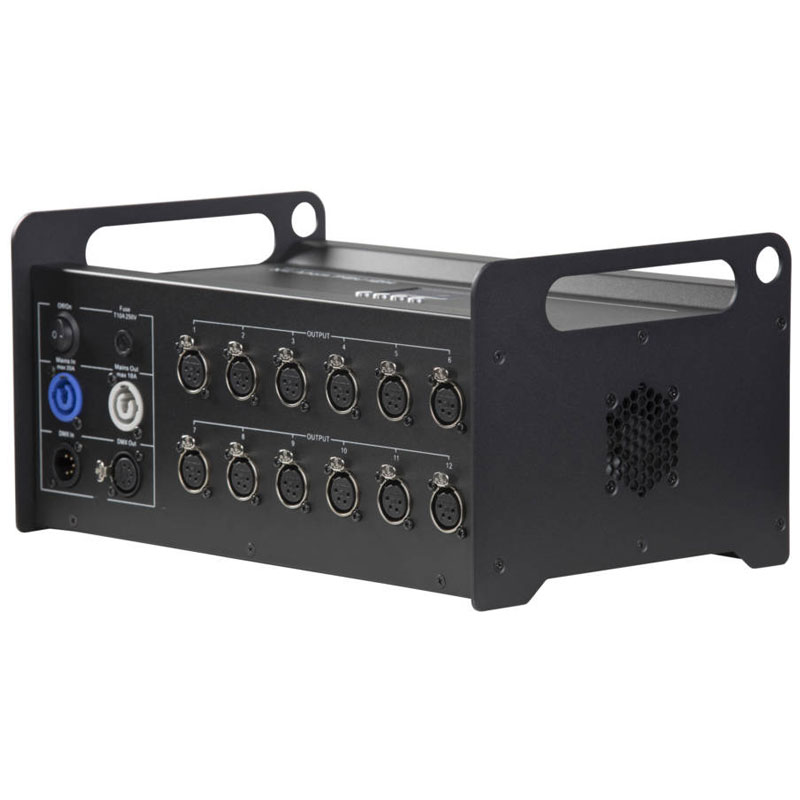

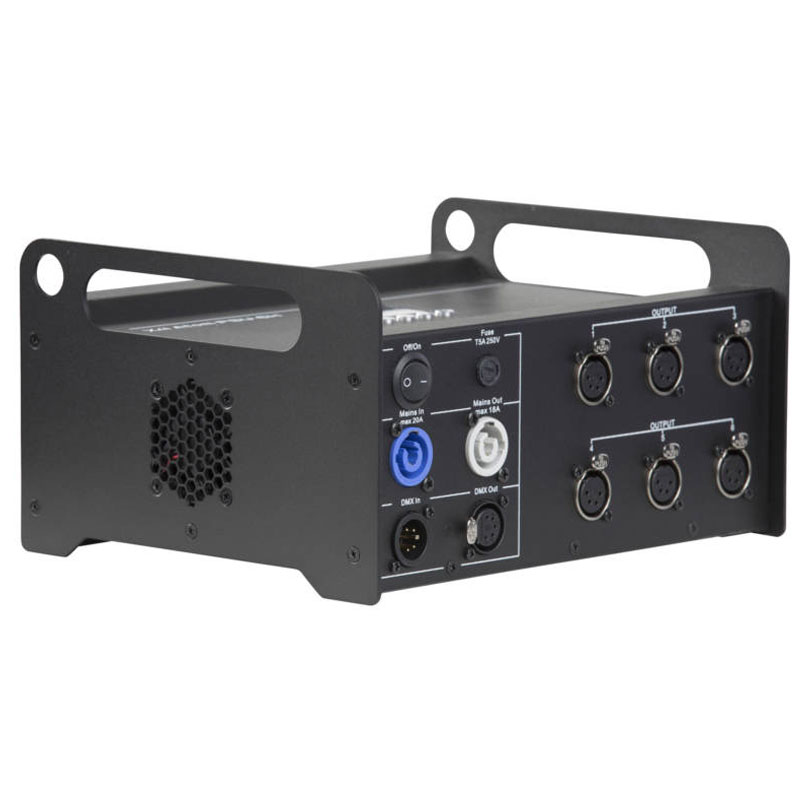

The Power Supply Units for the X4 atoms are currently available in two sizes – 6 way and 12 way. The 6 way comes in a truss mount format, whilst the 12 way PSU is available in either a truss mount or a rackmount format.

The X4 atom PSUs are built to match the versatility of the X4 atom heads themselves. Available in two sizes, a 6-way and a 12-way, both units come in a housing with the ability to be placed on any flat surface or mounted to a truss using an omega bracket. In addition, the 12 way PSU is also available in a standard 19 inch rack-mount housing.

To help ensure that weight is kept under control, the 6 way PSU weighs just 7 lbs., whilst the 12 way weighs only 11 lbs.

All PSUs are fitted with standard DMX-512  input/output XLR 5-pin connectors and have LCD menu displays with which all controls and adjustments can be made to both the PSU and the fixtures connected to it.

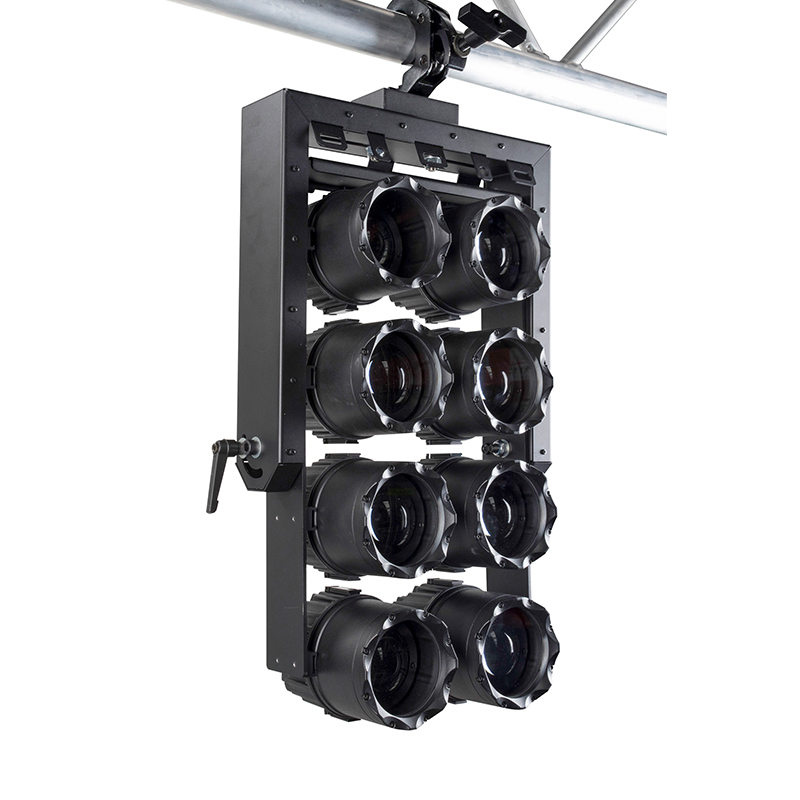

Go to the X4 atom page for more information on the fixture itself. There are also a large range of mounting options and accessories for the X4 atom series to enhance the application of fixtures.





Contact us for more information on the 6 Way & 12 Way X4 atom Power Supply Units
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

X4 atom RGBW PSU Specifications – 6 way & 12 way

Control

  • DMX-512 protocol
  • Backlit graphic LCD menu for addressing fixtures and setting other options

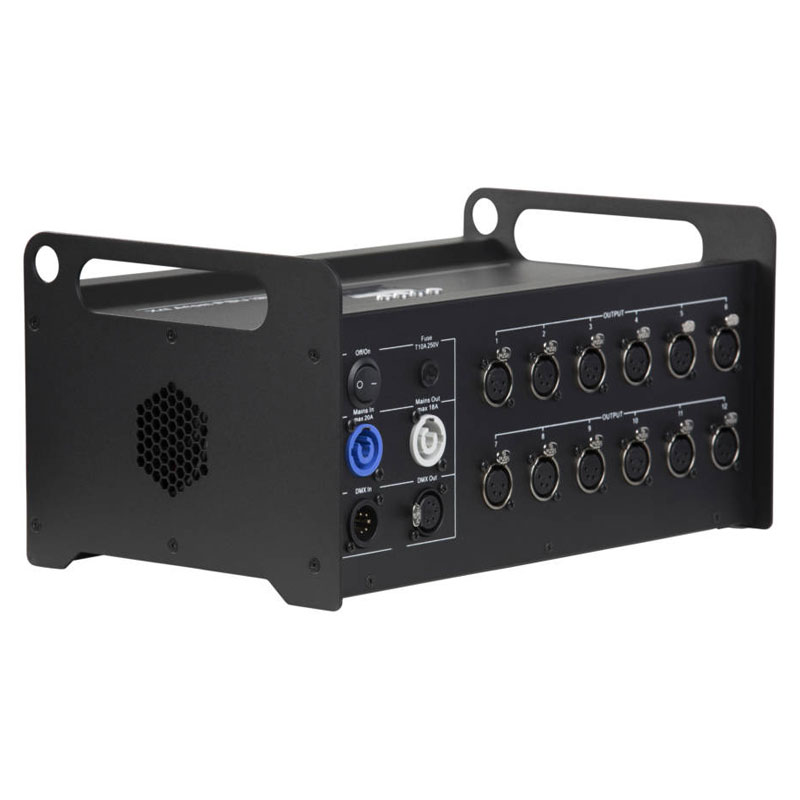

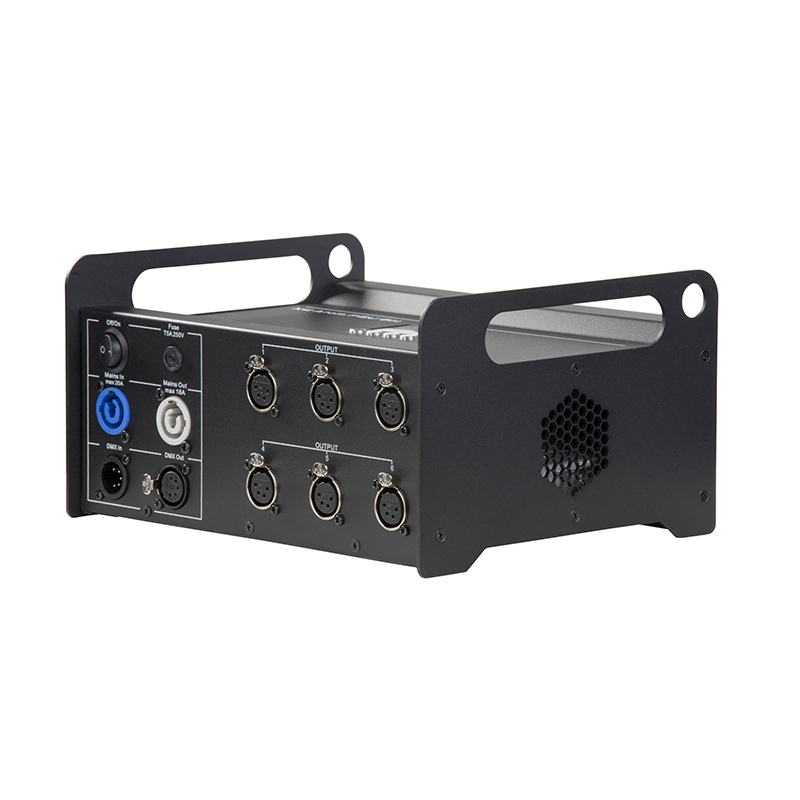

Connectors

  • Mains voltage: Neutrik PowerCon in and thru
  • DMX: XLR 5 pin
  • Atom head output:
    • PSU 6H – 6 x 4 pin XLR
    • PSU 12H – 12 x 4 pin XLR



Power Supply

  • Power input: auto sensing 90-240 V AC, 50-60 Hz
  • Power consumption: 40 VA (Watt), per X4 atom head



Operating Conditions

  • IP20 rated
  • Maximum ambient temperature: 113°F (45°C)
  •

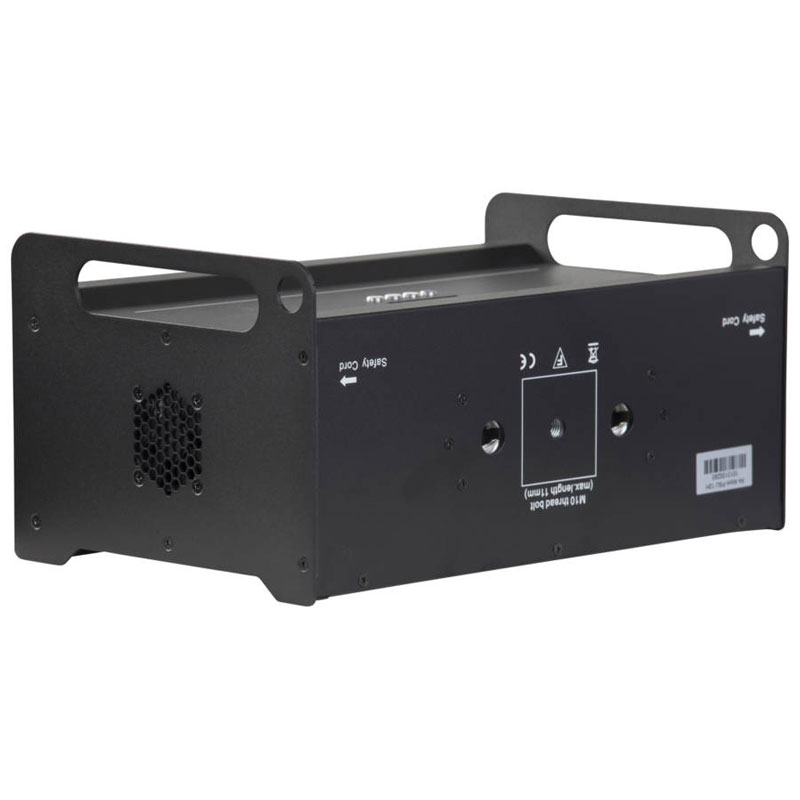

Mounting Options

  • M10 socket for direct half coupler attachment
  • Omega bracket attachment points
  • 2 attachment points for safety wire



Shipping

  • Cardboard box
  • 12-way tourpack



Housing Colors

  • Standard color is black
  • For other colors please contact sales department



Dimensions

  • (L x W x H)
    • PSU 6H:  10 in. x 8 in. x 5.5 in.  (25.4 cm x 20.3 cm x 14 cm)
    • PSU 12H:  12.75 in. x 8 in. x 6.25 in.  (32.4 cm x 20.3 cm x 16 cm)



Net Weight

  • PSU 6H – 7 lbs. (3.2 kg)
  • PSU 12H – 11 lbs. (5 kg)

Manual

PDFIcon  PDF X4 Atom Combined PSU and Head Manual v0.3

Illustrations

PDFIcon   X4 Atom PSU-6 way dimensions

PDFIcon   X4 Atom PSU-12 way dimensions

ZIPIcon X4 Atom PSU-6 Way – DWG

ZIPIcon X4 Atom PSU-12 Way – DWG

ZIPIcon X4 Atom Vectorworks

Specifications

PDFIcon  X4 Atom Specification Sheet
